Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $56.54 | $55.38 | $53.65 | $51.34 | Contact US |

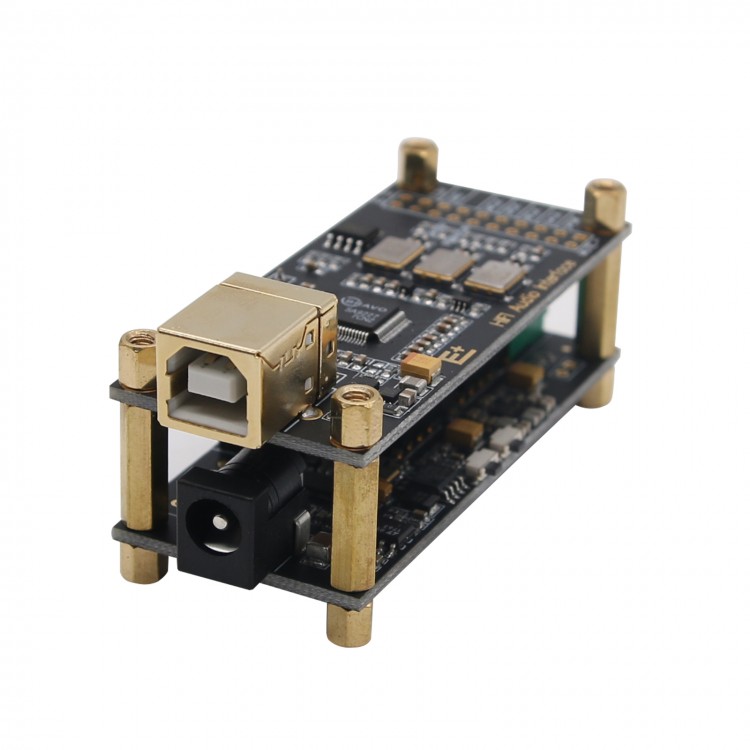

Finished Decoder Board SA9227+ES9038Q2M USB Sound Card Converter Supports DSD
Features:
- PCB is designed with double-layer gold sinking technology to ensure good current performance of large and small current.
- High quality active crystal oscillator
- With its own development process, the chip is fully optimized, signal integrity is better, and signal distortion is smaller.
- Dual operational amplifier, positive and negative power supply.
- ES9038Q2M's MCLK is an independent clock 100M, so you only need to input DATA BCK LRCK.
- Power adapter voltage conversion chipLT1763 is a micro power, low noise, low dropout regulator. It can provide 500mA output current and a 300mV differential voltage.
Specifications:
- SA9227+ES9038Q2M decoder board
- The supported sampling rate:
PCM : 16/24/32 bit 44.1/ 48/ 88.2/ 96/ 176.4/ 192/ 352.8/ 384KHz
DSD : 64/128
- Power input: USB B interface (square port) / power adapter DC 5V-9V (has been connected to USB power supply and I2S signal, it can be used even without external power supply).
- Signal input: USB B interface
- Output: 3.5MM headphone seat
- Drive link: https://pan.baidu.com/s/1QktJCTFIUK6eGAyL2L-p5Q
Package Includes:
1 x Decoder Board (standard type)
