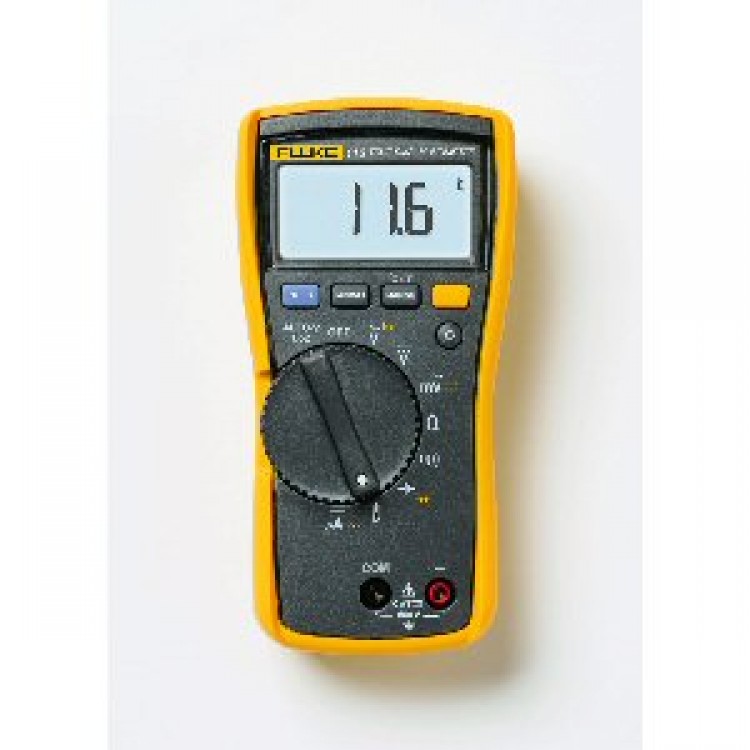

FLUKE 116 HVAC Digital Multimeter + Temperature

Availability: Out Of Stock

Price:$175.41
Price in reward points: 1754 Reward Points: 18

Quantity	3+ units	10+ units	30+ units	50+ units	More
Price /Unit	$171.90	$168.39	$163.13	$156.11	Contact US

Product details
Reviews (0)

Specifications

Specifications

Maximum voltage between any terminal and earth ground

600 V

Surge protection

6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2

Display

Digital:

6,000 counts, updates 4 per second

Bar graph

33 segments, updates 32 per second

Operating Temperature

-10 °C to + 50 °C

Storage Temperature

-40 °C to + 60 °C

Battery type

9 volt Alkaline, NEDA 1604A/ IEC 6LR61

Battery Life

400 hours typical, without backlight

Accuracy Specifications

DC millivolts

Range:	600.0 mV
Resolution:	0.1 mV
Accuracy:	± ([% of reading] + [counts]): 0.5% + 2

DC volts

Range/Resolution:	6.000 V / 0.001 V
Range/Resolution:	60.00 V / 0.01 V
Range/Resolution:	600.00 V / 0.1 V
Accuracy:	± ([% of reading] + [counts]): 0.5% + 2

Auto volts

Range:	600.0 V
Resolution:	0.1 V
Accuracy:	2.0 % + 3 (dc, 45 Hz to 500 Hz) 4.0 % + 3 (500 Hz to 1 kHz)

AC millivolts1 true-rms

Range:	600.0 mV
Resolution:	0.1 mV
Accuracy:	1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz)

AC volts1 true-rms

Range/Resolution:	6.000 V / 0.001 V
Range/Resolution:	60.00 V / 0.01 V
Range/Resolution:	600.0 V / 0.1 V
Accuracy:	1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz)

Continuity

Range:	600 Ω
Resolution:	1 Ω
Accuracy:	Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 μs or longer.

Ohms

Range/Resolution:	600.0 Ω / 0.1 Ω
Range/Resolution:	6.000 kΩ / 0.001 kΩ
Range/Resolution:	60.00 kΩ / 0.01 kΩ
Range/Resolution:	600.0 kΩ / 0.1 kΩ
Range/Resolution:	6.000 MΩ / 0.001 MΩ
Accuracy:	0.9 % + 1
Range/Resolution:	40.00 MΩ / 0.01 MΩ
Accuracy:	1.5 % + 2

Diode Test

Range/Resolution:	2.000 V / 0.001 V
Accuracy:	0.9% + 2

Capacitance

Range/Resolution:	1000 nF / 1 nF
Range/Resolution:	10.00 μF / 0.01 μF
Range/Resolution:	100.0 μF / 0.1 μF
Range/Resolution:	9999 μF / 1 μF
Range/Resolution:	100 μF to 1000 μF
Accuracy:	1.9% + 2
Range/Resolution:	> 1000 μF
Accuracy:	5% + 20%

LoZ capacitance

Range:	1 nF to 500 μF
Accuracy:	10% + 2 typical

Temperature2 (Including Type-K thermocouple )

Range/Resolution:	-40 °C to 400 °C / 0.1 °C
Accuracy:	1% + 102
Range/Resolution:	-40 °F to 752 °C / 0.2 °F
Accuracy:	1% + 182

AC μamps true-rms (45 Hz to 500 Hz)

Range/Resolution:	600.0 μA / 0.1 μA
Accuracy:	1.0% + 2

DC μamps

Range/Resolution:	600.0 μA / 0.1 μA
Accuracy:	1.0% + 2

Hz (V or A input)2

Range/Resolution:	99.99 Hz / 0.01 Hz
Range/Resolution:	999.99 Hz / 0.1 Hz
Range/Resolution:	9.999 Hz / 0.001 Hz
Range/Resolution:	50.00 Hz / 0.01 Hz
Accuracy:	0.1% + 2
