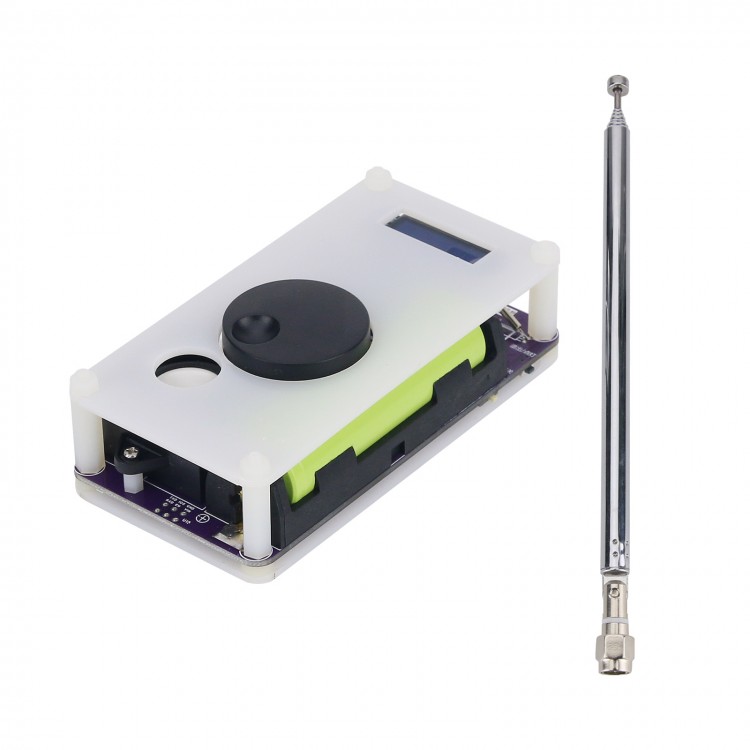

FM SW MW LW SSB Full Band Radio All Band Radio Receiver Designed with White Shell 2500mAH Battery

FM SW MW LW SSB Full Band Radio All Band Radio Receiver Designed with White Shell 2500mAH Battery

Description:
The default is the latest software. It can store 1000 radio stations, support radio favorites, automatic search of any band and any mode, real-time station selection with spectrum display, etc.

The high-sensitivity radio supports full-band SSB. It integrates features such as power bank, high-brightness adjustable lighting and rescue light, real-time weather forecast and network clock. The radio supports OTA software upgrades, ongoing maintenance and upgrade functions. It is equipped with a 2500mAH large=capacity 18650 removable battery. A 760mm/29.9" SMA telescopic antenna is included.

AM frequency band is 157KHz-30MHz, covering SW, MW, LW, USB and LSB continuously adjustable, and frequency step is 1KHz. FM frequency band 64MHz-108MHz supports stereo continuous adjustability, and frequency step is 0.01MHz.

Using a flagship high-sensitivity DSP chip, the radio supports AGC, ATT, AFC, RDS and other functions.

The radio uses a hand-held minimalist design for easy one-handed operation. One knob for all functions. The tuning knob uses an acceleration algorithm program to quickly and accurately locate the radio frequency you want.

The circuit has strong anti-interference ability. It uses a rubber-edged hi-fi cavity speaker with a sound power of 2W+ and a transparent and pleasant sound quality. Users can manually turn it off. Independent low-noise headphone amplifier circuit makes up for the lack of thrust of the radio chip, making it more suitable for headphones and speakers to listen to radio stations.

The power bank function can achieve a maximum of 2A charging and 2A discharge. Its performance is stable. The battery is designed to be detachable and replaceable, which is convenient to indirectly increase the capacity of the power bank.

The antenna and battery of the radio are designed with special protection chips.

6pcs 0.5W high-brightness LEDs are used for lighting. The brightness can be adjusted infinitely, and the maximum power is 3W. Each LED has a current-limiting protection resistor and they can emit a standard SOS signal. It can also be used as a light while users listens to the radio.

The radio supports WIFI networking. When connected to the Internet, it will automatically update weather forecast and real-time weather, and automatically synchronize the network standard time.

Software will be optimized to increase functionality and performance, and software updates will be pushed over the network to make the radio more fun.

Most of the main components of the radio can be easily disassembled to meet the needs of electronics enthusiasts, and can be disassembled for other experiments.

Features:
- Highly sensitive radio receiver
- Power bank + camping Light + SOS + weather clock
- Support full-band and SSB
- 150KHz to 30MHz
- Support OTA upgrade
- Software can be upgraded online
- It can store 1000 stations
- Select station and display spectrum
- Automatic search for SSB

Package Included:
- 1 x Radio
- 1 x SMA telescopic antenna

Note:
- It has been assembled before delivery. It is ready to use.

FAQ:
1. Does it have a headphone jack?
Yes, it is designed with a 3.5mm headphone jack. With built-in headphone amplifier chip, it supports good effect and you can listen to FM stereo.

2. Is there a speaker?
Yes, 2W hifi cavity speaker. The speaker can also be turned off.

3. Is there an antenna?
Yes. A standard 760mm/29.9" telescopic antenna with SMA connector is included.

4. Can it be connected with an external antenna?
Yes. There is a dedicated SMA female interface to connect to an external antenna, which can be equipped with an SMA male antenna or feeder.

5. What kind of battery is used?
A 18650 lithium battery is used. Ones with flat head and pointed tip can also be used. And the radio has a built-in lithium battery protection chip.

6. How to charge it?
The radio comes with a type-c charging port and can be charged by an ordinary mobile phone charger.

7. Can it save stations?
Yes. Radio favorites can save 1000 stations.

8. Is it possible to search automatically?
Yes. Any band, any mode (SSB, FM, AM) can be automatically searched and spectrum can be displayed.
