Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $31.05 | $30.41 | $29.46 | $28.20 | Contact US |

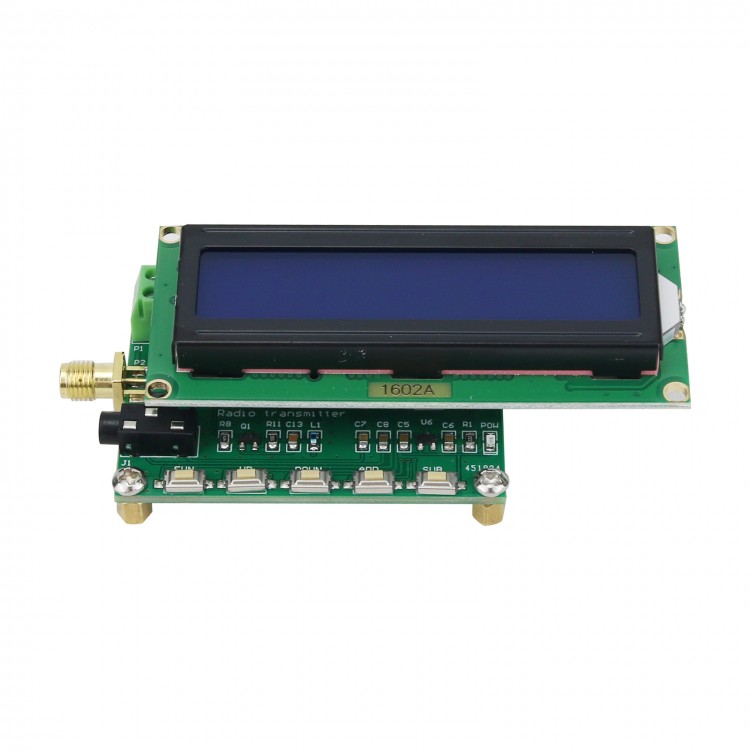

FM102 78-108MHz FM Signal Generator Small FM Stereo Transmitter RF Signal Source Easy Application
Description:
FM102 is a small signal generator, which generates 78~108MHz signals.
It is simple to use. Frequency data can be input via buttons and it immediately updates the output frequency.
Applications:
- Signal generator
- Meter calibration
Technical Parameters:
- FM signal frequency: 78~108MHz
- FM signal amplitude: 500MV
- Working voltage: 7~12 VDC
- Working current: <50 mA
- Working temperature: -40℃ to 65℃
- Storage temperature: -40℃ to 65℃
- Size: 57 x 45 x 20mm/2.2 x 1.8 x 0.8" (LxWxH)
Package Included:
- 1 x Signal Generator
Interfaces:
P1 interface (power supply): VDD: power supply + (7~12V); GND: power supply-
P2 interface: antenna output
J1 interface: Stereo input
Buttons:
FUN: Select the operation bit to set the data (long press FUN to save parameters)
UP: Previous page
DOWN: Next page
ADD: Auto-increasing button
SUB: Auto-decreasing button
