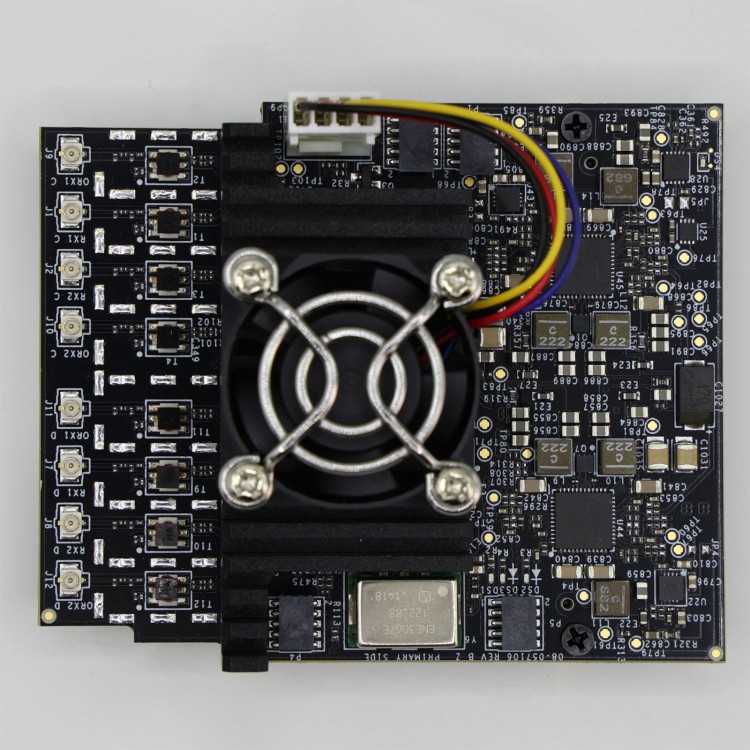

FMCOMMS8 Software Defined Radio Dual ADR9009 RF Sub Board Compatible with AD-FMCOMMS8-EZB

FMCOMMS8 Software Defined Radio Dual ADR9009 RF Sub Board Compatible with AD-FMCOMMS8-EZB

It is completely compatible with official AD-FMCOMMS8-EZB, more details:
- https://www.analog.com/cn/resources/evaluation-hardware-and-software/evaluation-boards-kits/eval-ad-fmcomms8-ebz.html

Description:
- It is an integrated RF design containing two Analog Devices ADRV9009 wideband transceivers. It complies with VITA 57.1 mechanical dimensions 84mm × 69mm, but not full compliance with keep out areas. This allows easy connection to a compatible FPGA development board that supports FMC HPC mechanical connector and JESD204B bus interface. It can be used for prototyping with up to 4 Transmit and Receive channels that can be synchronized in phase and frequency. Additionally it can be used with the ADRV9009-ZU11EG RF-SOM system allowing for 8 phase and frequency synchronized Transmit and Receive channels for complex multi-stream applications ensuring end-to-end deterministic latency.

Applications:
- 3G, 4G, and 5G TDD macrocell base stations
- TDD active antenna systems
- Massive multiple input, multiple output (MIMO)
- Phased array radar
- Electronic warfare
- Military communications
- Portable test equipment

Advantages:
- Quad transmitters
- Quad receivers
- Quad input Observation Receiver for DPD
- Max Rx BW: 200MHz
- Max Tunable Tx synthesis BW: 450MHz
- Max Observation Rx BW: 450MHz
- Tuning range: 75MHz to 6000MHz
- Fully integrated fractional-N RF synthesizers
- Multi-chip phase synchronization for all RF LO and baseband clocks
- Includes schematics, layout, BOM, HDL, for Linux drivers and application software
- Suitable for high channel density applications

Package Included:
- 1 x SDR Board
