FNIRSI-138 Pro Digital Oscilloscope 2.5MS/s 200KHz Bandwidth Standard Version without Battery
Description:

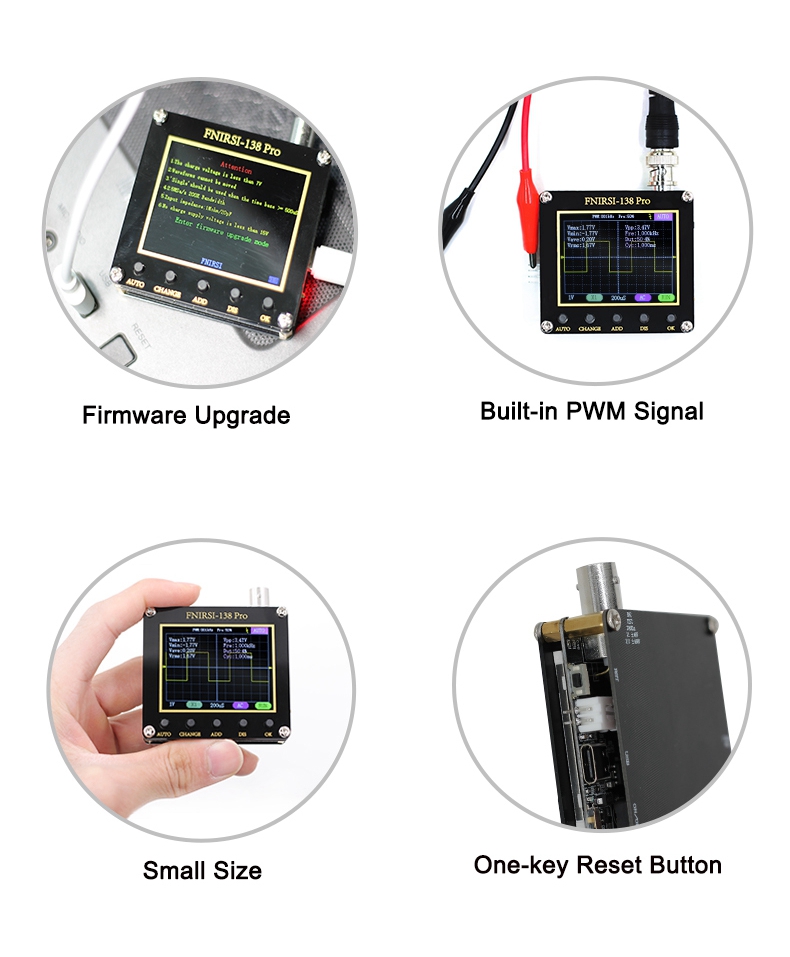

FNIRSI-138 Pro is a highly practical and cost-effective mini handheld oscilloscope, which is aimed at the maintenance industry and the R&D education industry.
The oscilloscope has a real-time sampling rate of 2.5MS/s and a 200KHz bandwidth.
Features:
- With full trigger function (single, normal, automatic)
- Works perfectly for both periodic analog signals and aperiodic digital signals
- Voltages up to ±400V can be measured
- Equipped with efficient one-key AUTO, the measured waveform can be displayed without cumbersome adjustment
- The display is equipped with a 2.4-inch high-definition LCD screen with a resolution of 320*240
Package Included:
- 1 x Oscilloscope
- 1 x Cable
- 1 x Pin Header
Note:
- Battery is not included.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
