FNIRSI DSO-TC4 Three-in-one 10MHz Oscilloscope Signal Generator Transistor Detection with 2.8-inch TFT Color Screen

FNIRSI DSO-TC4 Three-in-one 10MHz Oscilloscope Signal Generator Transistor Detection with 2.8-inch TFT Color Screen

Description:
- DSO-TC4 is a multifunctional equipment, which is comprehensive and practical, and is designed for the maintenance and R&D industries.
- DSO-TC4 is committed to providing users with powerful, flexible functions and portable operation experience, and is an ideal tool for maintenance and R&D work.

Features:
- Sampling rate: 48MSa/s
- Analog bandwidth: 10MHz
- Voltage protection: ±400V
- Waveform storage: supports screenshot saving and viewing, which is convenient for data analysis.
- Supports 13 waveform outputs, frequency range 0-50KHz, output voltage adjustable 0-3v.
- Output parameters (frequency, amplitude, duty cycle) are adjustable, flexible to meet various needs.

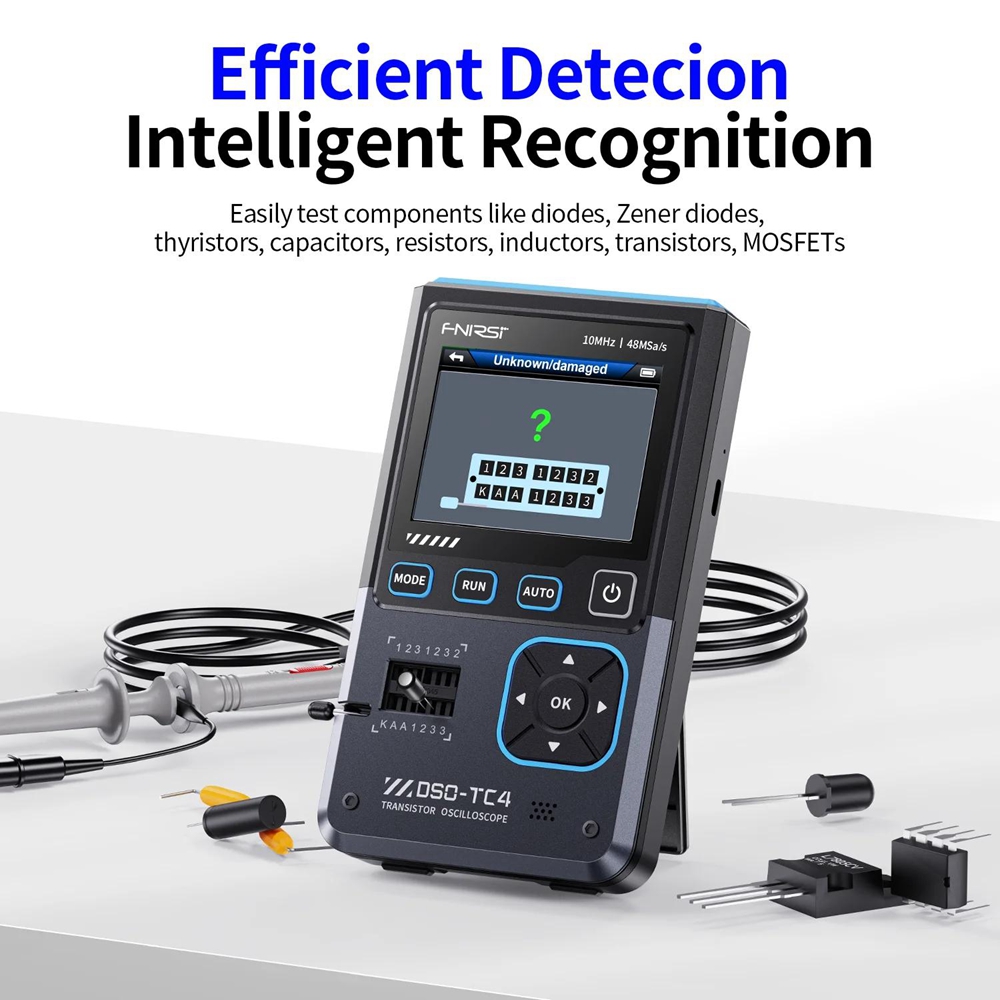

- High efficiency: automatically identify the type and pin arrangement of the tested component, simplify the operation process, and improve test efficiency.
- Diverse categories: Detect and analyze the performance and characteristics of semiconductor components such as transistors, diodes, triodes, field effect (FET), etc.
- Equipped with a 2.8-inch TFT color screen, the picture is clear and intuitive.
- Built-in high-capacity rechargeable lithium battery (1500mAh), standby time 4 hours.
- Small and light, suitable for mobile use.

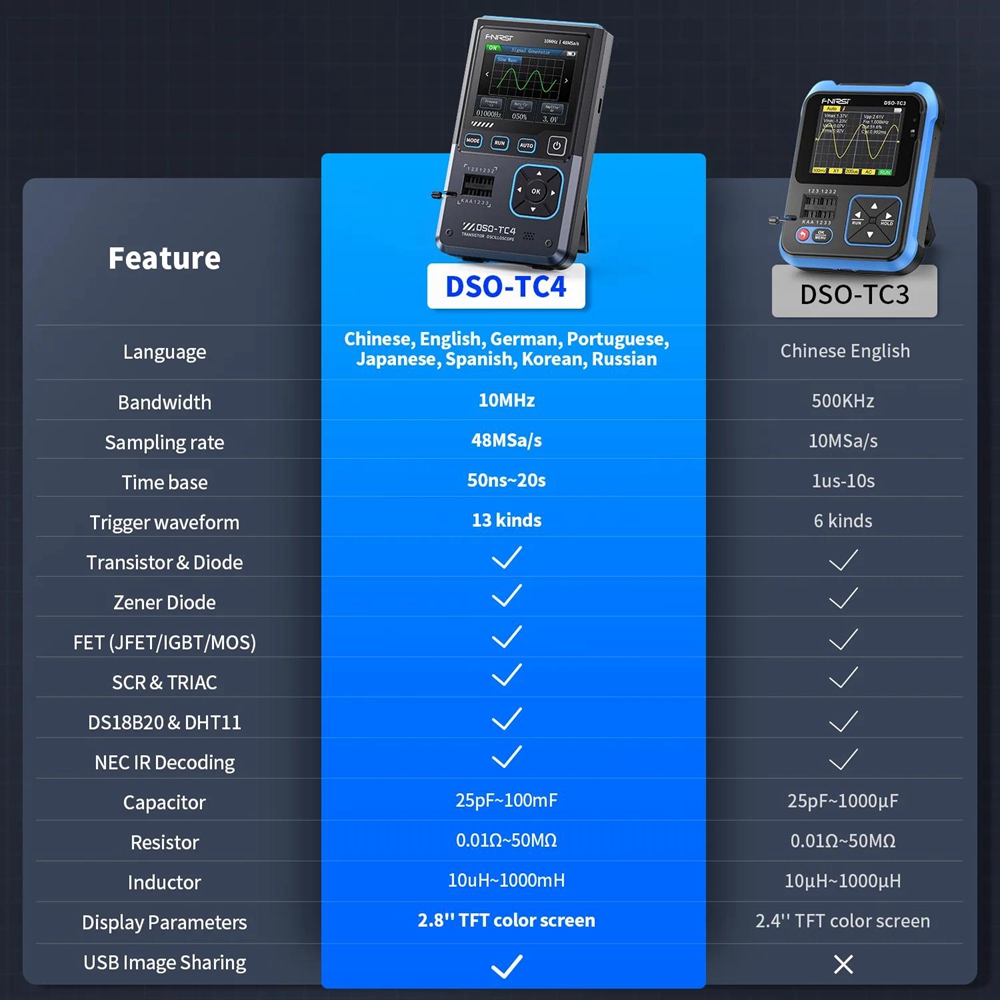

Specification:
- Model: DSO-TC4
- Screen: 2.8-inchTFT color screen
- Backlight: backlight brightness adjustable
- Power supply: Type-C (5V/1A)
- Battery: 3.7V/1500mAH
- Product size: about 90 x 142 x 27.5mm
- Net weight: about 186g

Oscilloscope Parameter:
- Real-time sampling rate: 48MSa/s
- Analog bandwidth: 10MHz
- Input impedance: 1Mohms
- Coupling method: AC/DC
- Testing voltage range: 80Vpp (+40V) for 1:1 probe; 800Vpp (+400V) for 10:1 probe
- Vertical sensitivity: 10mV/div ~ 10V/div (X1 level)
- Vertical displacement: adjustable, with indication
- Horizontal time base range: 50ns ~ 20s
- Trigger mode: rising edge, descending edge
- Trigger level: adjustable, with indication
- Waveform freeze: support (HOLD function)
- Automatic measurement: maximum value, minimum value, average value, valid value, peak value, frequency, period, duty cycle

Transistor Parameters:
- Diode: forward voltage drop < 5V
- Zener diode: 0 - 32V
- Field-effect transistor: JFET, IGBT, MIOSTET
- SCR: start voltage < 5V, gate level voltage
- Bidirectional thyristor: trigger current < 6mA
- Capacitance: 25pF ~ 1000uF
- Resistance: 0.01ohm ~ 50Mohms
- Inductance: 10uH ~ 1000uH
- DS18B20: temperature sensor; pins: GND, DQ, VDD
- DHT11: temperature and humidity sensor; pins: VDD, DATA, GND

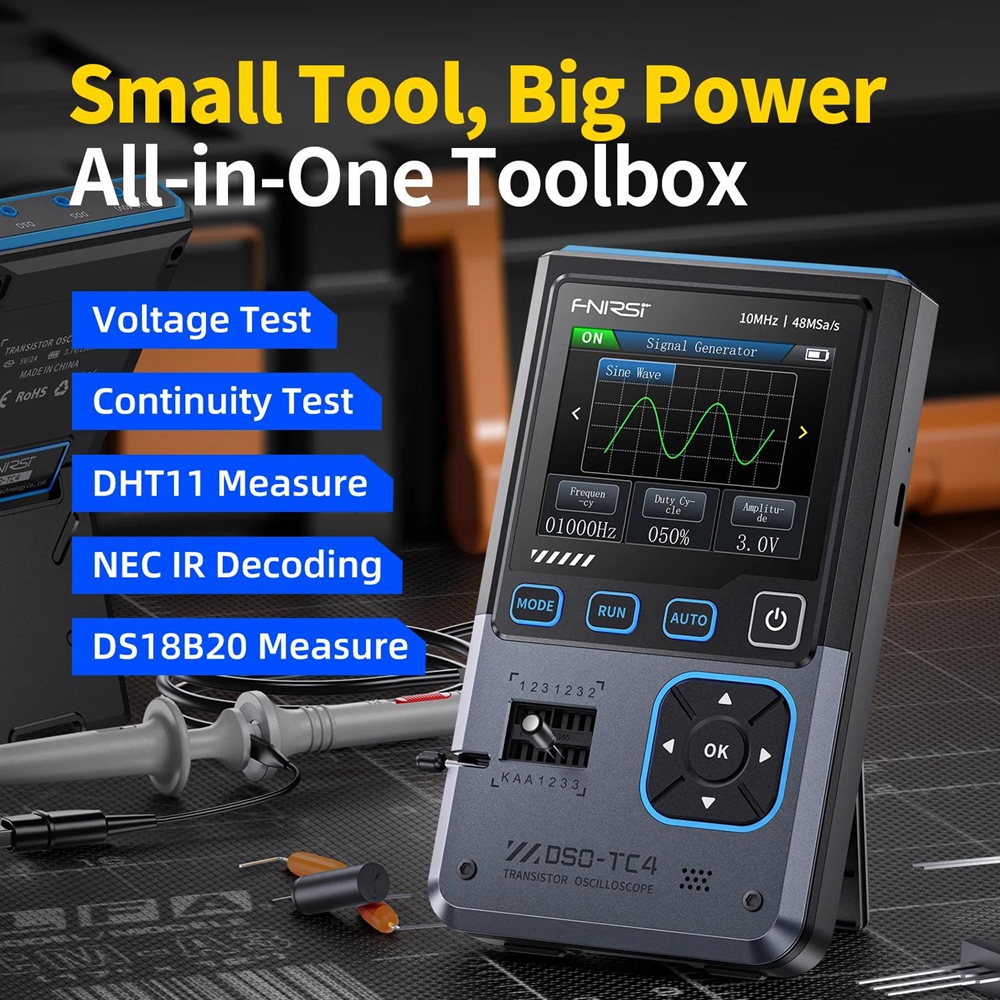

Signal Generator Parameter:
- Output waveform: support 13 kinds of waveform output
- Waveform frequency: 0 - 50kHz
- Square wave duty cycle: 0 - 100%
- Waveform amplitude: 0.V - 3.0V

Package Included:
- 1 x Oscilloscope
