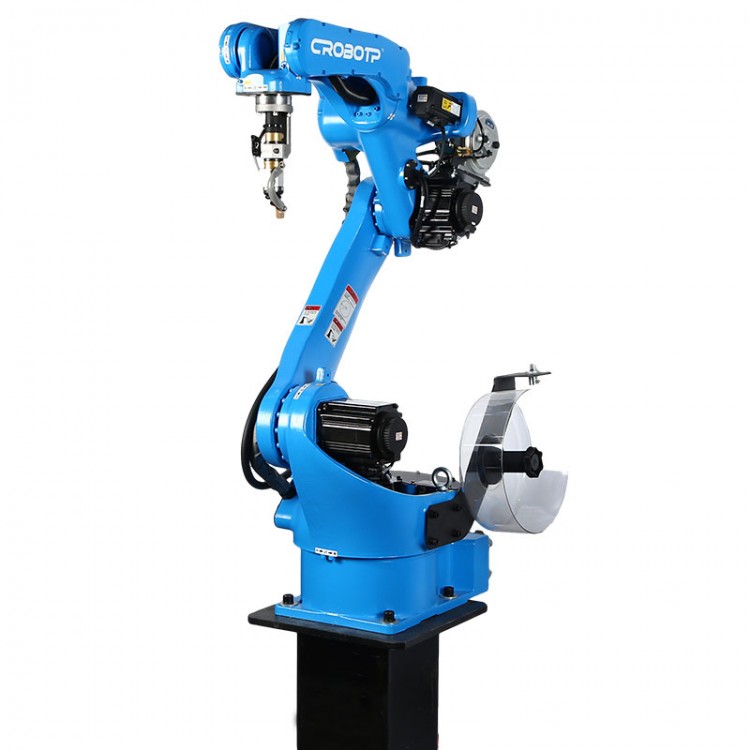

For CROBOTP Industrial Robot Arm 6 Axis Automatic Arc Welding Robotic Arm CRP-RH20 Arm Span 2M

For CROBOTP Industrial Robot Arm 6 Axis Automatic Arc Welding Robotic Arm CRP-RH20 Arm Span 2M

Product Features:
- Welding robot: support customization, precise positioning, and neat welding
- Simple operation, time-saving and labor-saving, large-screen display, neat welding, convenient maintenance, one-key start
- 6 Axis robot arm has stable performance and is widely used: suitable for automotive industry, metal products, aerospace, fitness equipment, shipbuilding industry, engineering machinery, paper industry, metallurgical industry, etc.
- G4 electrical cabinet: There are multiple buttons to control the robot
- Highly compact design: load 10KG, arm span 2m, flexible choice of bottom installation or upside-down installation
- Wide range of applications: perfect for welding, spraying, loading, unloading, handling, sorting, assembly and the like
- Independent control system: adopts a safety relay circuit, and provides external emergency stop with dual circuits to ensure the reliability of emergency stop

Robot Arm's Functional Features:
- With compact design 10kg payload and about 2.0 meters arm span, it can be installed on the ground or upside down flexibly.
- With large working space and fast running speed, it is suitable for welding, spraying,loading and unloading, handling, sorting, assembling and other applications.
- The safety emergency stop board is independent of the controller, and the safety relay circuit is adopted to provide double circuit emergency stop to ensure the reliability of emergency stop.
- The robot body cables are made of special cables for highly flexible robots.
- Built-in three-phase transformer, 380V and 200V isolation, more stable power supply.
- Power supply requirements can be customized for different countries. Built-in three-phase filter can effectively improve the performance of EMC and EMI.
- The robot body is with dual-circuit gas pipe and meets welding and handling requirements.

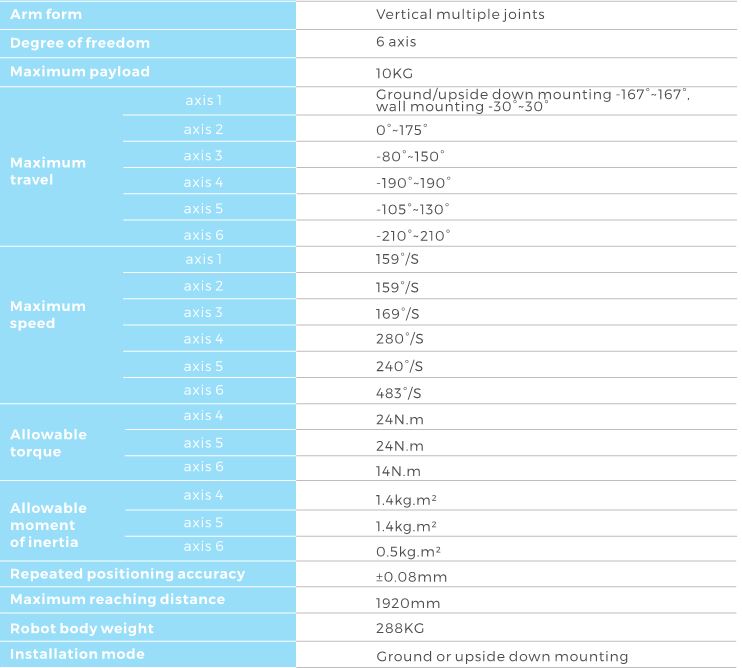

Robot Body Technical Parameters:

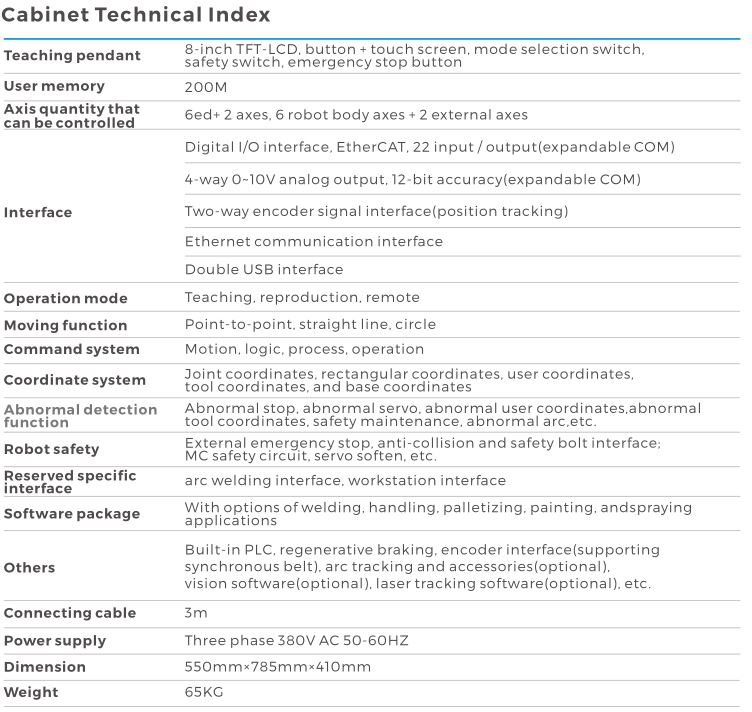

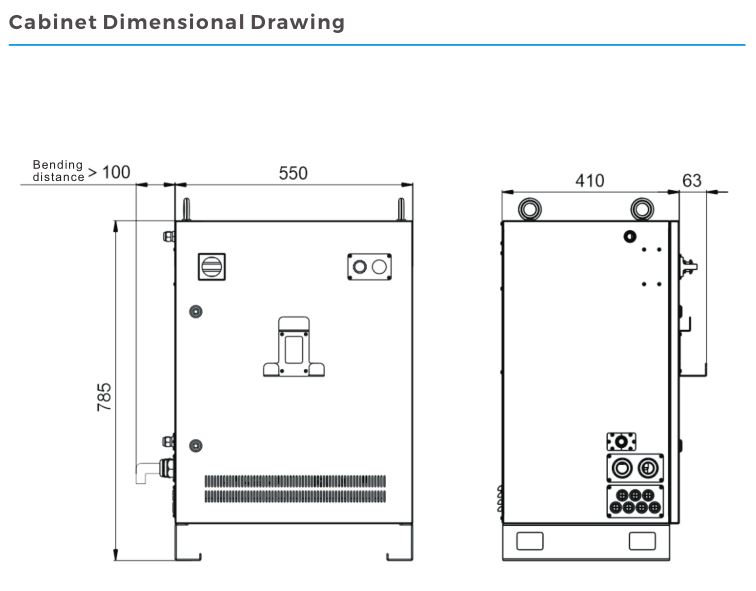

G4 Industrial Robot Electrical Cabinet:
* Double switching power supply
* Built-in safety circuit
* Three-phase three-wire power supply filter
* Three-phase dry-type servo isolation transformer

Package Included:
- 1 x Set of Robot Arm
