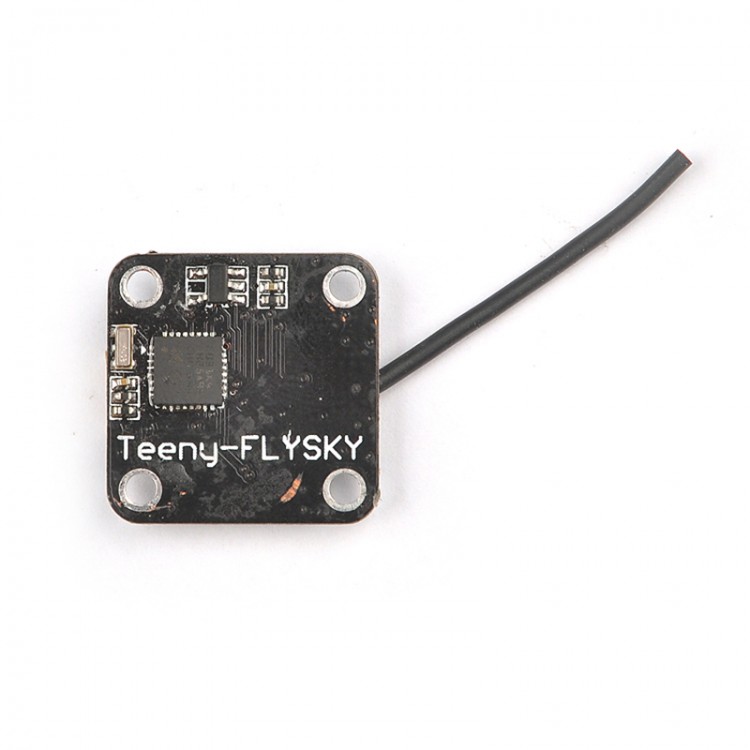

For Flysky AFHDS-2A Receiver 2.4GHz IBUS 10CH/PPM 8CH Support for I6 I6S I6X I10 Tinywhoop Toothpick
Specification:
Item name: Teeny Flysky Receiver
Channels: IBUS 10CH / PPM 8CH
Model type: multi-rotor
Frequency range: 2.408-2.475GHz
2.4GHz system: AFHDS 2A
Work Mode: PPM or IBUS
Work Voltage: +5V
Failsafe available (IBUS)
Transfer method: FHSS
Antenna length: 50mm
No ground interference ( transmitting and receiving 1m from the ground): >200m
Working current: 40mA
Size: 20*20*5mm
Weight: 1.1g
Compatible transmitter: compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F
Bind Procedure:
-Connect the battery to the receiver while holding the binding button on the board; the blue LED will blinking fast, which indicates the receiver is in binding mode. Then release the binding button.
-Turn on your radio and set receiver mode to AFHDS 2A, then get your radio into binding mode. The blue LED on the flight controller will turn off for a second and then start to blink slowly, which indicates binding successfully.

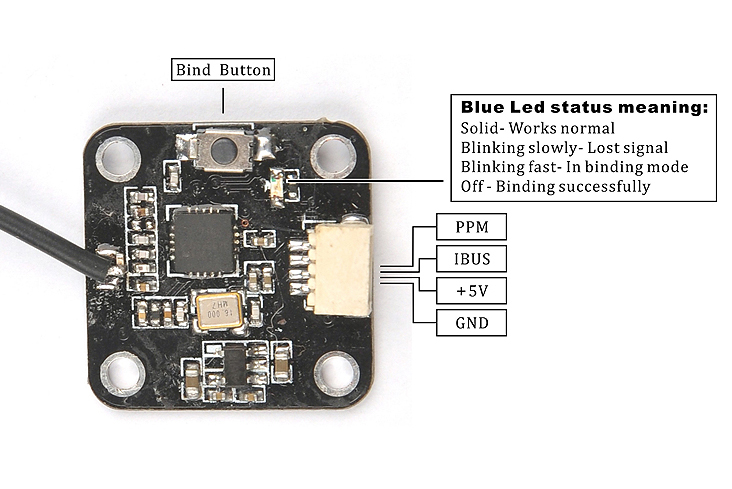

Pin-out Diagram:
Package List:
1 x Receiver
