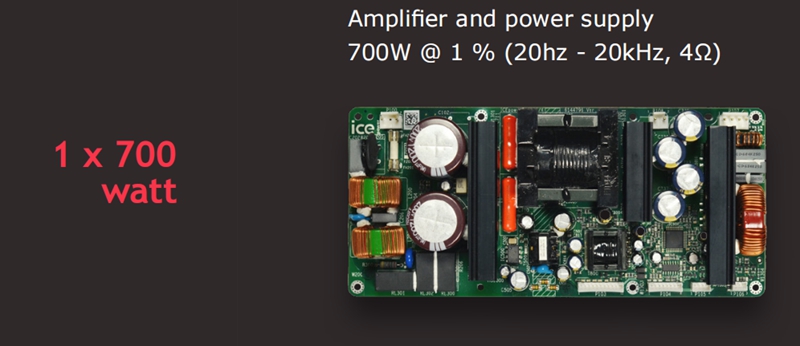

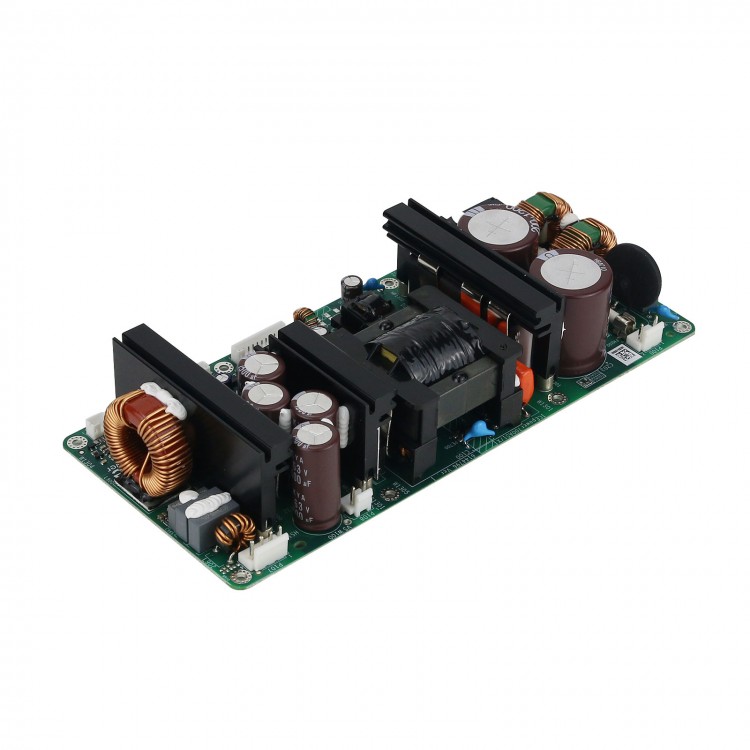

For ICEPOWER 700AS1 Power Amplifier Module Hifi Power Amp Board 700W Denmark Audio Amplifier

For ICEPOWER 700AS1 Power Amplifier Module Hifi Power Amp Board 700W Denmark Audio Amplifier

Description:

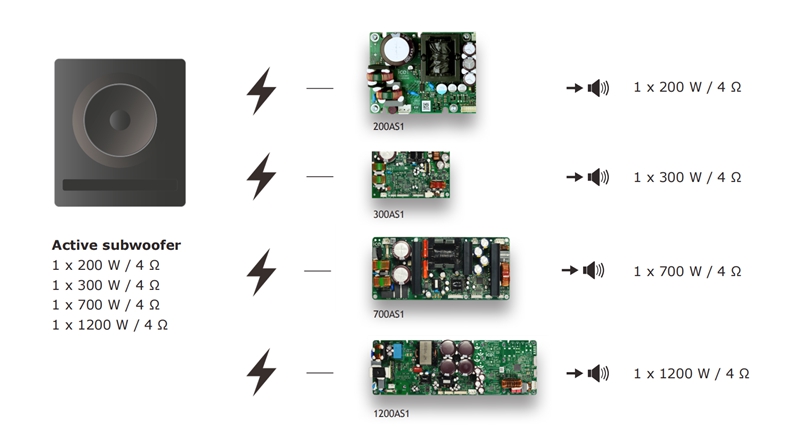

The 700AS1 combines an efficient resonant LLC converter with a massive continuous power capability with a 1x 700 W great sounding class D amplifier. Despite the name, the ability to handle low impedances means the 700AS1 is capable of a solid 1000 W into 2.7 Ω loads. Perfect for subwoofers and bass amplifiers. The ability to power up to two 300A1 hanger amplifiers, also makes it great for 2-, 3-way and 2.1 active hifi or professional speakers.

Applications:
- Bass amplifiers
- Subwoofers
- Self-powered PA speakers and line arrays
- Active 2- and 3-way hifi speakers and studio monitors
- Mono amplifiers

Key Performance Parameters:

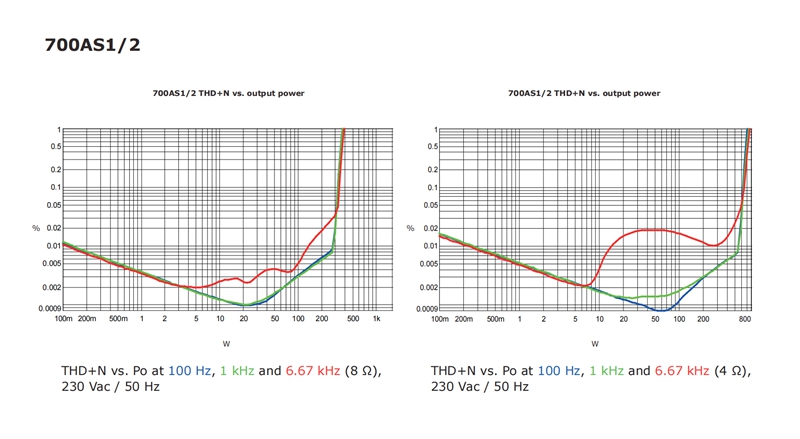

- Output Power per channel 1 % THD+N, 20Hz-20kHz: 700 W (4 Ω); 350 W (8 Ω)
- Output Power per channel 10 % THD+N, 20Hz-20kHz: 800 W (4 Ω)
- Minimum load impedance: 2.5 Ω
- Maximum total amp+psu efficiency: 84 %
- Supply voltage input: 85-264 VAC
- Peak output current: 30 A
- Dynamic range: 117 dB
- Amplifier maximum output peak voltage per channel: 76 V
- Output referenced idle noise (A-weighted): 70 µV
- THD+N 1W/1kHz: 0.006 %

Package Included:
- 1 x Power Amp Module

Note:
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
