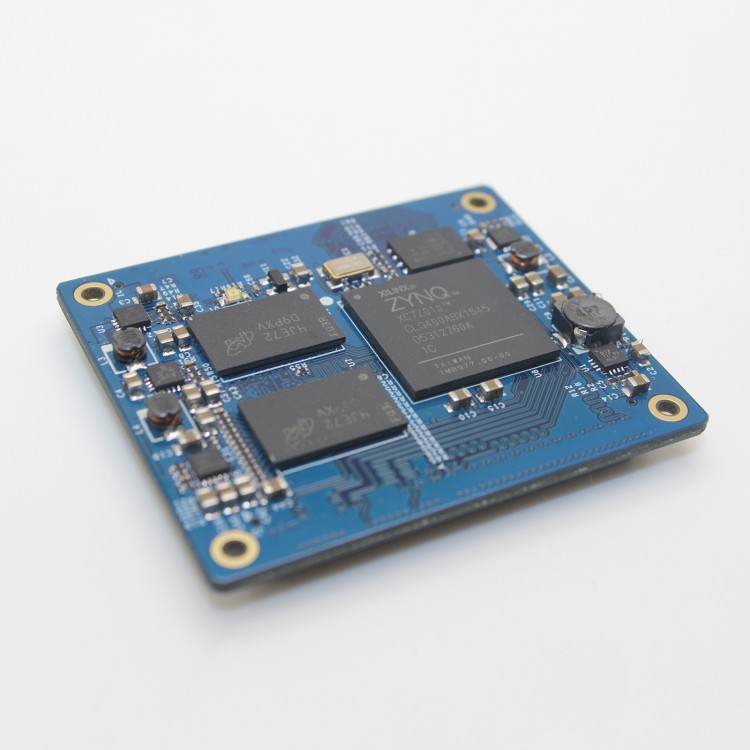

FPGA Core Board 7Z010 7Z020 ZYNQ Core Board Module 256Mb QSPI FLASH + 8Gb DDR3 + 7Z020 CLG 400 2I

Description:
All PL part IO is directly connected to the DEMO backplane, and the PS part is connected to OTG USB, 10M/100M/1000M adaptive network, serial port, and SD card and other typical peripherals, and the board has a high-speed download line. You can run LINUX directly.

Technical Support:
-Provide the core board PDF format schematic diagram.
-Provide all PCB and SCH source files (AD format) of the DEMO board, and users can extract the package or directly modify it into their own products.
-Provide board-level definition package, copy directly to the corresponding directory of VIVADO, you can avoid tedious DDR3 and clock and peripheral configuration.
-Provide LINUX source code.
-Technical support includes all links from support to logic, SDK, LINUX driver and application.

Features:
-All IO are led out according to the requirements of differential equal length, flexible expansion.
-High-speed board-to-board connector with minimal signal loss.
-12-layer board, industrial design.
-The onboard sequential power-on power supply system requires only 5-12v single power supply input.
-The core board can input 1V 1.8V 1.5V 3.3V and the load capacity is 2A.
-All BANK power supplies of PL can be set by the user and can be easily connected to any peripherals from 1.2V to 3.3V.
-Current configuration: 256Mb QSPI FLASH + 8GB DDR3 + 7Z020 CLG 400 2I

Package List:
1 x FPGA Core Board
