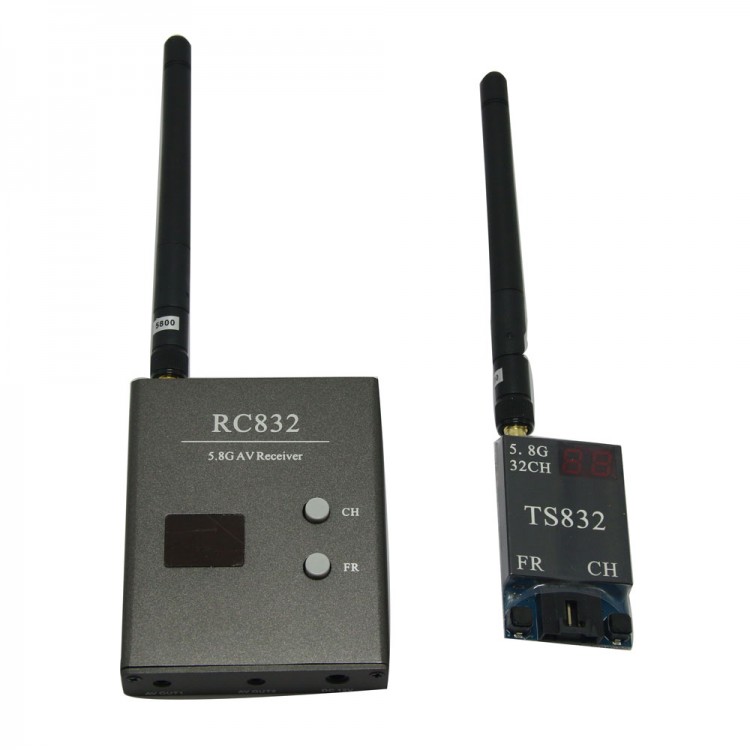

FPV 5.8G A/V 32Ch Transmitting (TX) Module TS832+ RC832 Receiver (RX) W/ LED Channel Display 32CH RP-SMA RC832
Features:
- 32 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compactable;
-Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;
-Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;
- Power off memory: Replay the very last frequency band and channel
- ndependent video and audio signal outputs
Product Details
- FPV 5.8G 600mW A/V Transmitting (TX) Module TS832 - 32CH Edition | RP-SMA
- Video format supported: NTSC/PAL
- Antenna connection: RP-SMA, jack (module side )
- Power input: 7.4-16V (3S Lipo suggested)
- Transmitting power: 600mA
- Antenna gain: 2db
- Working current: 220mA at 12V
- Video bandwidth: 8M
- Audio bandwidth : 6.5M
- Weight: 22g
- Dimension: 54x 32x 10mm(excluding antenna)
Features:
- 32 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compactable;
- Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;
- Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;
- Power off memory: Replay the very last frequency band and channel
- Independent video and audio signal outputs
Product Details
- FPV 5.8G A/V Receiver (RX) W/ LED Channel Display RC832 - 32CH Edition | RP-SMA
- Video format supported: NTSC/PAL
- Antenna connection: RP-SMA, jack (module side)
- Power input: 12V
- Working current: 200mA max
- Antenna impedance: 50Ω
- Antenna gain: 2db
- Video impedance: 75Ω
- Video format: NTSC/PAL auto
- Dimension: 80x 65 x15mm
- Weight: 85g
Item Packing
- 1 x 32 channel transmitter
- 1 x receiver (RX)
- 1 x antennas (2db)
- 1 x basic wires set
