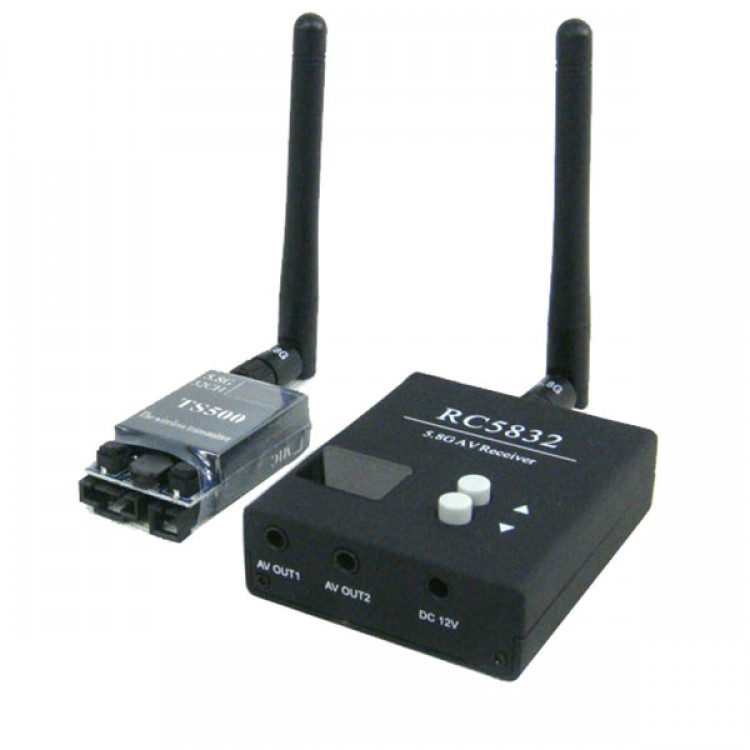

FPV TS500 TX 32Ch 5.8G 500mw Wireless Transmitter w/ RC5832 32CH Wireless AV receiver

FPV TS500 TX 32Ch 5.8G 500mw Wireless Transmitter w/ RC5832 32CH Wireless AV receiver

TS500 Features:
- This is 32-channel transmitter of 5.8G 500mW A/V wireless system.
- This item is only can transmit the picture and video without voice.
- 32 channels: Cover A, B, E bands and F band (Air wave band).
- Digital phase-locked loop circuit, no channel drift issues.
- Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching.
- Wireless transmission distance up to 800 meters without any obstacles and interfering signal( Actual transmission distance depends on specific environment).
Small size, light weight, easy to carry.

TS500 Specifications:
- Output impedance: 50dhm
- Output power: 27.5dbm (Typ.)
- Power input: 7.0-16V
- Working current: 220mA at 12V
- Video band width: 8Mhz
- Anetnna connector:TX port: RP-SMA jack // Antenna Port: RP-SMA plus
- Antenna gain:2db
- Working current: 220mA /12V
- Working temperature:-10-85 C
- Video format:NTSC/PAL auto
- Video band width: 6.5M

RC5832 Receiver:
- 5.8G 32CH wireless AV receiver with power on/off function
- Receiving frequency: 5.8G; 32CH
- Receiving sensitivity: ≤-90dBm
- Power supply voltage: 9.5-12V DC
- Consumption current: 200mA, Max.
- Antenna connector:SMA(needle inside)
- Antenna Gain: 5dBi
- Video output level：1Vp-p / 75 ohm
- Dimension:67*57*20mm (90g)


Package List:
1 * TS500 Wireless Transmitter
1 * RC5832 receiver
1 * standard SMA Antenna for Transmitter
1 * input Cable for Transmitter
1 * output cable
