FPV Video Scrambler TX Encryption and RX Decryption Module Kit for Analog Video Signal Transmission

FPV Video Scrambler TX Encryption and RX Decryption Module Kit for Analog Video Signal Transmission

Description:
- This product is an encryption and decryption module designed specifically for analog video signal transmission devices, aiming to provide users with an efficient and secure video transmission solution. The module adopts advanced encryption algorithms and can encrypt analog video signals in real - time to ensure that video content is not spied or tampered with during the transmission process. At the same time, the device supports real - time decryption, ensuring that authorized users can seamlessly receive and view the original video content.

- This product is equipped with two modules, namely the video encryption module and the decryption module, which are respectively connected to the transmitting end and the receiving end of the analog video signal. Through the encryption algorithm, it can effectively prevent illegal interception during the video signal transmission process and guarantee the security of video data.

Features:

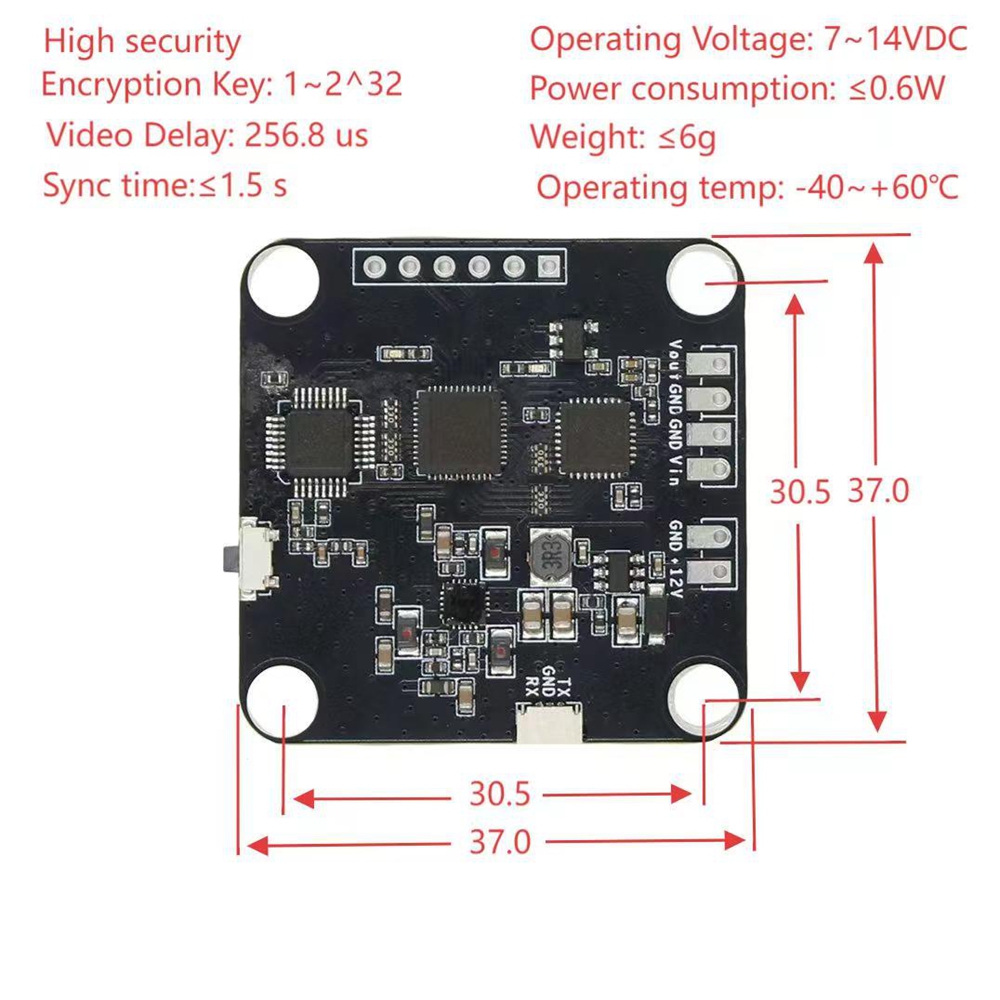

- High security
- Encryption Key: 1 ~ 2^32
- Real - time encryption and decryption
- Video transmission delay: 256.8 us
- Easy to install
- Sync time: ≤1.5s
- Operating voltage: DC 7 ~ 14V
- Power consumption: ≤0.6W

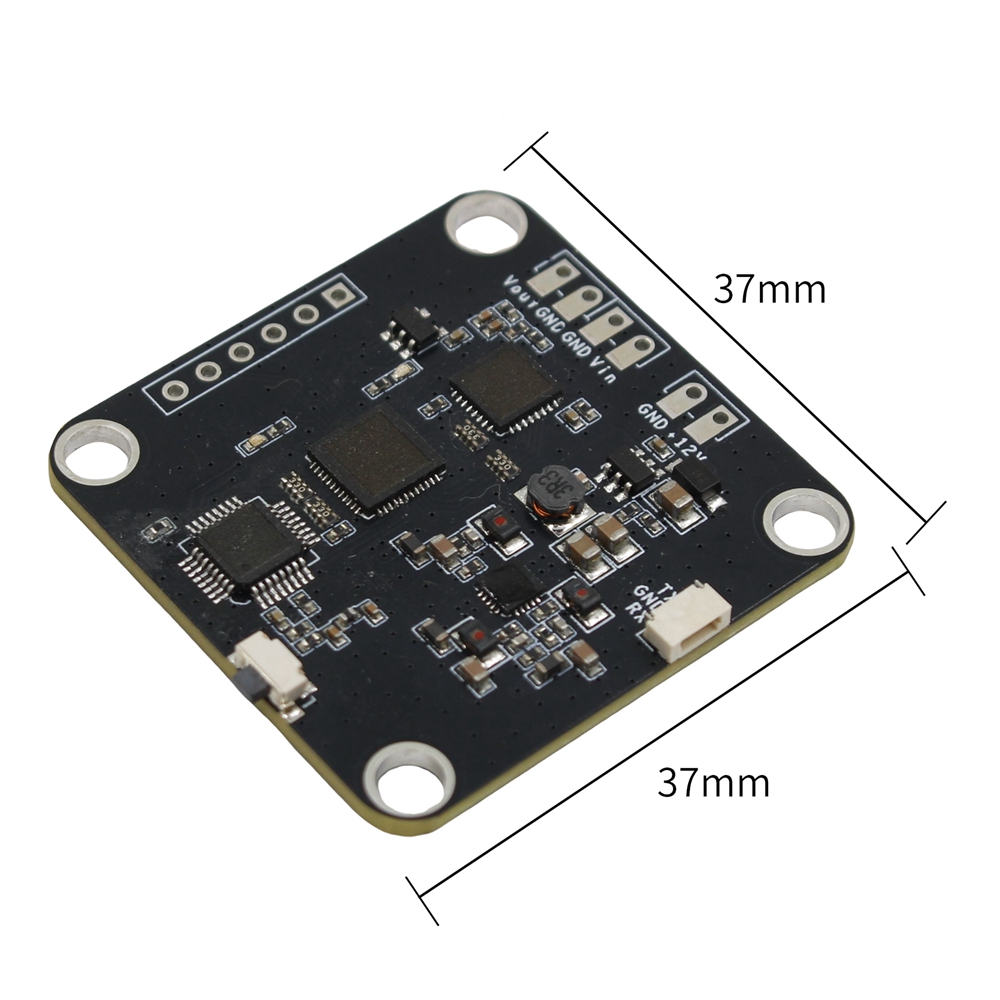

- Product dimensions: 37mm x 37mm
- Mounting hole spacing: 30.5mm
- Product weight: ≤6g
- Operating temperature range: -40 to +60℃

Using Steps:
- Driver installation: Insert the computer USB port and install the CH340 driver.

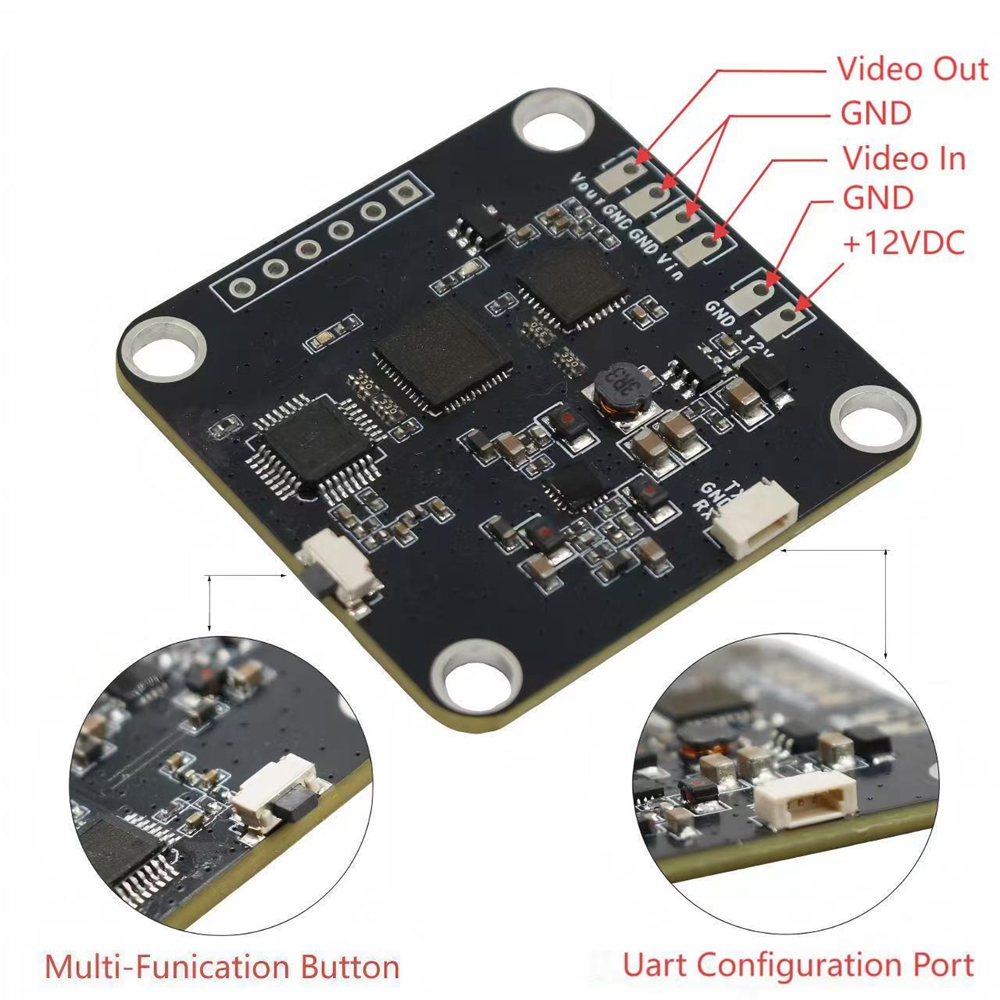

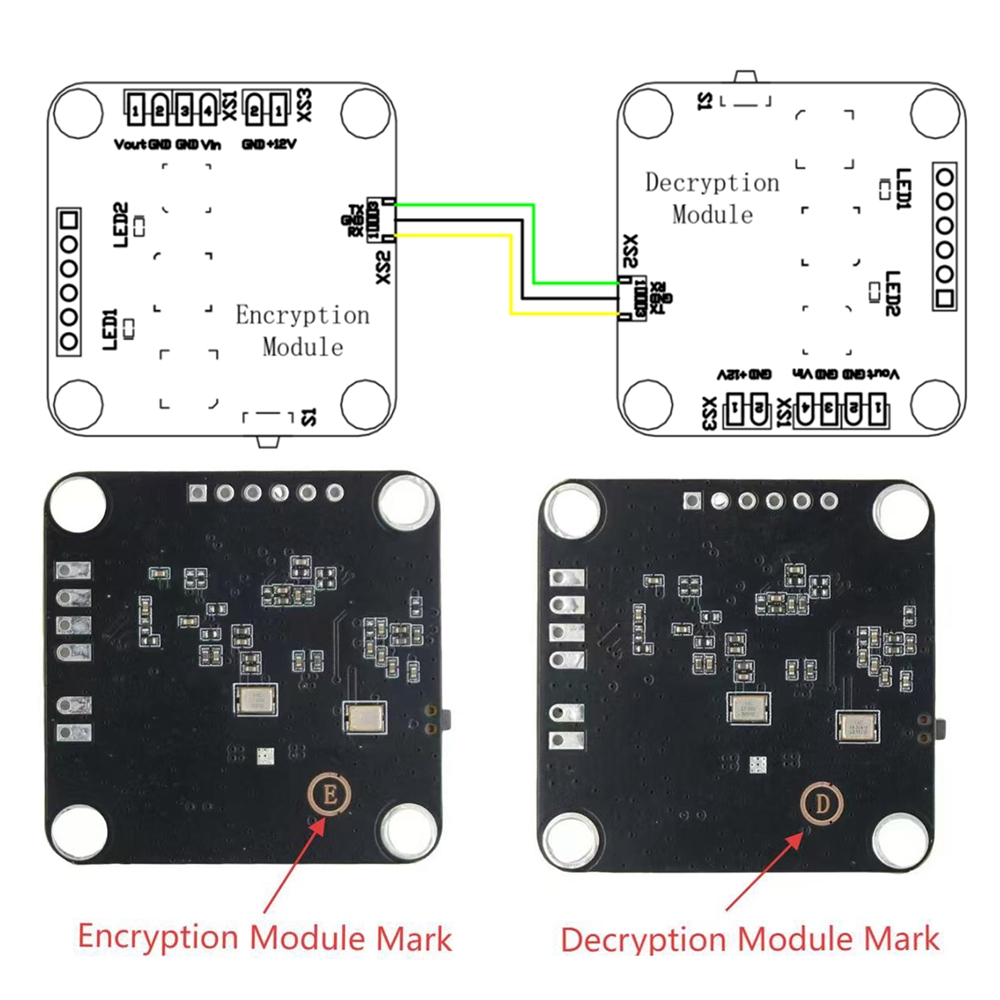

- Wiring: Connect the module's GND/TXD/RXD correctly to the target device.
- Serial port debugging: Open the serial port assistant tool or upper computer software, select the corresponding COM port and baud rate.

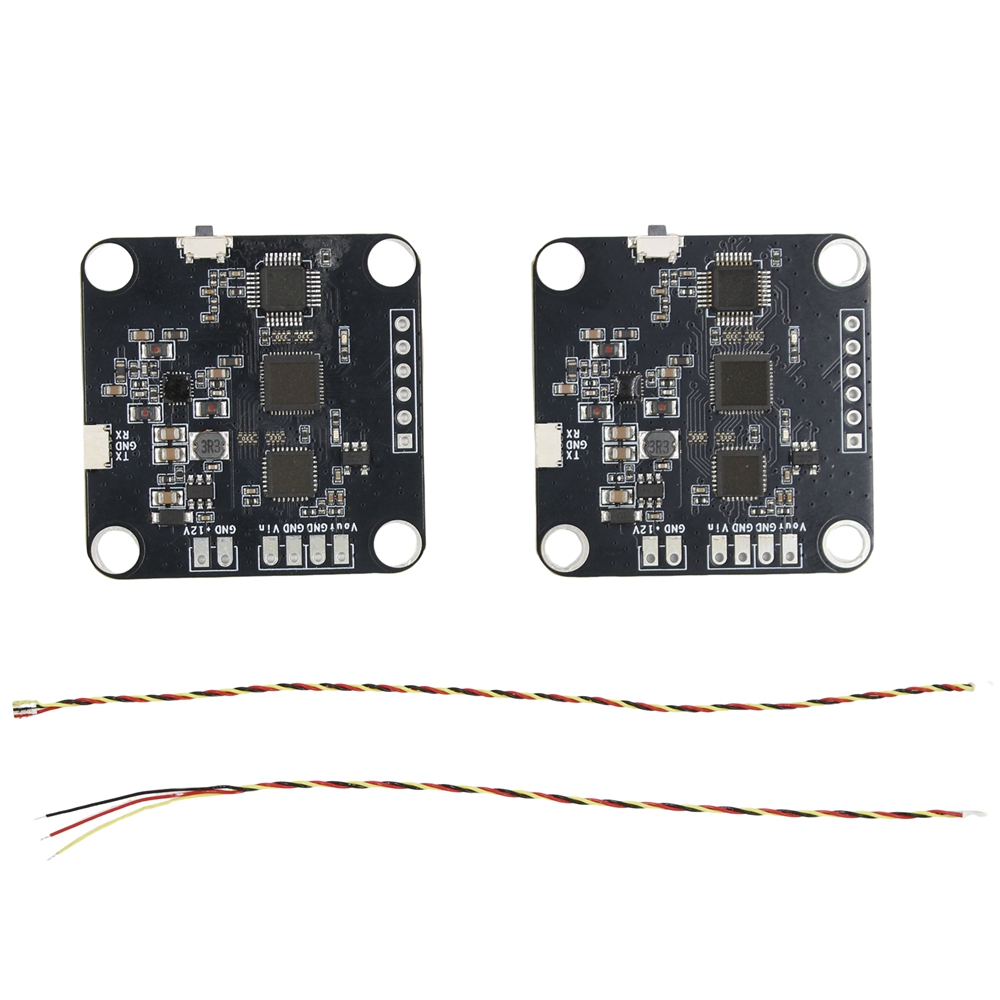

Package Included:
- 1 x TX Encryption Module
- 1 x RX Decryption Module
