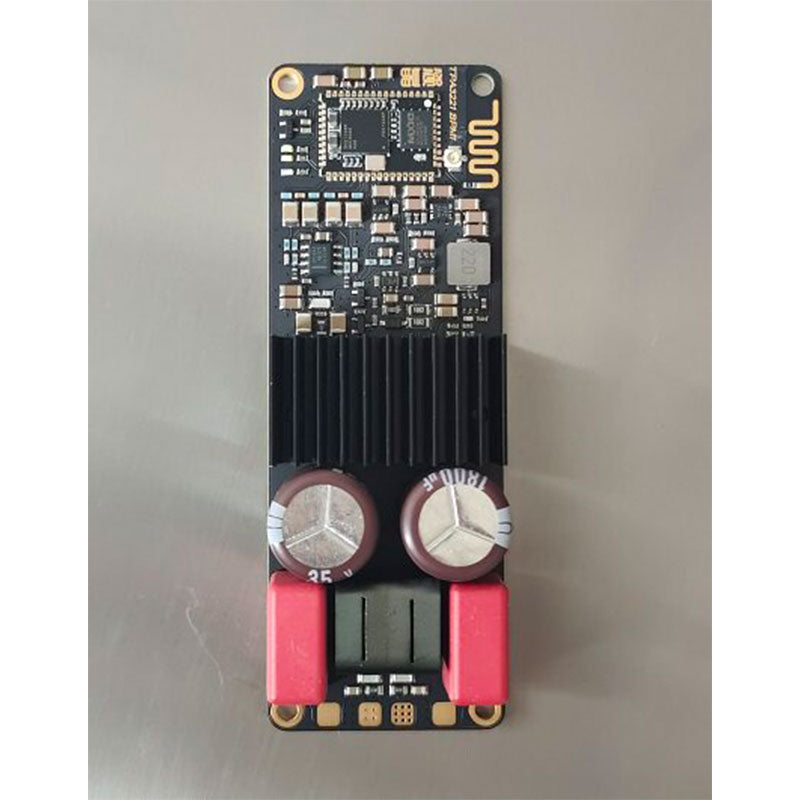

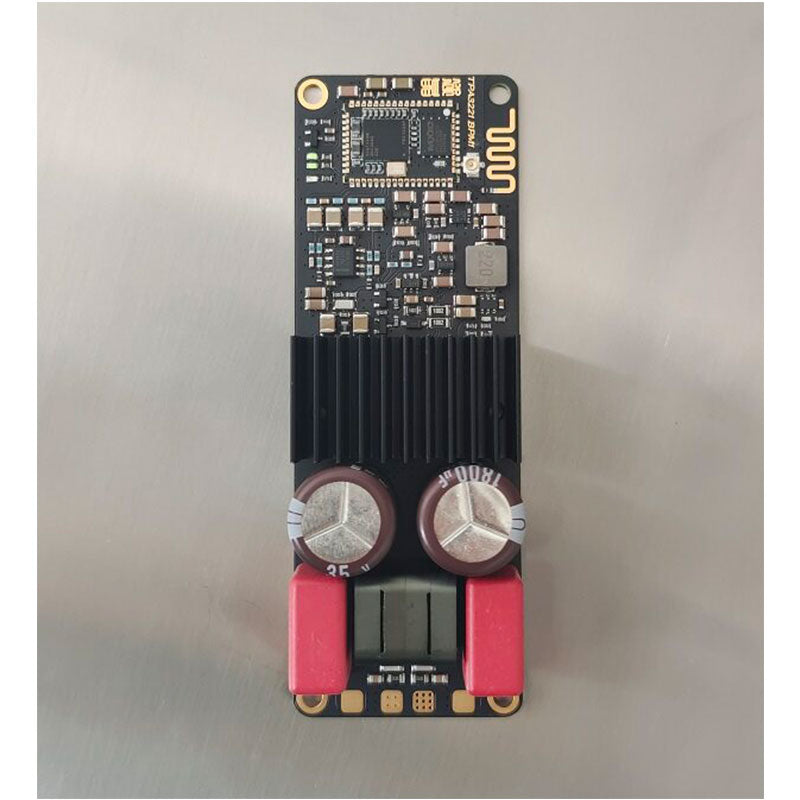

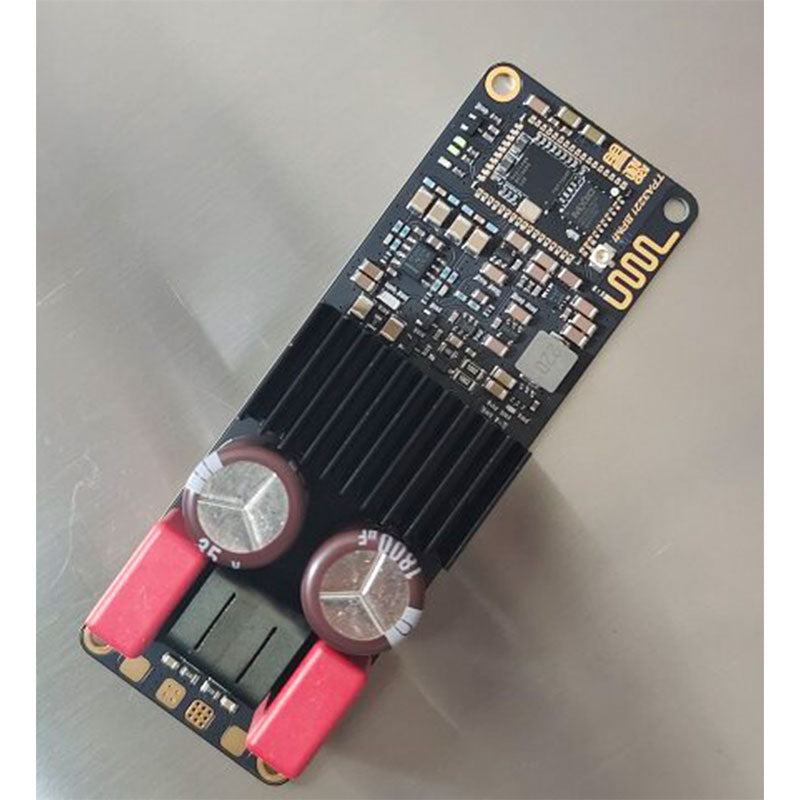

120W Mono Blutooth5.4 LDAC Class D HiFi Power Amplifier Board QCC3095 TPA3221 Amplifier Module (13V-26V)

Features:
- Low noise power supply processing.
- The design of the amplifier board is rigorous, and the materials used are professional.
- Carefully designed, exquisite workmanship, adopting TG150 high temperature characteristics, matte black gold PCB.

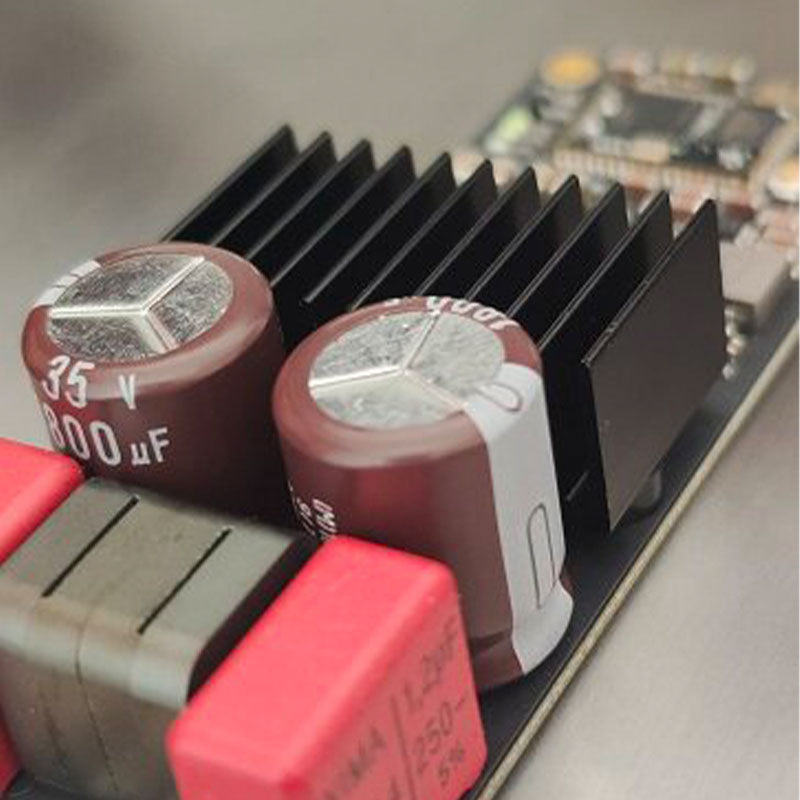

- HiFi electronic materials: The audio circuit uses KOA low-temperature drift high-precision resistors. Large volume MLCC capacitors and for WIMA rear LC capacitors, digital power amplifier dedicated fully shielding inductors and for NIPPON ultra-low ESR capacitors are used.
- The whole machine adopts plug-in re-soldering technology, with smooth and firm solder joints, reducing the interference effect of the tip and making the sound quality purer.

Specification:
- Product name: mono Bluetooth class D digital power amplifier board (it does not support TWS)
- Bluetooth model: QCC3095
- Bluetooth version: 5.4
- Supported format: LDAC, SBC, AAC, APTX, APTXHD, APTX-lossless, LC3
- SNR: 108dB
- THD+N: 0.02%, 1kHz
- Gain: 30dB
- Supported speaker impedance: 2ohms to 8ohms
- Output power: maximum continuous output power of 120W, instantaneous maximum power of 200W
- Channel number: mono
- Power supply voltage: DC13V - 26V, current above 3A (the charger is likely not functioning properly, please use a power adapter or switch power supply.)
- Static power consumption: 10mA
- Product size: 103.5 x 36.8 x 25mm

Package Included:
- 1 x Power Amplifier Board
