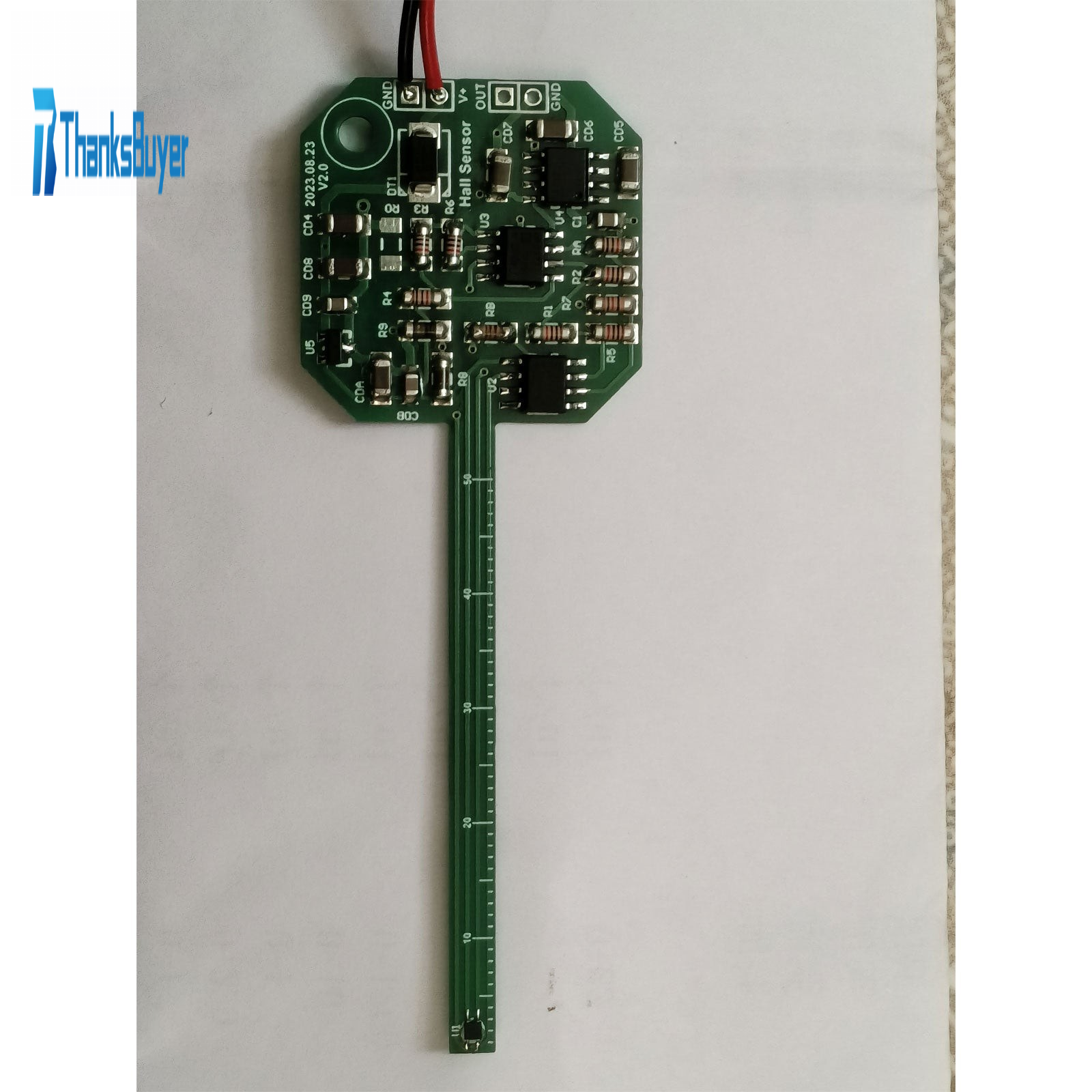

Signal Conditioning Board Powered by 12V for Tesla Meter and Gaussmeter Based on Linear Hall Sensors
Prix habituel
$31.50
Prix habituel
Prix soldé
$31.50
Prix unitaire
par
Taxes incluses.
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
Availability:
2000 en stock
SKU:
95005
Collections:
Prix habituel
$31.50
Prix habituel
Prix soldé
$31.50
Description:

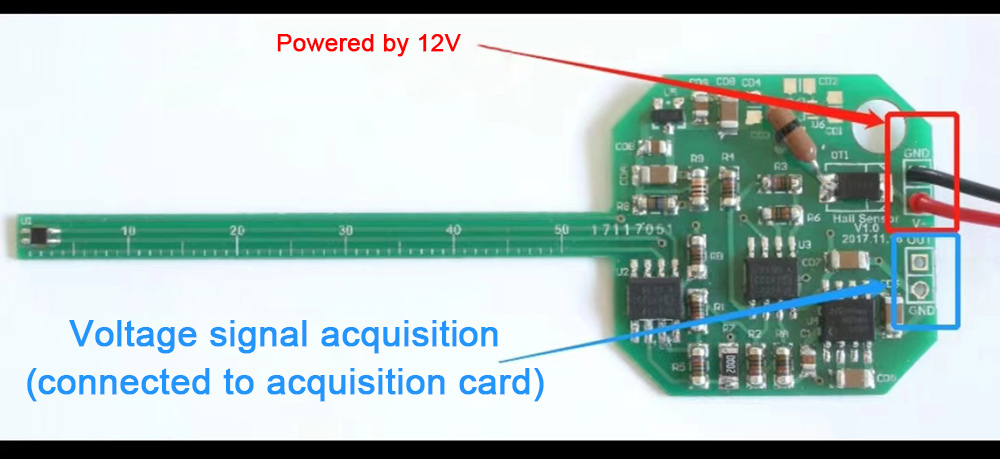

The signal conditioning board can be used for Tesla meter and Gaussmeter based on linear Hall sensors. The board uses an instrumentation amplifier composed of a high-performance operational amplifier to convert the magnetic field strength into a voltage output. It can be used for magnetic pole detection and magnetic field strength measurements. It is powered by 12V, with low power consumption and good stability.
Specifications:
- Model number: ZCYB-GSJXH-001
- Item name: Signal conditioning board
- Power supply: DC 12V
- Output voltage: 0-5.0V
- Sensitivity: 0.8V/200mT (calibration is required if higher accuracy is required)
Package Included:
- 1 x Signal Conditioning Board
Packaging Details:
- Weight: 0.15kg
