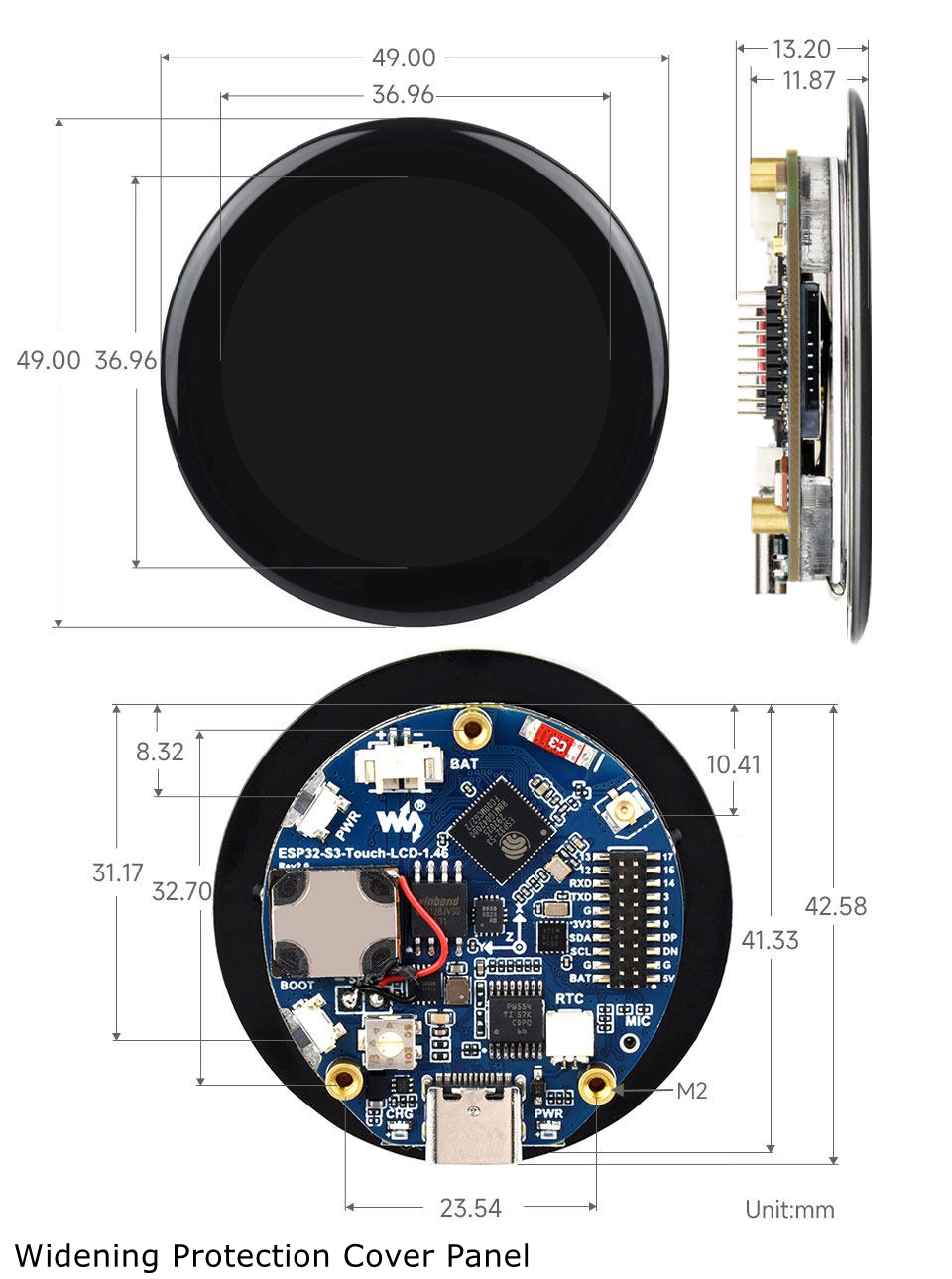

ESP32-S3-Touch-LCD-1.46 Touch LCD Microcontroller Development Board (Widening Protection Cover Panel) Support for Qwen/DeepSeek

Note:

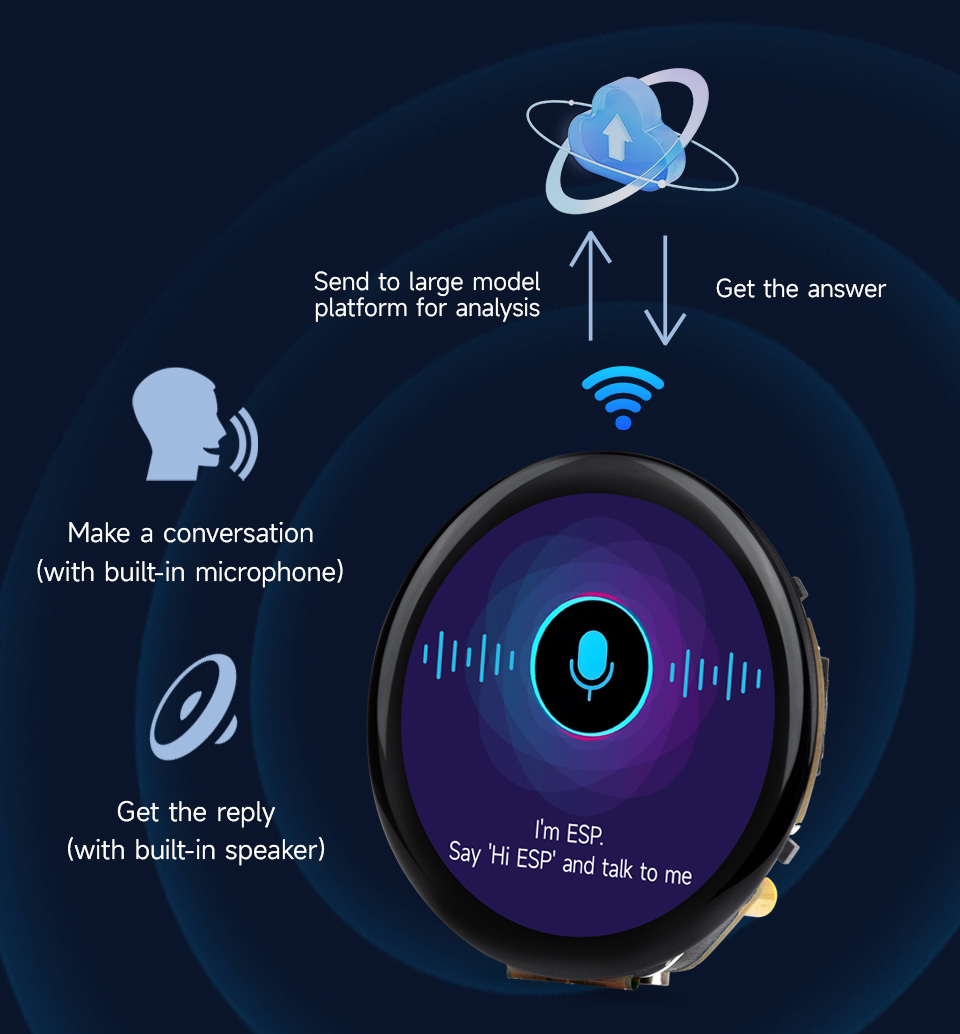

- Supported large models: for Qwen2.5, DeepSeekV3, Doubao (1.5 Professional Edition), QwenMax2.5
- AI voice chat only supports the following: +86 Chinese Mainland, +852 Hong Kong, China, +853 Macao, China, +886 Taiwan, China, +1 US/Canada, +44 UK, +33 France, +39 Italy, +49 Germany, +48 Poland, +41 Switzerland, +34 Spain, +60 Malaysia, +61 Australia, +62 Indonesia, +63 Philippines, +64 New Zealand, +65 Singapore, +66 Thailand, +81 Japan, +82 South Korea, +84 Vietnam, +91 India, +92 Pakistan, +234 Nigeria, +880 Bangladesh, +966 Saudi Arabia, +971 United Arab Emirates, +55 Brazil, +52 Mexico, +56 Chile, +54 Argentina, +20 Egypt, +27 South Africa, +254 Kenya, +255 Tanzania.

Description:

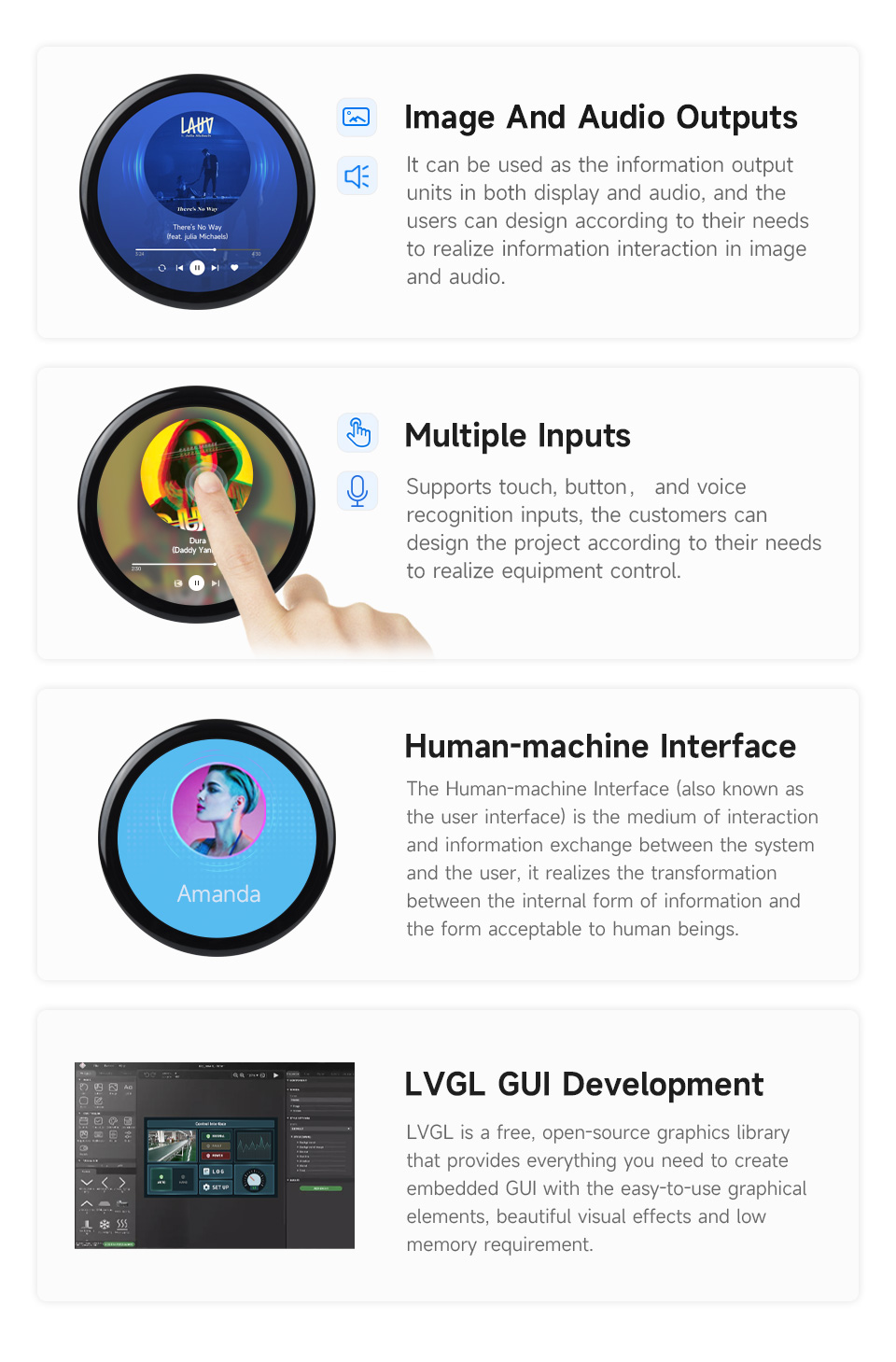

- ESP32-S3-Touch-LCD-1.46 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.46-inch LCD display which can smoothly run GUI programs for LVGL. Combined with various peripheral interfaces, it is suitable for the quick development of the HMI and other ESP32-S3 applications.

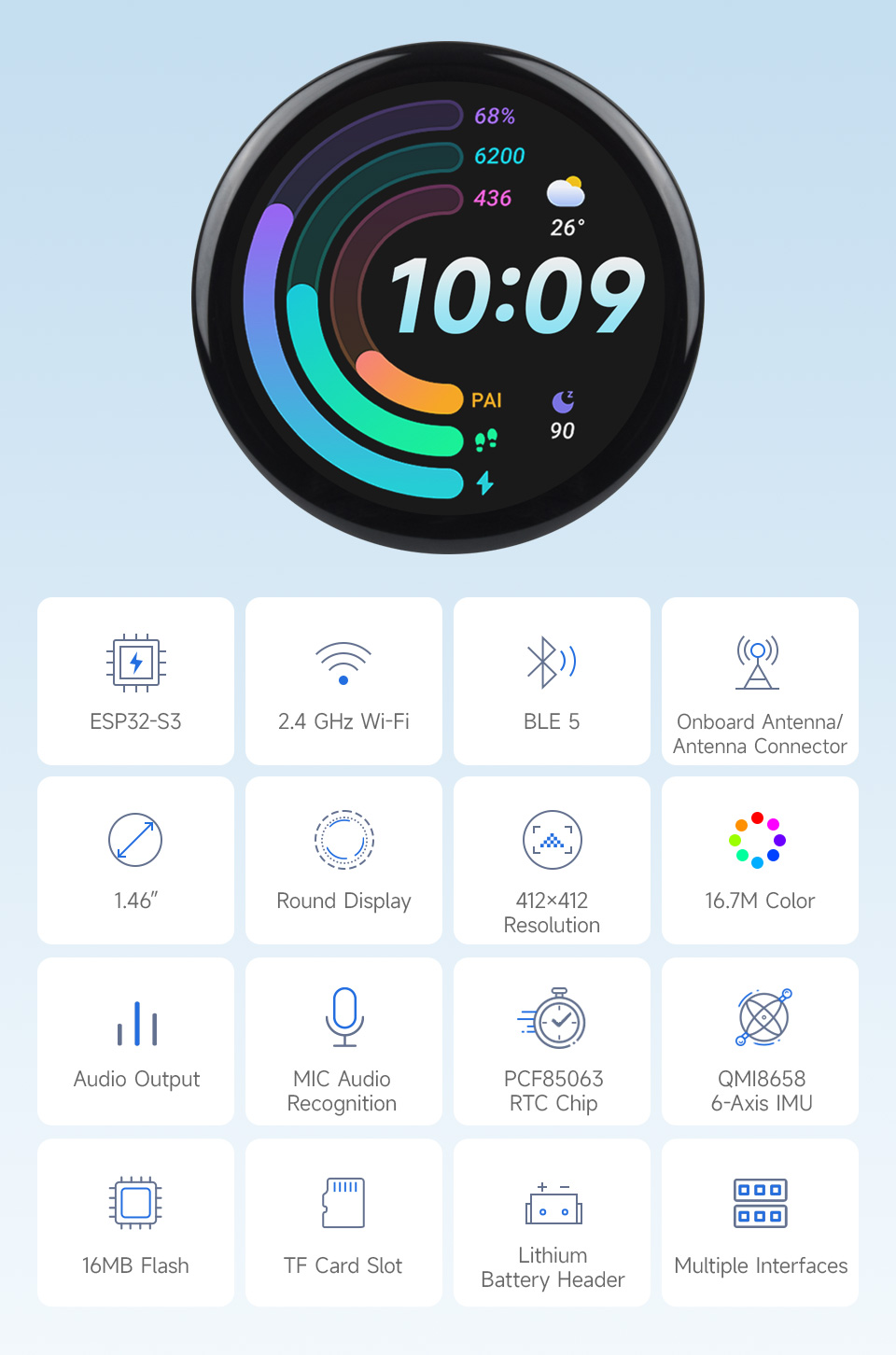

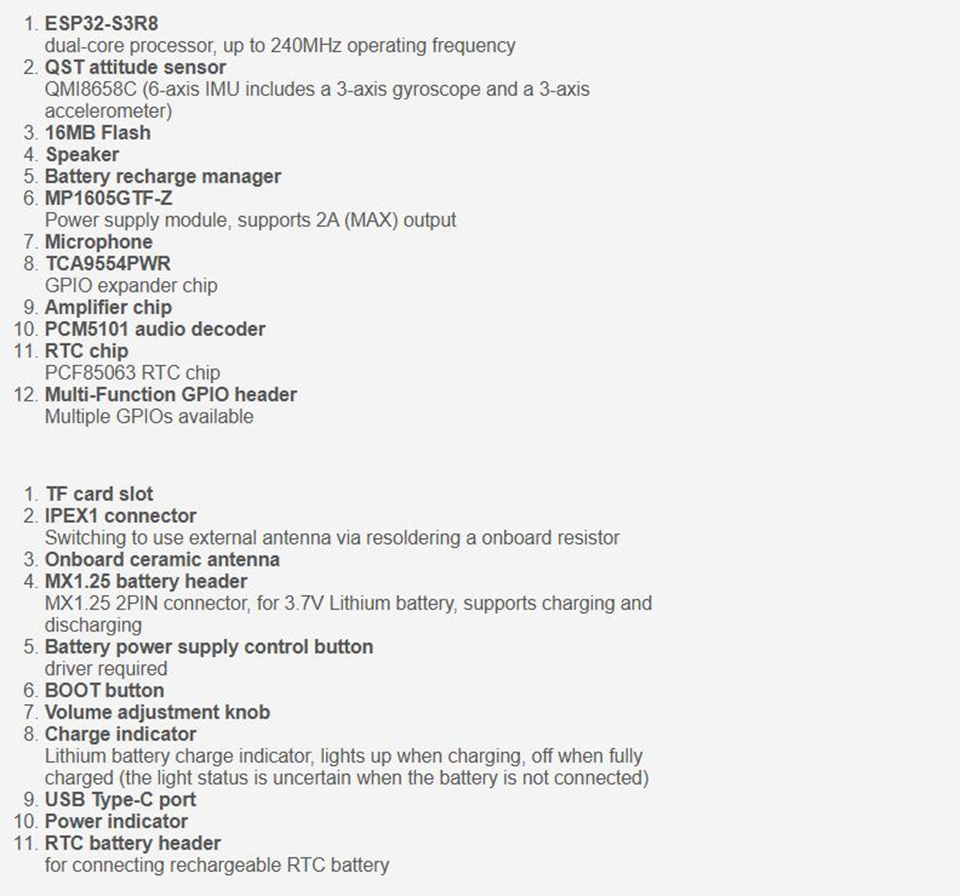

Features:
- Equipped with ESP32-S3R8 high-performance 32-bit LX7 dual-core processor for Xtensa, up to 240MHz main frequency.
- Supports 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna.
- Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM.
- Onboard Type-C port, more convenient, better device compatibility.

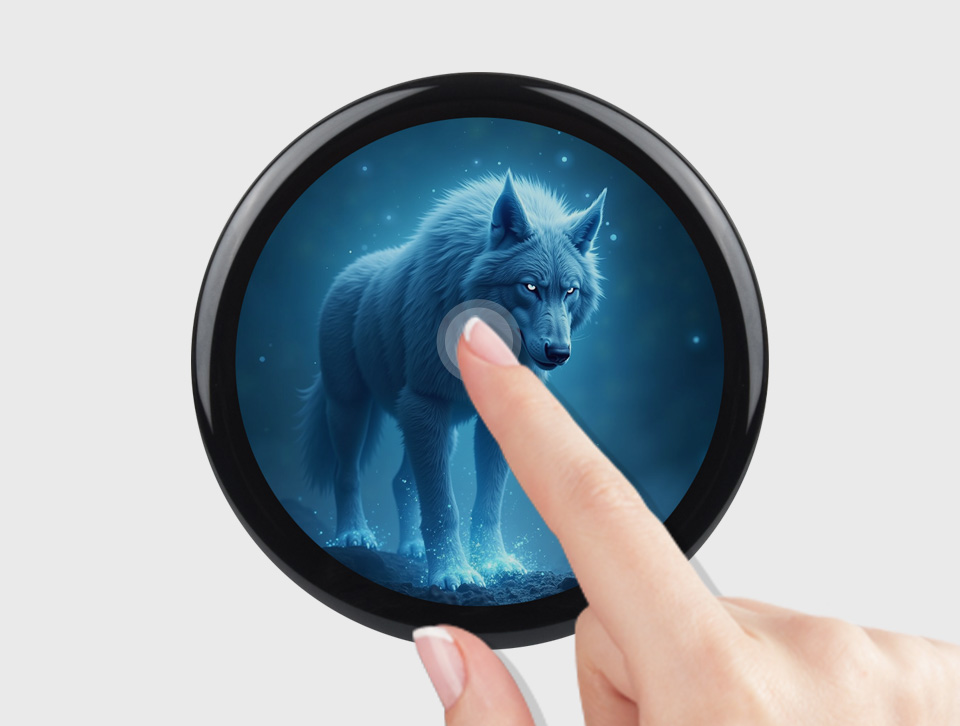

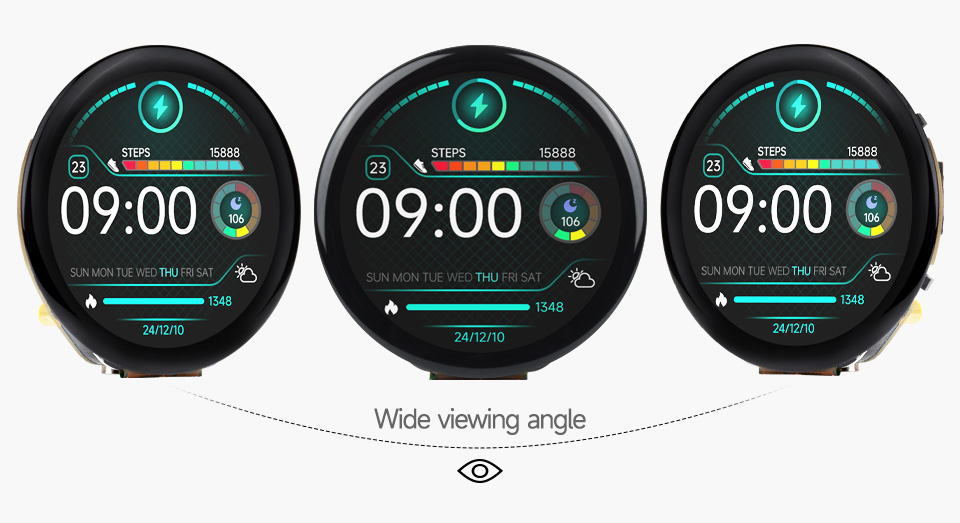

- Onboard 1.46-inch LCD display, 412x412 resolution, 16.7M color.
- Supports touch function controlled via I2C interface, with interrupt support
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
- Onboard PCF85063 RTC chip with reserved RTC battery header (supports charging) for RTC function requirement.
- Onboard programmable PWM and BOOT buttons for easy custom function development.
- Onboard 3.7V MX1.25 lithium battery recharge/discharge header.
- Onboard TF card slot for extended storage and fast data transfer, flexible for data recording and media playback, simplifying circuit design.
- Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios.

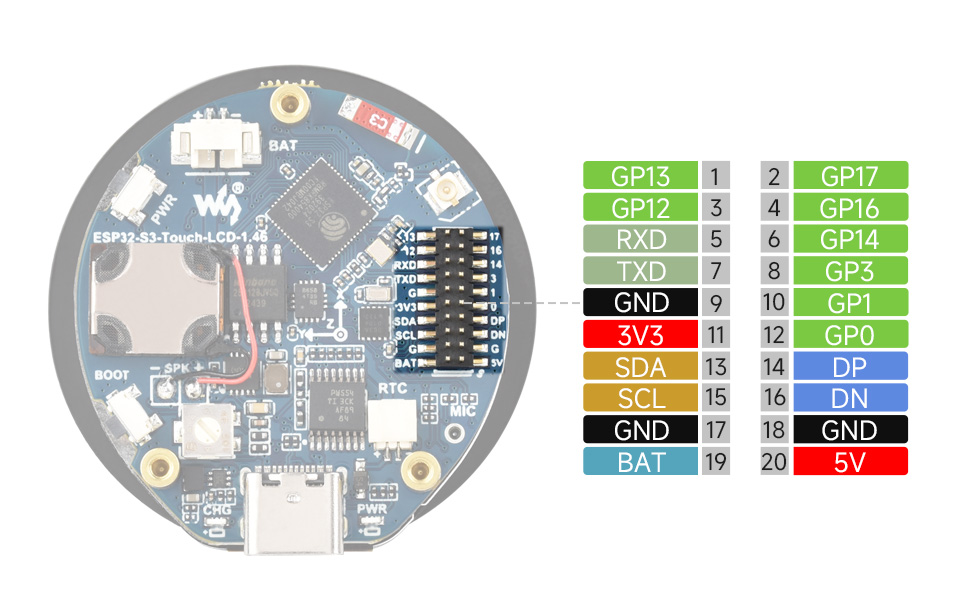

- Adapting multiple GPIO pins which can be mapped to various function interfaces, making it convenient for customers to customize and develop.

Package Included:
- 1 x Development Board
