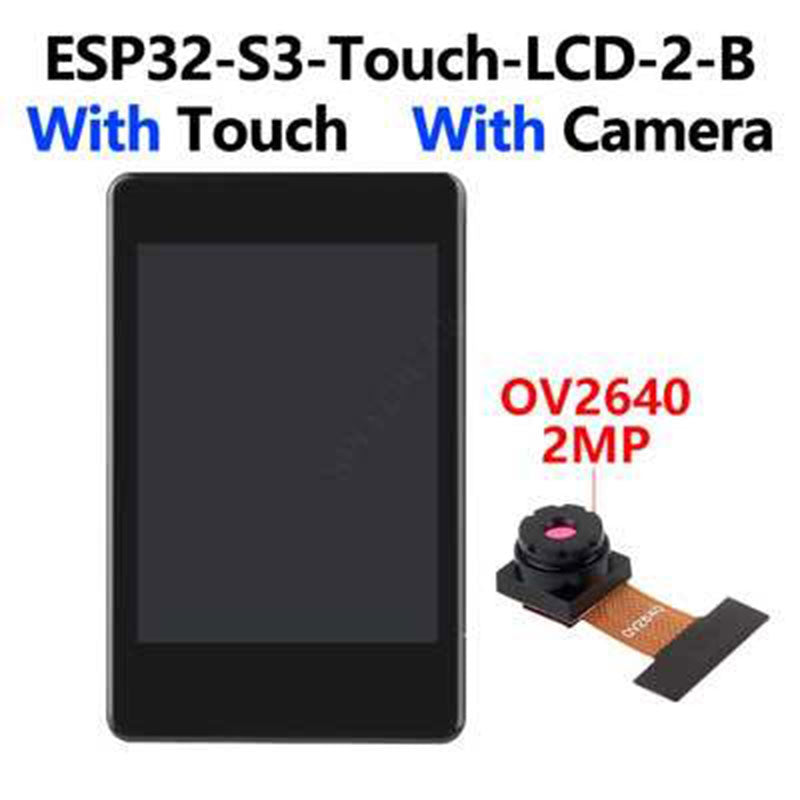

ESP32-S3-Touch-LCD-2-B Camera Development Board 2-inch 240x320 LCD 2.4GHz WiFi Bluetooth5 MCU Board(Touchable/OV2640-2MP Camera)

Description:
- ESP32-S3-Touch-LCD-2 is a low-cost, high-performance MCU board, tiny size, with onboard 2-inch capacitive touch LCD, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into the products quickly.

Key Features:
- Equipped with ESP32-S3R8 32-bit LX7 dual-core processor for Xtensa, up to 240MHz main frequency.
- Supports 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna.
- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory.
- Type-C connector, improving device compatibility, easier to use.
- Onboard 2-inch capacitive touch display for clear color picture display, 240 x 320 resolution, 262K color.
- Built-in ST7789T3 display driver and CST816D capacitive touch chip (optional), using SPI and I2C communication respectively, effectively saving the IO resources.
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope).
- Onboard 3.7V MX1.25 Lithium battery recharge/discharge header.
- Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use.
- Onboard TF card slot for external TF card storage of pictures or files.
- Adapting 22 GPIO pins for flexible configuration of pin function.
- Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640 (optional) for image and video acquisition.

Package Included:
- 1 x Camera Development Board
- 1 x OV2640-2MP Camera Module
