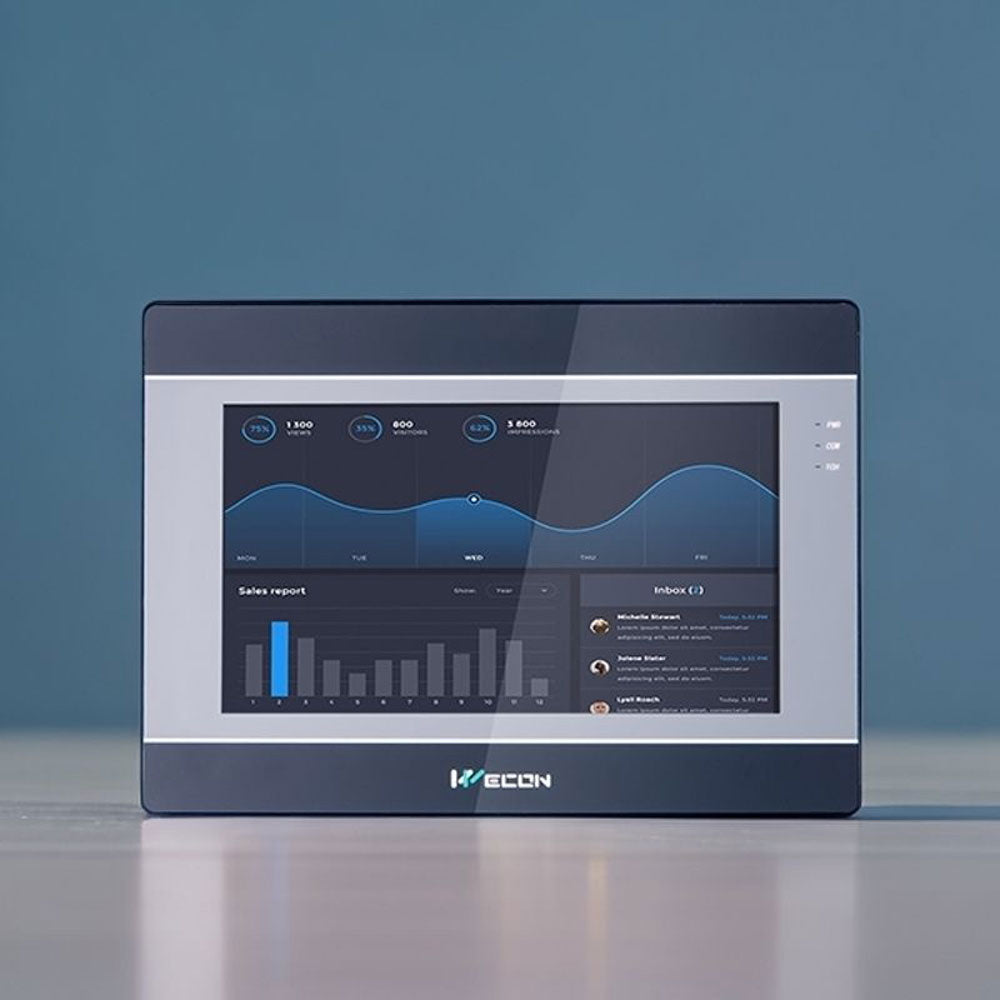

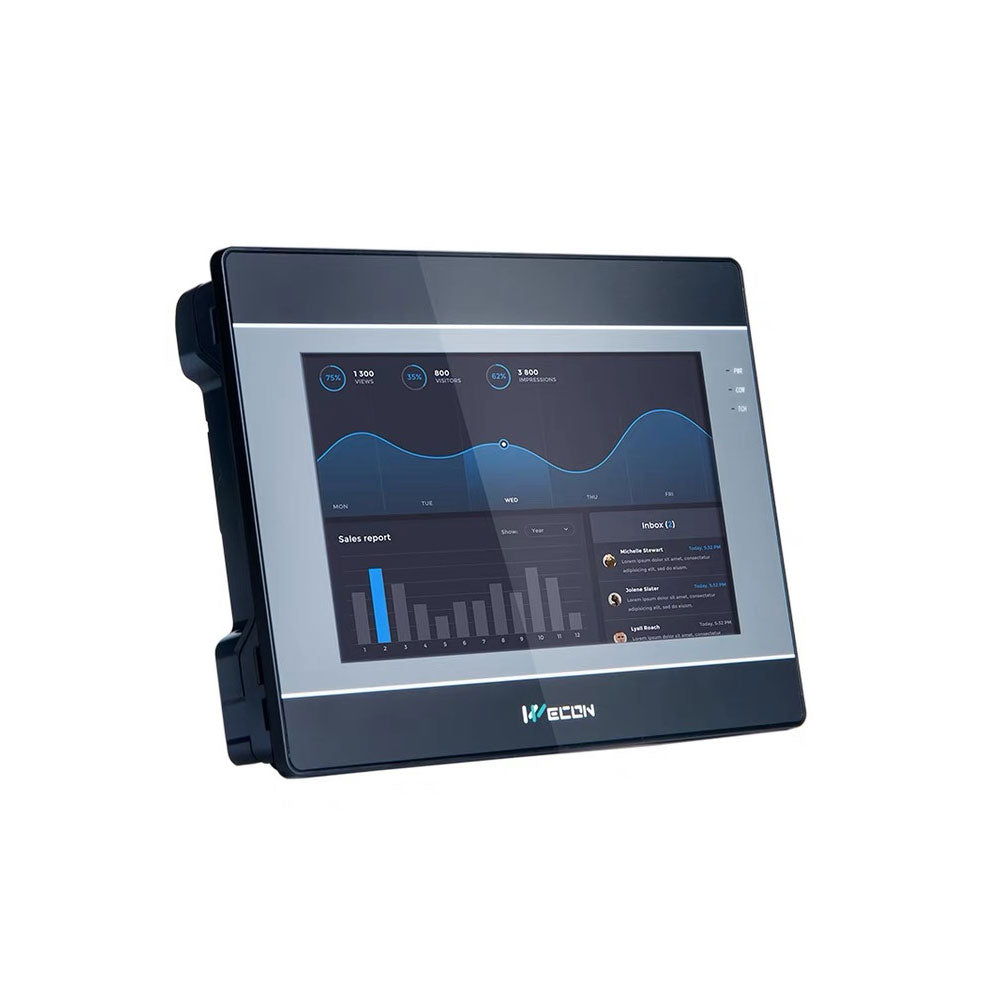

Wecon IN1101 10.1-inch 1024×600 Human Machine Interface HMI Touch Screen with Ethernet Port 128M+64M

Features:
* Mainboard Specifications: High-performance processor with 128M Flash and 64M RAM memory
* Display: 10.1 inches; Resolution: 1024×600
* Interfaces: COM1: RS232, RS422/RS485, and Ethernet port
* Download Methods: Data cable download, USB drive download, and LAN download

Product Specifications:
* CPU: Quad-core high-performance processor
* Touch Screen: Resistive

Display:
* Screen Size: 10.1 inches
* Resolution: 1024×600
* LCD Brightness: 350cd/㎡
* Backlight Type: LED
* Backlight Lifespan (Half-life): More than 20,000 hours
* Display Colors: 16 million colors

Storage:
* Flash: 128 MB
* Memory (RAM): 64 MB
* SD Card Slot: None

I/O Interfaces:
* USB: USB Host: USB 2.0 × 1; USB Device: USB Type-C 2.0 × 1
* Serial Port: 1 serial port: RS232, RS422/RS485 (2-in-1), RS485
* Ethernet: Available

Perpetual Calendar:
* Built-in

Power Supply:
* Input Voltage: 24V DC (12~24V DC)
* Power Consumption: Less than 10W
* Power Isolation: None

Specifications:
* Housing Material: Engineering plastic PC+ABS (flame retardant grade)
* Overall Dimensions (W × H × D): 271.0mm × 214.0mm × 41.5mm
* Cutout Dimensions (W × H): 259.0mm × 202.0mm
* Weight: 1.30kg

Operating Environment:
* Protection Rating: Front panel complies with IP65
* Storage Temperature: -20℃ to 70℃
* Operating Temperature: -10℃ to 55℃
* Operating Humidity: 10% to 90% RH (non-condensing)
* Vibration Resistance: 10–25Hz, 2G for 30 minutes in X, Y, and Z directions

* CE Certification: Complies with CE certification standards
* Software: PI Studio configuration software
* Remote Control: Not supported

Packing List:
* 1 × HMI Display

Packaging Details:
* Weight: 0.6kg
