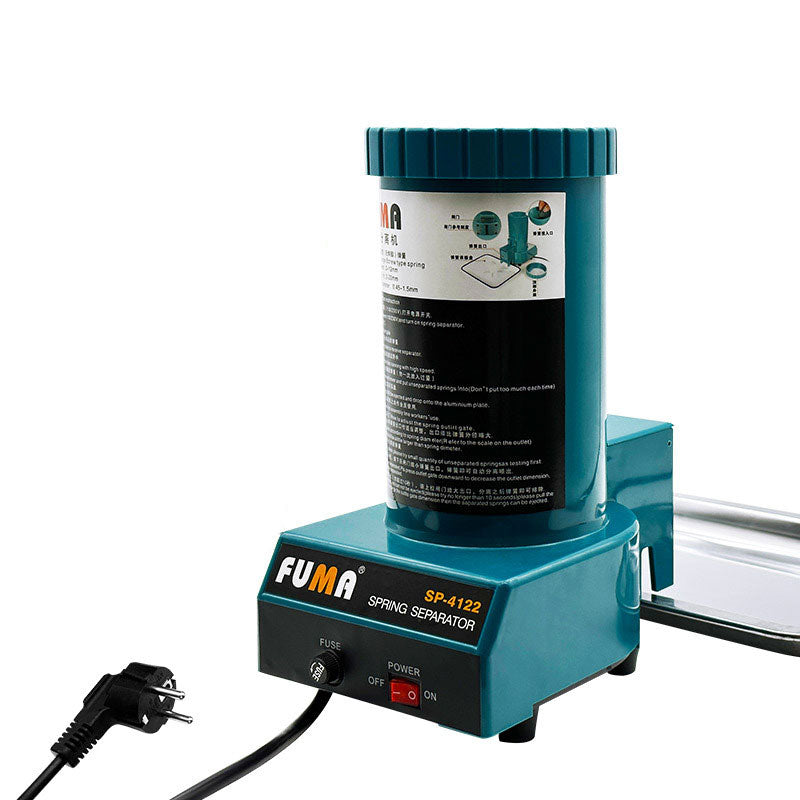

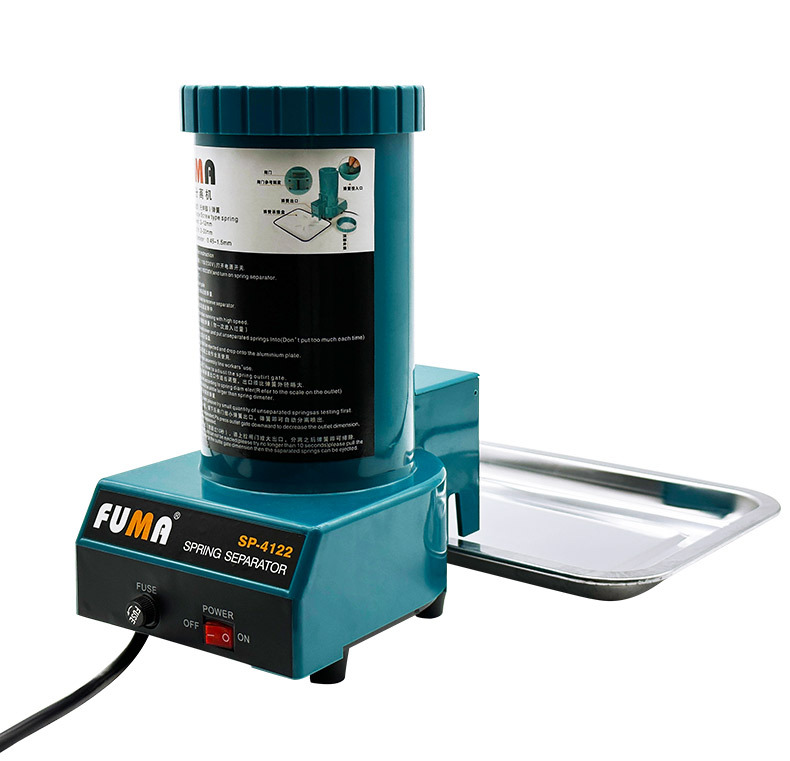

FUMA SP-4122 Fully Automatic Spring Separator 40W Dual Ball Bearing Motor 110V Spring Splitting Machine

Design Details:
- The clever design of the spring discharge port prevents the spring from splashing out during the separation process.
- According to the outer diameter of the spring, the gate scale can adjust the size of the spring outlet, which should be slightly larger than the diameter of the spring.
- The design of the discharge outlet movable baffle prevents the spring from splashing out.
- Equipped with a power supply indicator, a start switch, and a fuse, it effectively prevents the machine from burning out due to motor overload during use.

Dual Ball Bearing Advantages:
- High efficiency: The dual ball bearing structure enables the motor to withstand higher speeds, thereby improving the motor's working efficiency. This design reduces friction and energy loss, making the motor more energy-efficient during operation and reducing energy waste.

- High precision: The dual ball bearing structure endows the motor with higher rotational accuracy, making it more suitable for fields that require high precision, such as mechanical manufacturing, electronic manufacturing, and precision machinery, medical equipment, CNC machine tools, etc. that require high stability and accuracy of the rotor.

- Low noise: Dual ball bearings make the motor rotate more smoothly and produce less noise. This design adopts a more balanced structure and refined processing technology, ensuring that the motor minimizes sound and vibration during operation, making it more suitable for noise sensitive situations.

- Long lifespan: Due to the wear resistance and durability of double ball bearings, this motor has a longer service life. This not only reduces the maintenance and replacement costs of the motor, but also improves the reliability of the equipment.

- Strong adaptability: Dual ball bearing motors can adapt to various harsh working environments, such as high and low temperatures, humidity, corrosion, etc., ensuring stable operation under various conditions.

- In summary, the upper and lower double ball bearing motor has significant advantages in improving efficiency, accuracy, reducing noise, extending lifespan, and adapting to various working environments. Therefore, it has been widely used in industrial automation, new energy, and transportation fields.

Specification:
- Model: SP-4122
- Power: 40W
- Spring outer diameter: 2-15mm
- Spring length: 2 - 30mm
- Spring wire diameter: 0.2 - 2.0mm
- Spring type: helical spring
- Working voltage: 110V
- Net weight: 2kg

Operation Sequence:
1. Confirm the voltage specification (110V) and turn on the power switch;
2. Adjust the spring outlet gate; Please refer to the following operating instructions;
3. Place an aluminum plate to receive the separated spring;
4. Confirm that the turntable inside the material slip is running at high speed;
5. Open the circular cover above and insert the entangled spring (do not insert too much at once);
6. The separated spring sprays onto the aluminum plate;
7. This separator is suitable for use by operators on assembly machines.

Note:
- Please adjust the spring outlet appropriately according to the outer diameter size of the spring (refer to the scale of the outlet gate), and the outlet should be slightly larger than the outer diameter of the spring.
- After starting up, try to put in a small amount of spring to be separated; If the spring is not yet separated before spraying, please press the gate down to reduce the spring outlet, and the spring will automatically separate and spray out; If the spring cannot rotate out of the cylinder for a long time (not exceeding 10 seconds), please pull up the gate to enlarge the outlet, and the separated spring can be discharged.
- When the machine is working, do not open the top cover to prevent the spring from splashing and injuring yourself.
- After turning on the power, do not put your hands or other unrelated objects into the cylinder.

Package Included:
- 1 x Spring Separator
