  5. 8PCS DC-8.5GHz SMA Calibration Kit with Optional 4PCS N to SMA Adapters for RF Circuit Impedance Compensation
Par Thanksbuyer

8PCS DC-8.5GHz SMA Calibration Kit with Optional 4PCS N to SMA Adapters for RF Circuit Impedance Compensation

$58.04 - $65.81
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.
Versions: Without N to SMA Adapters
$58.04
$58.04
Availability: 2000 en stock
SKU: 94947
Tags:
Collections:
HamGeekHamGeek R10C + H4MS HackRF One R10C V2.0.x SDR Radio MAX2837 and H4MS Portapack with Optional Antennas and LNA
Text watermark
Text watermark
Thanksbuyer5PCS DC-8.5GHz SMA Calibration Kit OPEN + SHORT + LOAD + THRU for RF Circuit Impedance Compensation
Text watermark
$58.04
$58.04

Specifications:
- OPEN phase error: 8.5GHz ≤ 3.0°
- SHORT phase error: 8.5GHz ≤ 3.0°
- LOAD return loss: ≥31dB, VSWR < 1.06 for male connector; ≥28dB, VSWR < 1.07 for female connector

Package Included:

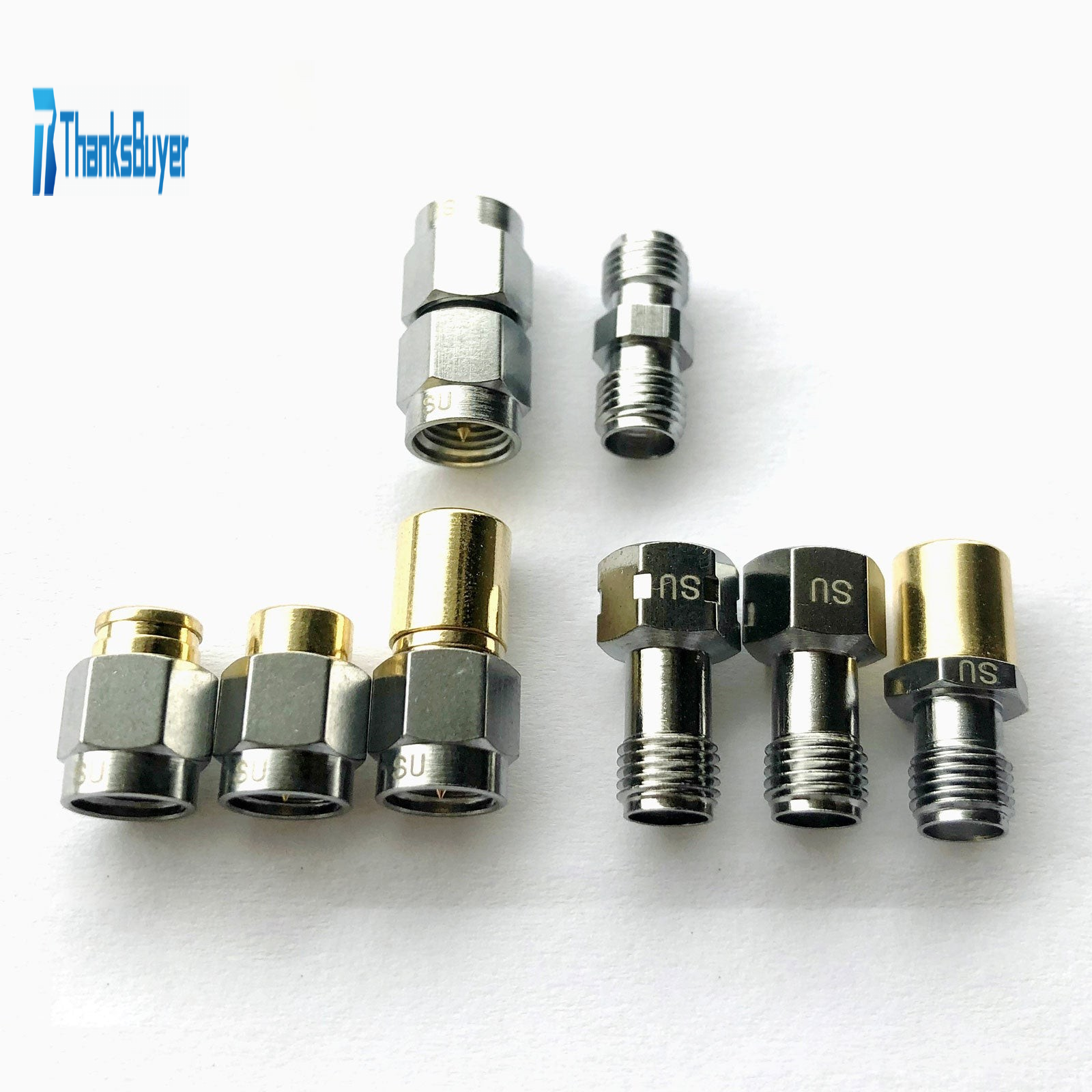

- 8 x SMA Calibration Units

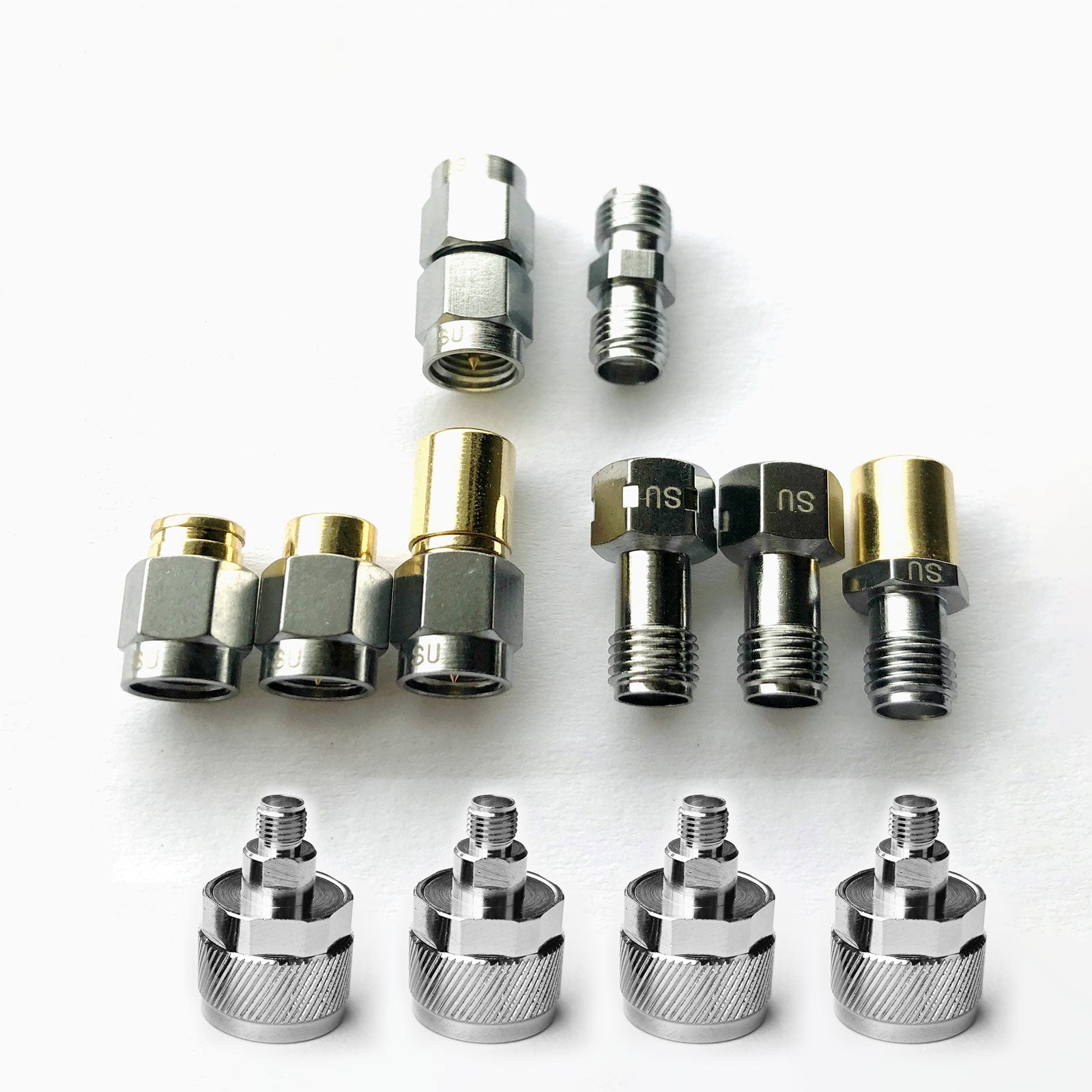

- 4 x Optional N to SMA Adapters

OPEN Testing Diagram (smith):



SHORT Testing Diagram (smith):



THRU Testing Diagram:



LOAD Testing Diagram:
