119x59x32mm/4.7x2.3x1.3" Aluminum RF Shield Box + Two SMA Female Connectors for Low Noise Amplifiers

119x59x32mm/4.7x2.3x1.3" Aluminum RF Shield Box + Two SMA Female Connectors for Low Noise Amplifiers

Description:

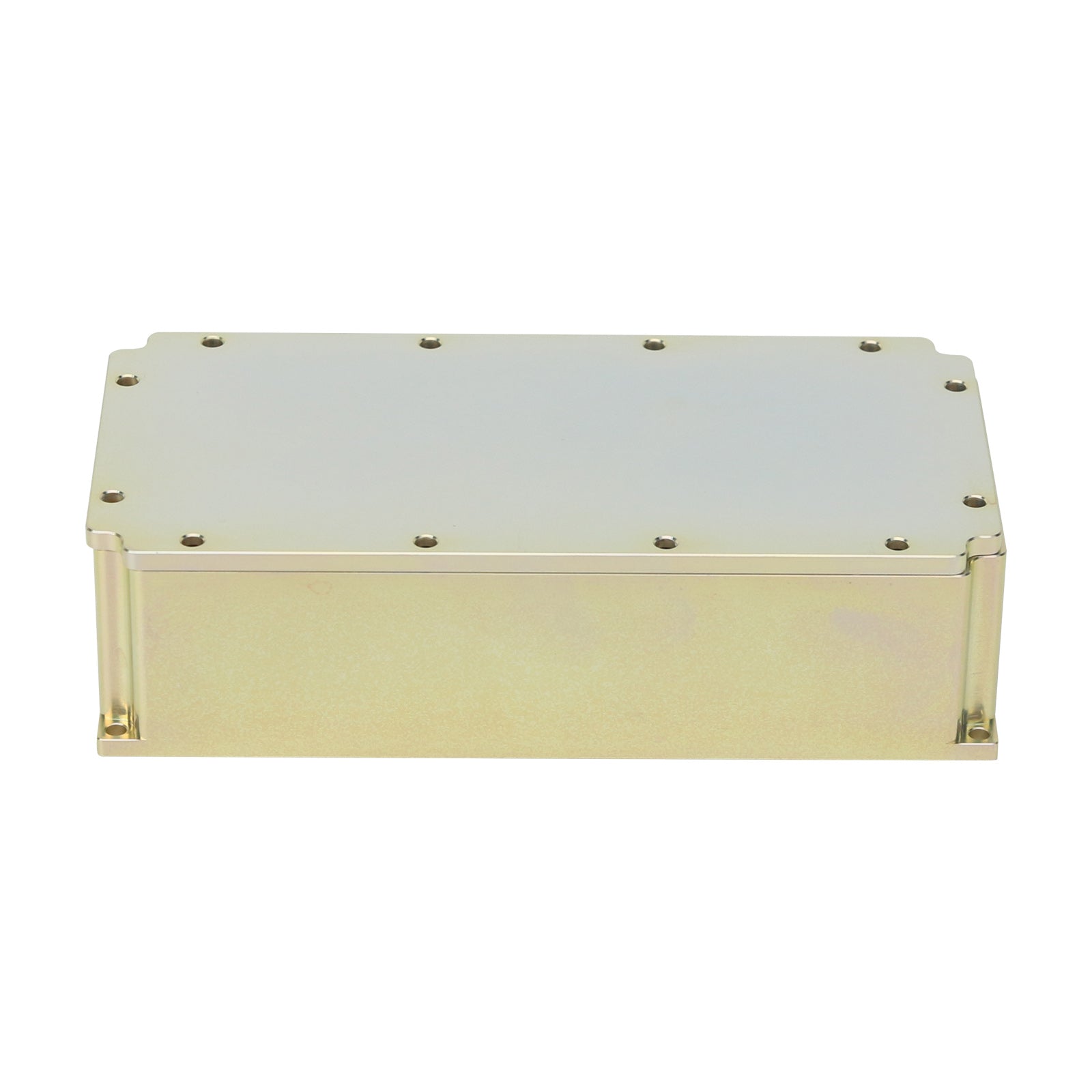

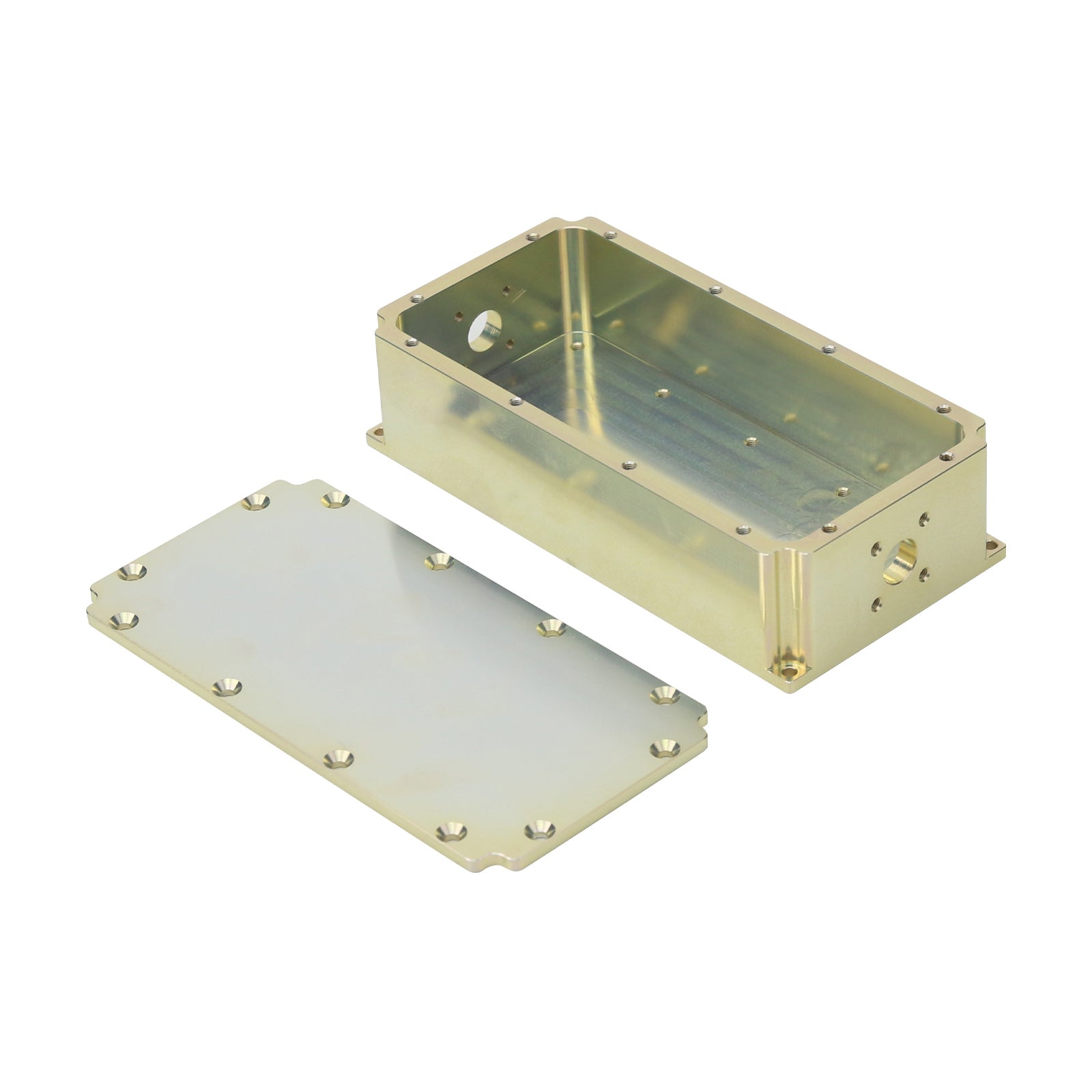

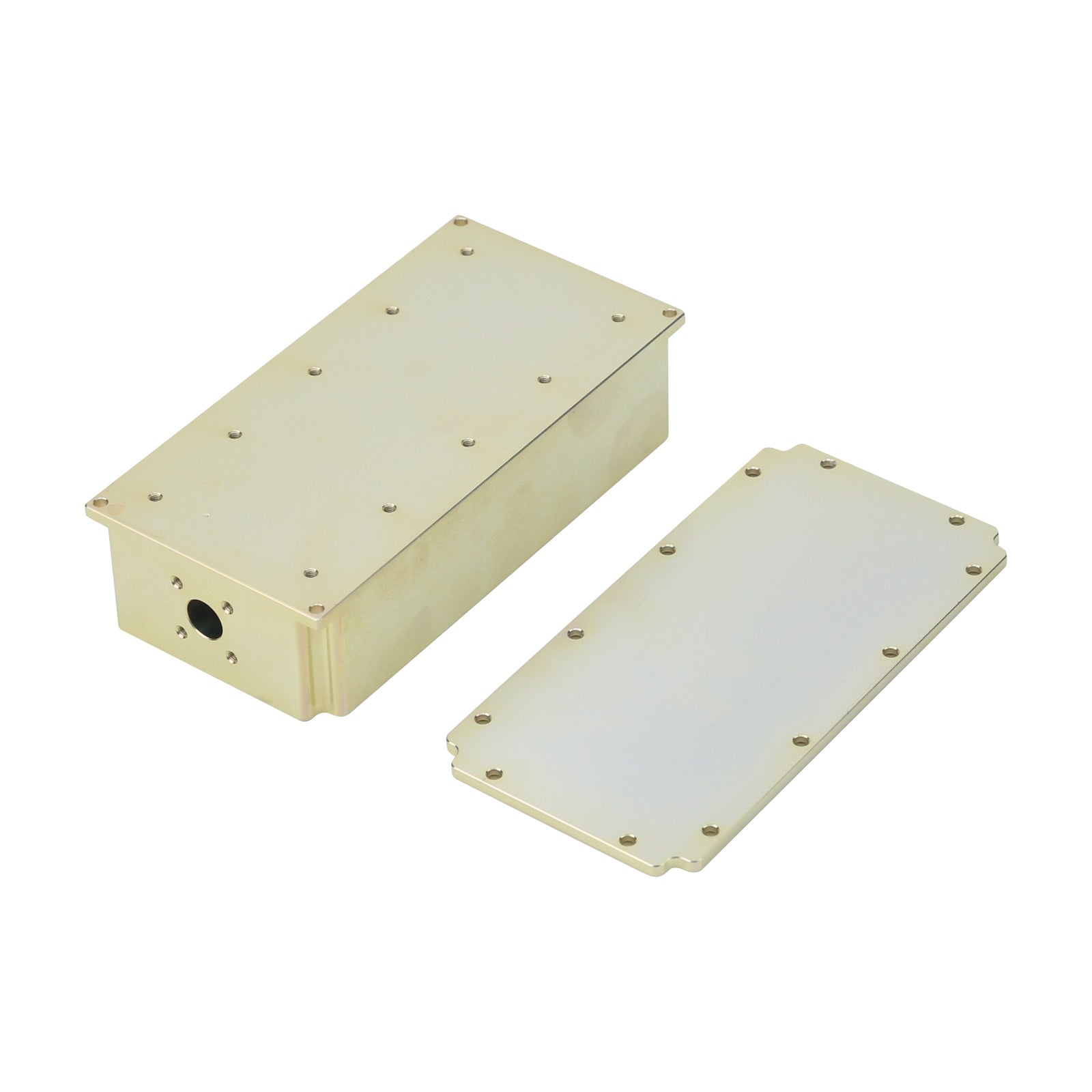

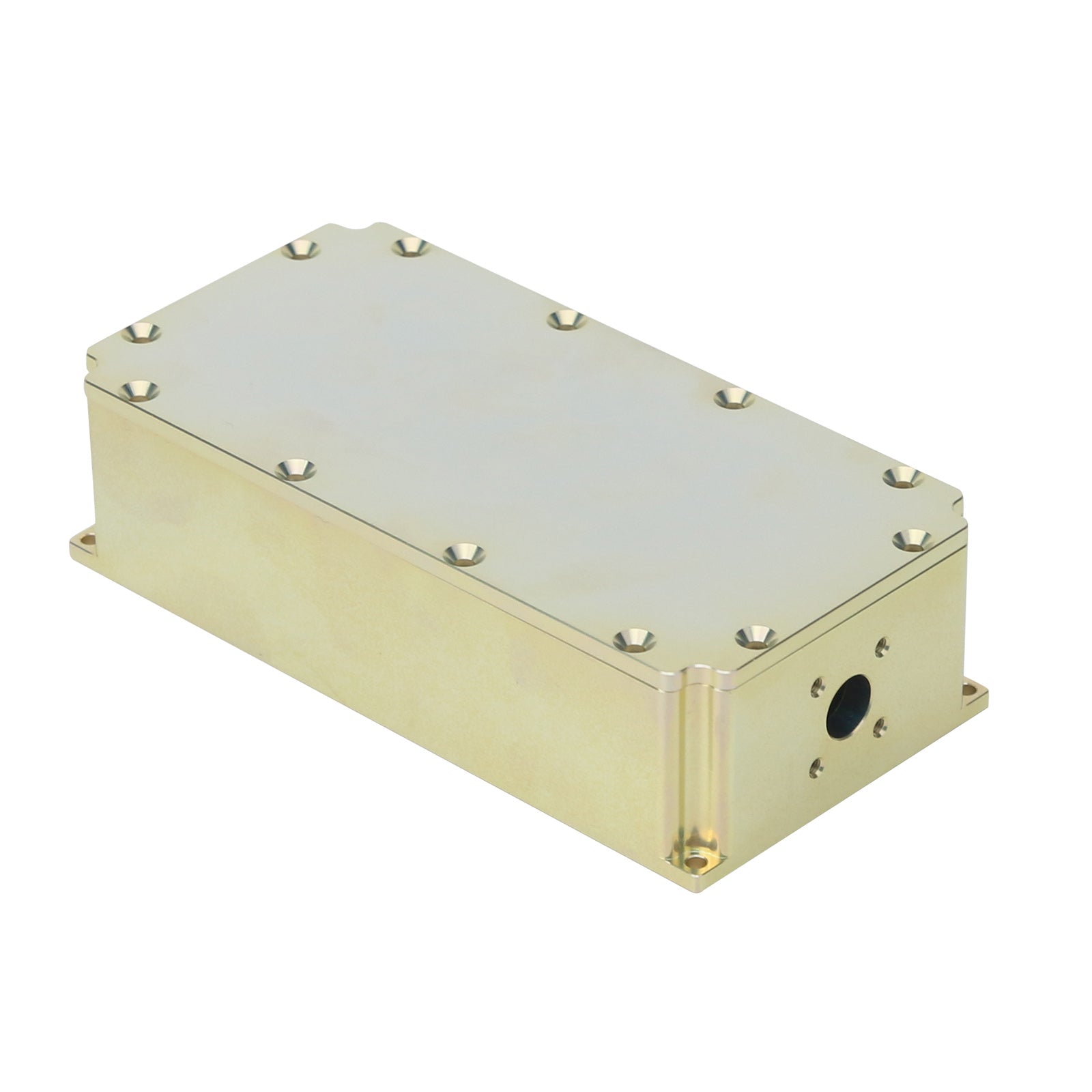

The microwave shield box is made of die-casting aluminum and CNC machined. It comes with SMA connectors. It can be used for low-noise amplifiers, power amplifiers and professional RF design.

Specifications:
1. Dimensions (without the size of connectors): 119 x 59 x 32mm/4.7 x 2.3 x 1.3" (3mm/0.1" box cover)

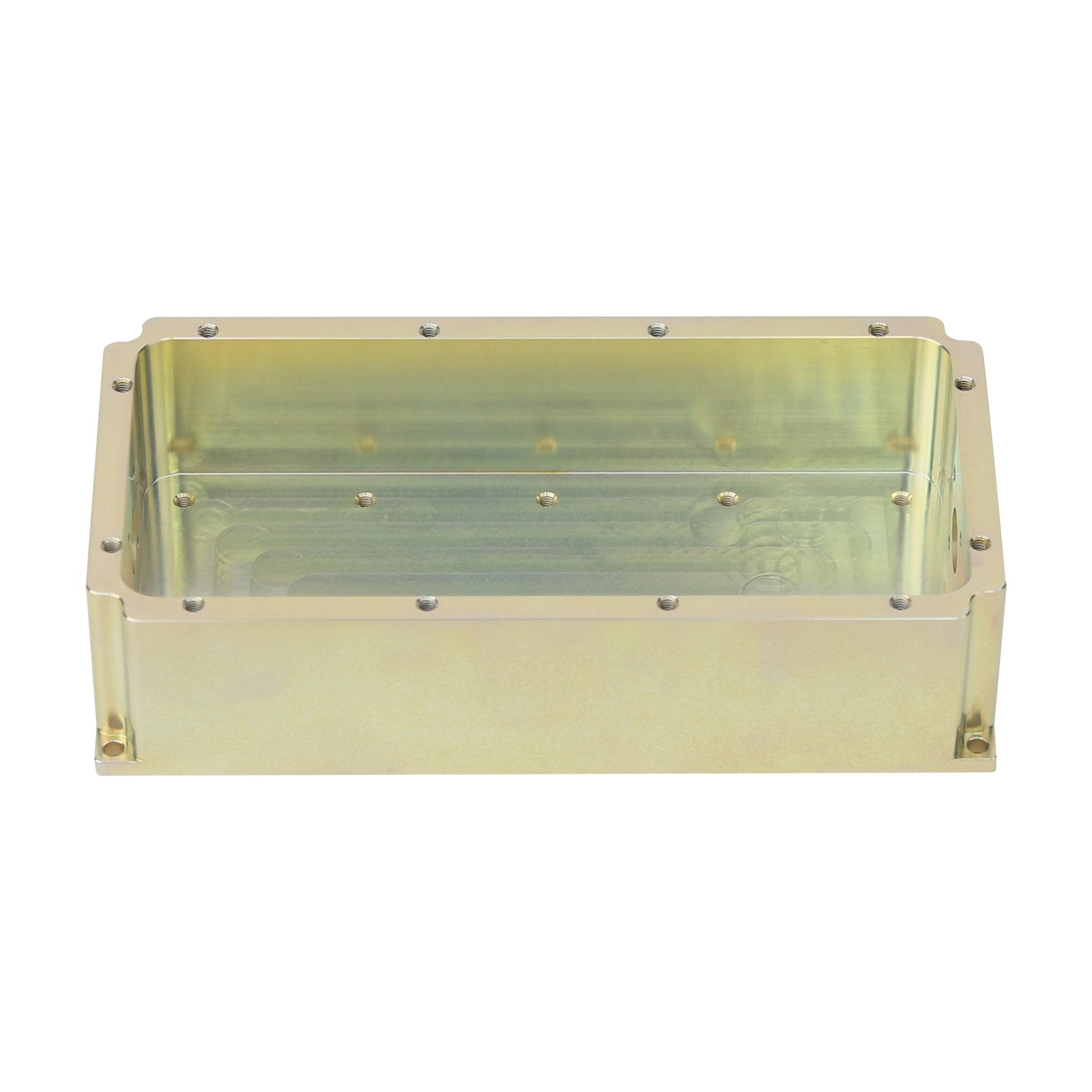

2. Cavity size (mainly PCB version): 110 x 50 x 25mm/4.3 x 2 x 1"
3. Recommended size of circuit board: smaller than the cavity size (chamfer R=5mm/0.2" is needed for the circuit board)
4. Shell weight: 120g/0.3lb
5. Connector model: universal for BNC/N/SMA. The mounting hole spacing is 12.7mm/0.5"
6. Screw size: the inside of the cavity is M2.5*4 or M2.5*5 screw hole, and M2.5*6 screws with countersunk hole are for the cavity box cover

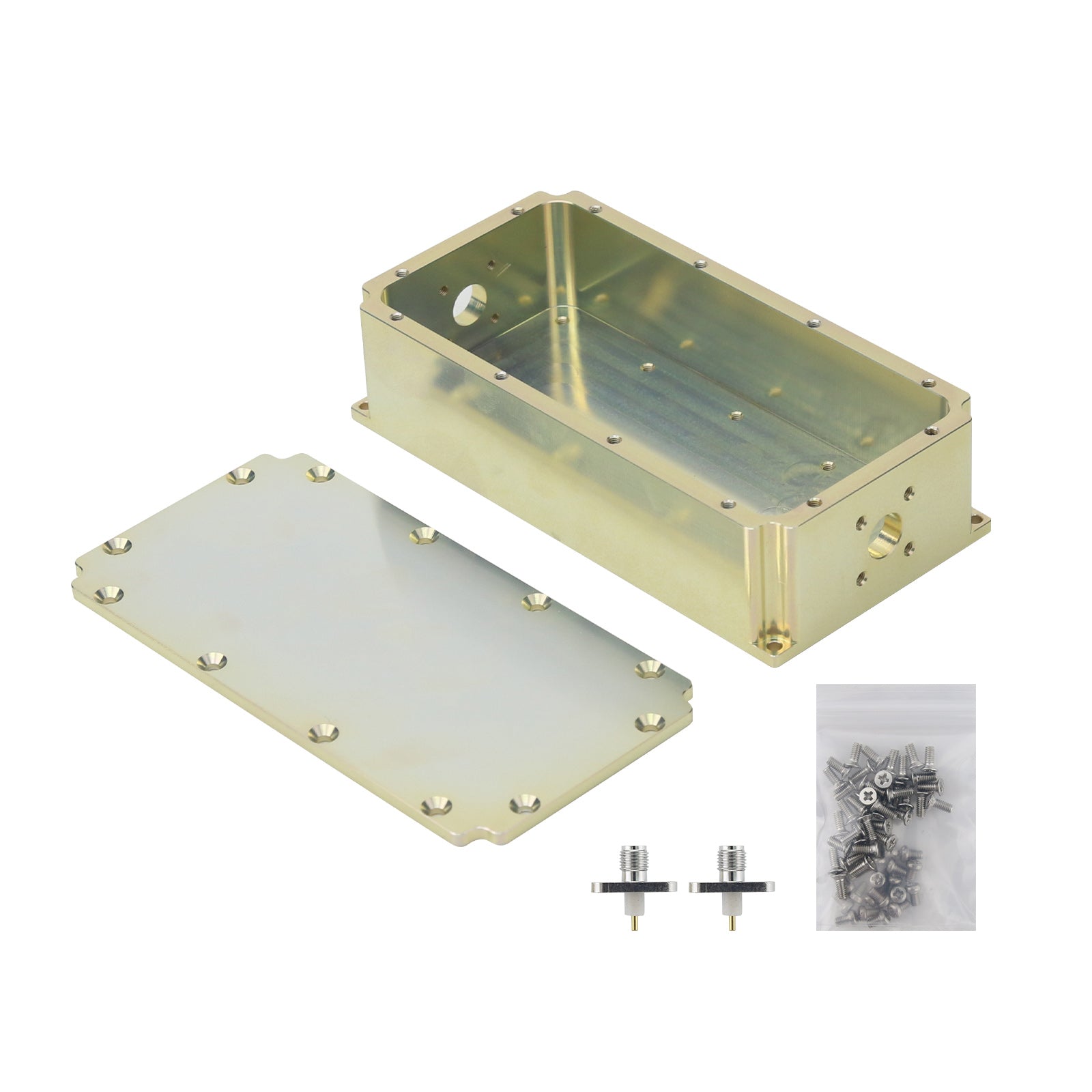

Package Included:
- 1 x Shell body
- 1 x Box cover
- 2 x SMA connectors

Packaging Details:
- G.W.: 0.25kg
