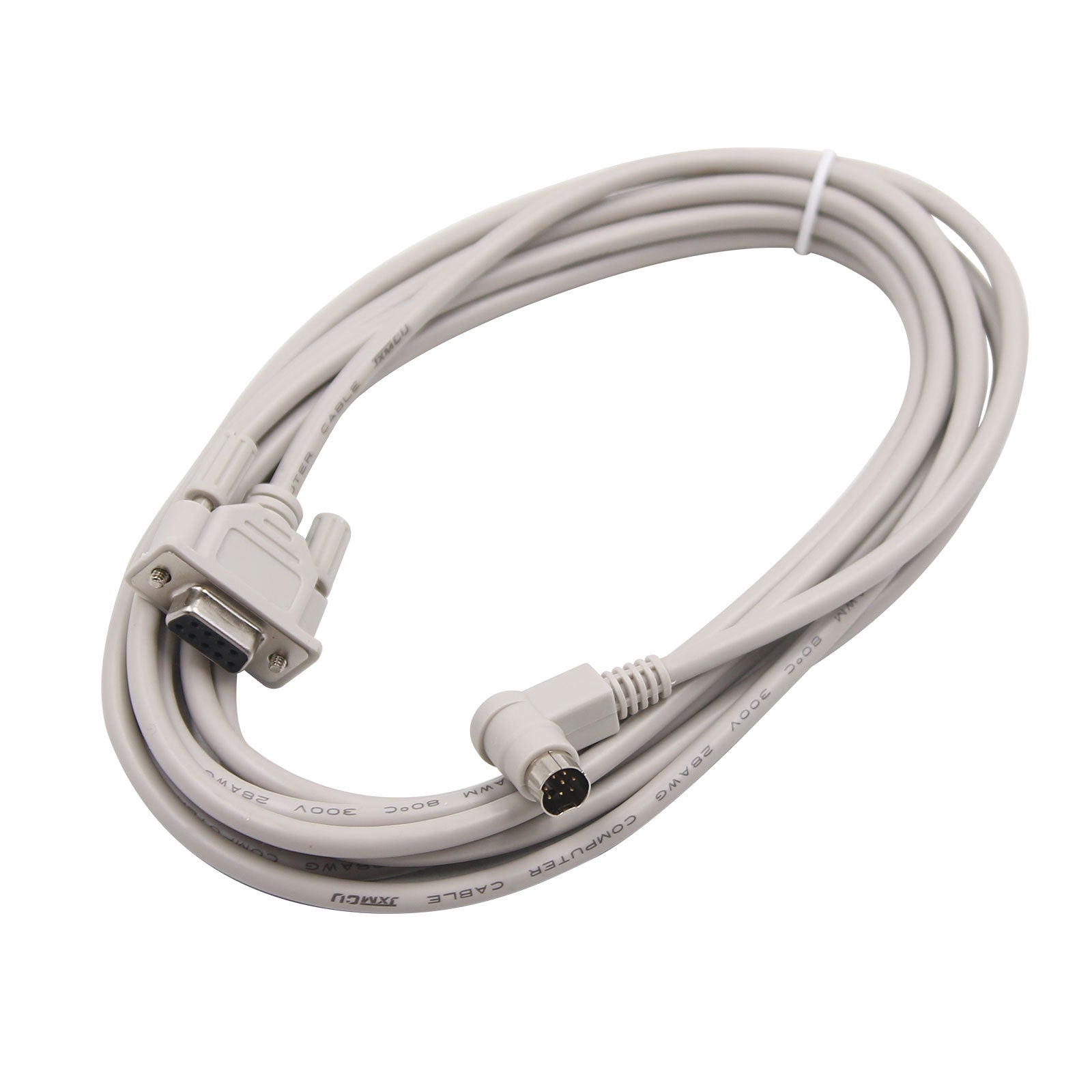

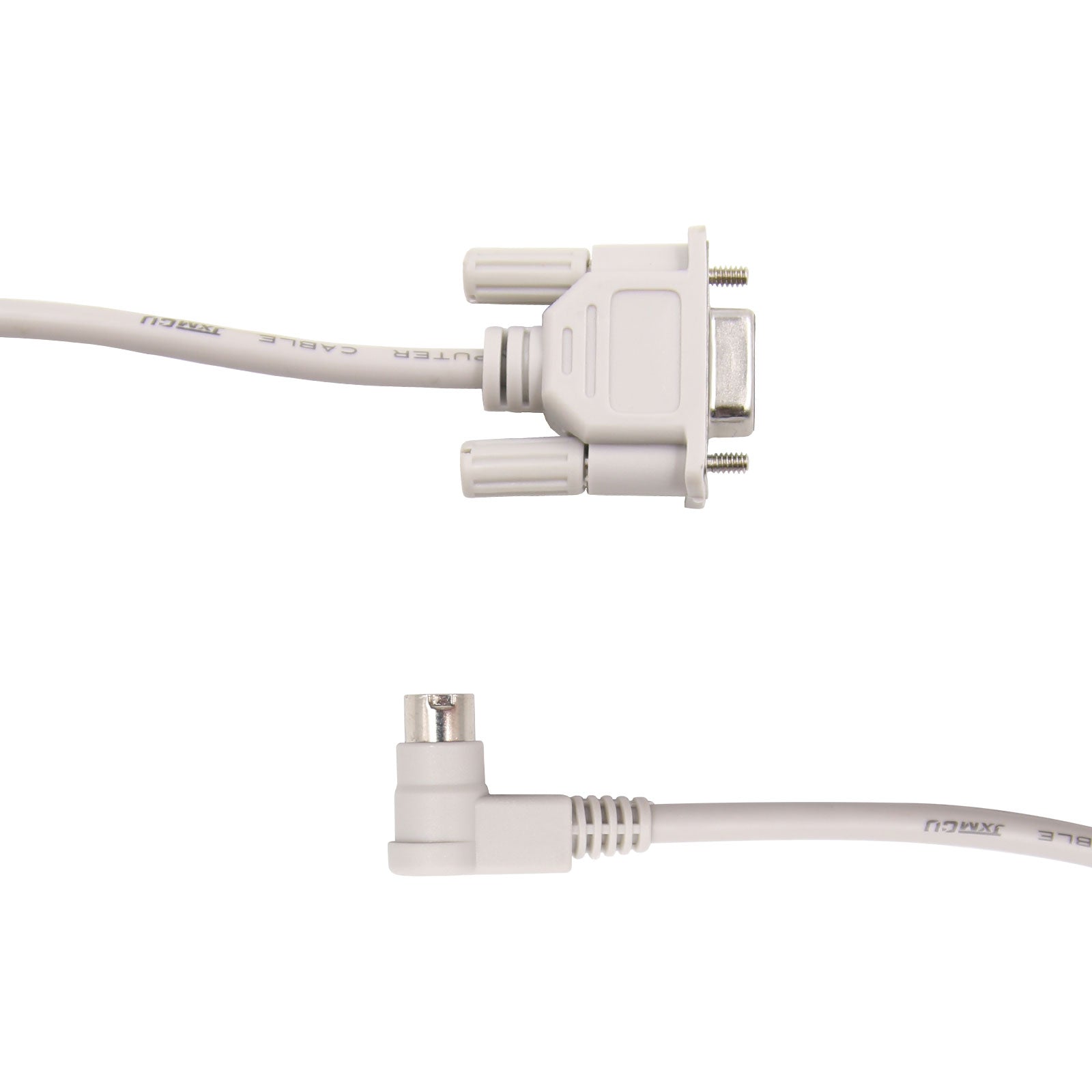

1761-CBL-PM02 PLC Programming Cable For AB MicroLogix 1000 1200 1400 1500 Series 90 Degree

1761-CBL-PM02 PLC Programming Cable For A-B MicroLogix 1000 1200 1400 1500 Series 90 Degree

Features:
- For A-B MicroLogix 1000/1200/1400/1500 series PLC programming cable with RS232 interface, cable length 3 meters;

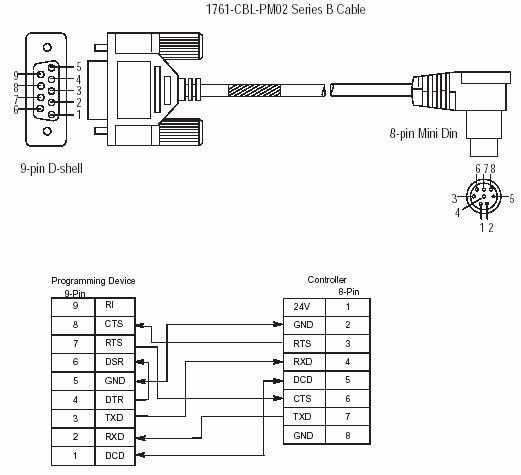

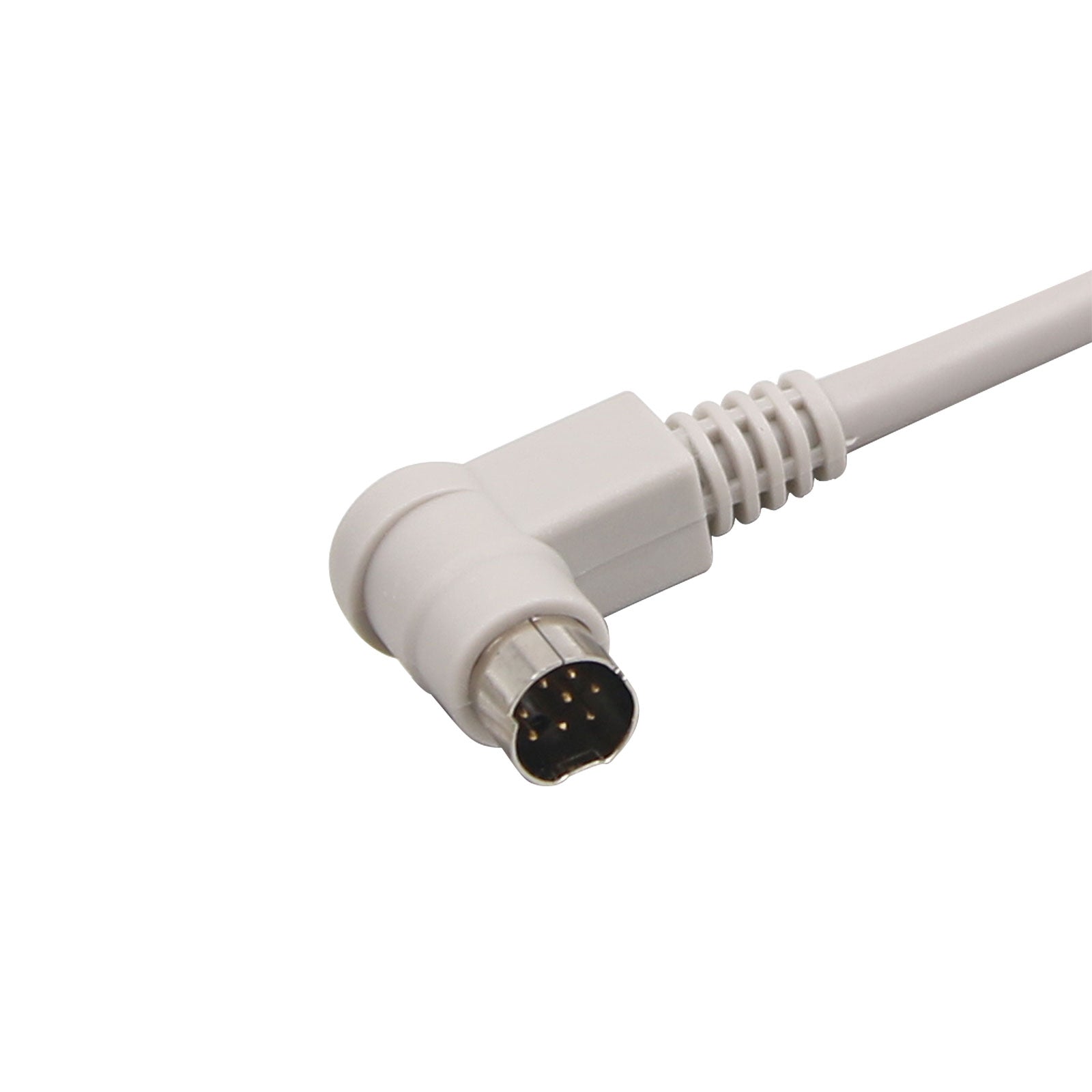

- The appearance of the PLC side connector is a round head 8-pin right angle 90 degree with positioning notch, which effectively fixes the PLC programming port, and will not interrupt communication due to the shaking of the cable during programming monitoring.

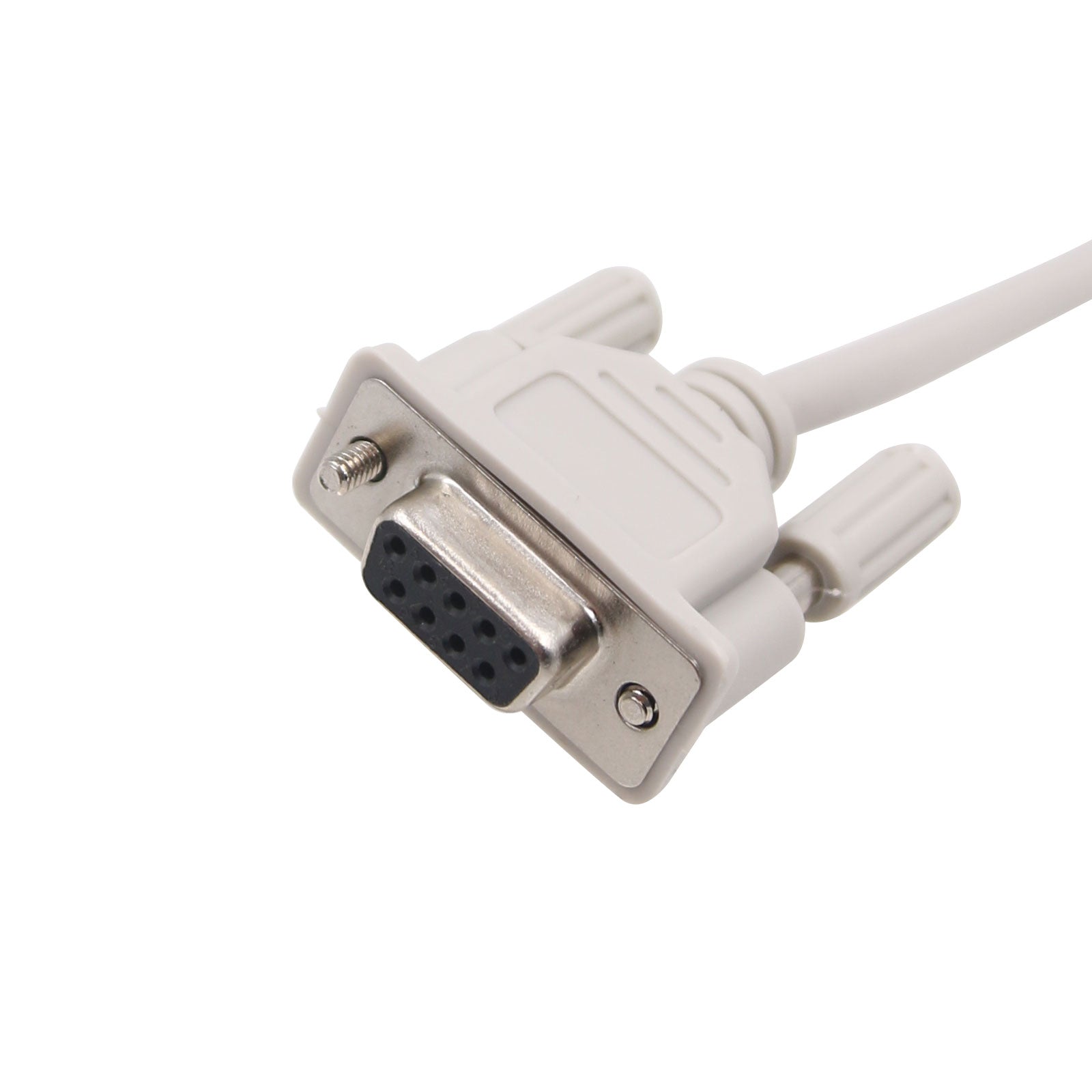

- RS232 port is a traditional DB9 black plug. The traditional DB9 is equivalent to the ordinary DB9. It is resistant to dialing and inserting more than 10,000 times. It is used in AB 1761 series PLC programming and debugging.
- Cable Length: 3 meters
- Material: pure copper
- Wire diameter: OD 5.0MM
- Packing: PVC plastic bag
- Support: For Win98/200/XP/Vista/Win7 system/Win8 system

Package Included:
- 1 x PLC Programming Cable
