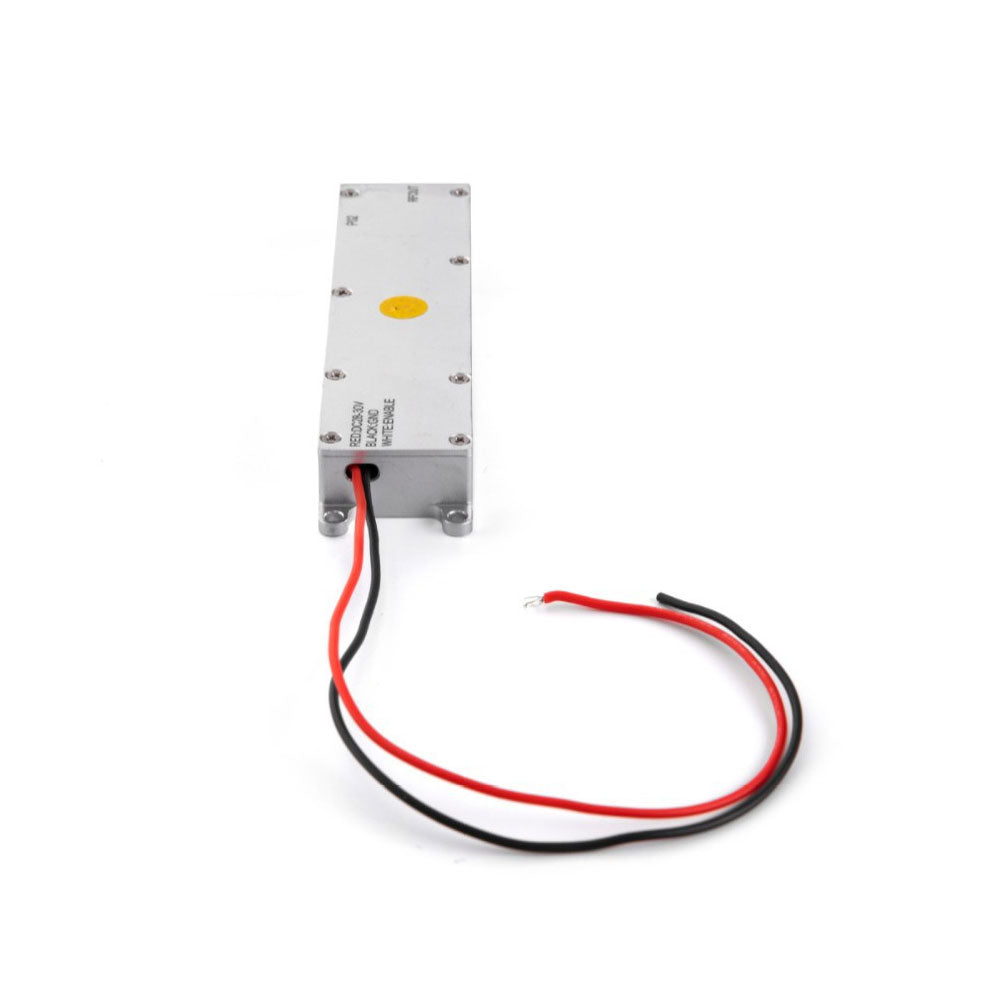

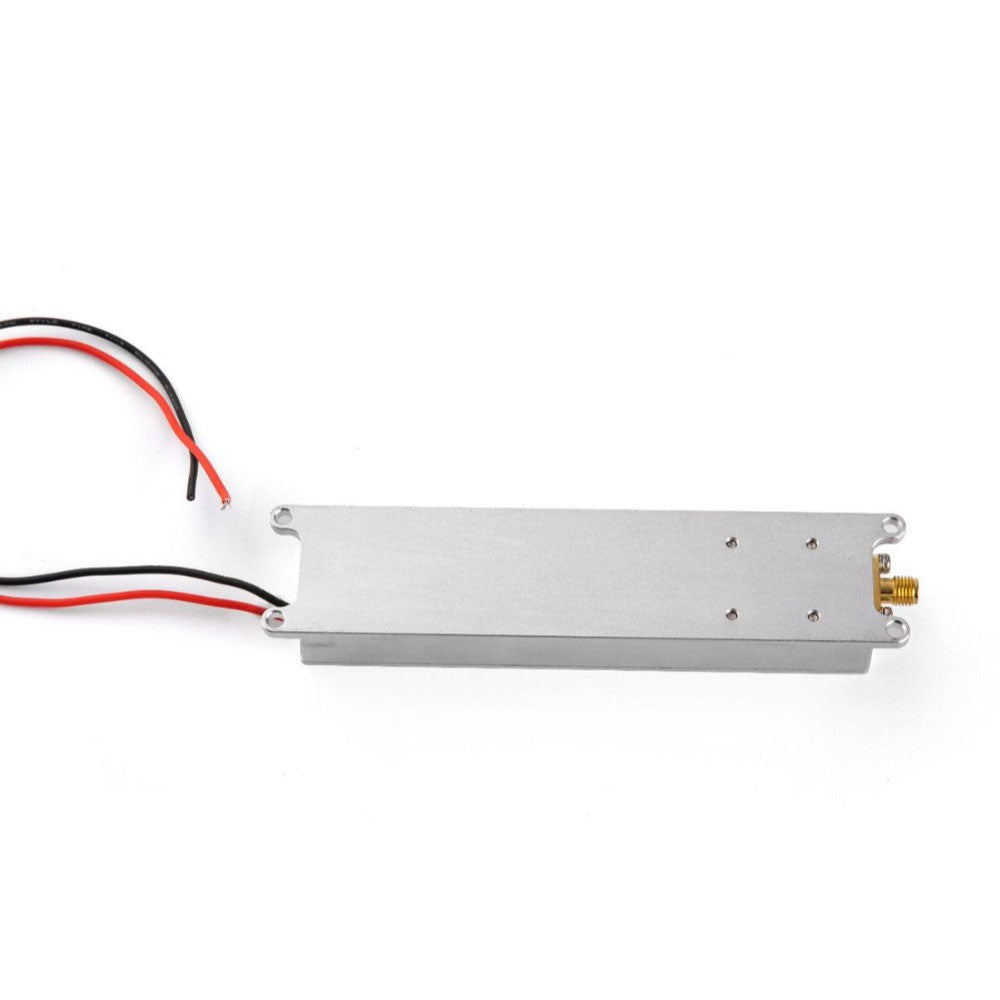

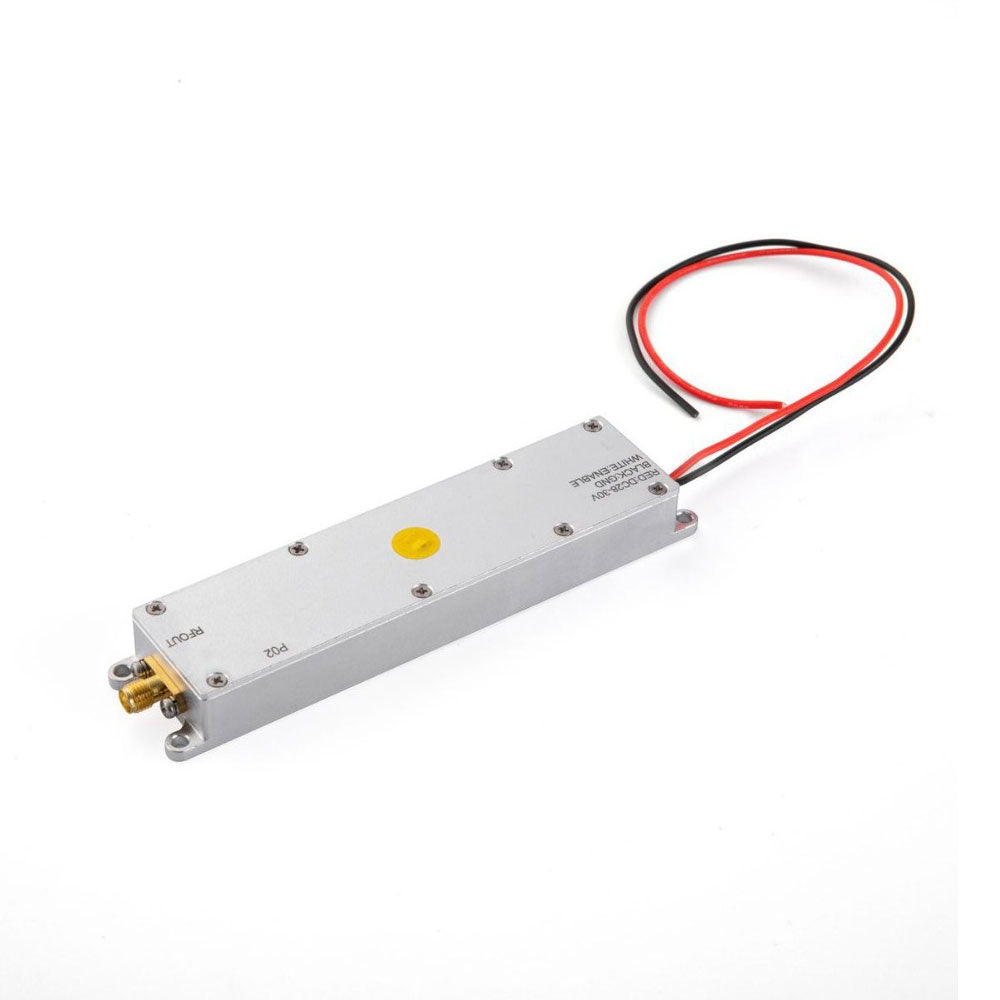

2.4GHz 20W Anti-drone Module Anti-UAV Module GaN Module Counter-drone Solution with Small Size

2.4GHz 20W Anti-drone Module Anti-UAV Module GaN Module Counter-drone Solution with Small Size

Features:
* 2.4GHz 20W power amplifier module
* 20W GaN module can work at low temperatures
* With key components produced in China, the module can work normally at a low temperature of -40°C
* Small size, light weight, and easy to install
* Radio frequency technology is a wireless technology used to transmit data. It can propagate electromagnetic waves in the air, allowing for wireless transmission

Product Parameters:
* Frequency Band: 2.4G
* Power: 20W
* Voltage: DC 27-28V
* Power Flatness: 1-1.5dB
* Input/Output Standing Wave: 1.5dB
* Current: 1-1.1A
* Size: 130mm x 29.7mm x 15.5mm
* Weight: 136g
* Operating Temperature: -20℃ to 80℃
* Output Port: SMA
* Connection Cables: Red: DC28-30V; Black: GND; White: Enable cable

Package Included:
* 1 x Module

Packaging Details:
* Weight: 0.3kg
