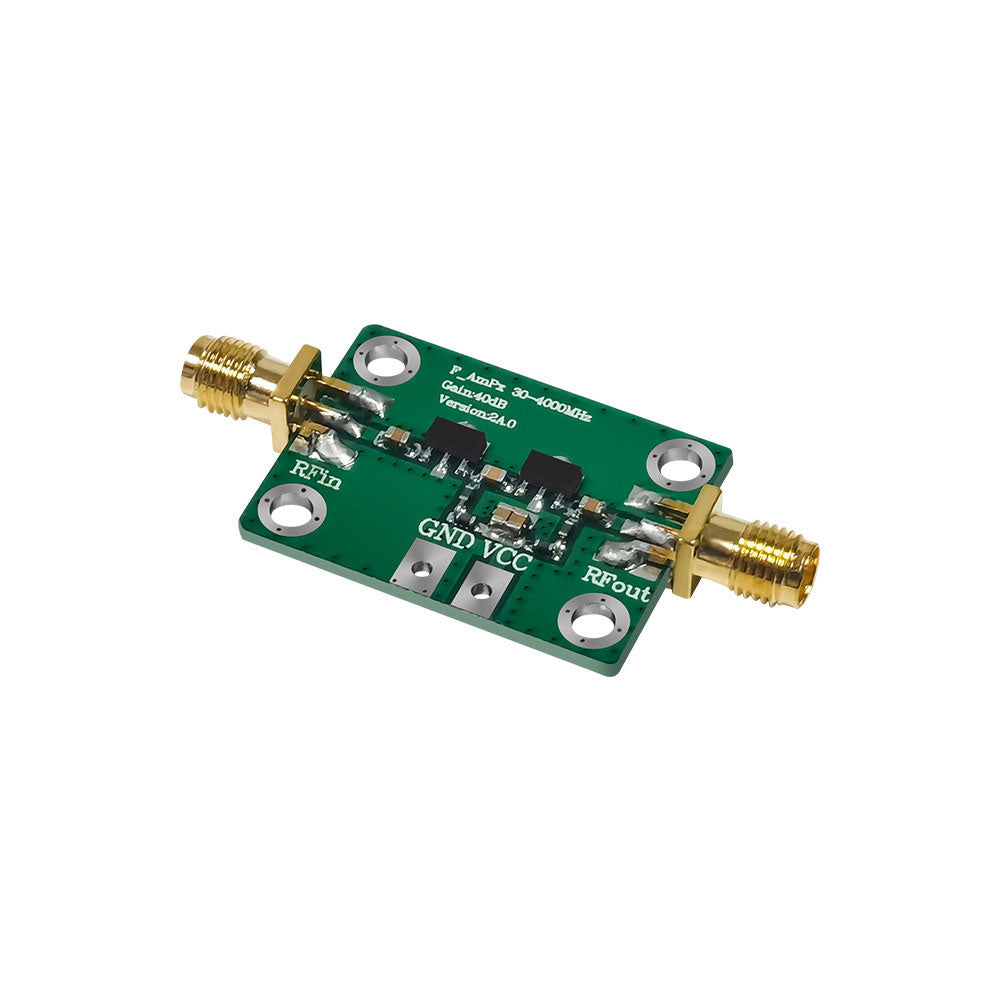

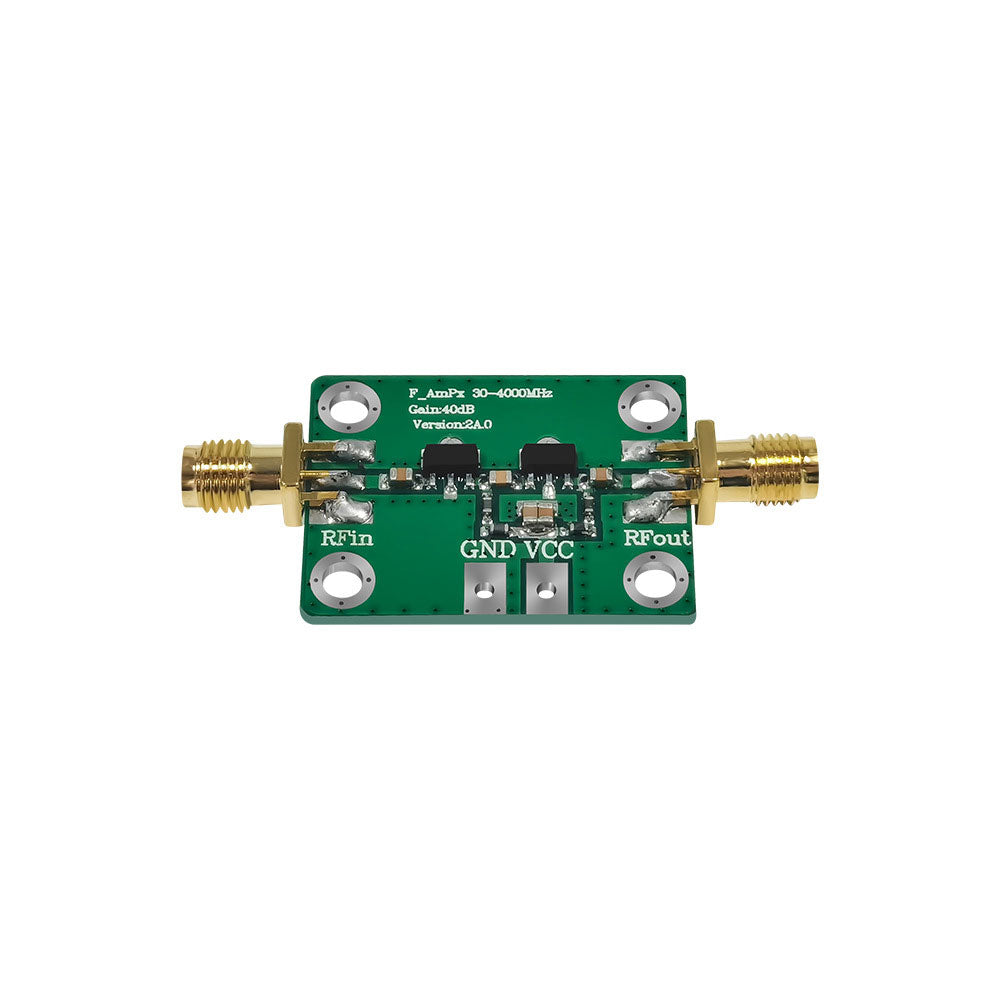

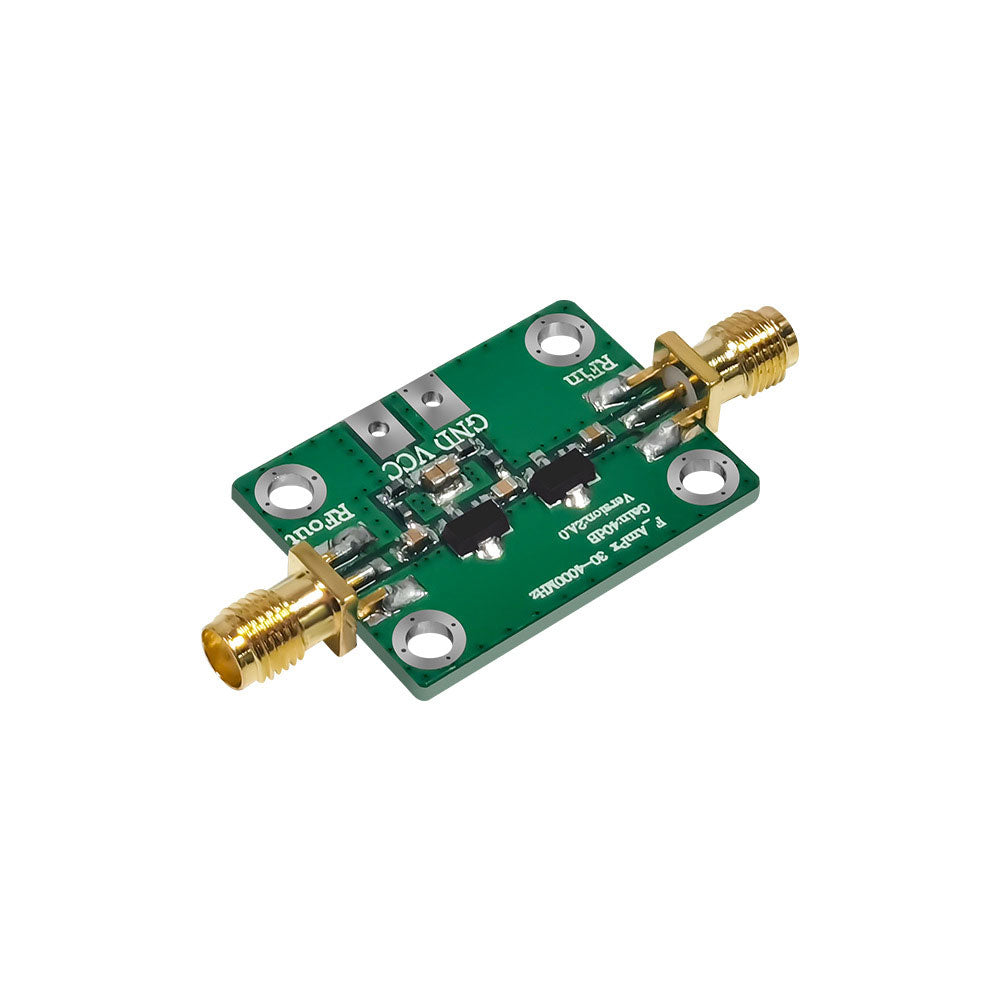

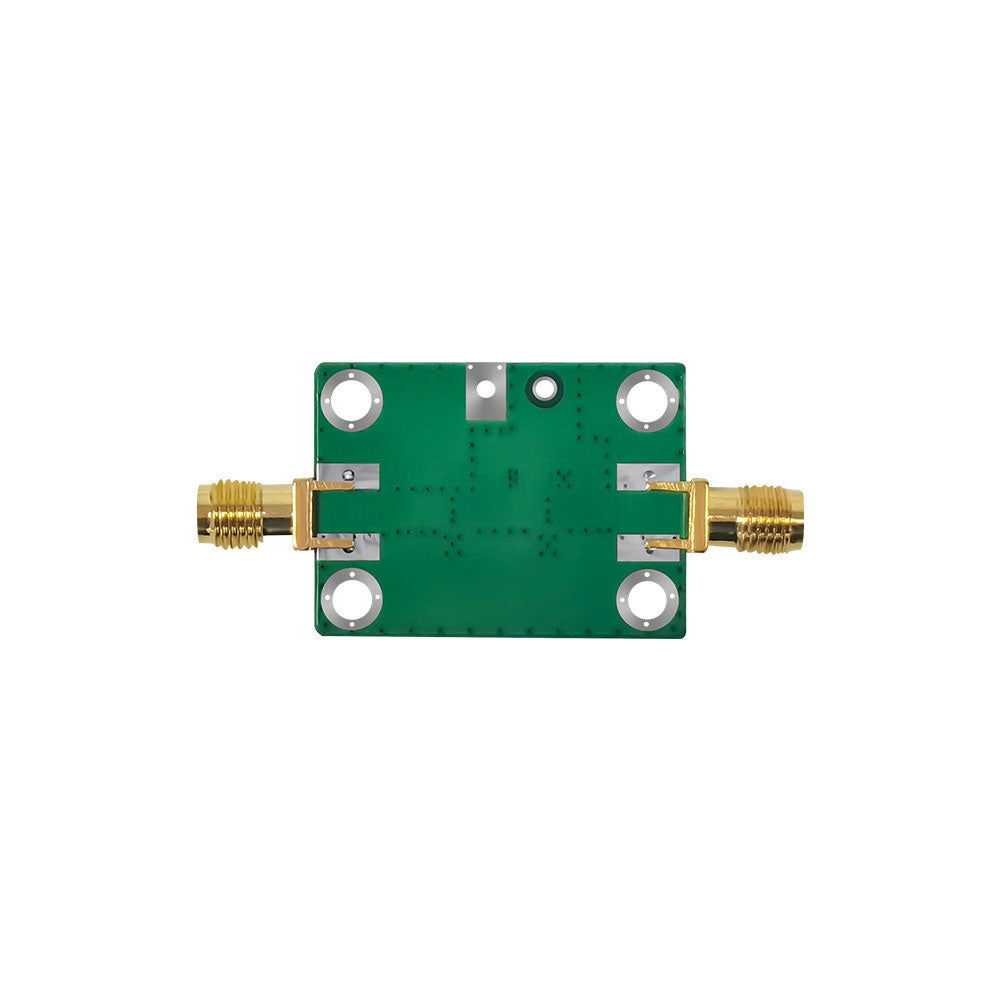

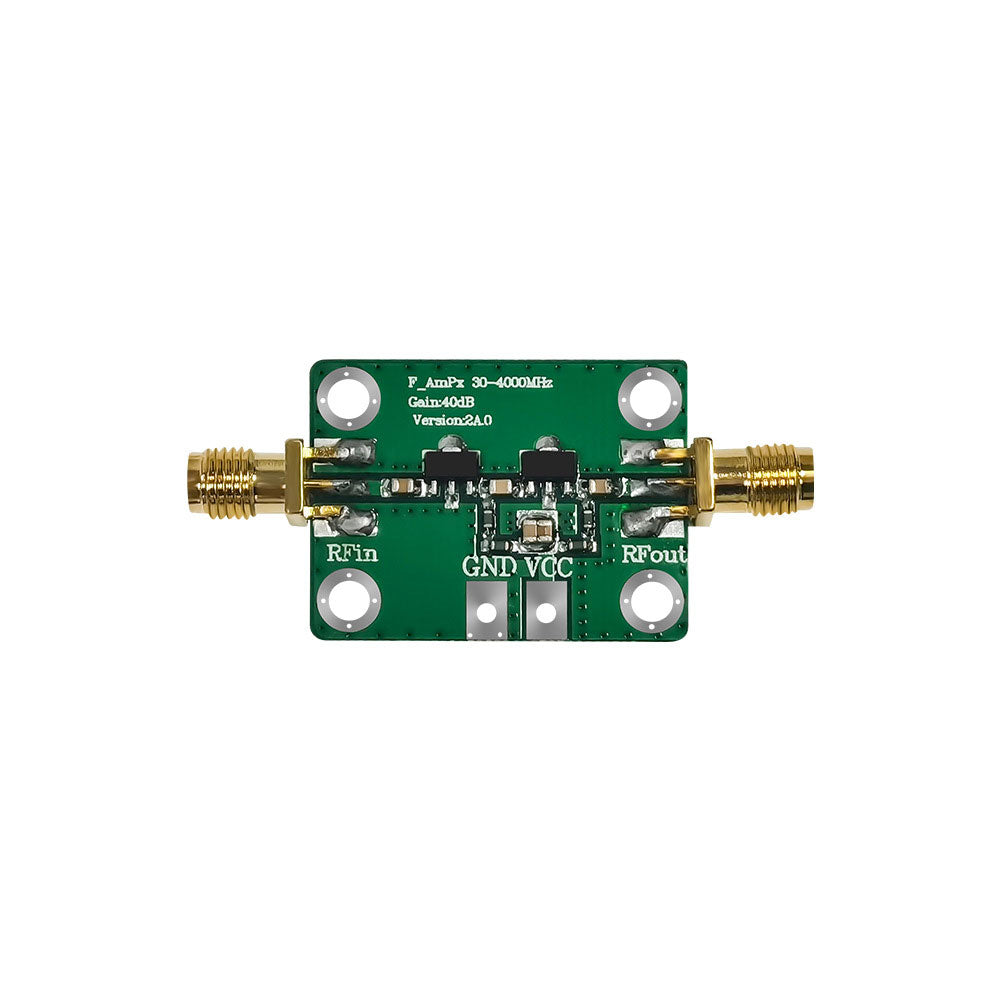

30-4000MHz RF Power Amplifier RF Power Amp Module 40DB Gain with Large Dynamic Range
Applications:
The amplifier is a 30-4000MHz (40dB) amplifier with a large dynamic range. It is suitable for fixed gain amplification of RF signals.
Amplifier Parameter Indicators:
- Operating frequency: 30-4000MHz
- Amplifier Gain: 40dB
- Maximum output power: +20dBm (100mW) at 1dB compression point
- Working current: 135mA (5V)
- Supply voltage: 5VDC
- System Impedance: 50 ohms
Package Included:
- 1 x RF power amplifier
