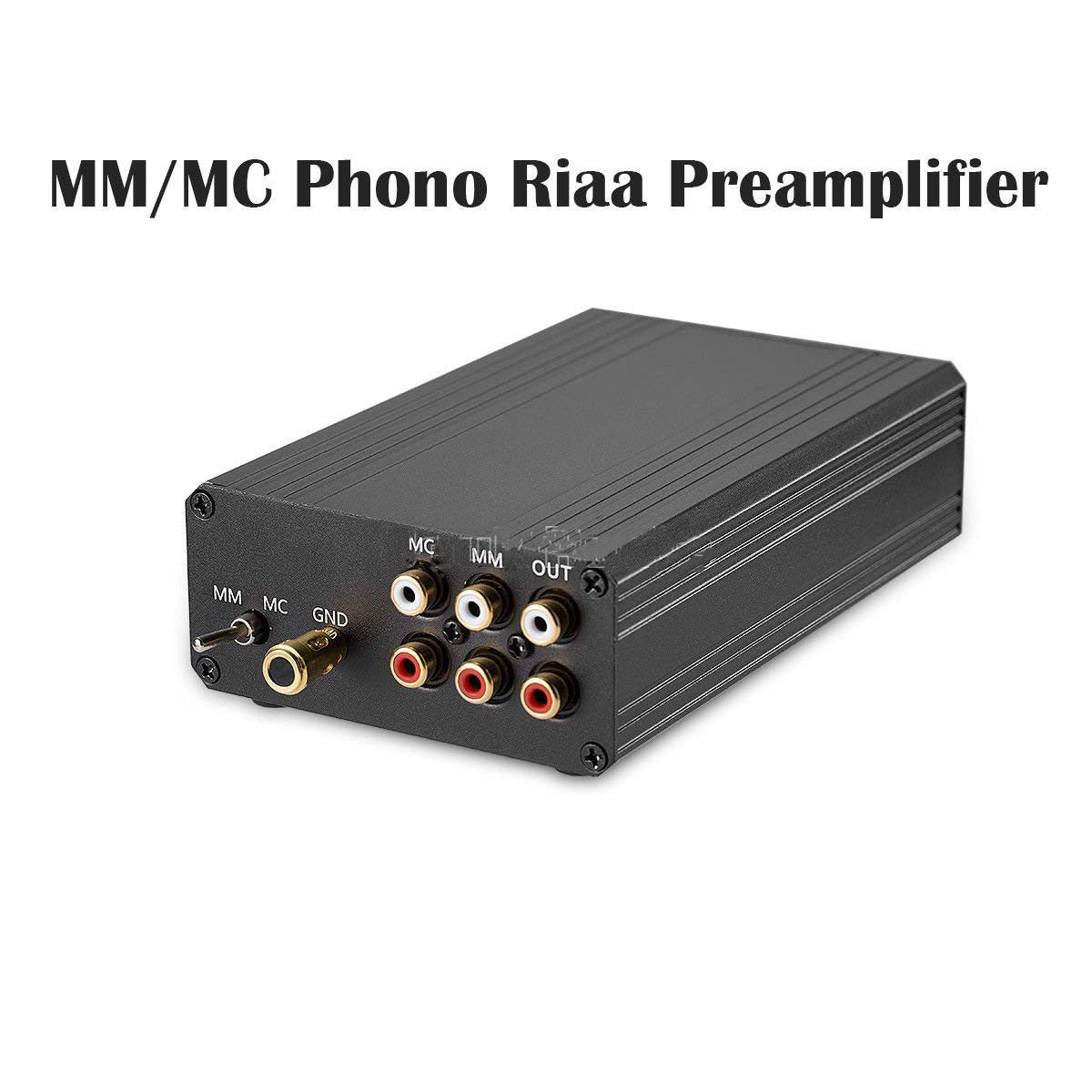

3W RIAA Phono Preamp MM MC Phono Preamplifier Little Bear T8

3W RIAA Phono Preamp MM MC Phono Preamplifier Little Bear T8

Description:
This is a HiFi phono preamp. It supports MM / MC (cartridge) type turntable, so you can use it for all turntable players. It's very helpful because it was produced with many HiFi electronic components including FET, coupling capacitors, VISMAY MKT, and ELNA original capacitors. Compared with the sound of ordinary preamp with 5532, 4556, our preamplifier is much close to that of tube preamplifier.

It support majority of the MM cartridge as well as 40-100Ω MC cartridge.

Parameters:
- Support 110V, 220V (Default 220V; or you can change the jumper on the main board)
- RIAA Frequency Response: 20 Hz-25KHz +/- 0.5dB
- SNR: > 95dB
- THD: <0.05%
- Input Sensitivity: 3.0mV
- Gain: 50dB for MC; 40dB for MM
- Max. Output Voltage: 300mV / 1.8V
- Output Impedance: 200Ω
- Input Impedance: 47KΩ/ 220 pF (MM), 100Ω (MC)
- Weight: 450g
- Power Consumption: 3W
- Size: 146 * 95 * 43mm (5.78 * 3.7 * 1.7inch)

Package Included:
- 1 x MM/MC Phono Preamp
- 1 x Power Cable

Note:

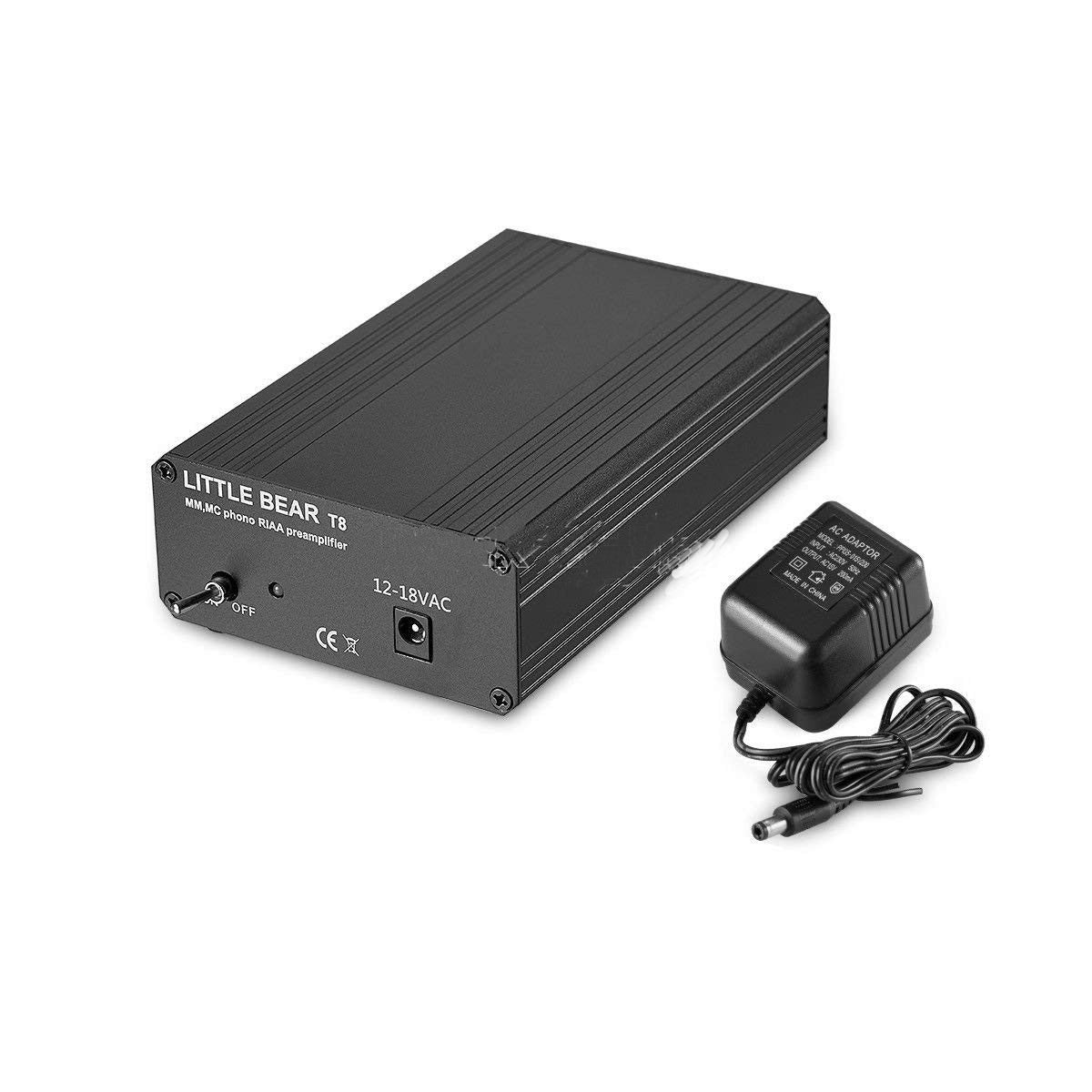

At present, its transformer is changed to external. When the transformer is built-in, the transformer is too close to the audio signal, so there will be less noise into the signal. So currently it is changed to external. Thanks for your understanding.
