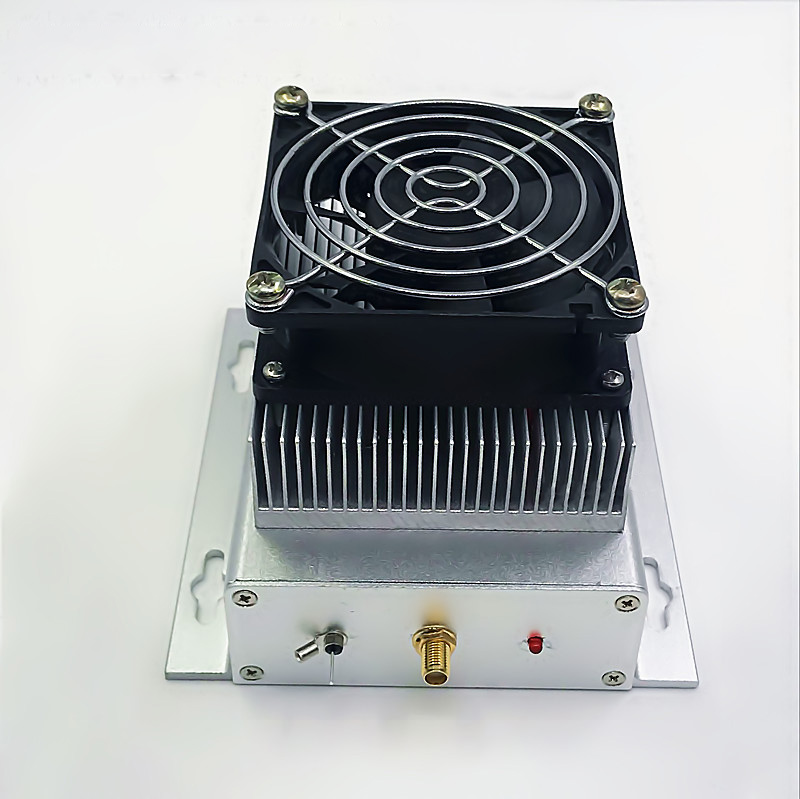

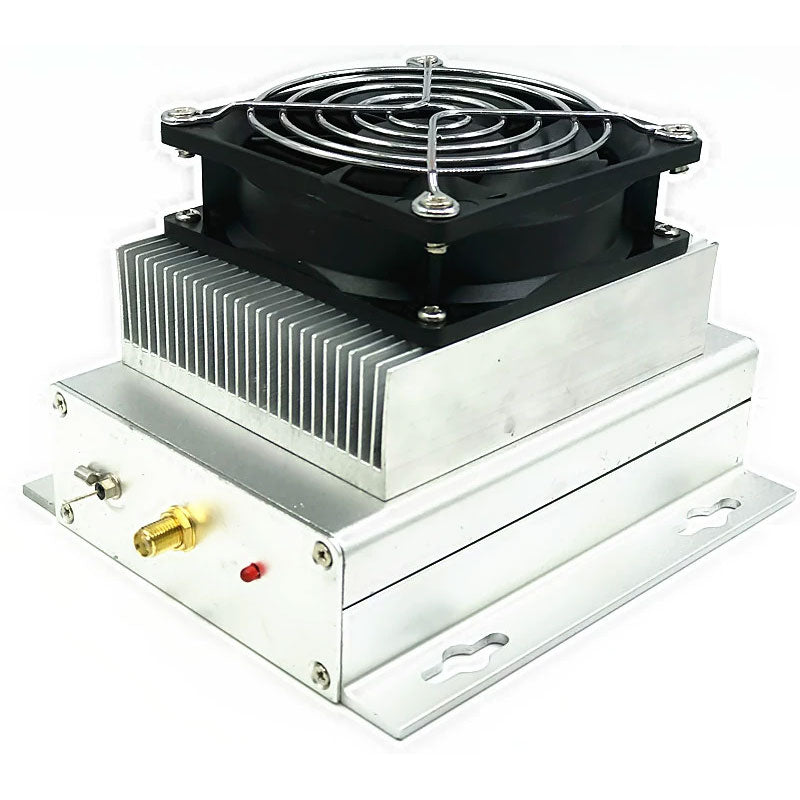

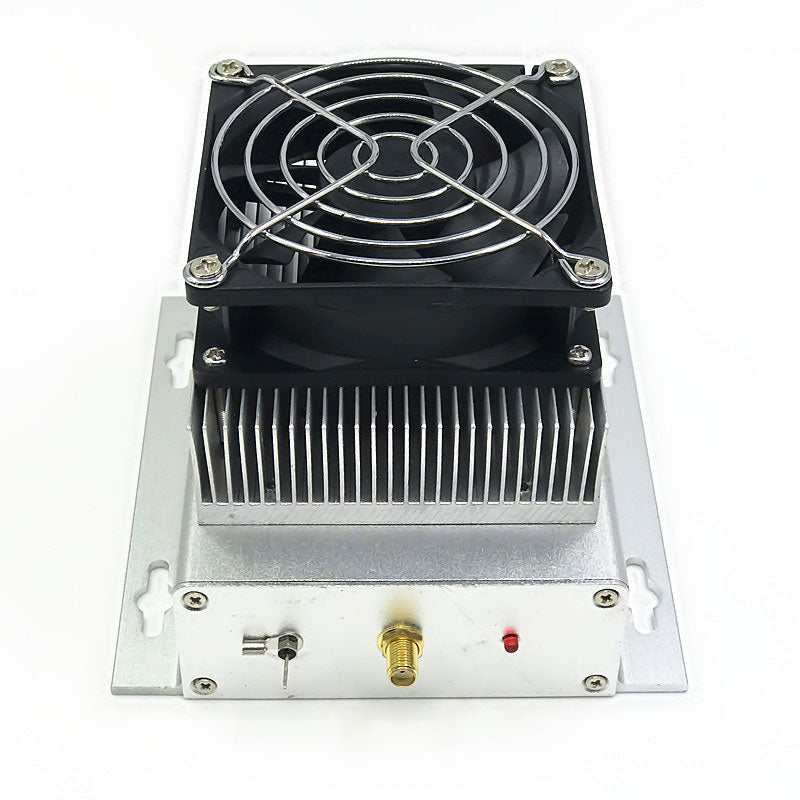

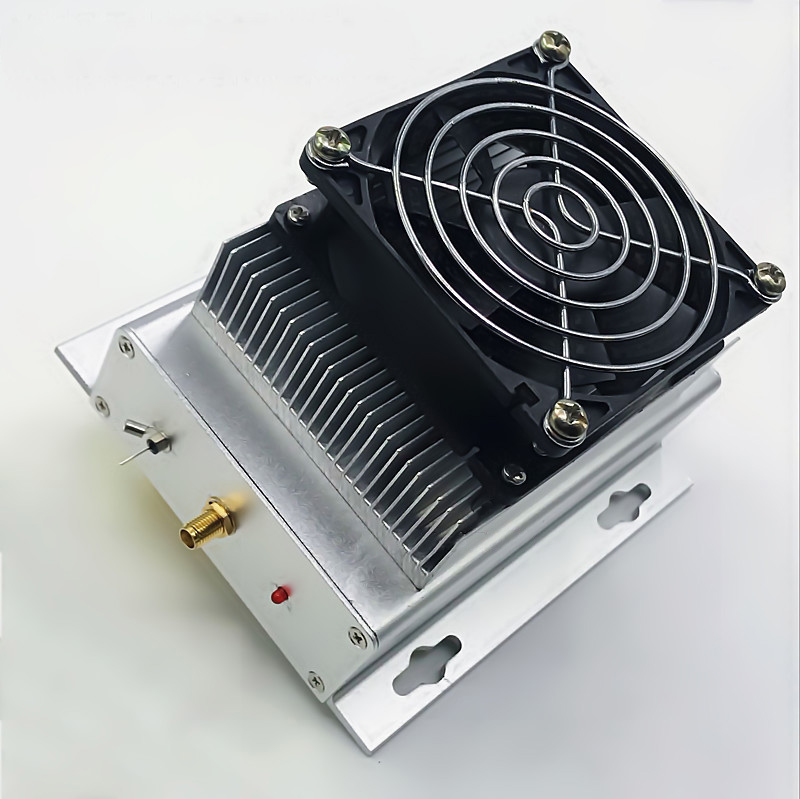

400 - 470MHz 125W RF Power Amplifier Single Transmission Intelligent Temperature Controlled Air Cooling

400 - 470MHz 125W RF Power Amplifier Single Transmission Intelligent Temperature Controlled Air Cooling

Description:
- The main function of this product is to amplify the low-power signal of the original 400-470MHZ device, increase the signal power, and enable the small device to have high power, making communication distance longer and voice clearer, expanding the coverage range and transmission distance.

Specification:
- Operating frequency: 400 - 40MHz
- Input power: 20dBm (0.1W)
- Receiving frequency: 50 - 1000MHz
- Operating mode: Single transmission
- Output power: input 20dBm (0.1W)
  Output: 80W (20V power supply)
  Output: 100W (24V power supply)
  Output: 125W (28V power supply)
- Power supply voltage: 20 - 28V (typ.24V)
- Operating current: 9A (typ.)
- Standby current: about 50mA
- Dissipation method: 40℃ intelligent temperature controlled air cooling
- Size: 135 x 120 x 90mm
- Weight: 680g

Package Included:
- 1 x RF Power Amplifier

Note:
- This power amplifier is not equipped with the receiving function, it can only transmit.
