56x40x12mm/2.2x1.6x0.5" Aluminum RF Shield Box + Two SMA Female Connectors for Low Noise Amplifiers
Prix habituel
$19.63
Prix habituel
Prix soldé
$19.63
Prix unitaire
par
Taxes incluses.
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
Prix habituel
$19.63
Prix habituel
Prix soldé
$19.63
56x40x12mm/2.2x1.6x0.5" Aluminum RF Shield Box + Two SMA Female Connectors for Low Noise Amplifiers
Description:

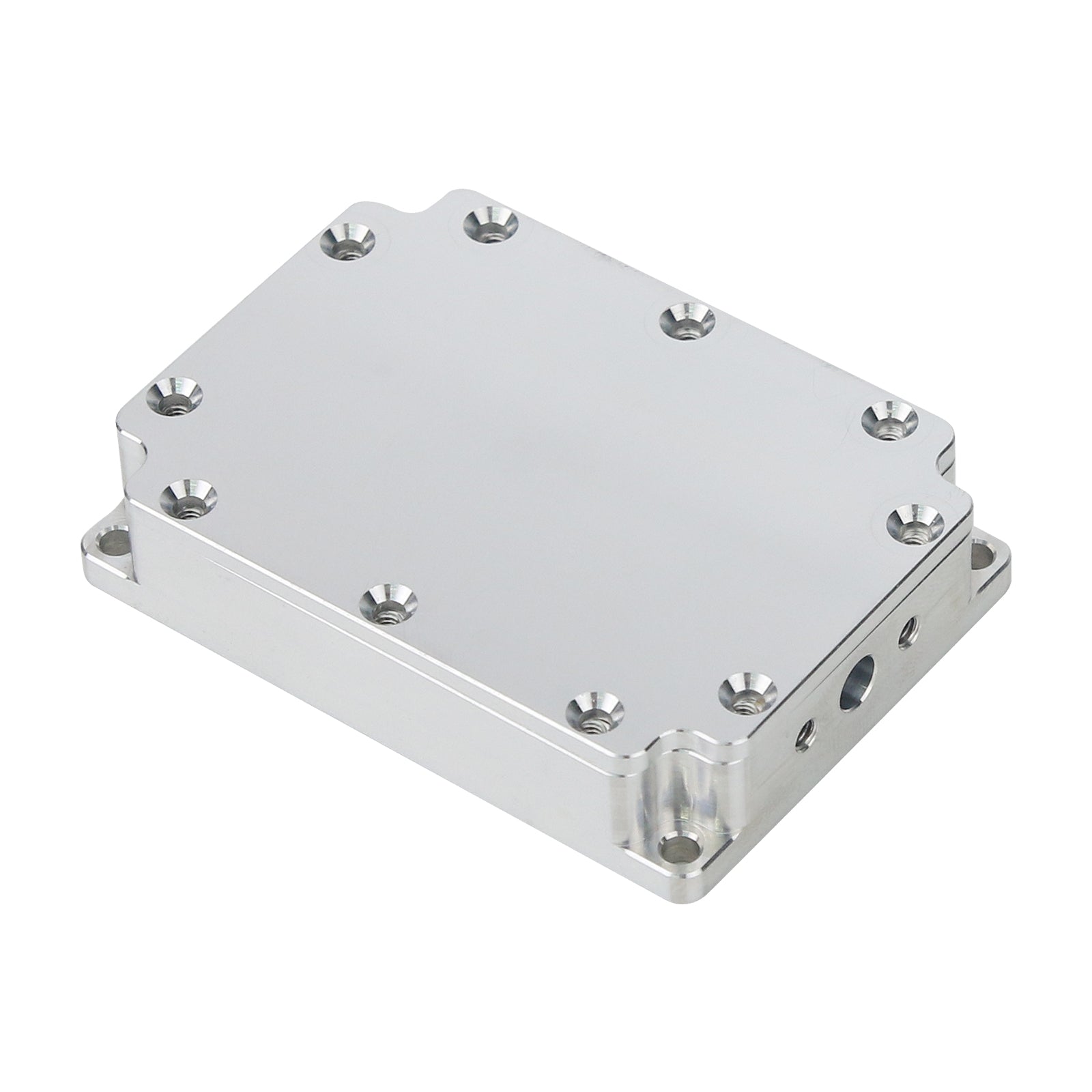

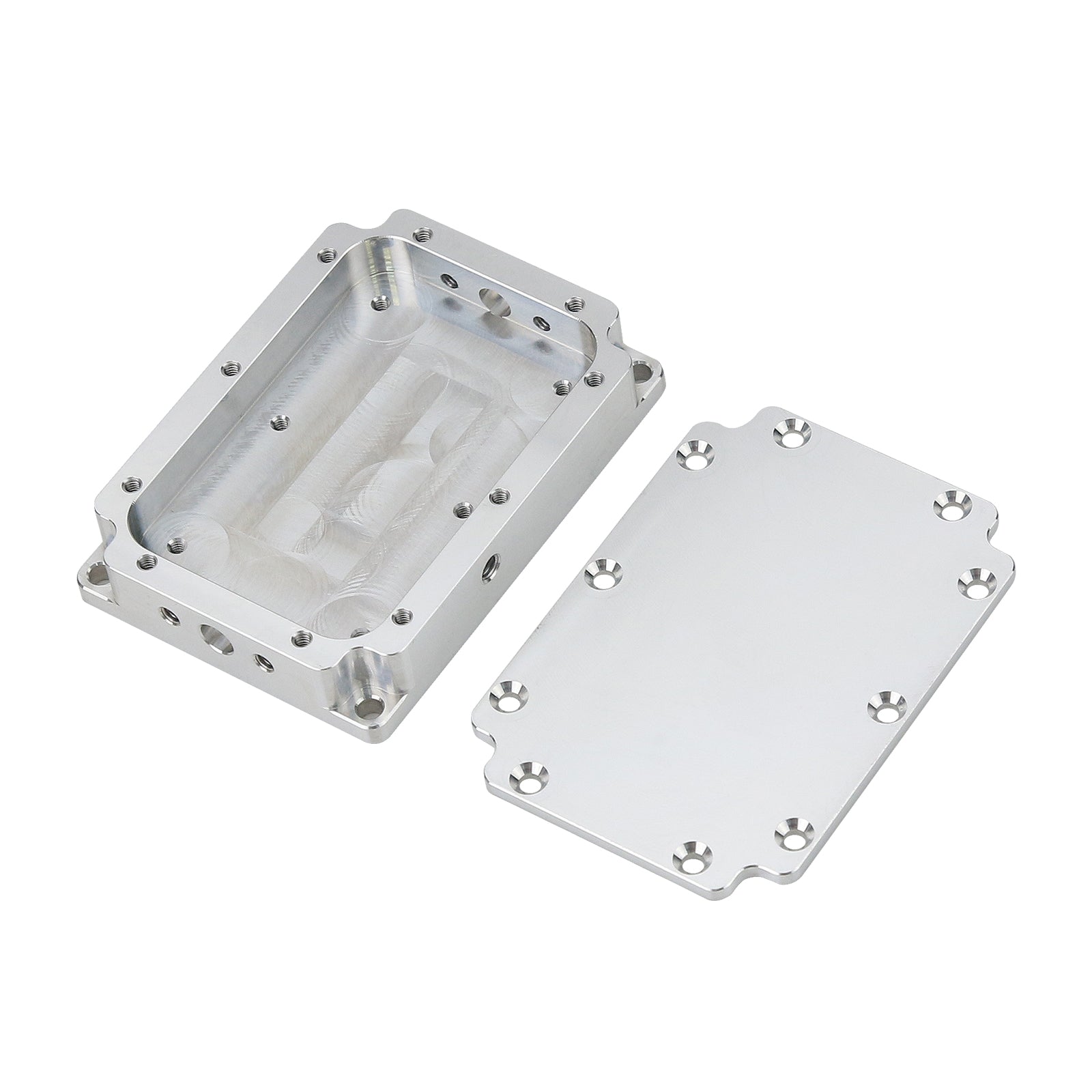

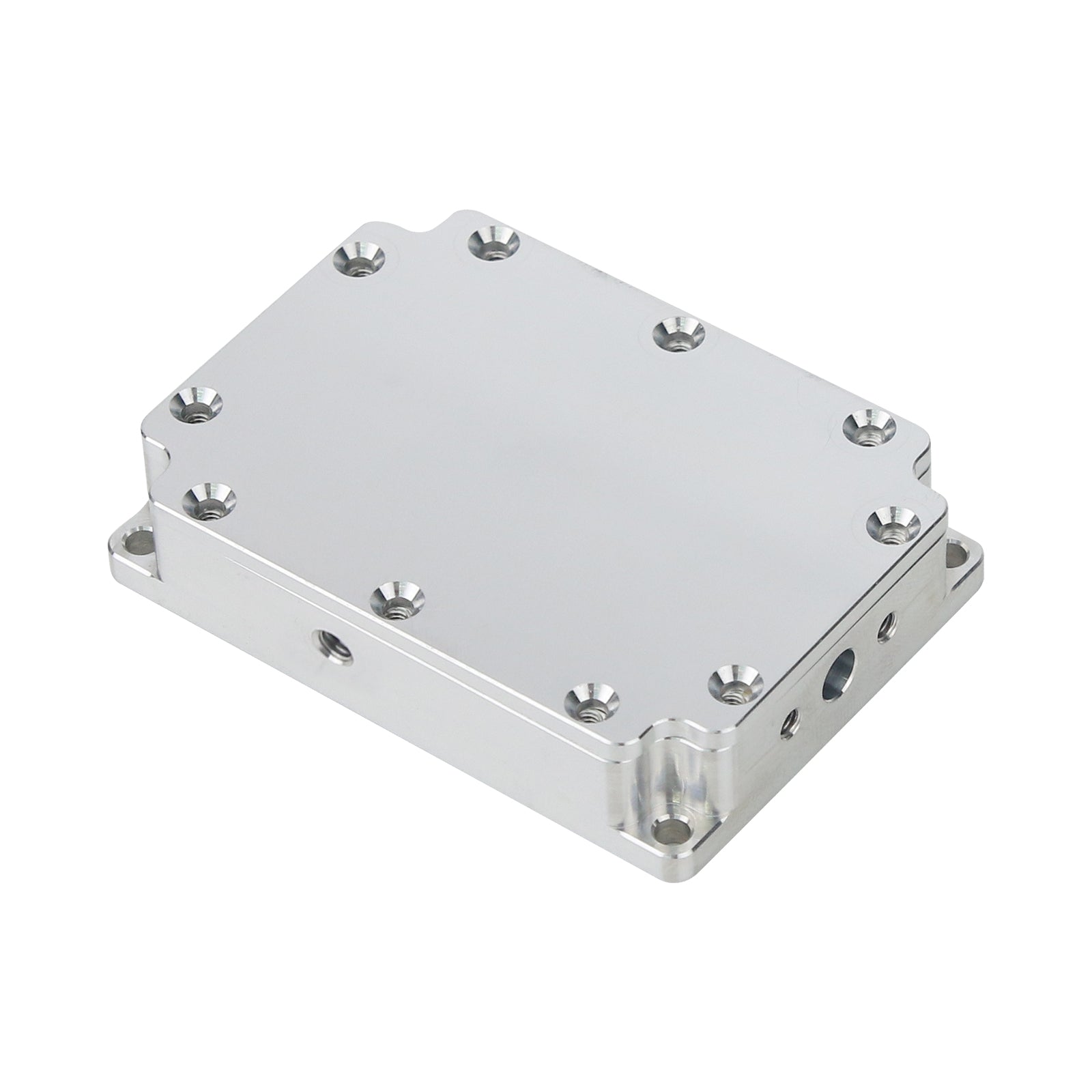

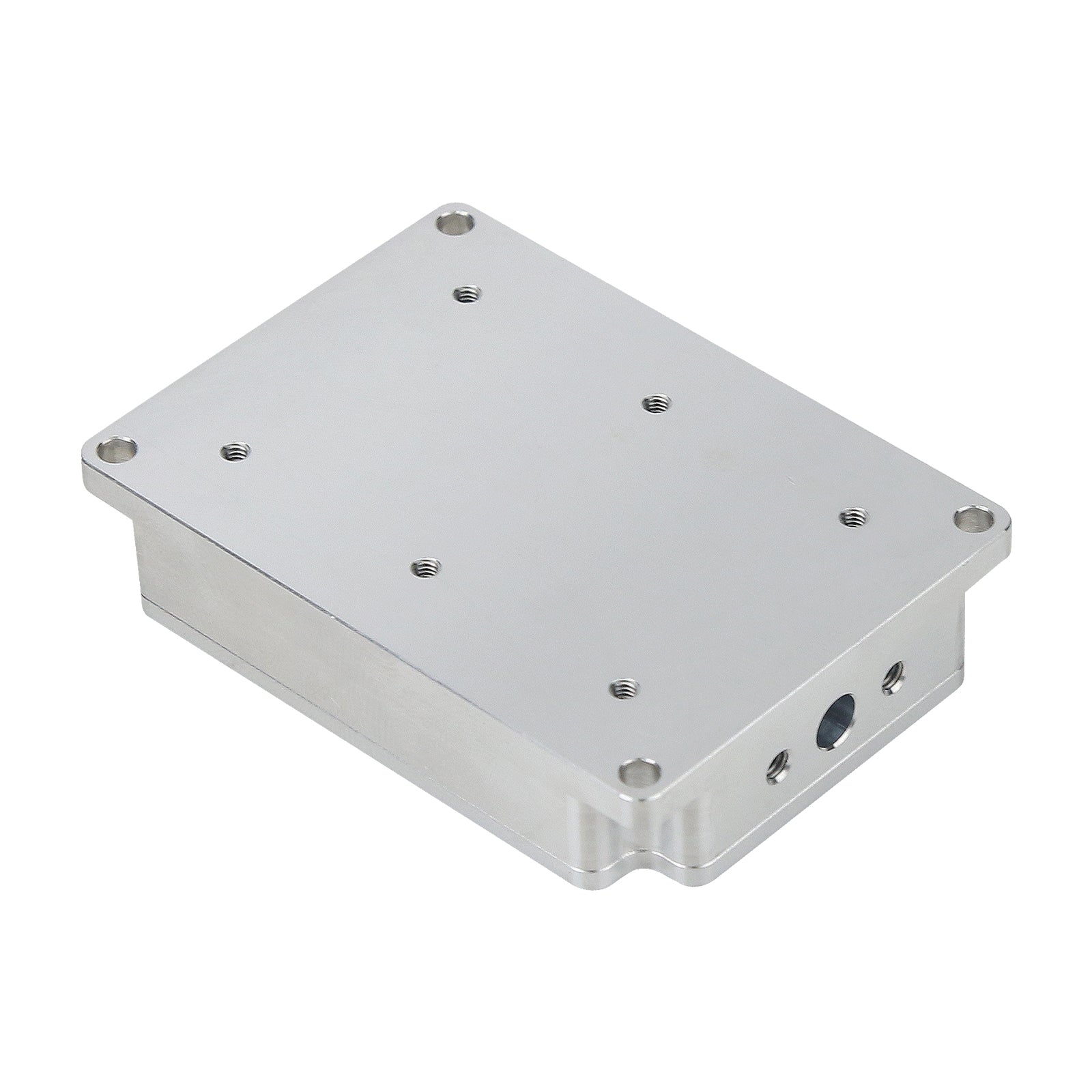

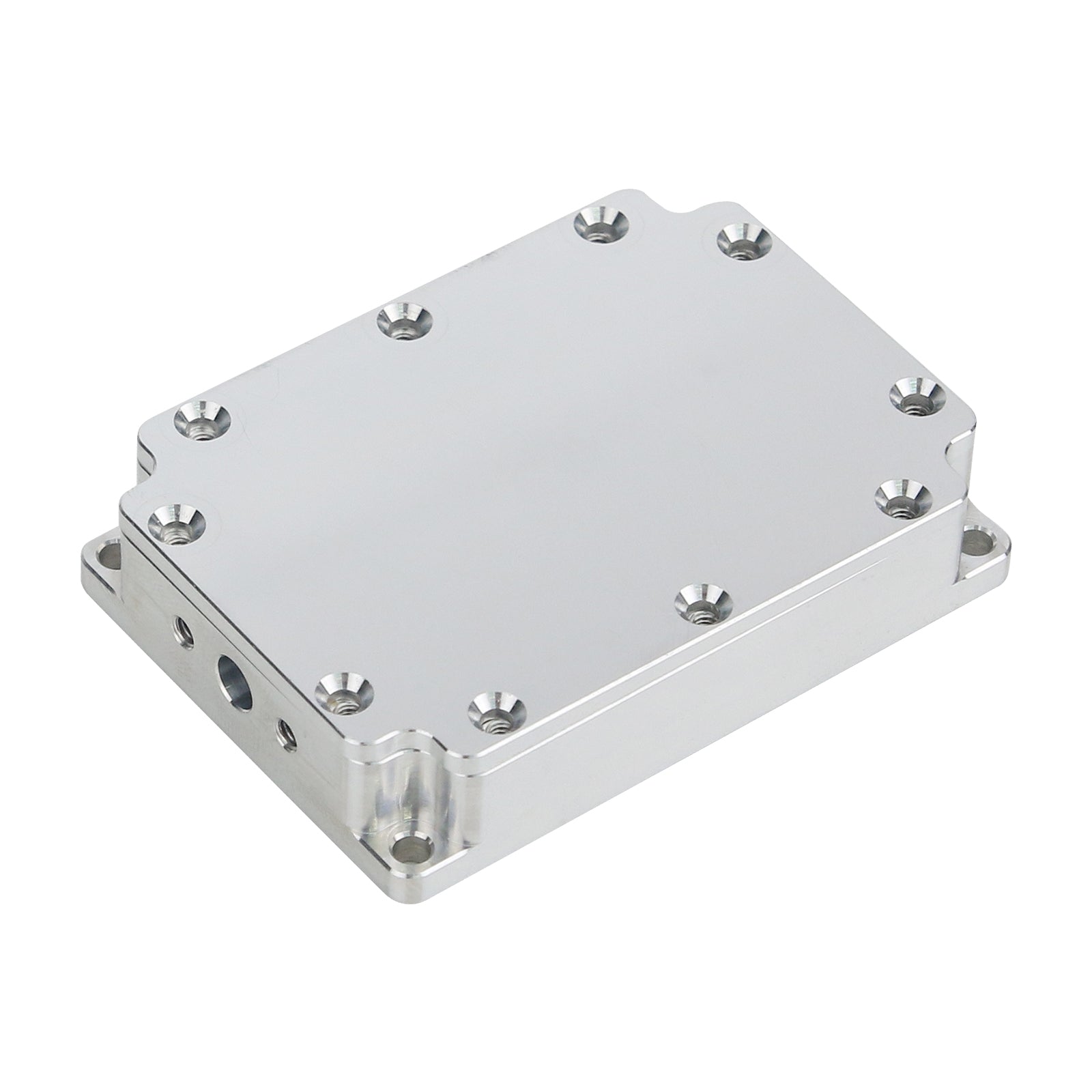

The microwave shield box is made of die-casting aluminum and CNC machined. It comes with SMA connectors. It can be used for low-noise amplifiers, power amplifiers and professional RF design.
Specifications:
1. Dimensions (without the size of connectors): 56 x 40 x 12mm/2.2 x 1.6 x 0.5" (2mm/0.08" box cover)
2. Cavity size (mainly PCB version): 48 x 32 x 6mm/1.9 x 1.3 x 0.2" (chamfer R=5mm/0.2" inside the cavity)
3. Recommended size of circuit board: over 0.2mm/0.008" smaller than the cavity size (thickness ≤1mm/0.04")
4. Shell weight: 47g/0.1lb
5. Connector model: SMA-KFD46

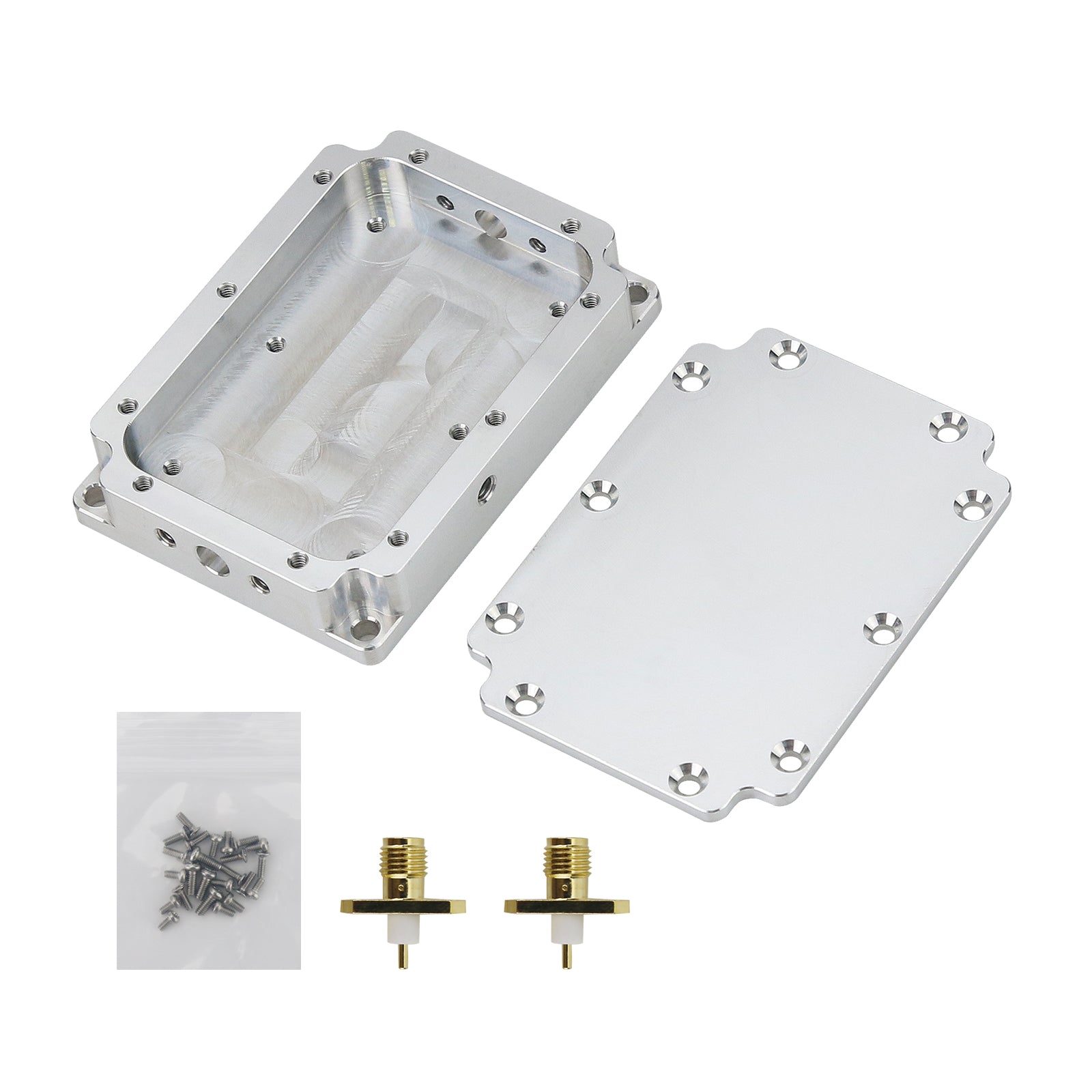

Package Included:
- 1 x Shell body
- 1 x Box cover
- 2 x SMA female connectors
Packaging Details:
- G.W.: 0.2kg
Description:
The microwave shield box is made of die-casting aluminum and CNC machined. It comes with SMA connectors. It can be used for low-noise amplifiers, power amplifiers and professional RF design.
Specifications:
1. Dimensions (without the size of connectors): 56 x 40 x 12mm/2.2 x 1.6 x 0.5" (2mm/0.08" box cover)
2. Cavity size (mainly PCB version): 48 x 32 x 6mm/1.9 x 1.3 x 0.2" (chamfer R=5mm/0.2" inside the cavity)
3. Recommended size of circuit board: over 0.2mm/0.008" smaller than the cavity size (thickness ≤1mm/0.04")
4. Shell weight: 47g/0.1lb
5. Connector model: SMA-KFD46
Package Included:
- 1 x Shell body
- 1 x Box cover
- 2 x SMA female connectors
Packaging Details:
- G.W.: 0.2kg
