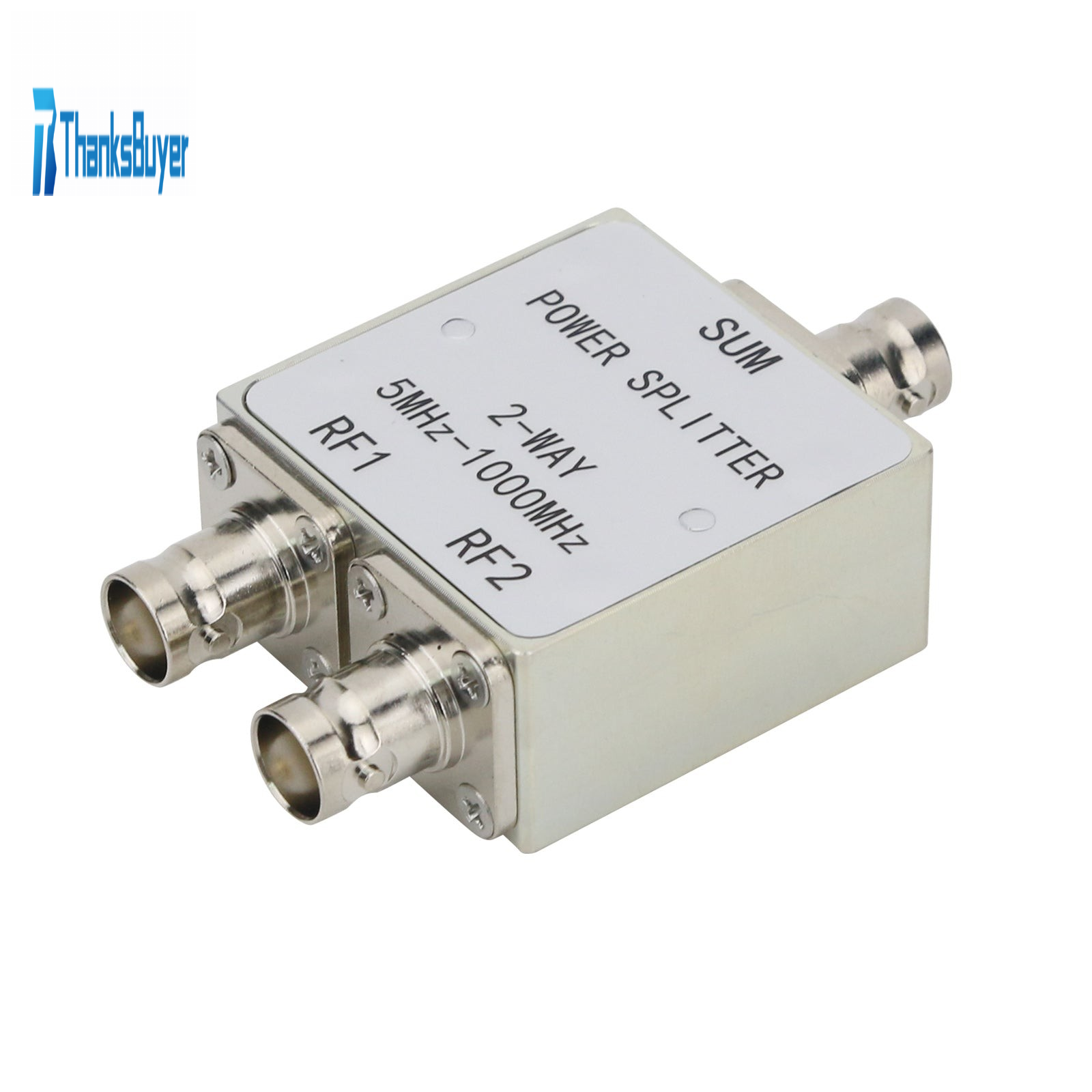

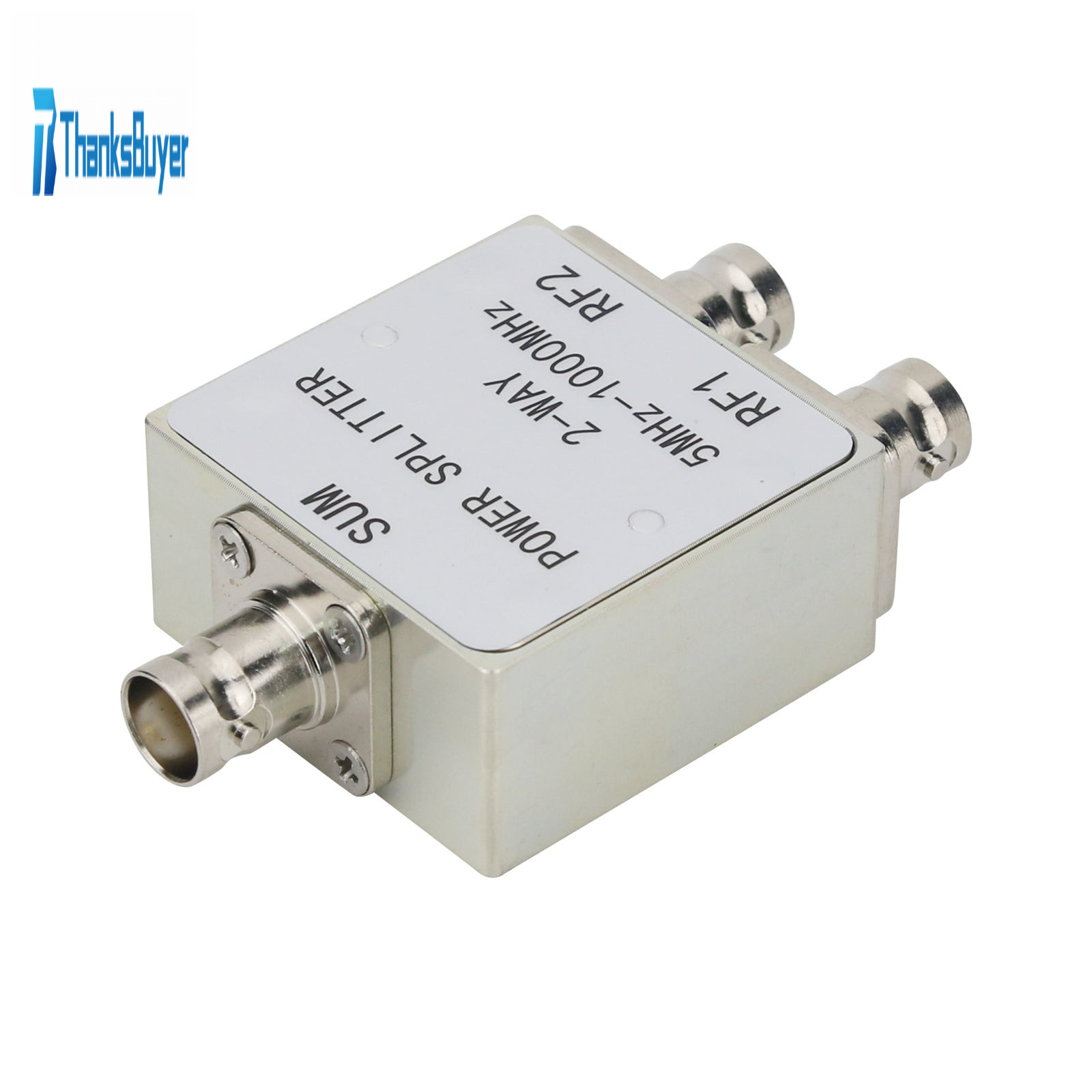

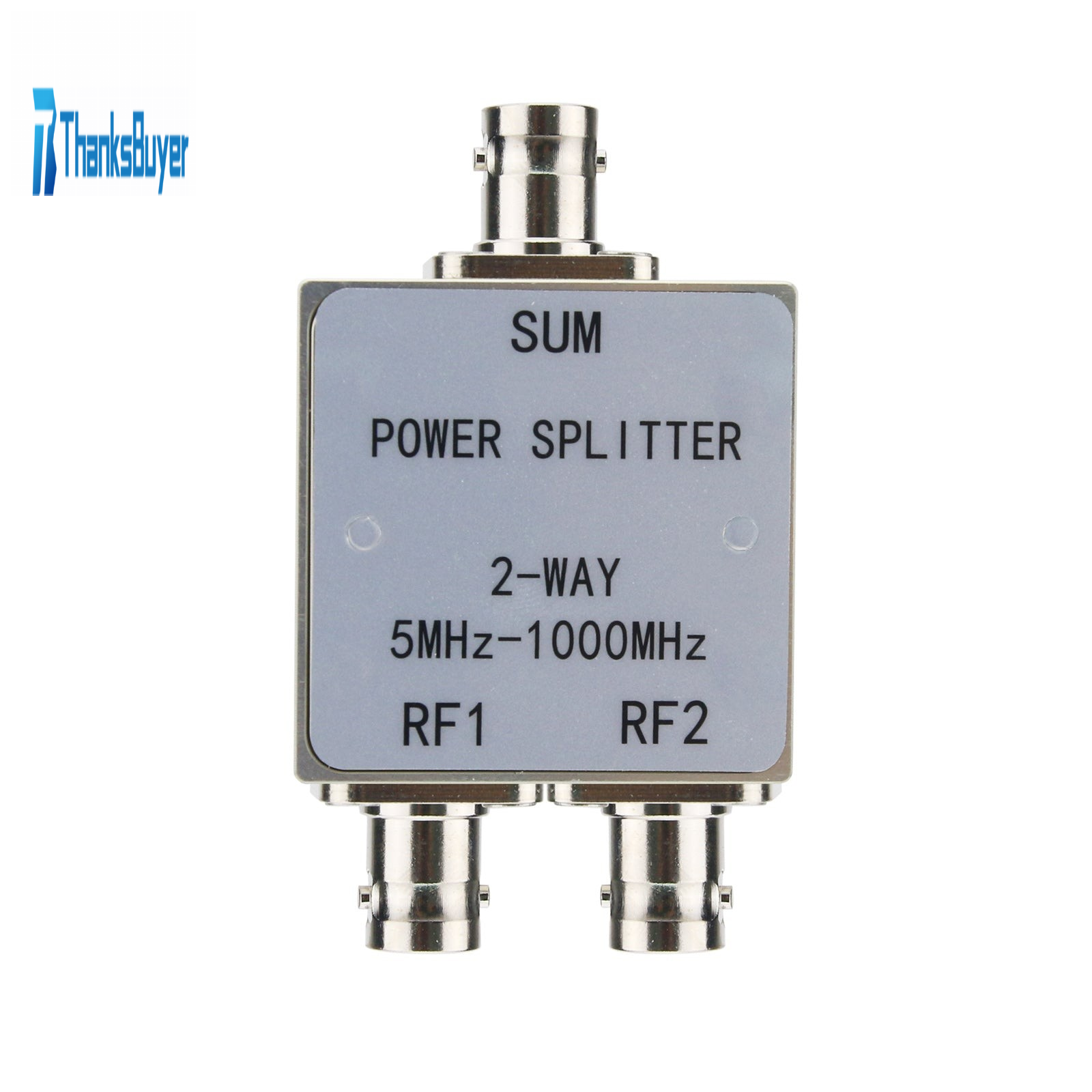

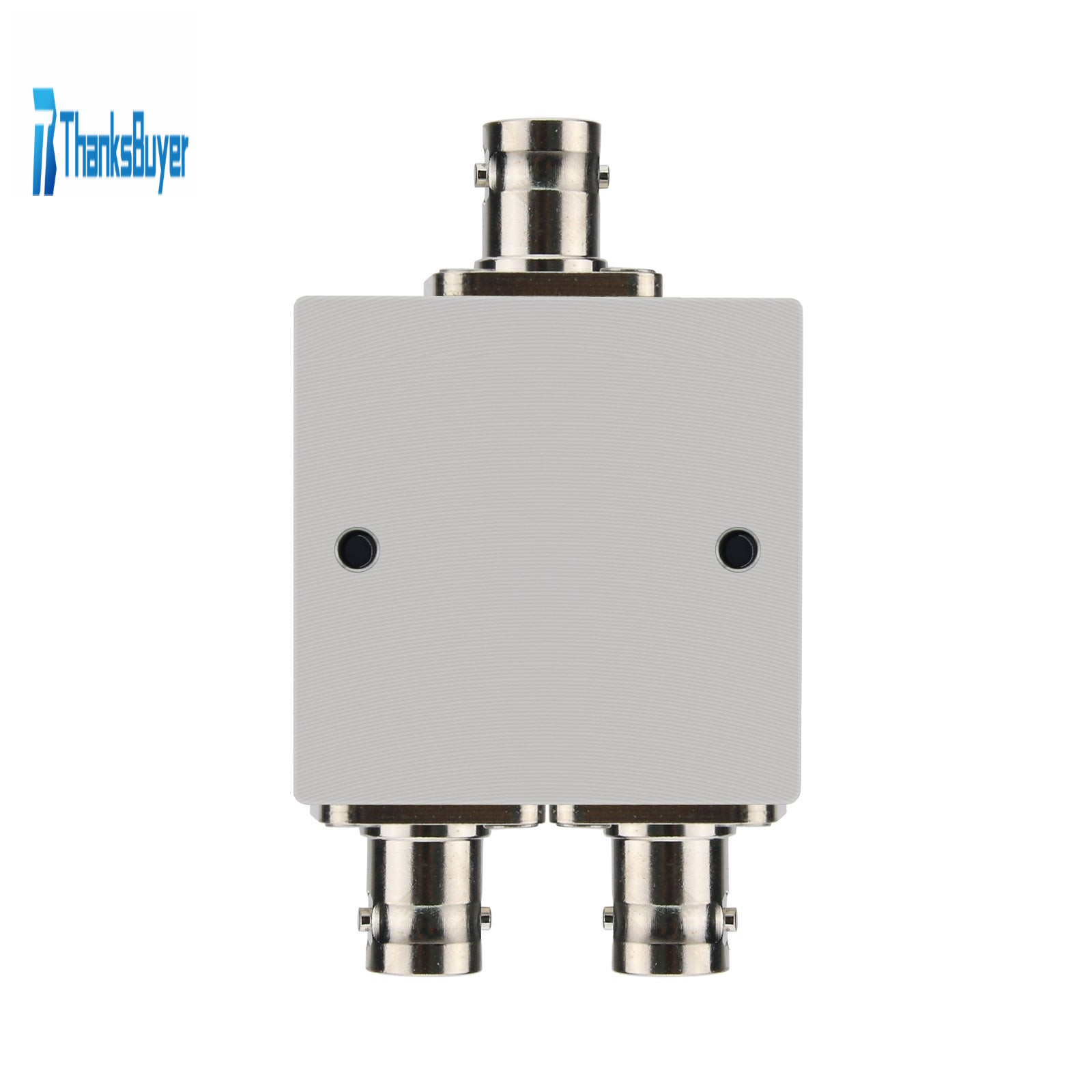

5MHz-1000MHz Wide Band RF Power Splitter 1 to 2 Low Insertion Loss Power Divider with BNC Female Connector

5MHz-1000MHz Wide Band RF Power Splitter 1 to 2 Low Insertion Loss Power Divider with BNC Female Connector

Description:
- RF power divider is a device used to distribute or merge RF signals, which can distribute and control energy between multiple channels. It has the characteristics of low insertion loss, high balance performance, broadband design, precision manufacturing technology, and is widely used in wireless communication, radar, satellite communication, measurement instruments and other fields.

Specification:
- Product model: SP-5-1000MHz
- Frequency range: 5MHz - 1000MHz
- Maximum input: 0.5W (Max)
- Operating temperature: -40℃ to 85℃
- Storage temperature: -55℃ to 100℃
- Input and output connector: BNC female connector
- Case size: 40 x 40 x 20mm (excluding connector size)
- Product weight (with connector): 81.7g

The product drawings mainly include two-dimensional and three-dimensional drawings of the shielding shell, and the drawings are downloaded as follows:
- Download link: https://pan.baidu.com/s/1tqxJ5hNJWClEX7aJiGVHtw
- Passwords: rp35

Package Included:
- 1 x RF Power Splitter
