902-928MHz Wireless Data Transceiver Amplifier APM920 10W 40dBm High Gain RF Amplifier for Microhard P900/HP900

902-928MHz Wireless Data Transceiver Amplifier APM920 10W 40dBm High Gain RF Amplifier for Microhard P900/HP900

Features:

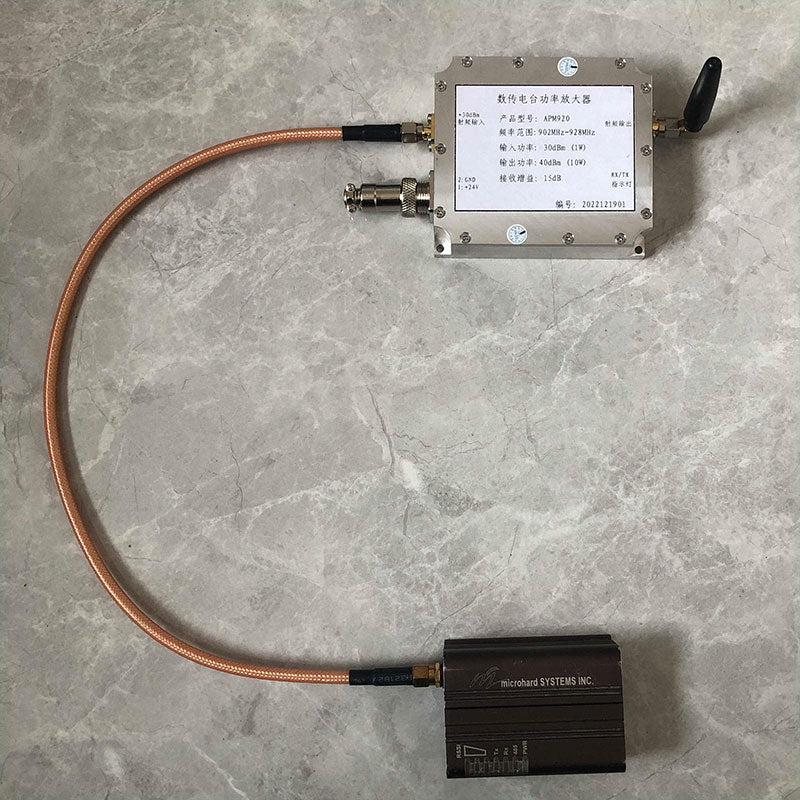

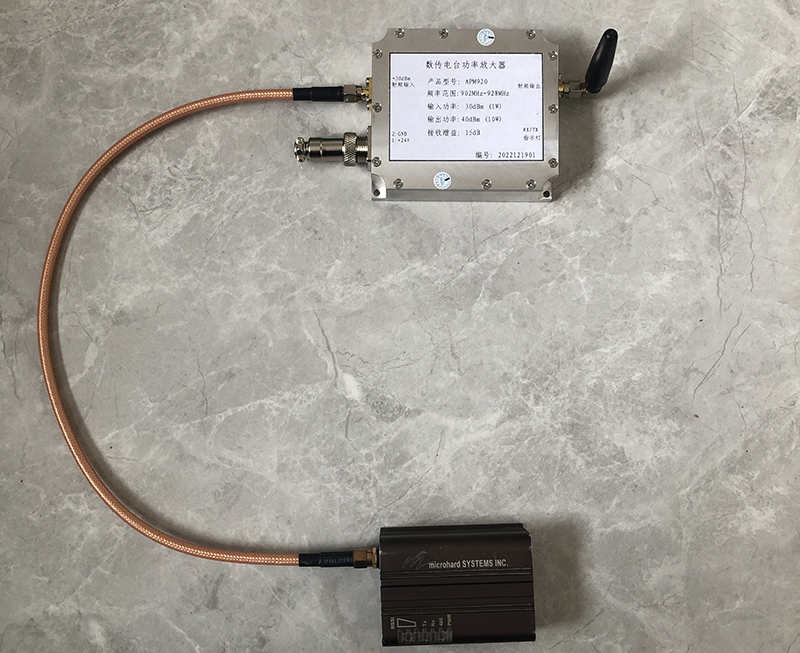

- This amplifier supports for Microhard P900 HP900 data transmission radio, with an air to ground measurement of over 120KM, a transmission gain of 10W, and a reception gain of 15dB.

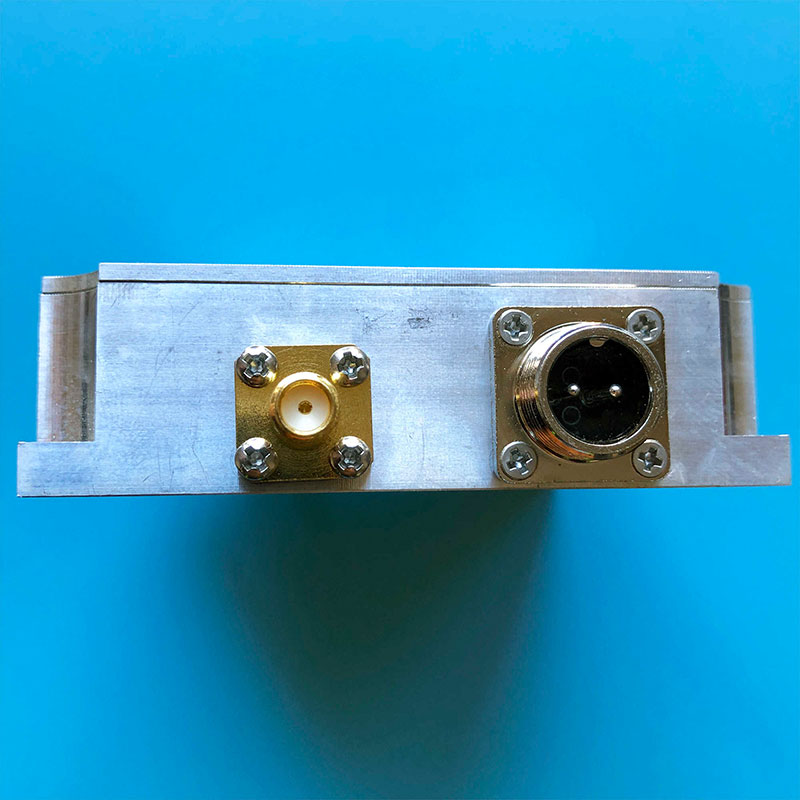

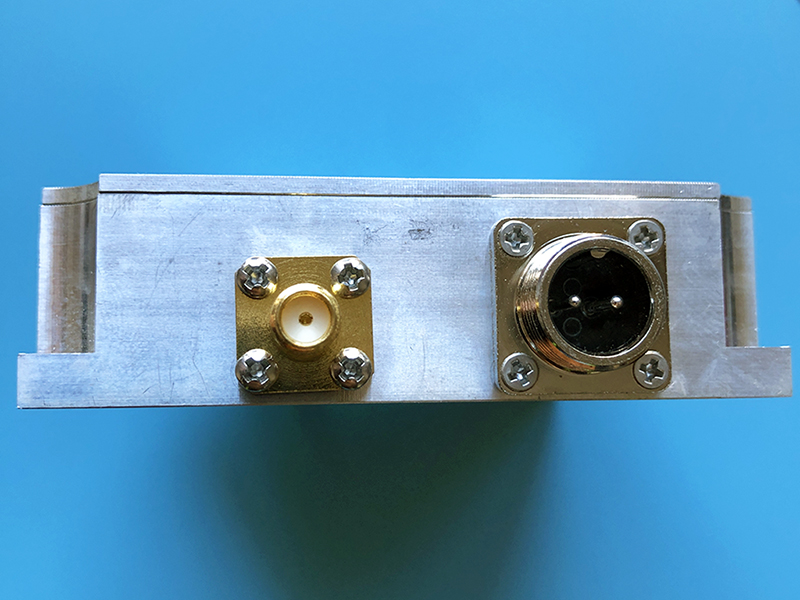

- The RF input is an SMA female interface , with a 2-wire power supply and 24V DC power supply. It is recommended to use a current greater than 3A.

Specification:
- Model: AMP920
- Transmitting power: 10W
- Receiving gain: 15dB
- Frequency range: 902 - 928MHz
- Input power: 100 - 1000mW
- Power supply: 24VDC/3A

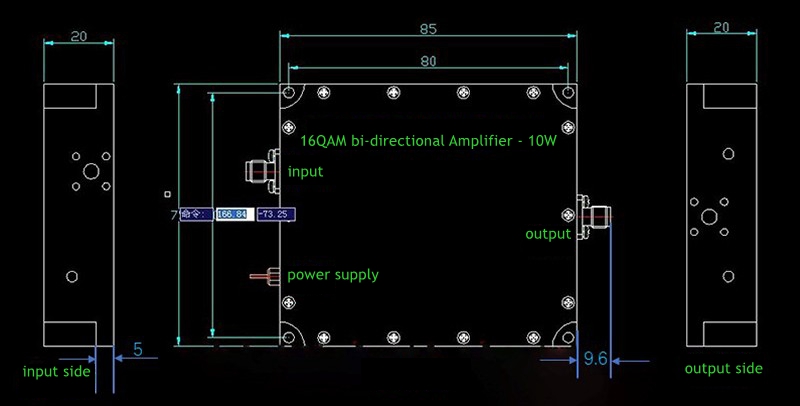

- Product size: 85 x 73 x 20mm
- Net weight: 200g
- Temperature: -40℃ ~ 85℃

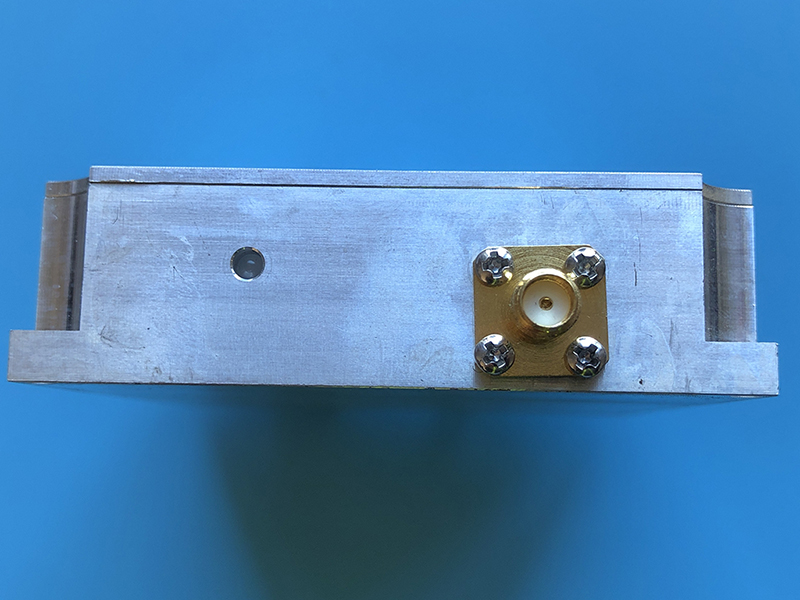

- Antenna interface: SMA female connector
- RF input interface: SMA female connector

Package Included:
- 1 x RF Amplifier
