ADE-25 Passive Frequency Mixer 5 To 2500MHz RF Mixer 200MW Mixer Module Low Conversion Loss
Prix habituel
$23.78
Prix habituel
Prix soldé
$23.78
Prix unitaire
par
Taxes incluses.
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
Prix habituel
$23.78
Prix habituel
Prix soldé
$23.78

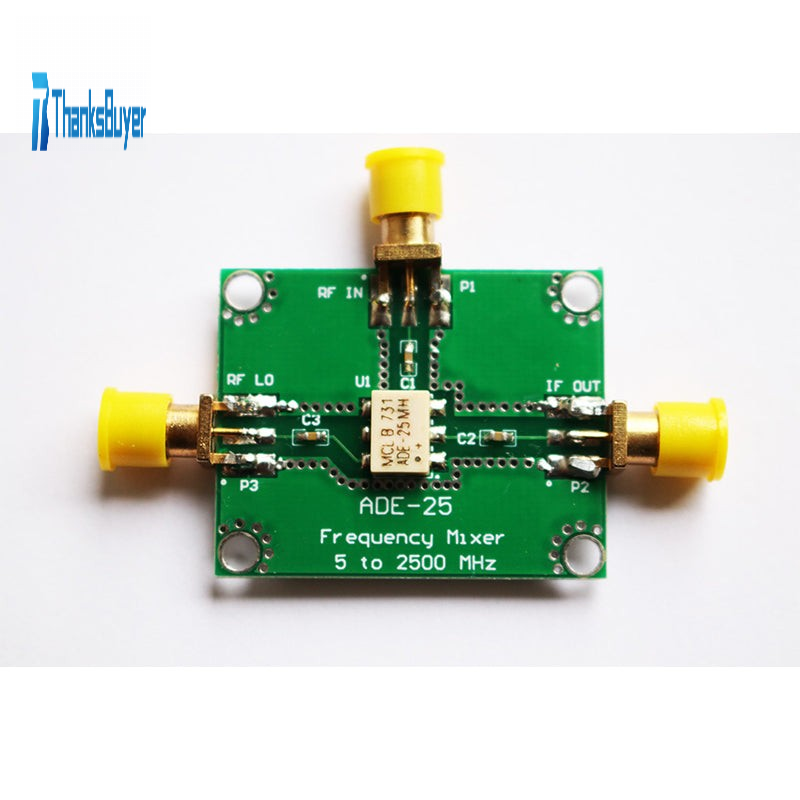

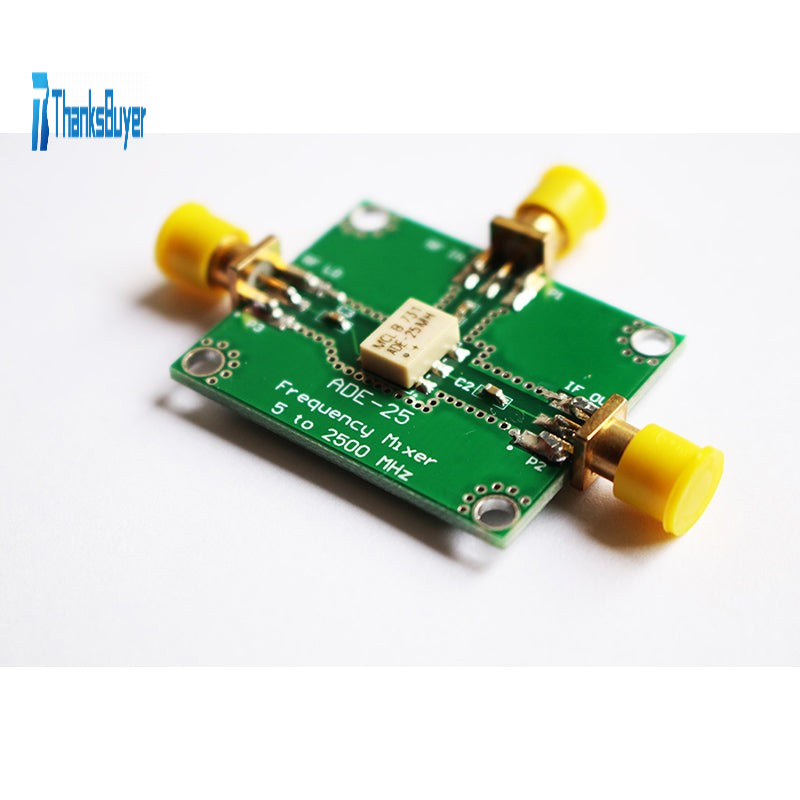

ADE-25 Passive Frequency Mixer 5 To 2500MHz RF Mixer 200MW Mixer Module Low Conversion Loss
Features:
- Low conversion loss, 6.9 dB typical
- Good L-R isolation, 34 dB typical; L-I isolation, 32 dB typical
- Protected by U.S. Patent 6,133,525
- Size: 37 x 29mm/1.5 x 1.1"
Maximum Ratings:
- Operating Temperature: -40℃ to 85℃
- Storage Temperature: -55℃ to 100℃
- RF Power: 200mW
- IF Current: 40mA
Applications:
- PCS
- MMDS
- ISM
- Instrumentation
Package Included:
- 1 x Frequency Mixer
Features:
- Low conversion loss, 6.9 dB typical
- Good L-R isolation, 34 dB typical; L-I isolation, 32 dB typical
- Protected by U.S. Patent 6,133,525
- Size: 37 x 29mm/1.5 x 1.1"
Maximum Ratings:
- Operating Temperature: -40℃ to 85℃
- Storage Temperature: -55℃ to 100℃
- RF Power: 200mW
- IF Current: 40mA
Applications:
- PCS
- MMDS
- ISM
- Instrumentation
Package Included:
- 1 x Frequency Mixer
