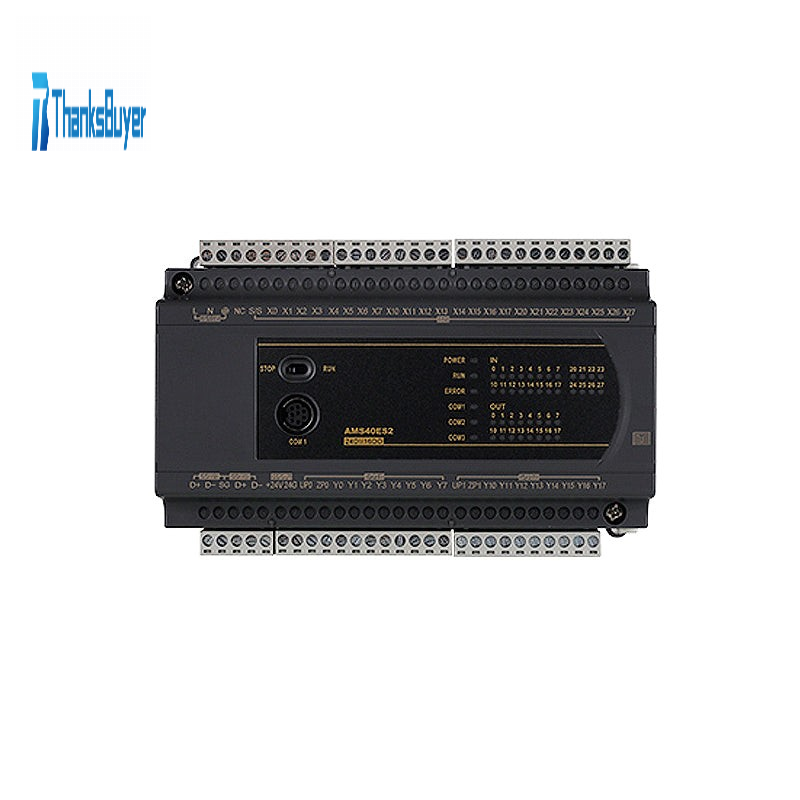

AMS-40ES200T 24V/220V LE-DVP PLC Programmable Controller 24in 16 out Compatible with Delta
Impossible de charger la disponibilité du service de retrait
AMS-40ES200T 24V/220V LE-DVP PLC Programmable Controller 24in 16 out Compatible with Delta
AMS-40ES200T:Transistor Type
24 input /16 output
24V and 220V Optional
Difference:
24V : need to connect external power supply (You need but USBACAB230 cable and Serial Port cable DVPCAB215)
220V: Built in power supp
ly
Description:
- High-speed input: 2 channel 100kHZ; 6 channel 10kHz
- Single phase input 8 points: AB phase input 4 groups
- High-speed comparison interrupt: 8 points
- Communication port 1*RS232, 2*RS485
-
8 expansion modules can be connected, support S-curve acceleration and
deceleration function, support inverter control commands
manual from https://www.xueplc.com/ams-es-plc.html

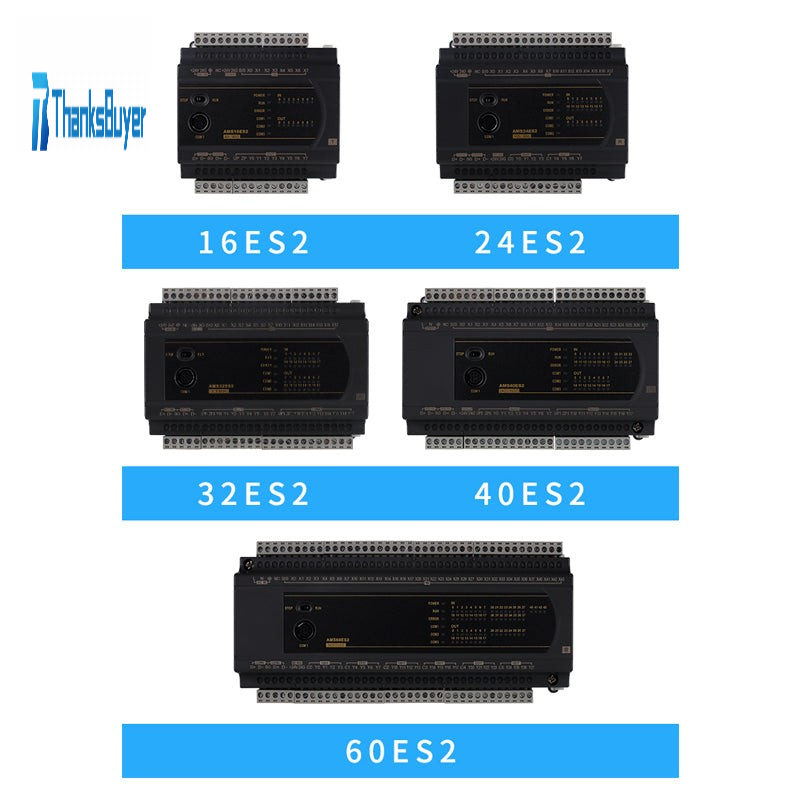

Model |
AMS16ESR/T |
AMS24ESR/T |
AMS32ESR/T |
AMS40ESR/T |
AMS60ESR/T |
input |
8 |
16 |
16 |
24 |
36 |
output |
8 |
8 |
16 |
16 |
24 |
L |
105 |
126 |
145 |
165 |
225 |
L1 |
97 |
115 |
137 |
157 |
217 |
Power |
24VDC or 220VAC |
||||
Working specifications |
When the power supply rises slowly to 95-100VAC, the PLC starts to act. When the power supply drops to 70VAC, the PLC stops. The power supply will continue to operate within 10MS of an instantaneous power failure. |
||||
Power fuse capacity |
2A/250VAC |
||||
Power consumption |
30VA |
||||
DC24V current output*1 |
500MA |
||||
Power protection |
DC24V/220VAC output short circuit protection |
||||
Package list:
- 1 x AMS-40ES200T PLC module (24V or 220V，Please specify or choose in option box)
