AS-1000M/D2 Broadband Optical Receiver 1100~1600nm FTTH/FTTB Digital Television SC/APC Optical Receiver With AGC,ATT,EQ

AS-1000M/D2 Broadband Optical Receiver 1100~1600nm FTTH/FTTB Digital Television SC/APC Optical Receiver With AGC,ATT,EQ

Description:
1.introduction
The AS-1000M/D2 broadband optical receiver is suitable for building use. It is powered by a DC 12V power adapter and has two distribution outputs.
2. Product characteristics
45-1000MHz unidirectional platform design;
Ultra-low current, ultra-low power consumption;
Using high-efficiency DC power adapter, wide voltage range
8-segment digital tube display and key control, easy to operate;
With ESC attenuation and ESC tilt function;
Built-in IP transponder can realize remote management.
3. Description of technical characteristics
1. External characteristics

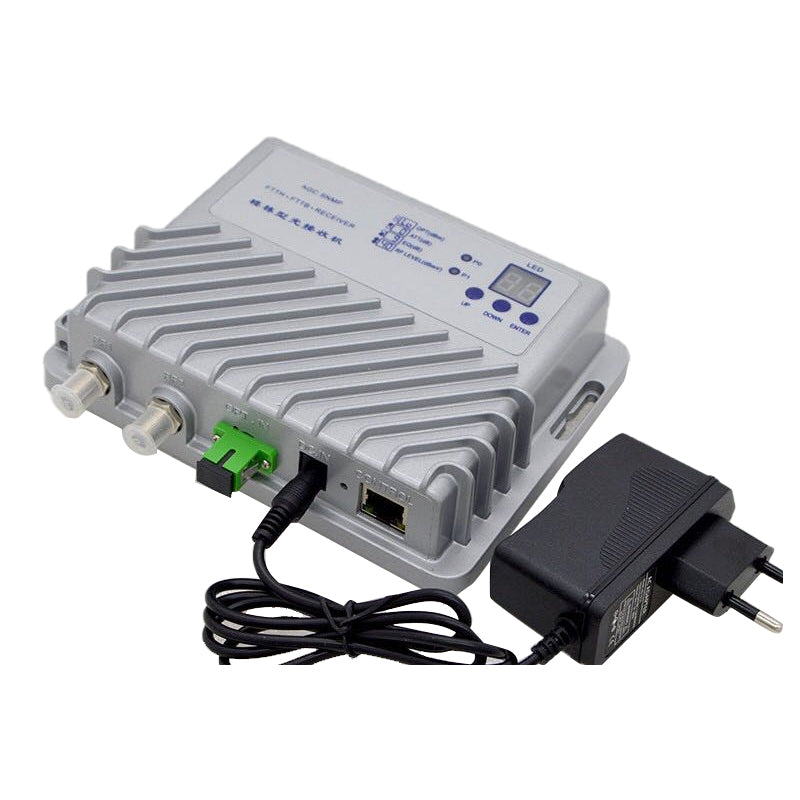

It adopts wall-mounted shell design, and the shell has a digital tube display, which can display the optical power, attenuation, balance, RF level, attenuation, and balance can be adjusted through the front panel buttons. DC005 power interface, with optical power LED indicator, attenuation ATT indicator, equalization EQ indicator, RF level indicator, one optical fiber access port, one network interface and two RF output ports (Inch)
