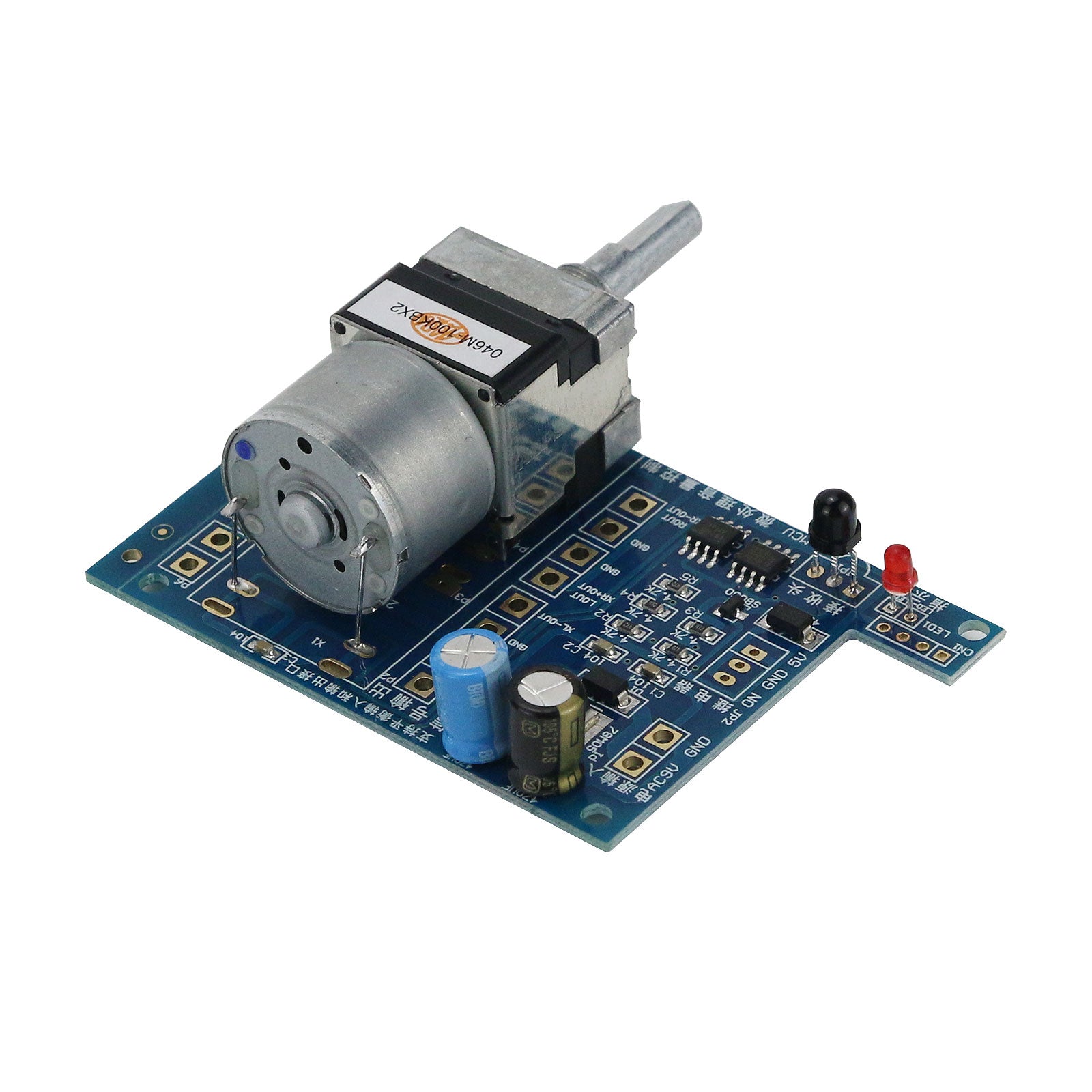

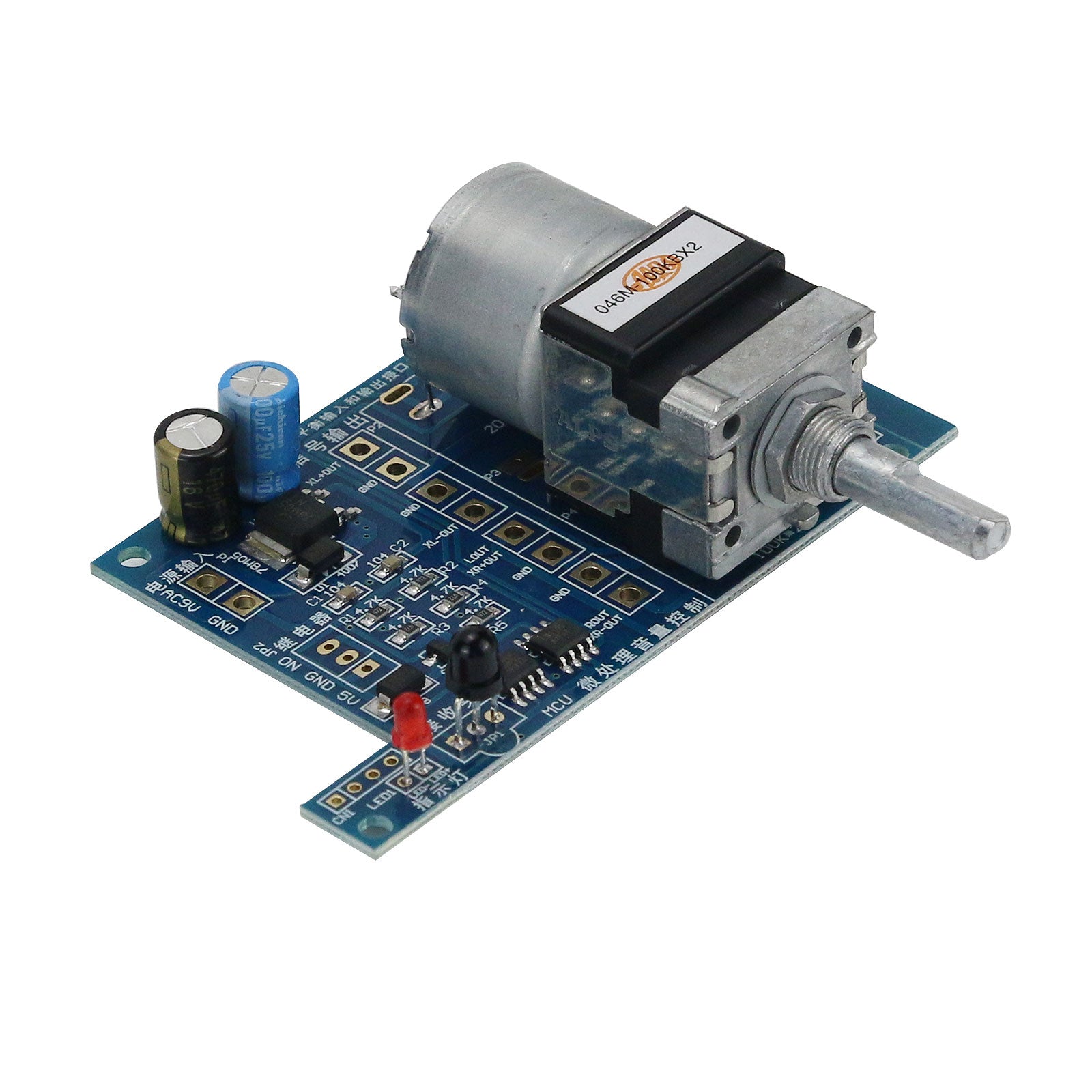

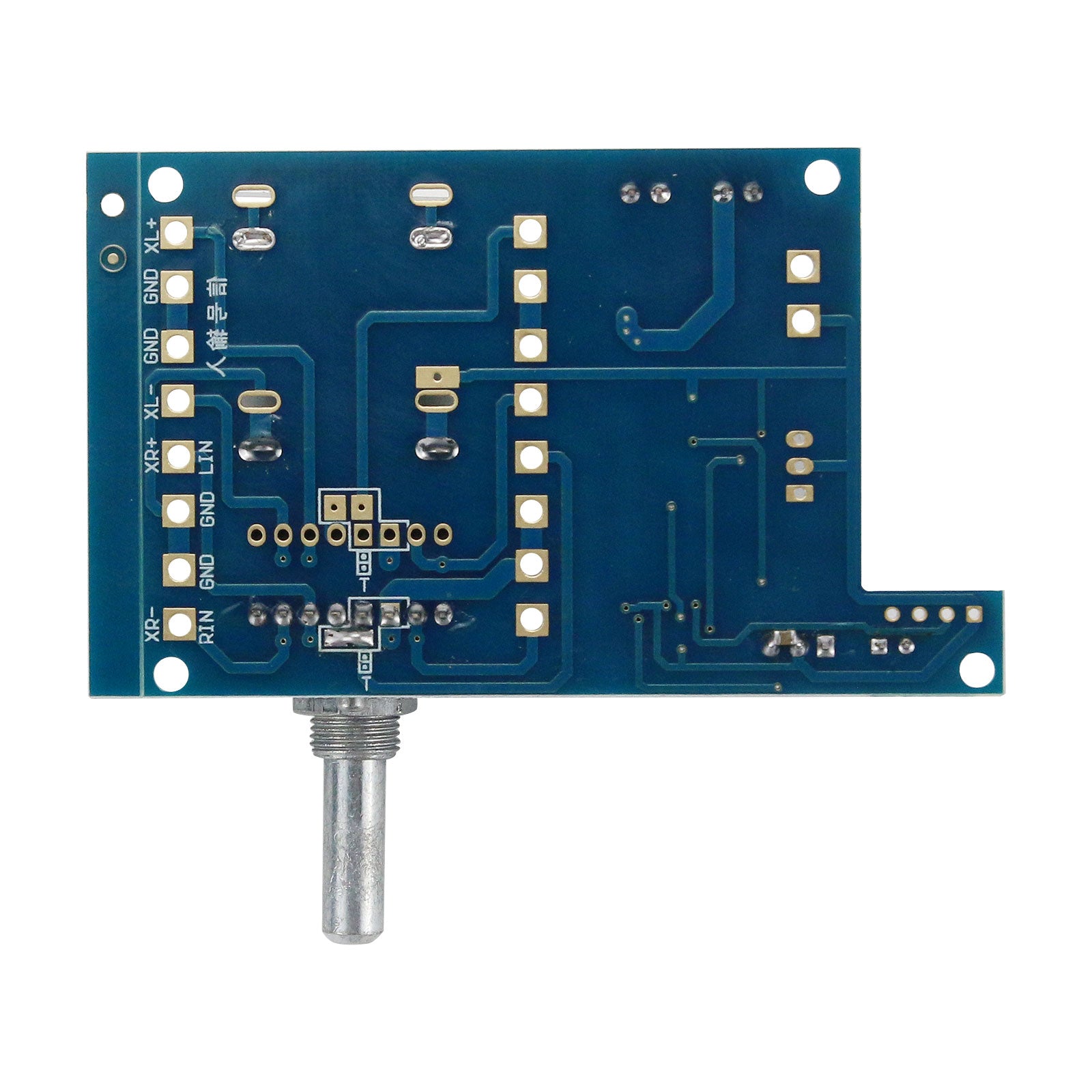

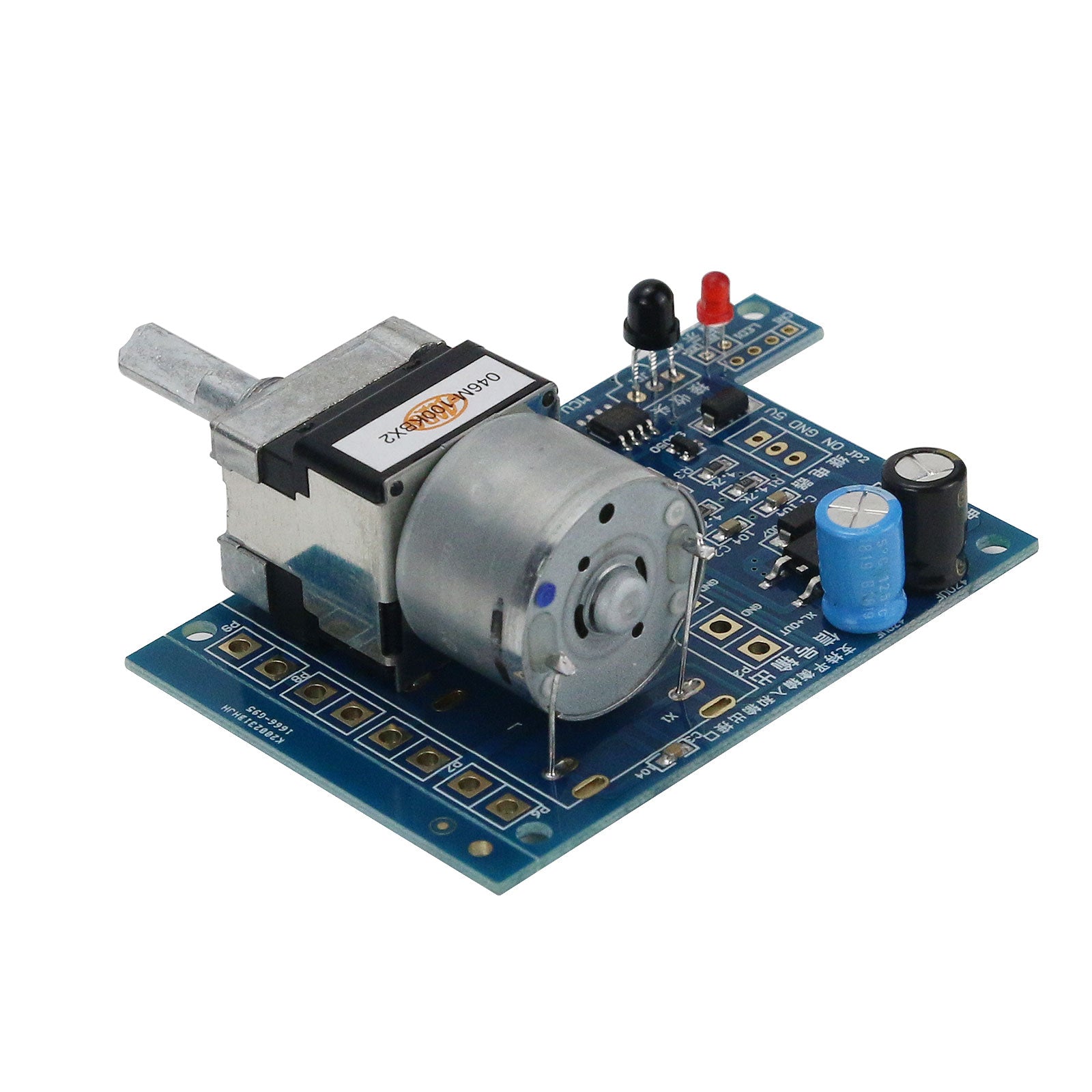

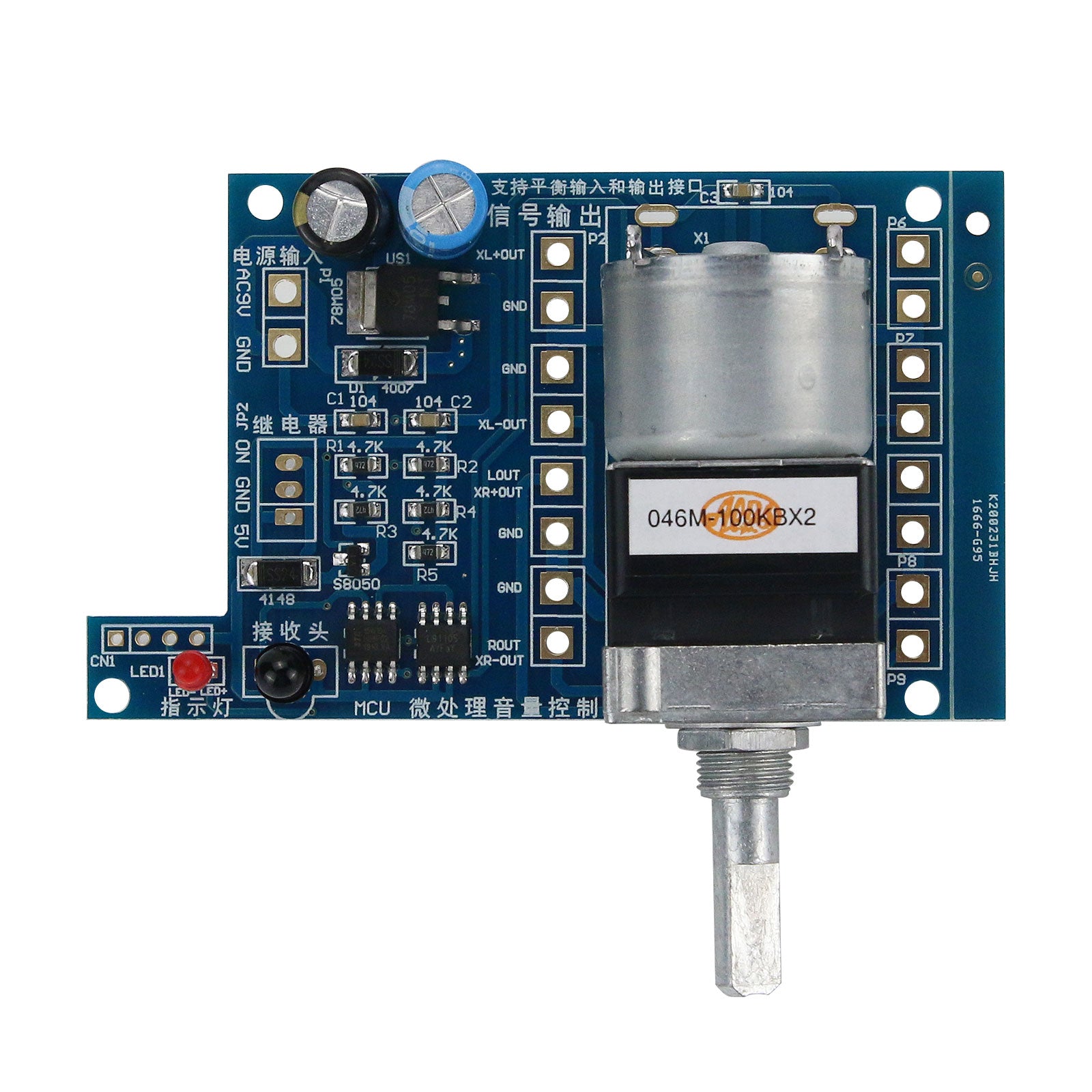

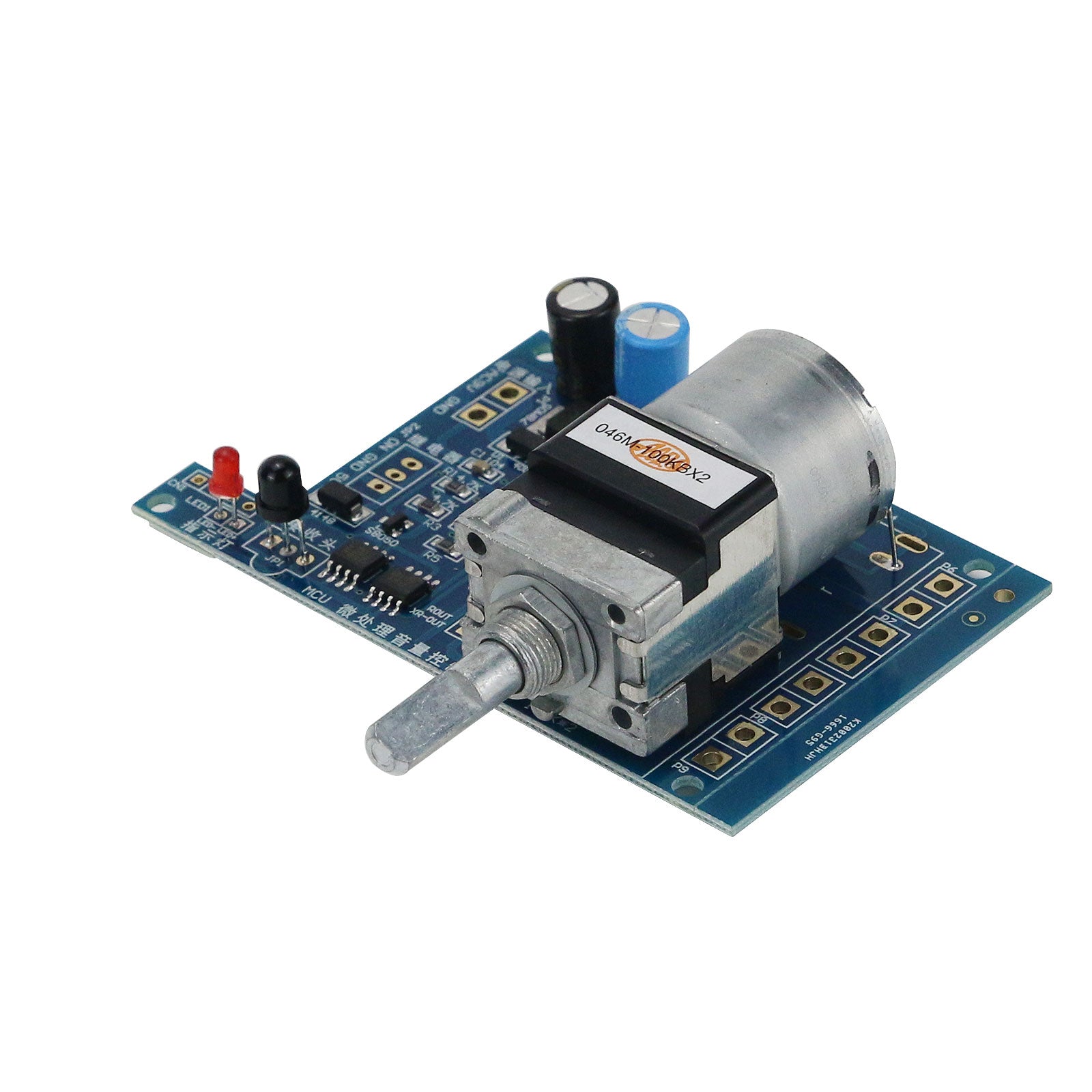

Assembled 100K Remote Control Volume Control Board w/ Volume Potentiometer For Preamp Board Amp

Assembled 100K Remote Control Volume Control Board w/ Volume Potentiometer For Preamp Board Amp

Description:
It is upgraded to blue immersion gold PCB.

This finished board can realize volume infrared remote control. It requires 8-12V AC power supply.

Features:
- Potentiometer adopts Japanese potentiometer for ALPS, 50K or 100K
- The resistance error of the two sides is small, and it is durable
- Very intelligent, so you can ensure that there will be no loud noise every time you turn it on
- With remote controller to turn it on/off (need to buy a relay separately)
- With remote control indication status
- Board size: 8cm x 5.1cm, potentiometer handle length 2cm
- It is a very ideal tool to refit your preamp board, preamplifiers, and amplifiers. If it is very convenient to modify amplifiers, you can directly put this control board into the machine (this will not affect its appearance)
- PCB uses double-sided immersion gold thickening process
- Support inputs and outputs via left and right channels

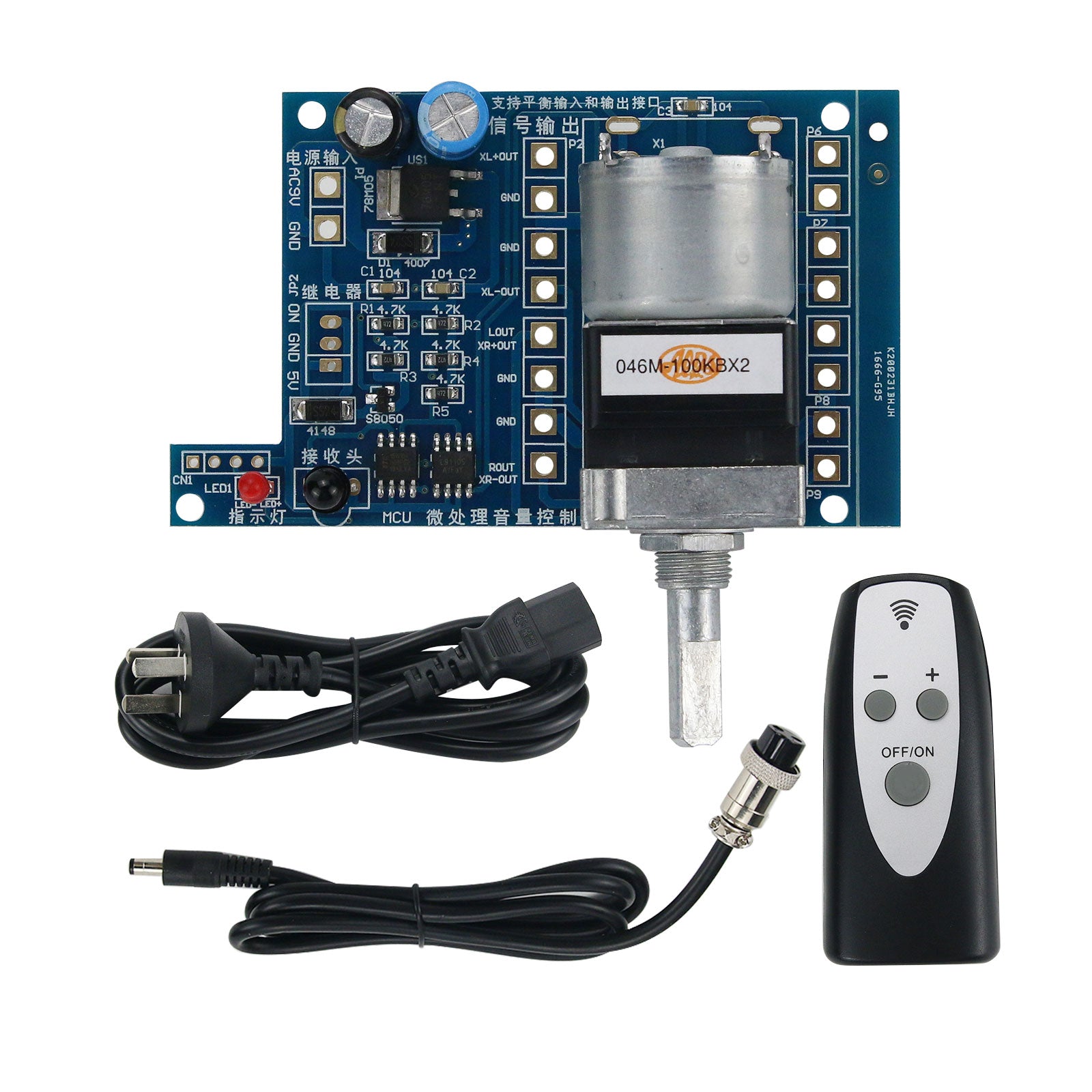

Package Included:
- 1 x Board
- 1 x Remote Controller

Note:
- It is assembled and ready to use.
