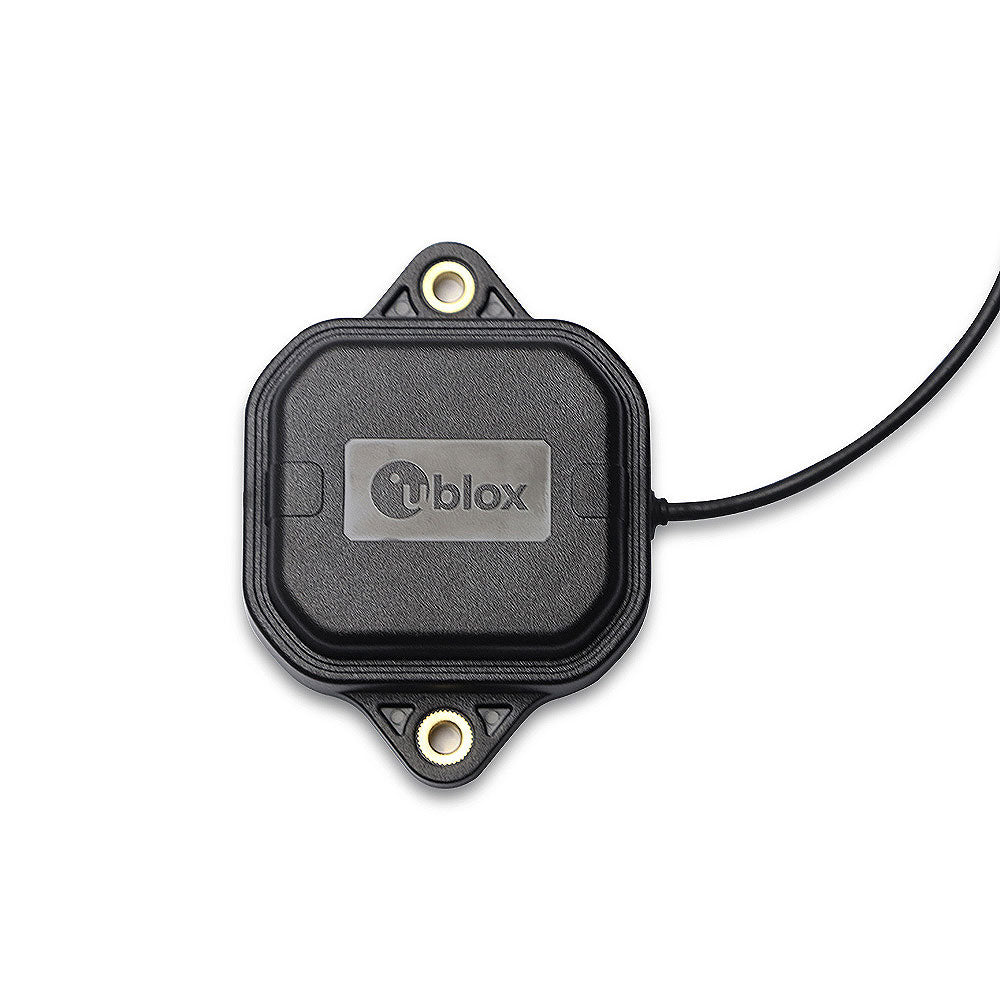

CUAV For U-Blox ANN-MB RTK GNSS Antenna SMA Female Connector 5M For High Precision GNSS Applications

CUAV For U-Blox ANN-MB RTK GNSS Antenna SMA Female Connector 5M For High Precision GNSS Applications

1. Overview:
For u-blox ANN-MB multi-band (L1, L2/E5b) active GNSS antennas are designed to reduce time to market for the next generation of high precision GNSS applications, which require highly accurate location information. The compact design, excellent price to performance ratio, and versatile mounting and connector choices provide customers with fast, easy, and reliable multi-band antenna solutions. The ANN-MB antenna is a perfect match for the latest u-blox F9 platform including the ZED-F9P module, thus providing customers with a valuable antenna solution to minimize design-in efforts.

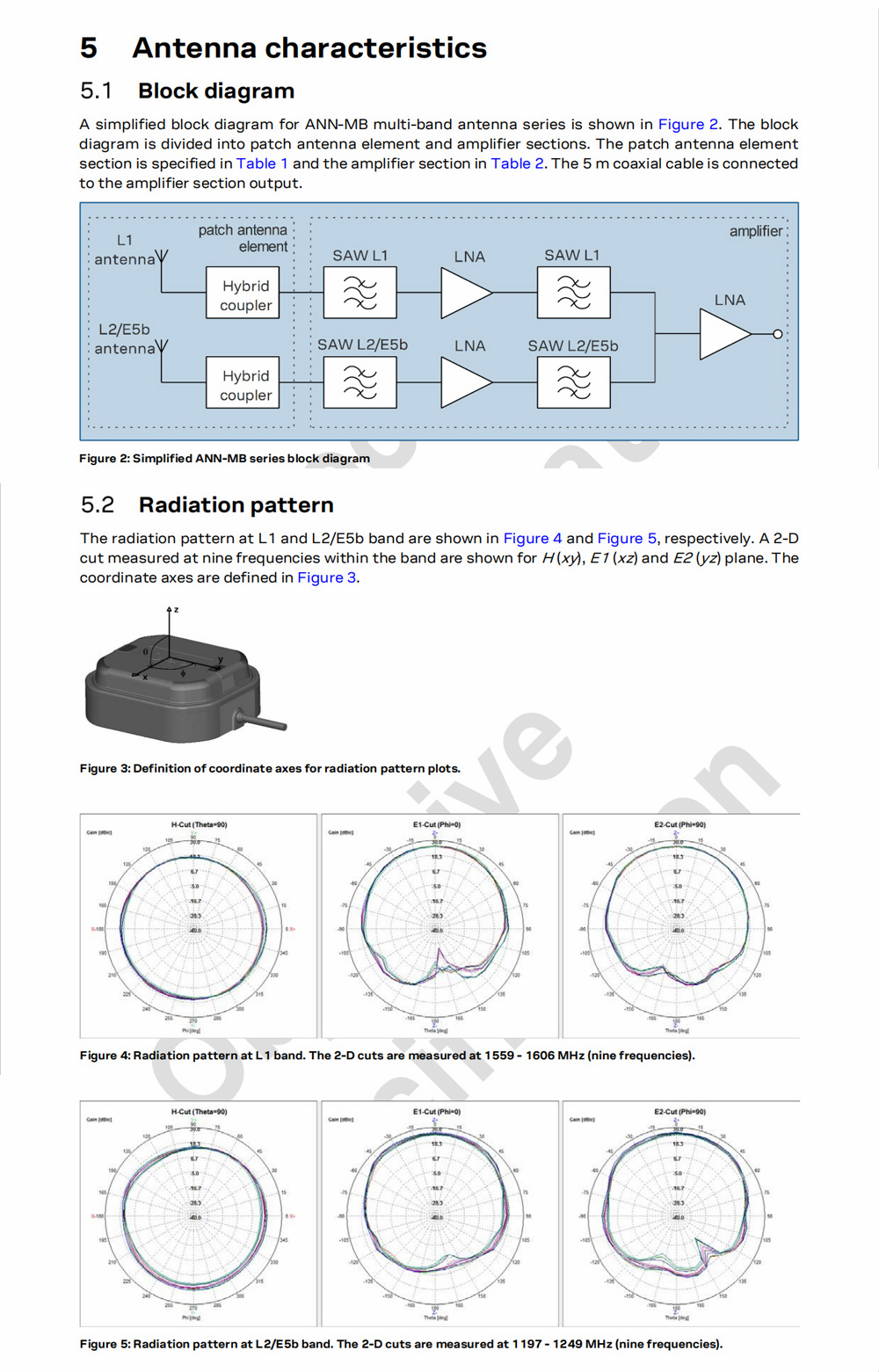

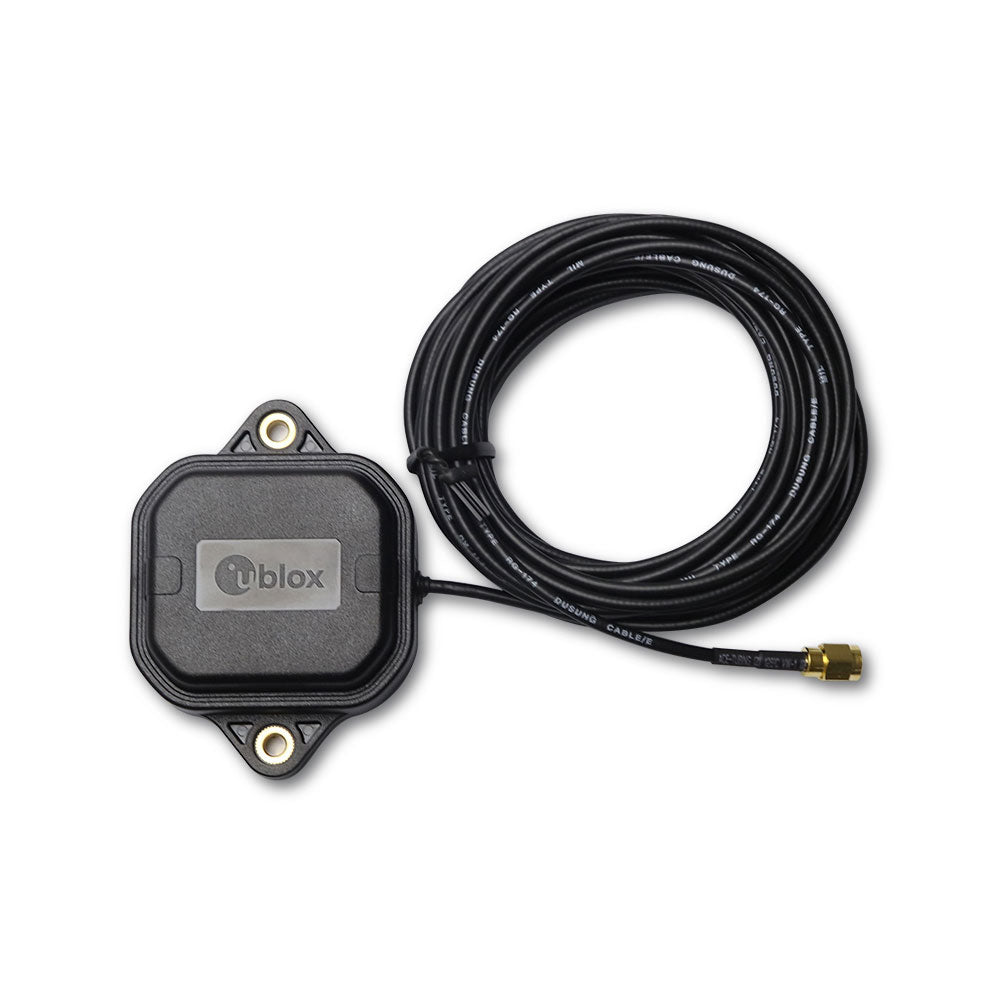

The ANN-MB series includes a high-performance multi-band RHCP dual-feed patch antenna element, a built-in high-gain LNA with SAW pre-filtering, and a 5m antenna cable with three connector options (SMA, SMB, MCX).

Package Included:
- 1 x Set of GNSS Antenna
