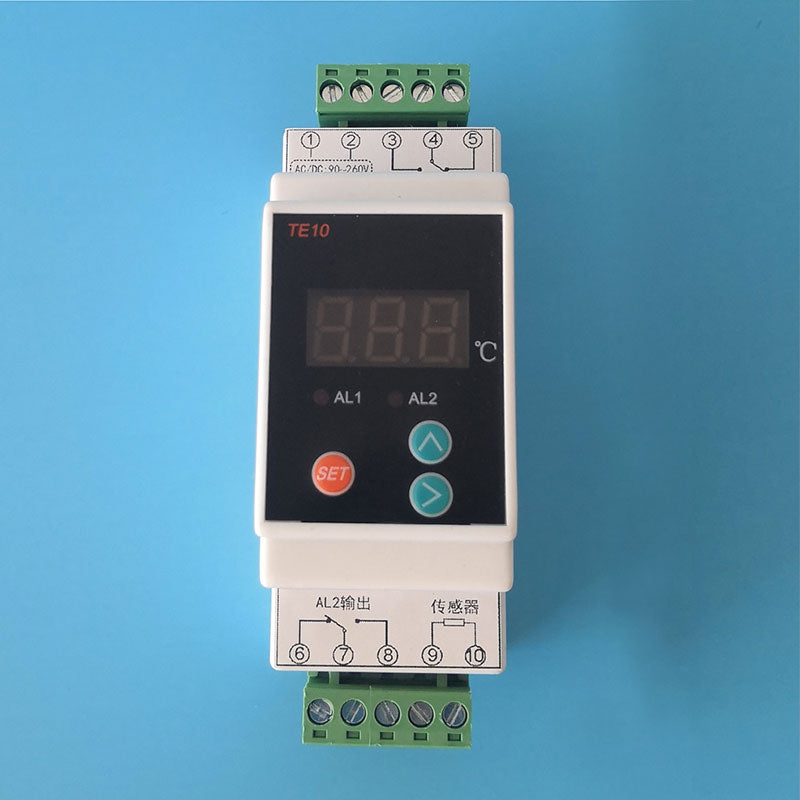

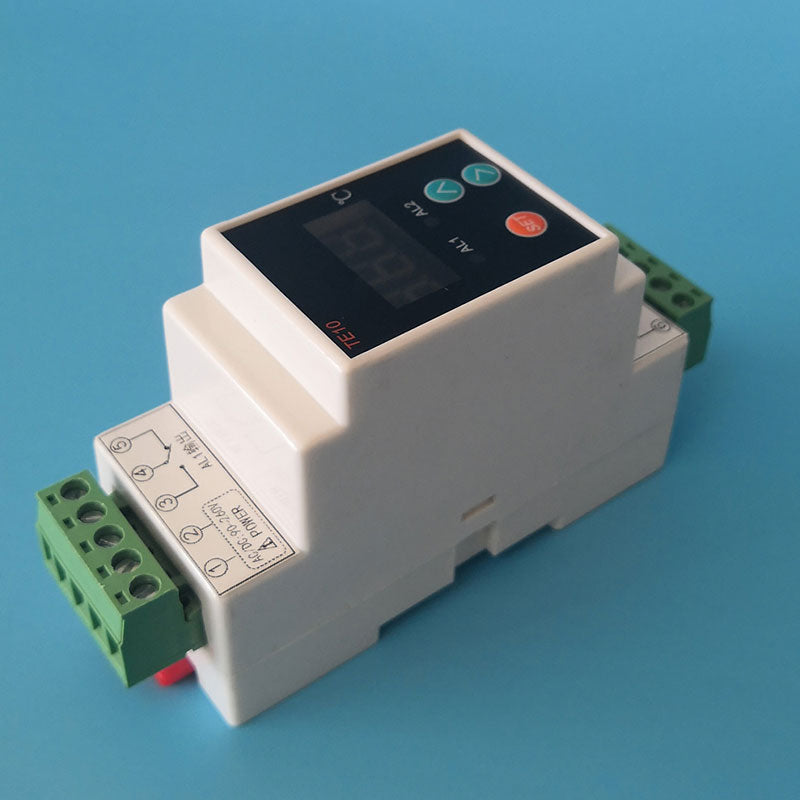

Digital Temperature Controller Guide Rail Style Adjustable Temperature with 2-Way Replay Output

Digital Temperature Controller Guide Rail Style Adjustable Temperature with 2-Way Replay Output

Features:
- Strong anti-interference ability, stable performance, simple circuit and high precision

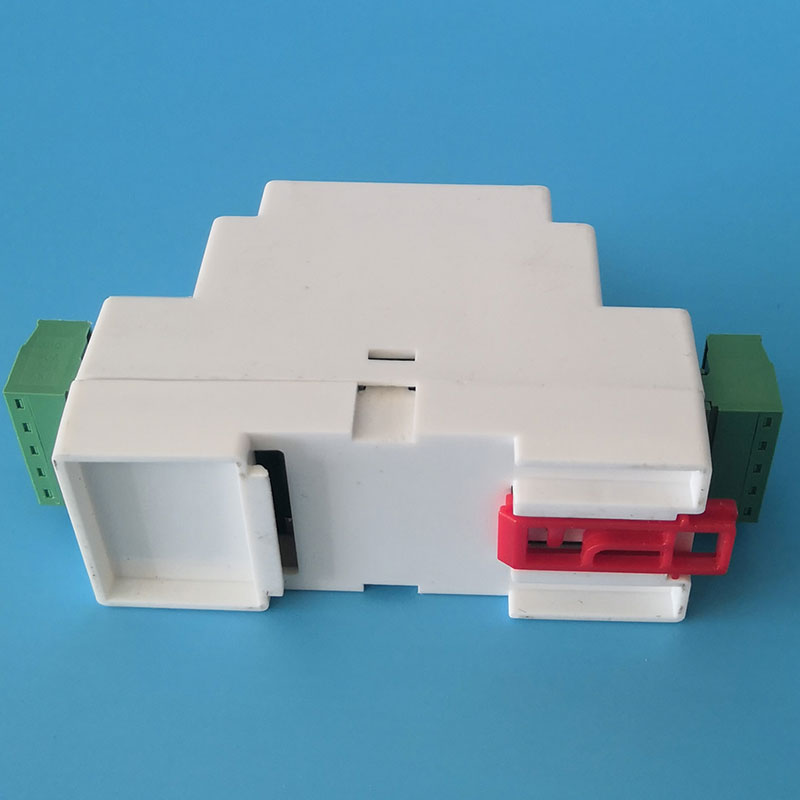

- The outer shell adopts the guide rail type shell, which is convenient for installation and beautiful in appearance
- With adjustment and digital filtering functions
- Standard 2 relay output function, contact capacity 7A / 250VAC
- Can be used for upper limit, lower limit or interval alarm, control output

Technical Performance:
- Power supply: working voltage AC90 ~ 260V; power consumption is less than 2W (other power supply can be customized)
- Measurement accuracy: 0.5% FS ± 1; Measuring range -40 ~ 110 ℃
- Display word height: 0.36 inch high brightness red LED (other colors can be customized)
- Operating environment: -20 ~ 70 ℃ (relative humidity below 80%)
- Product Dimensions: 110 * 36 * 60 mm (LxWxH)

Parameters:
No. 1:
* Sign: TY1
* Function: Relay 1 output alarm type
* Range: 0-2
* Description:
0: Upper limit alarm, temperature ≥AL1, relay pull-in, ≤ (AL1-HY1), relay is off.
1: Lower limit alarm, temperature ≤AL1, relay pull-in, ≥ (AL1 + HY1), relay is off.
2: Upper and lower limit alarm. Temperature ≥AL1, relay pull-in, ≤ HY1, relay pull-in.

No. 2:
* Sign: AL1
* Function: Relay 1 operating value
* Range: -40.0~130.0

No. 3:
* Sign: HY1
* Function: Relay 1 return difference
* Range: -40.0~130.0

No. 4:
* Sign: TY2
* Function: Relay 2 output alarm type
* Range: 0-2
* Description:
0: Upper limit alarm, temperature ≥AL2, relay pull-in, ≤ (AL2-HY2), relay is off.
1: Lower limit alarm, temperature ≤AL2, relay pull-in, ≥ (AL2 + HY2), relay disconnected.
2: Upper and lower limit alarm. Temperature ≥AL2, relay pull-in, ≤HY2, relay pull-in.

No. 5:
* Sign: AL2
* Function: Relay 2 operating value
* Range: -40.0~130.0

No. 6:
* Sign: HY2
* Function: Relay 2 return difference
* Range: -40.0 ~ 130.0

No. 7:
* Sign: SEC
* Function: Relay action delay value
* Range: 0-999 seconds
* Description: When the relay AL1 or AL2 reaches the operating condition, it will delay SEC seconds. There is no delay when it is 0.

No. 8:
* Sign: LC
* Function: Temperature deviation correction value
* Range: -20.0~20.0
* Description: Display value = measured value + LC

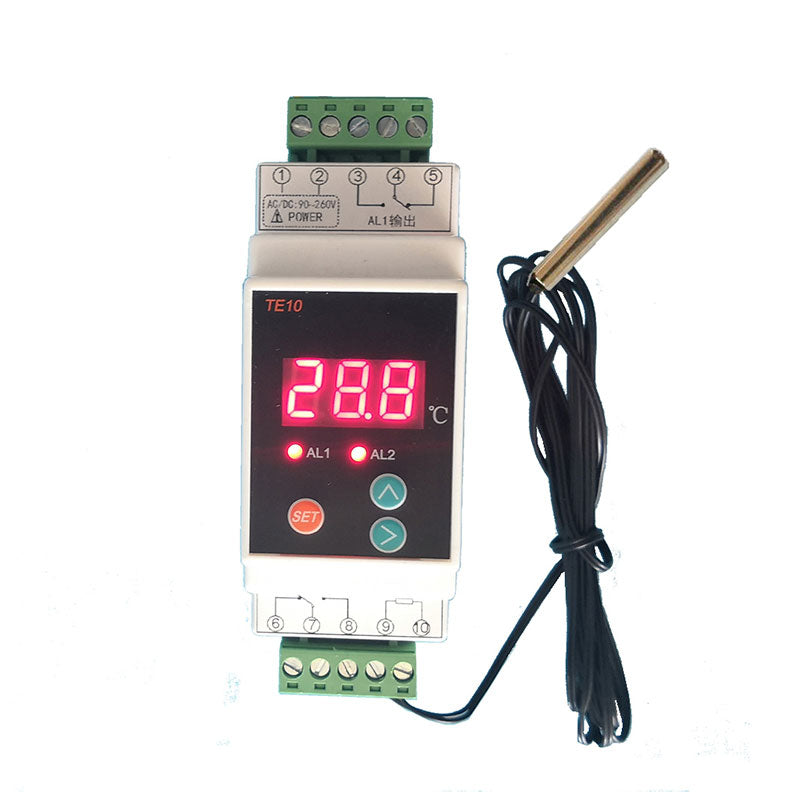

Package Included:
- 1 x Temperature Controller
- 1 x Waterproof Sensor 1.5M

Note: Sensor specifications: cylindrical, diameter 4MM * length 30MM.
