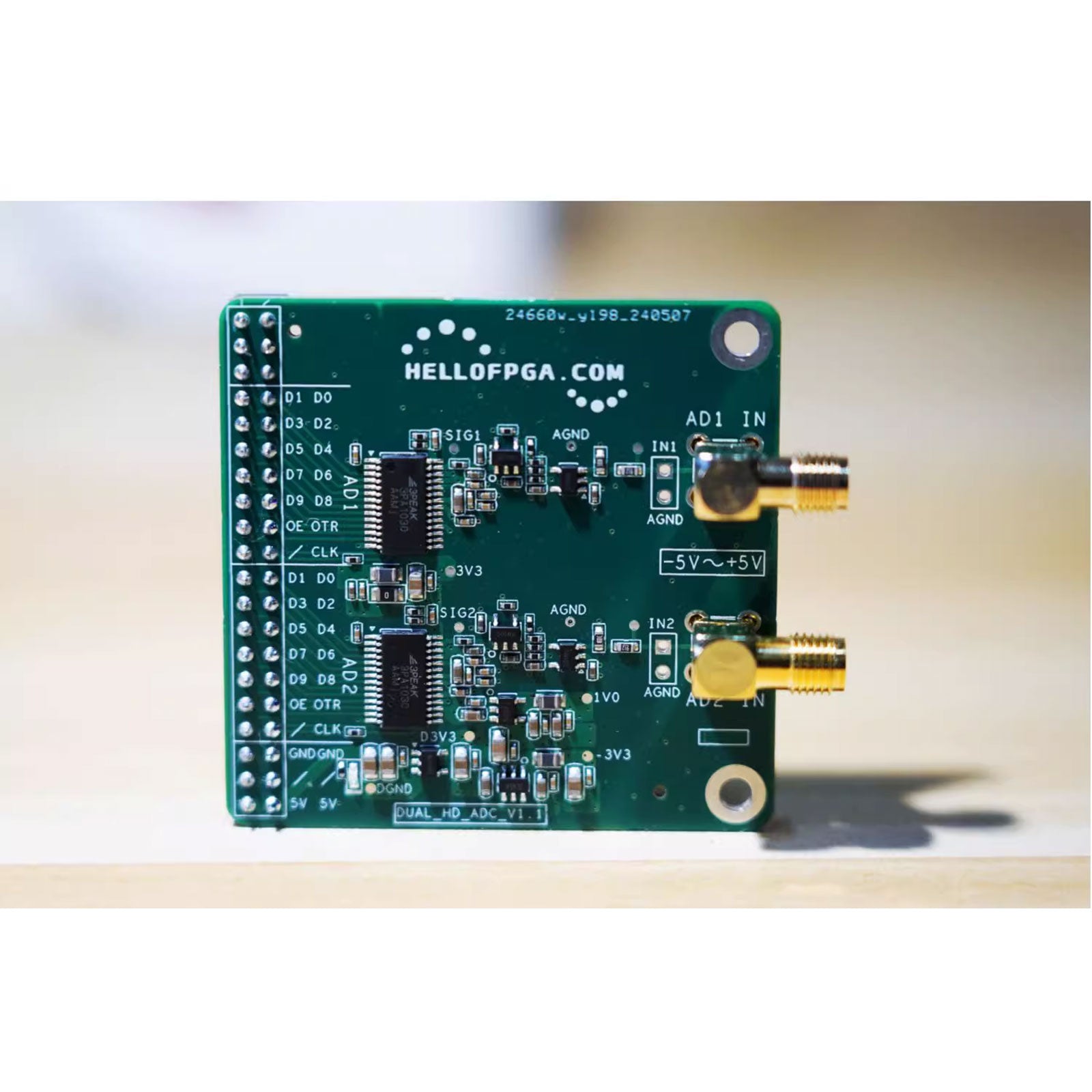

2CH High-Speed AD ADC Module 10Bit 50MSPS Analog to Digital Converter Module with Optional Signal Cable

Features:
- Based on the characteristics of the chip, the parameters have been specially optimized to allow the measurement range of the ADC to be from -5V to +5V (affected by individual differences in resistance and electronic components, the actual collected voltage range may fluctuate between 4.8-5.1)
- In order to improve measurement accuracy, the internal VREF of the AD chip was not used in the design, but an external chip for TI was used to provide a reference voltage of 1V, which improved the design accuracy.
- The ADC module adopts a 4-layer board design. And it separates analog ground and digital ground, making signal measurement cleaner.

Specifications:
- Chip: 3PA1030
- Conversion speed rate: 50MSPS
- Data bit width: 10bit
- Function interface: SMA x 2
- Measuring range: -5V to +5V (range error: 5V±0.2V)

Package Included:
- 1 x ADC Module
- 1 x Optional SMA to BNC Signal Cable

Note:
- The pins are not welded, please weld it by yourself. When used in conjunction with FPGA motherboards, the soldering direction of the pins should be opposite to the soldering direction of the motherboard's pins. For example, if the motherboard's pins are soldered upwards, the module's pin soldering direction needs to be downwards.
