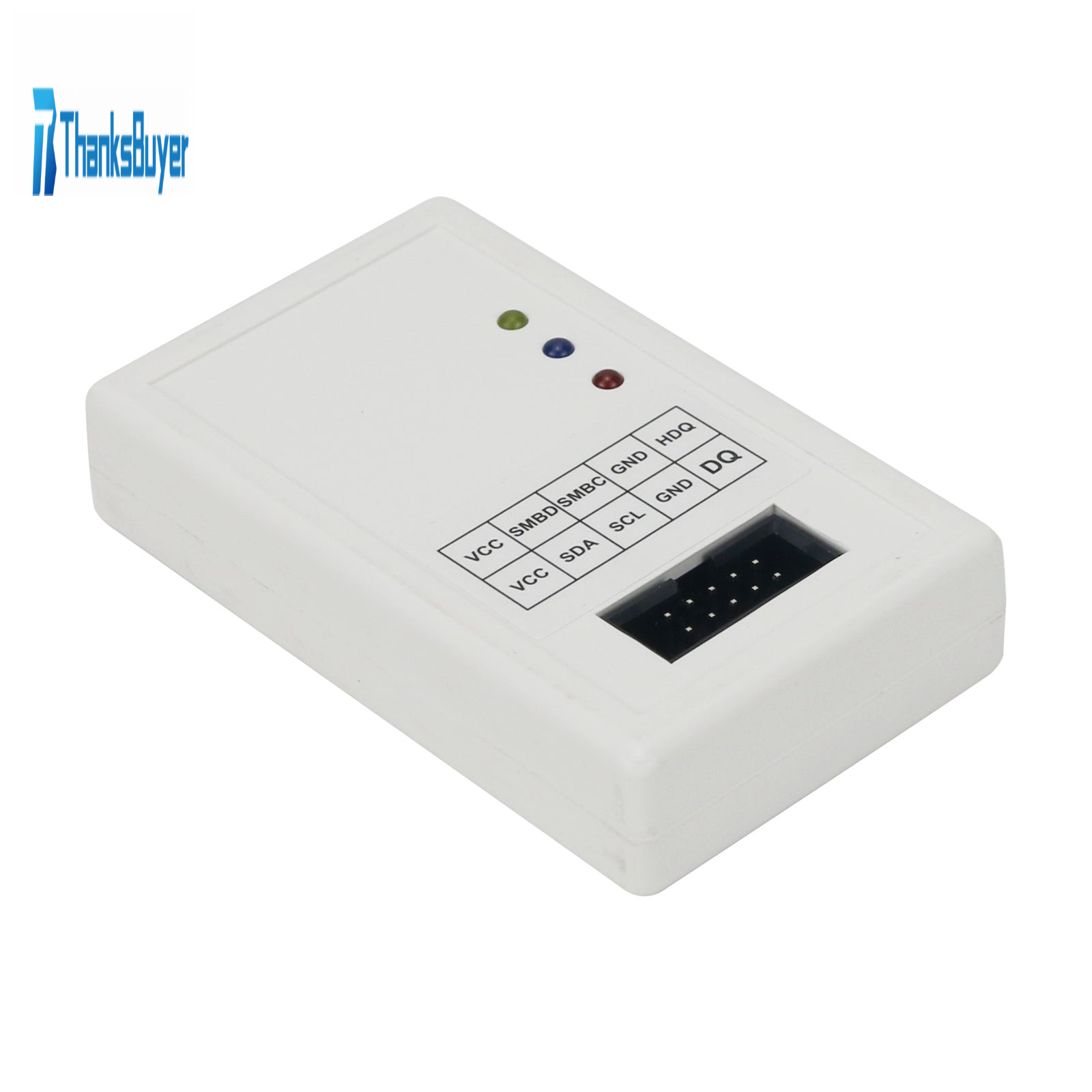

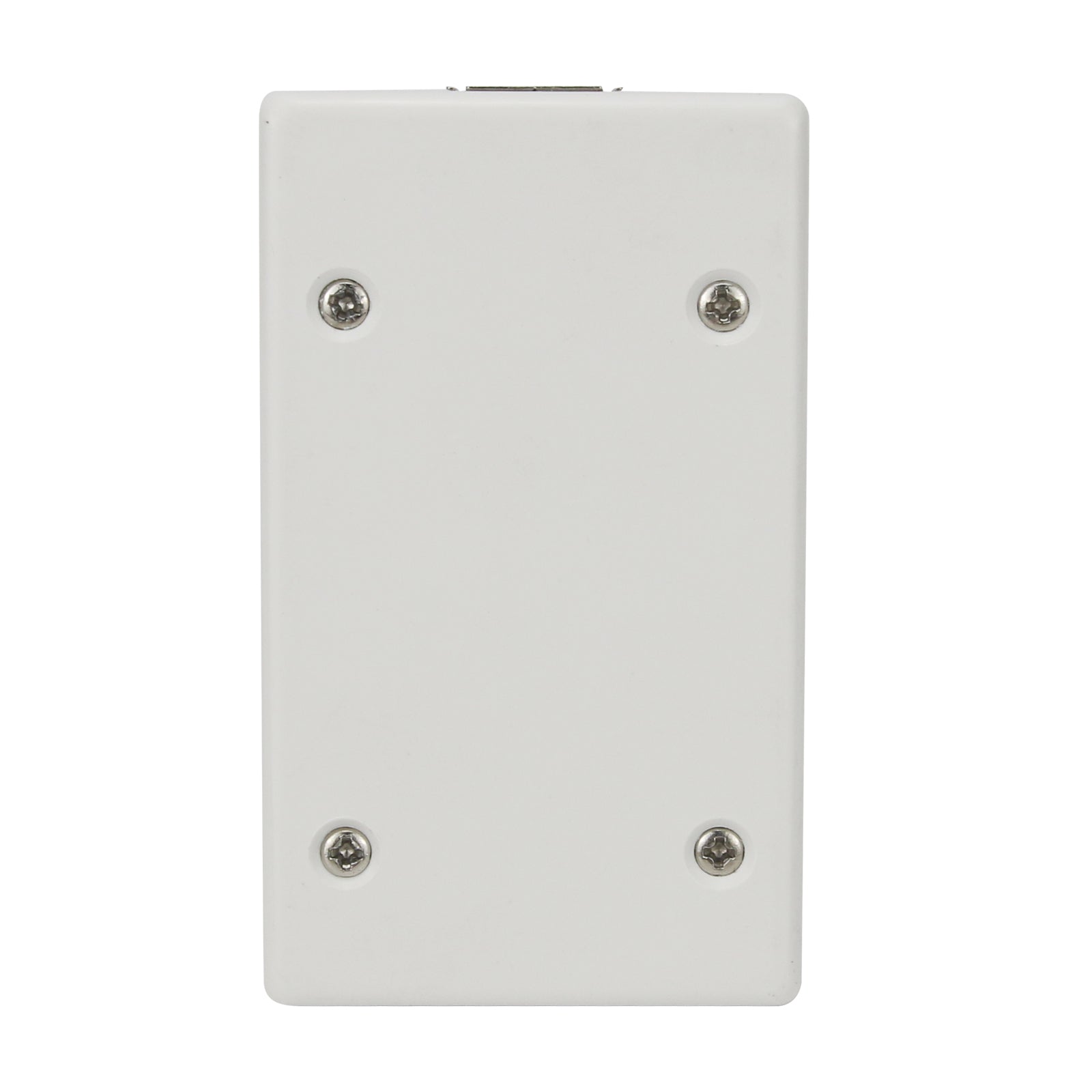

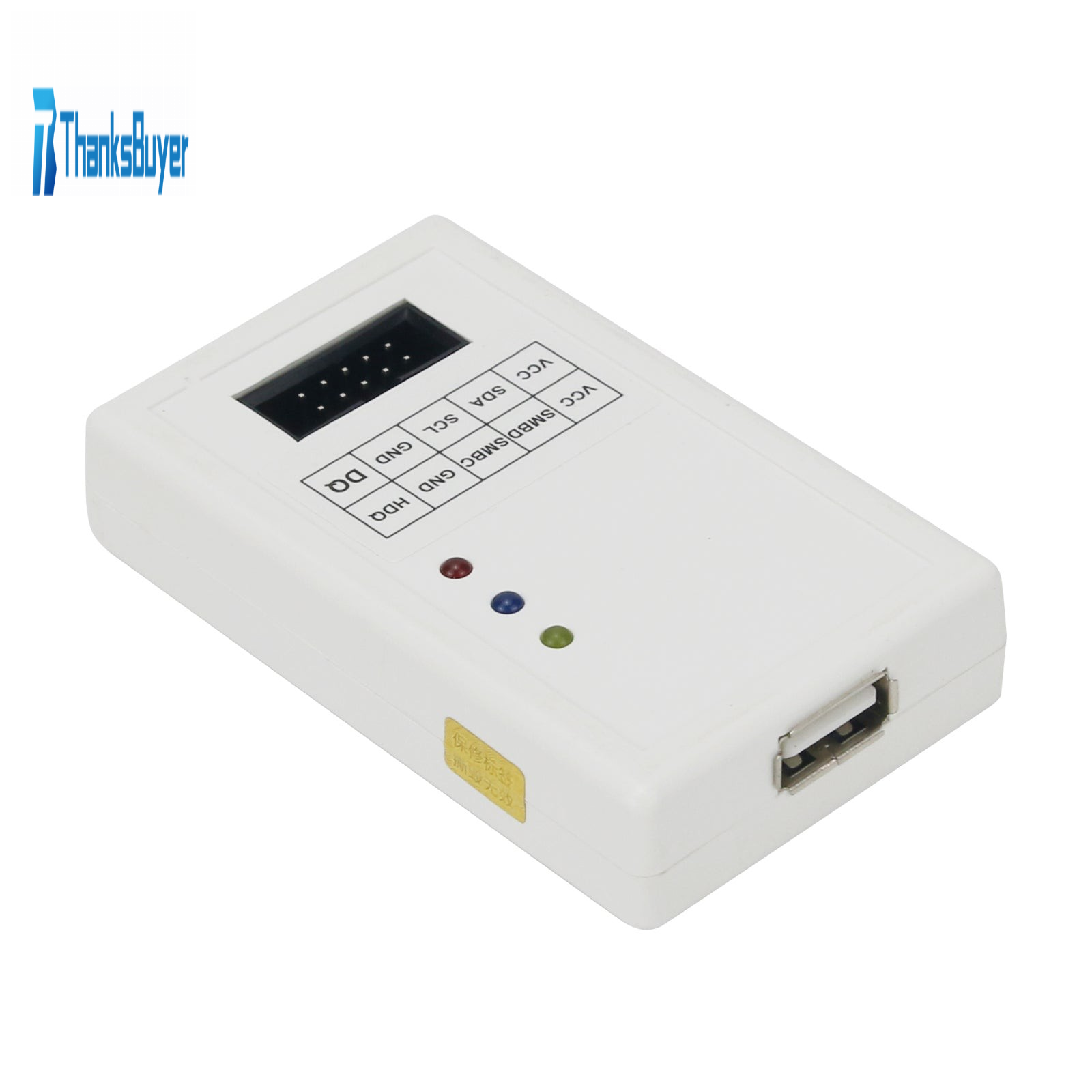

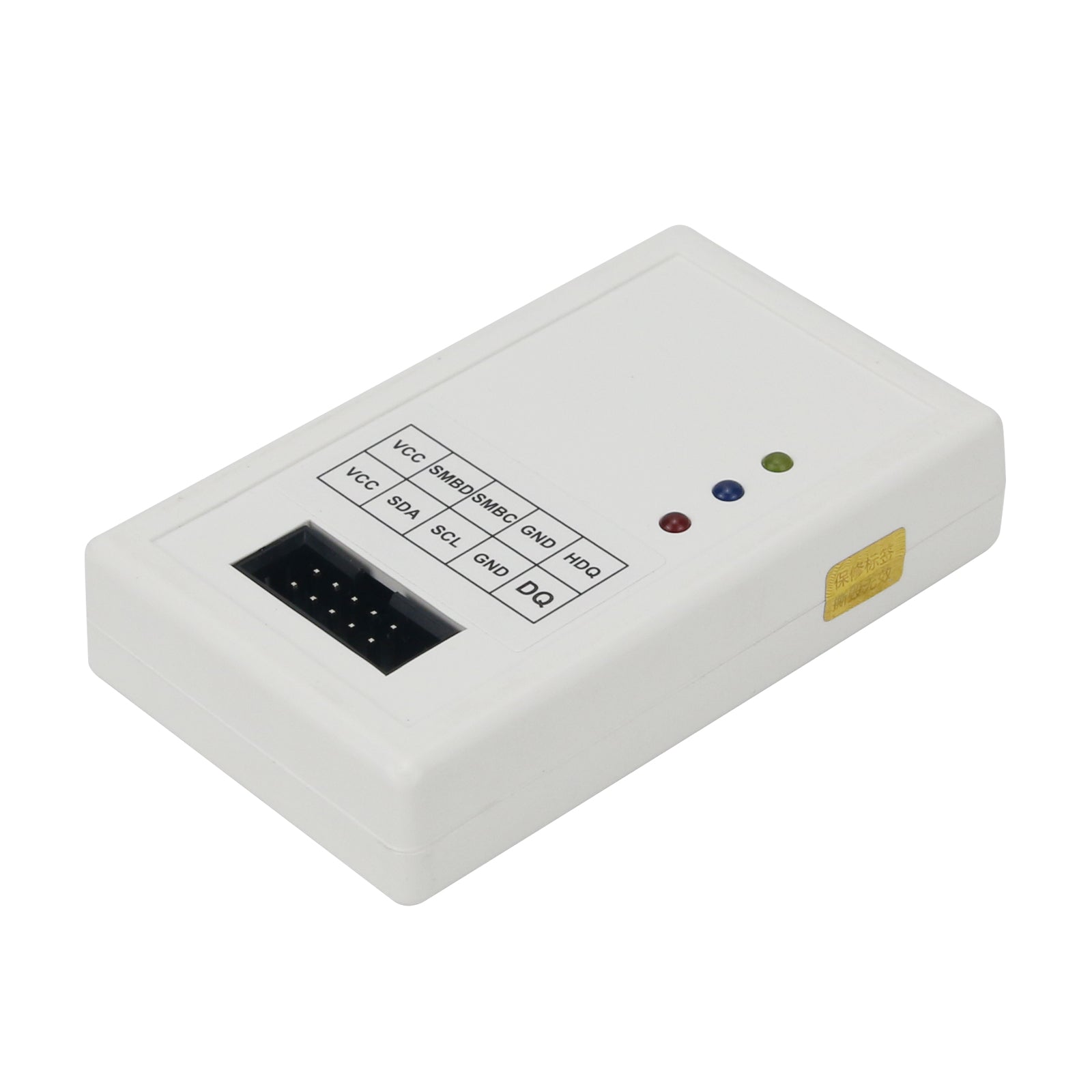

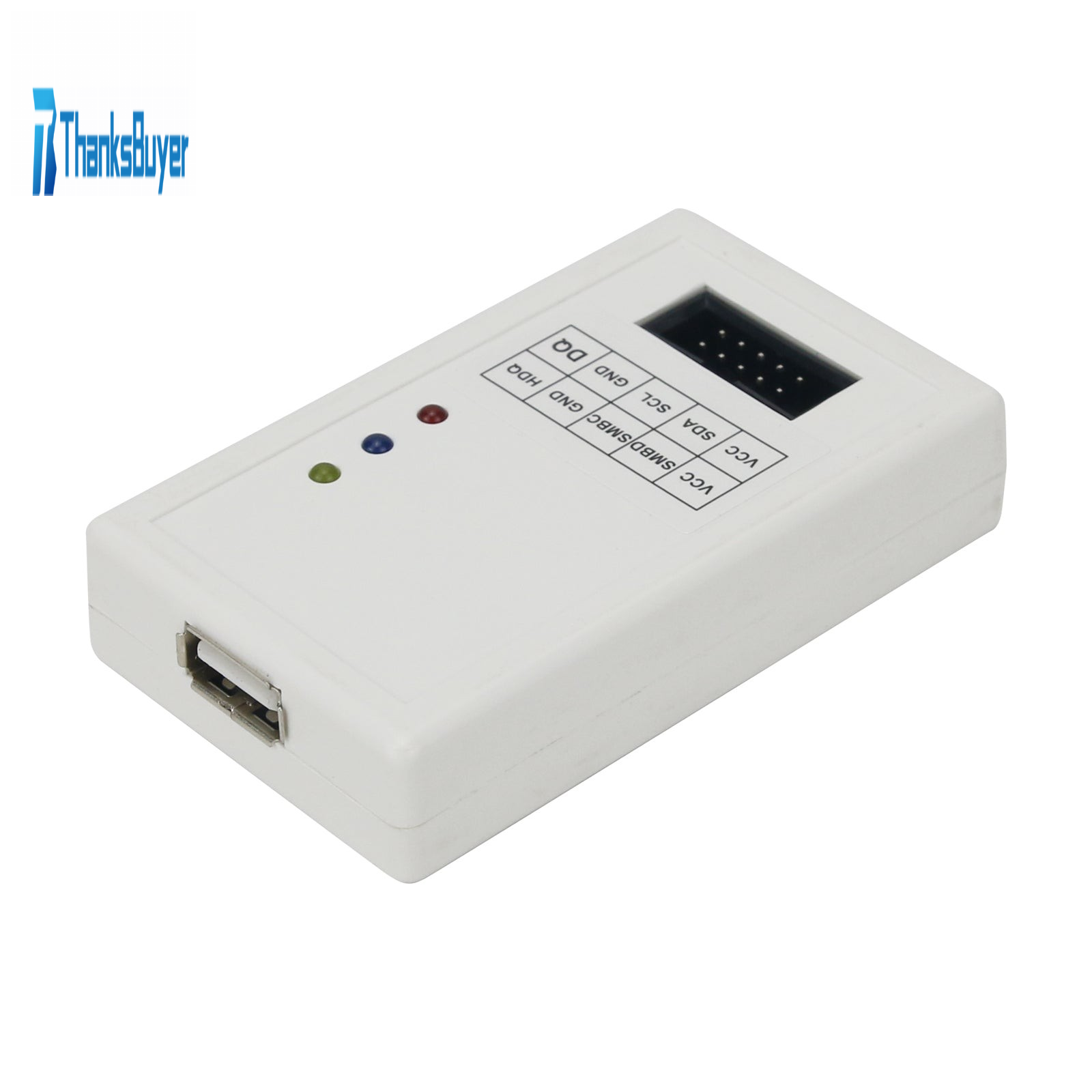

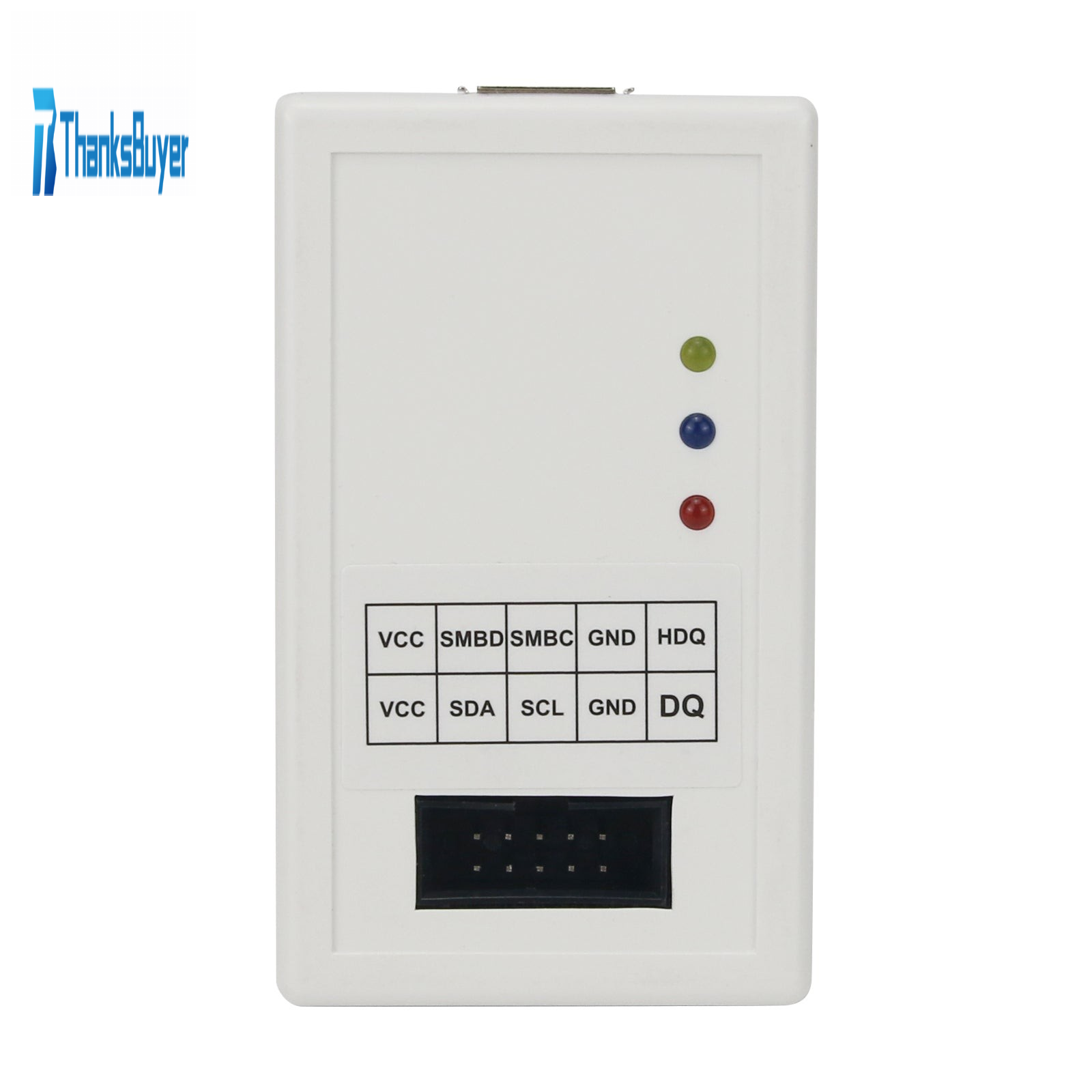

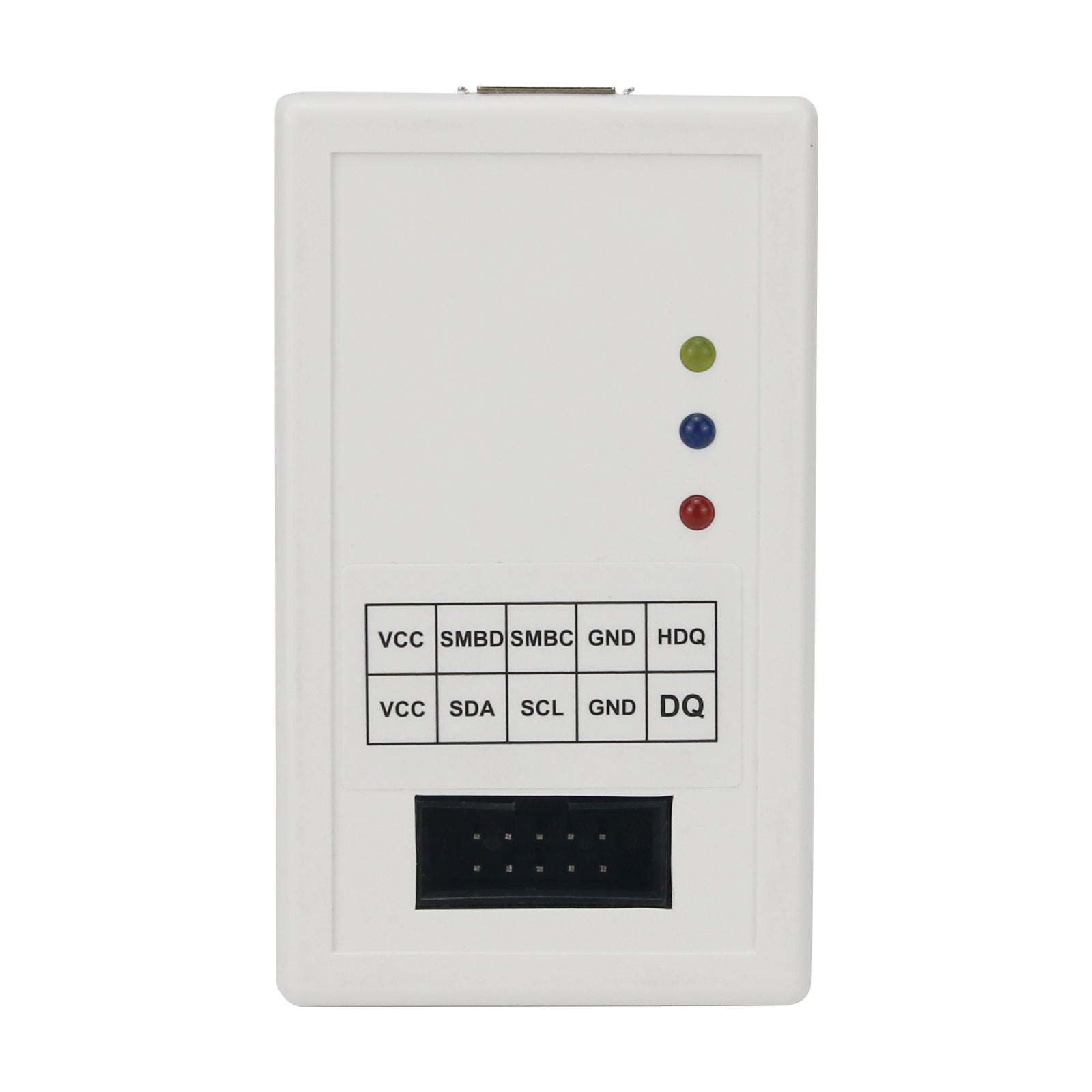

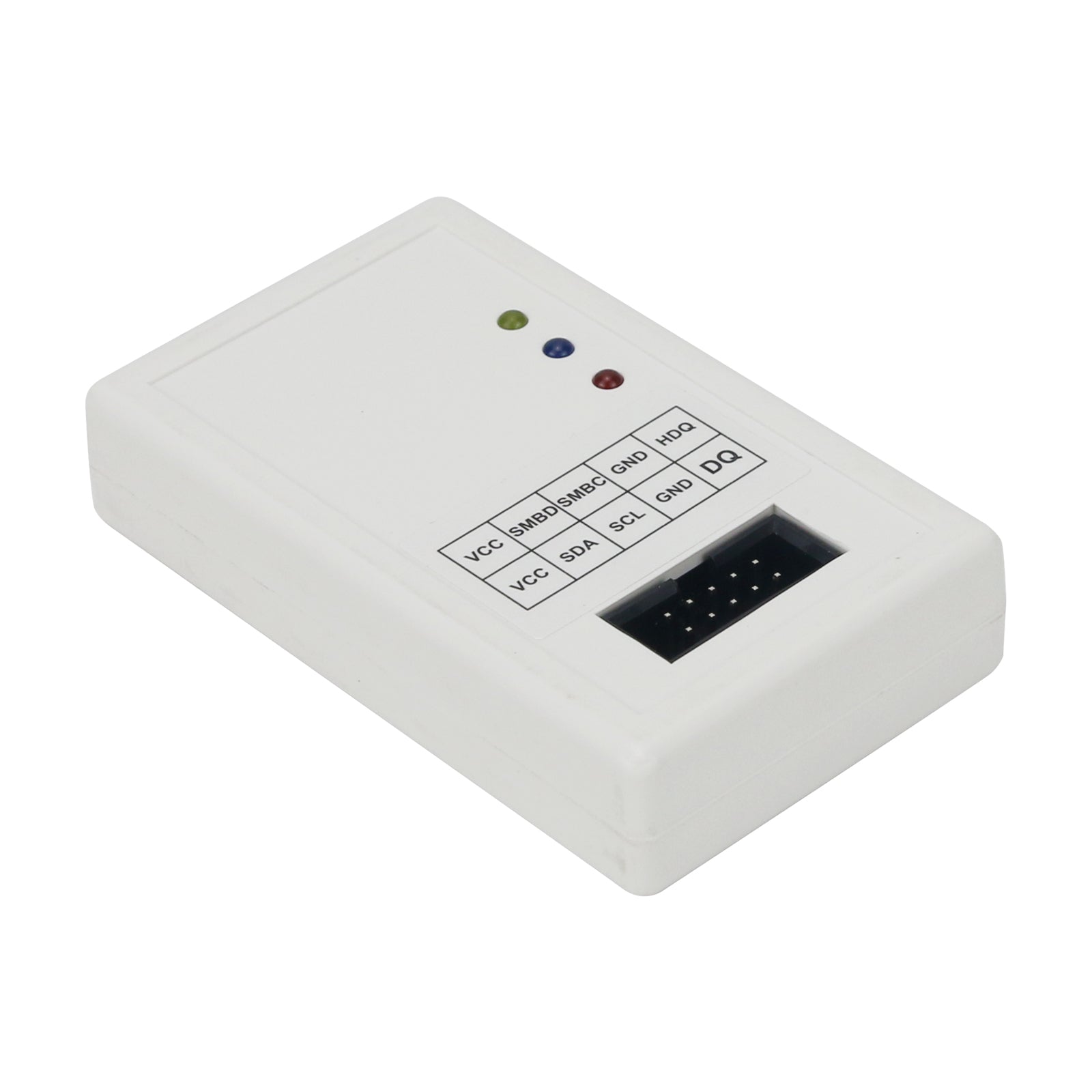

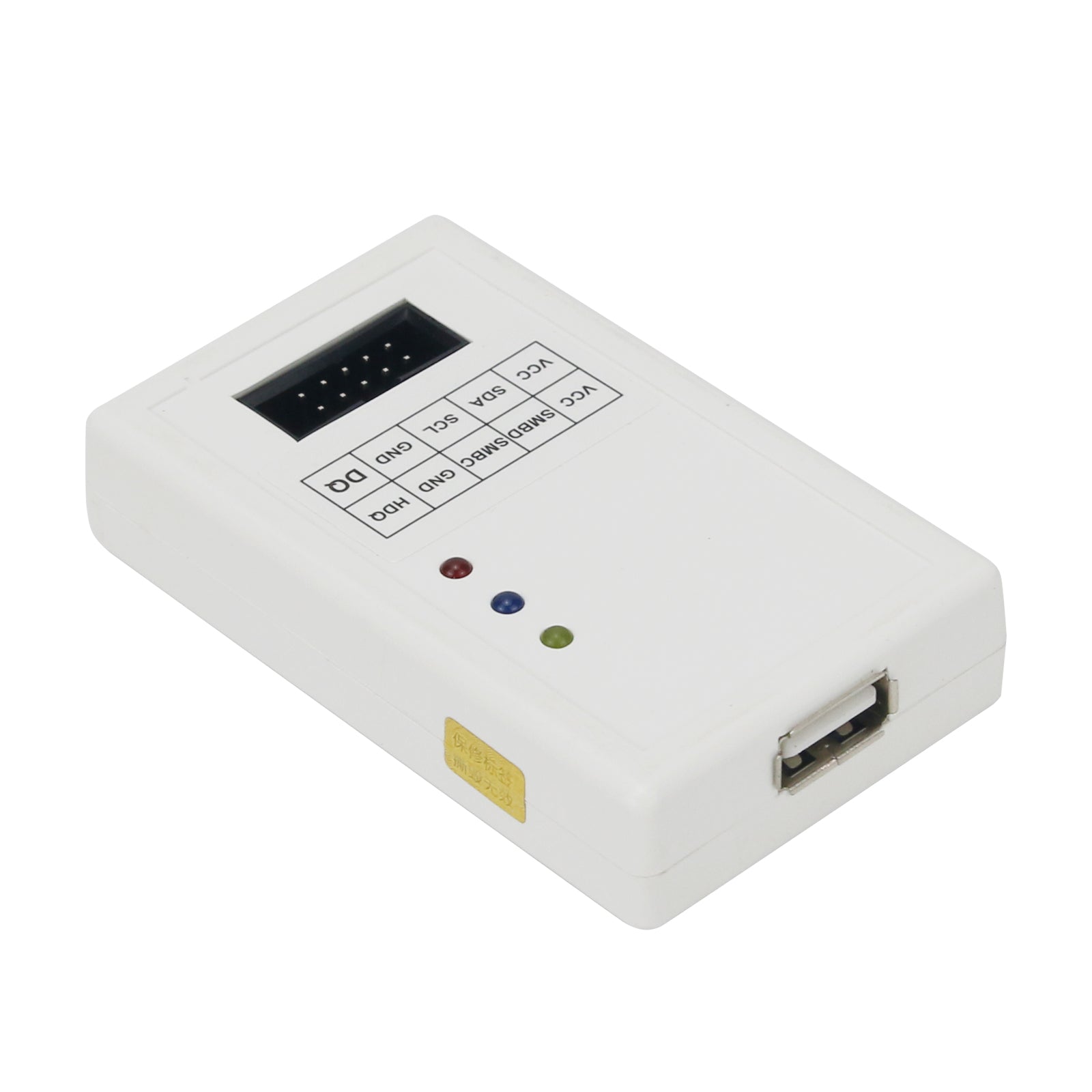

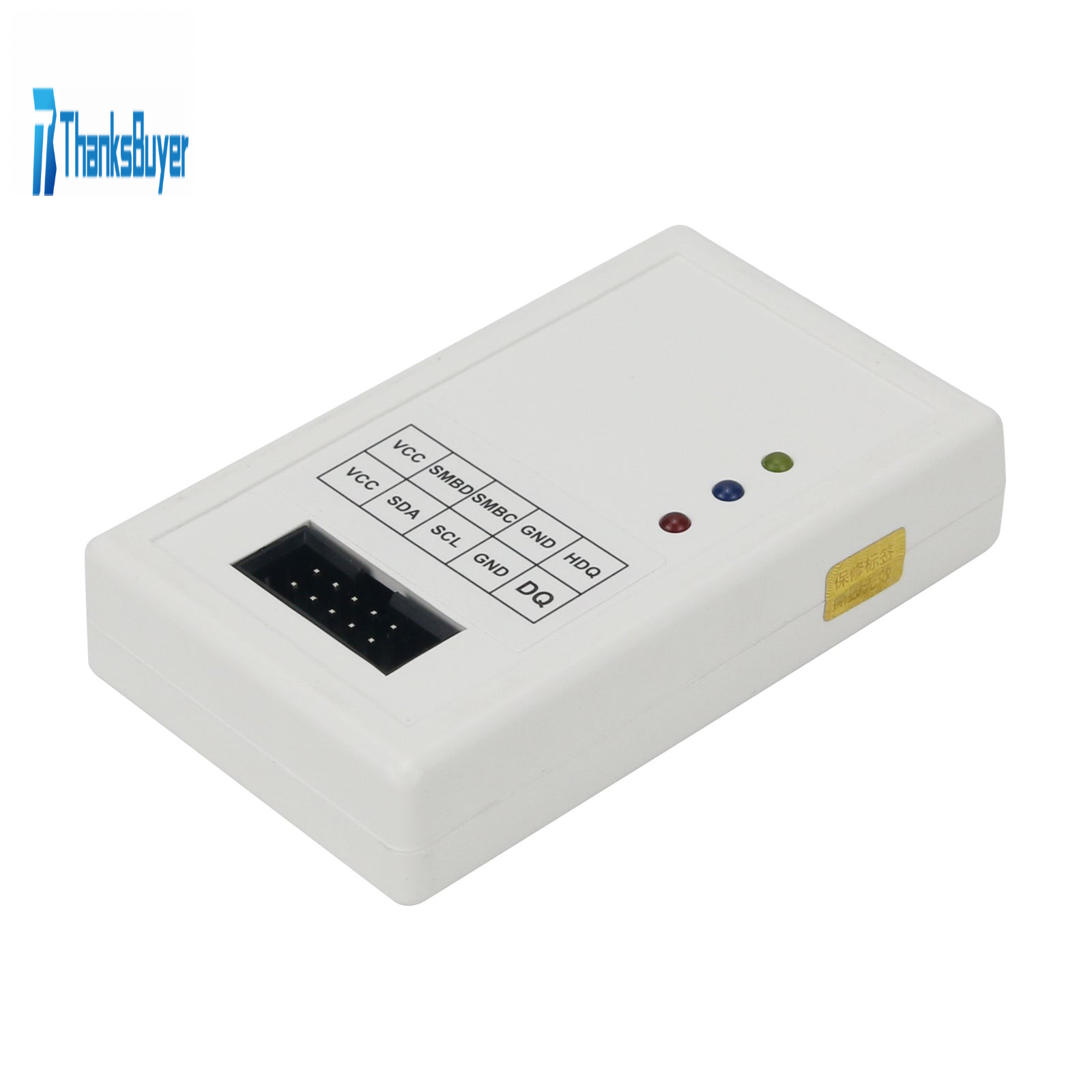

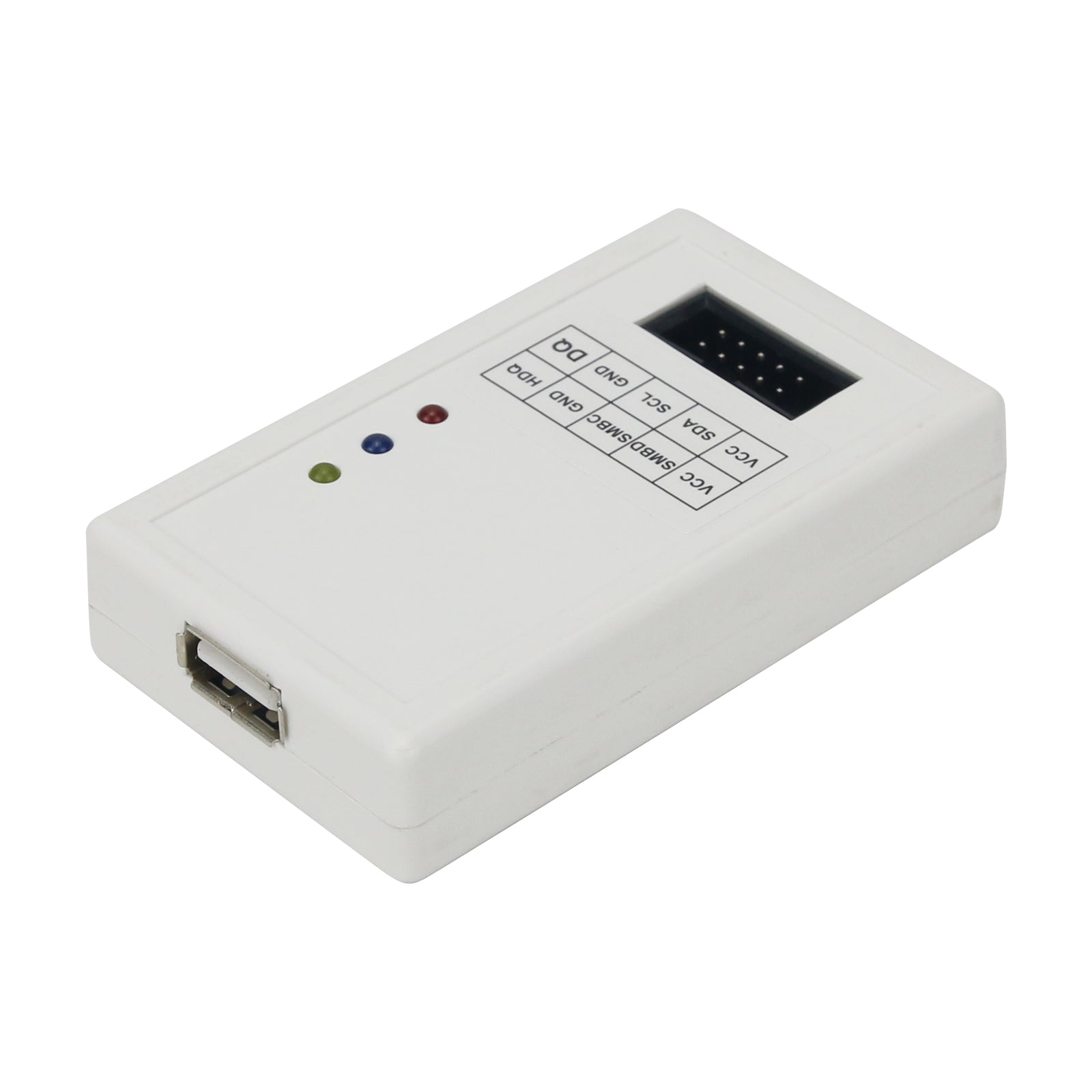

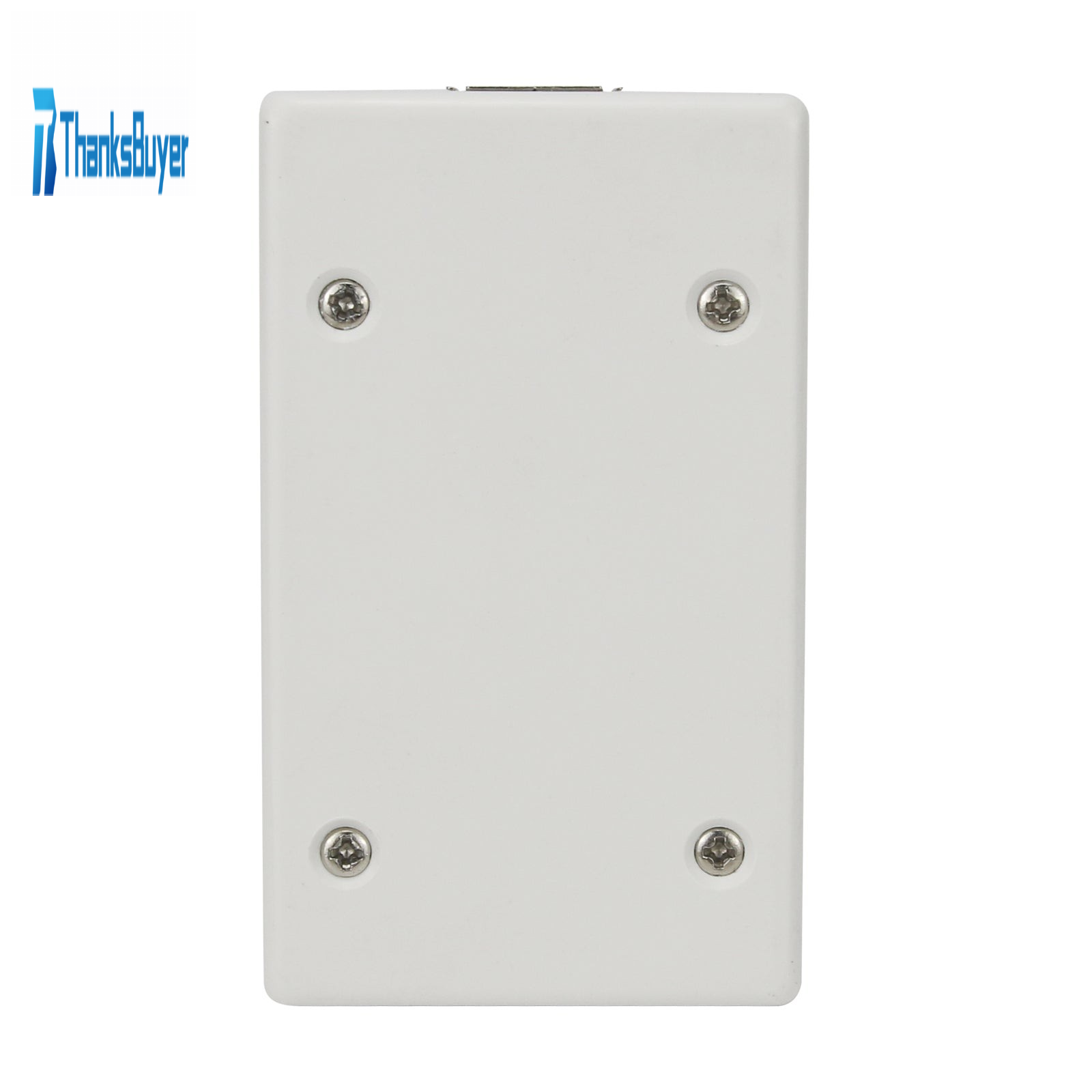

EV2400 EV2300 Standard Battery Programmer Bqstudio UAV Battery Repair Communication Box SMBUS Tool

EV2400 EV2300 Standard Battery Programmer Bqstudio UAV Battery Repair Communication Box SMBUS Tool

Features:
1. Support IIC, SMBUS, and HDQ communication
2. Three-color status light indicates three states (power supply, communication, usb data)
3. Support subsequent upgrade firmware and support unpacking chips
4. Directly use an USB data cable to communicate with a computer
5. Small size and easy to carry
6. Protect output signals
7. External 3.3V reference power supply can be provided

Supported Devices:
1. Gauge
bq34z100G1, bq35100, bq34110, bq34210, bq27220, bq27320, bq27421G1A, bq27421G1B, bq27441G1A, bq27441G1B, bq27411G1A, bq27421G1A, bq27421G1B, bq27421G1D, bq27411G1A, bq27411G1B, bq27425G1, bq27425G2A, bq27425G2B, bq27426G1, bq27510G3, bq27520G4, sn27520L1, bq27530G1, bq27531G1, bq27532G1, bq27541v200, bq27541G1, bq27542G1, bq27545G1, bq27546G1, bq27621G1, bq27741G1, bq27742G1, bq78z100, bq27z561, bq78350, bq78350R1, bq28z610, bq40z370, bq40z50, bq40z50R1, bq40z50R2, bq40z60, bq4050, bq40z80, bq76920, bq76930, bq76940, bq33100

2. Charge
bq24188, bq24260, bq24296M, bq24298, bq24770, bq24773, bq24780S, bq25120, bq25600_600D_600C, bq25601, bq25601D, bq25700A, bq25703A, bq25713_APL, bq25871, bq25872, bq25882, bq25890_895, bq25892, bq25895M, bq25896, bq25898,
bq25898C, bq25898D, bq25910, bq25910_EVM854, bq25970_A1_EVM, bq25970_A1_M, bq25970_A1_S, bq25970_A1_SEB

3. Wireless Charging
bq50002, bq500212A, bq501210

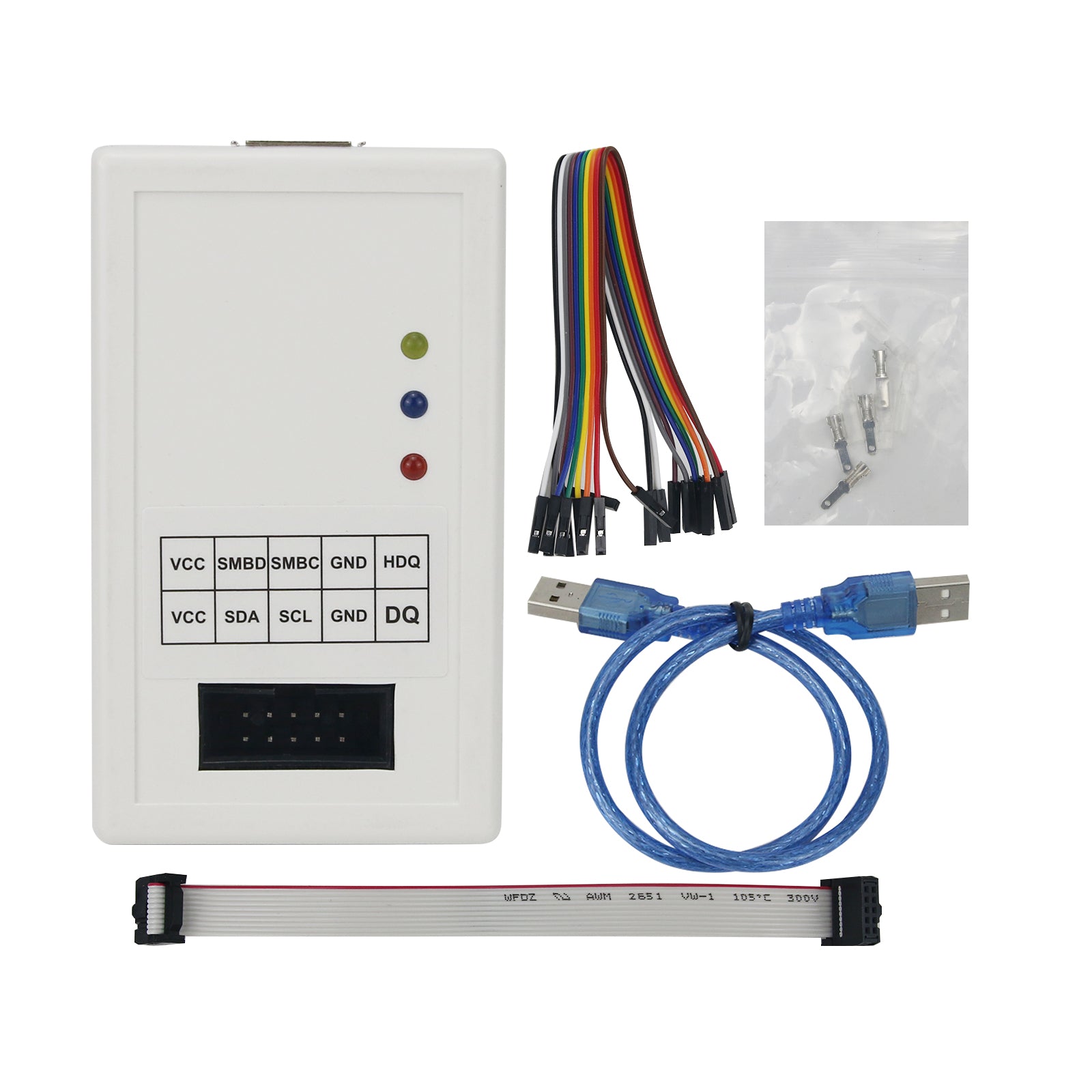

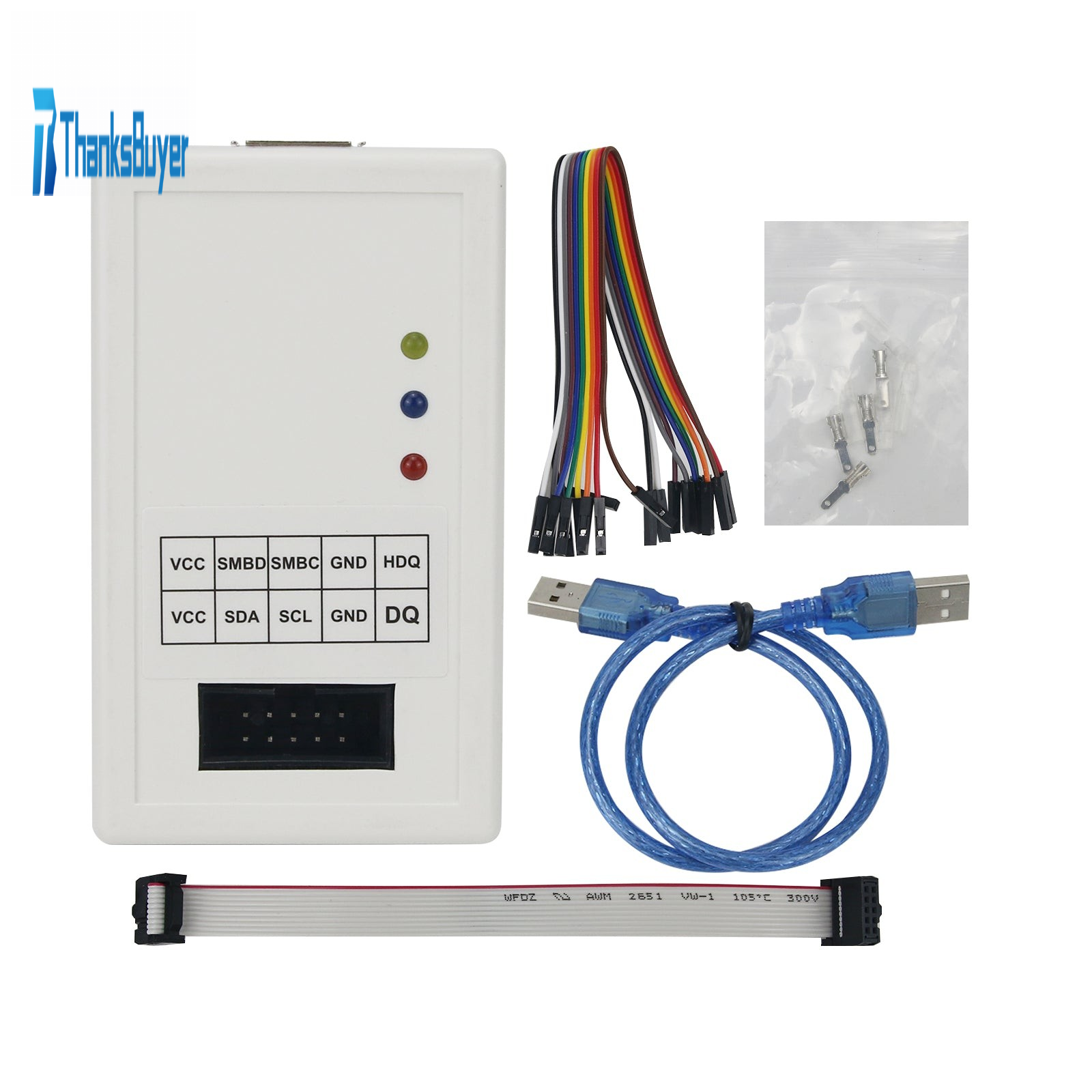

Package Included:
- 1 x Set of Battery Debugger

Note:
- Batteries are not included.
