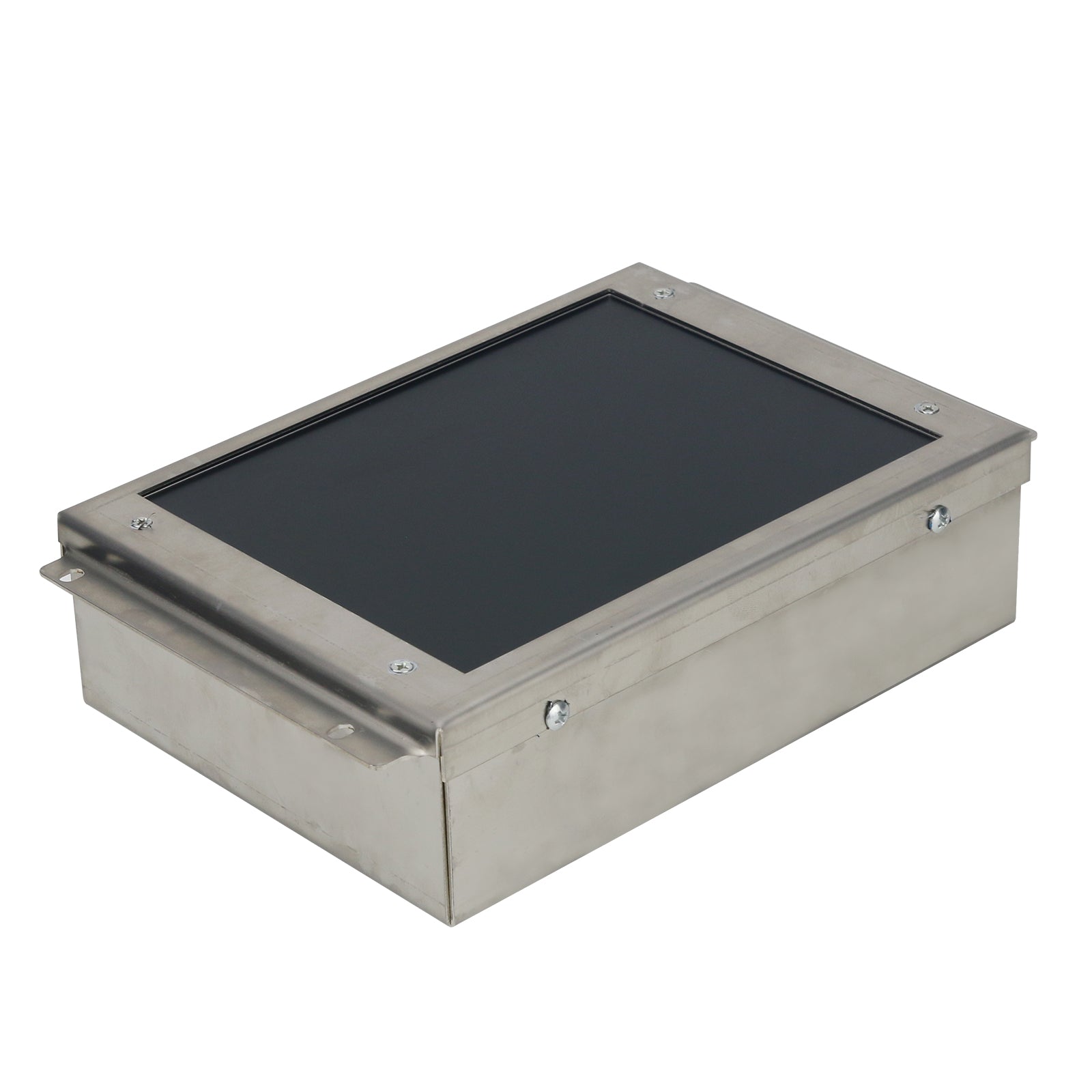

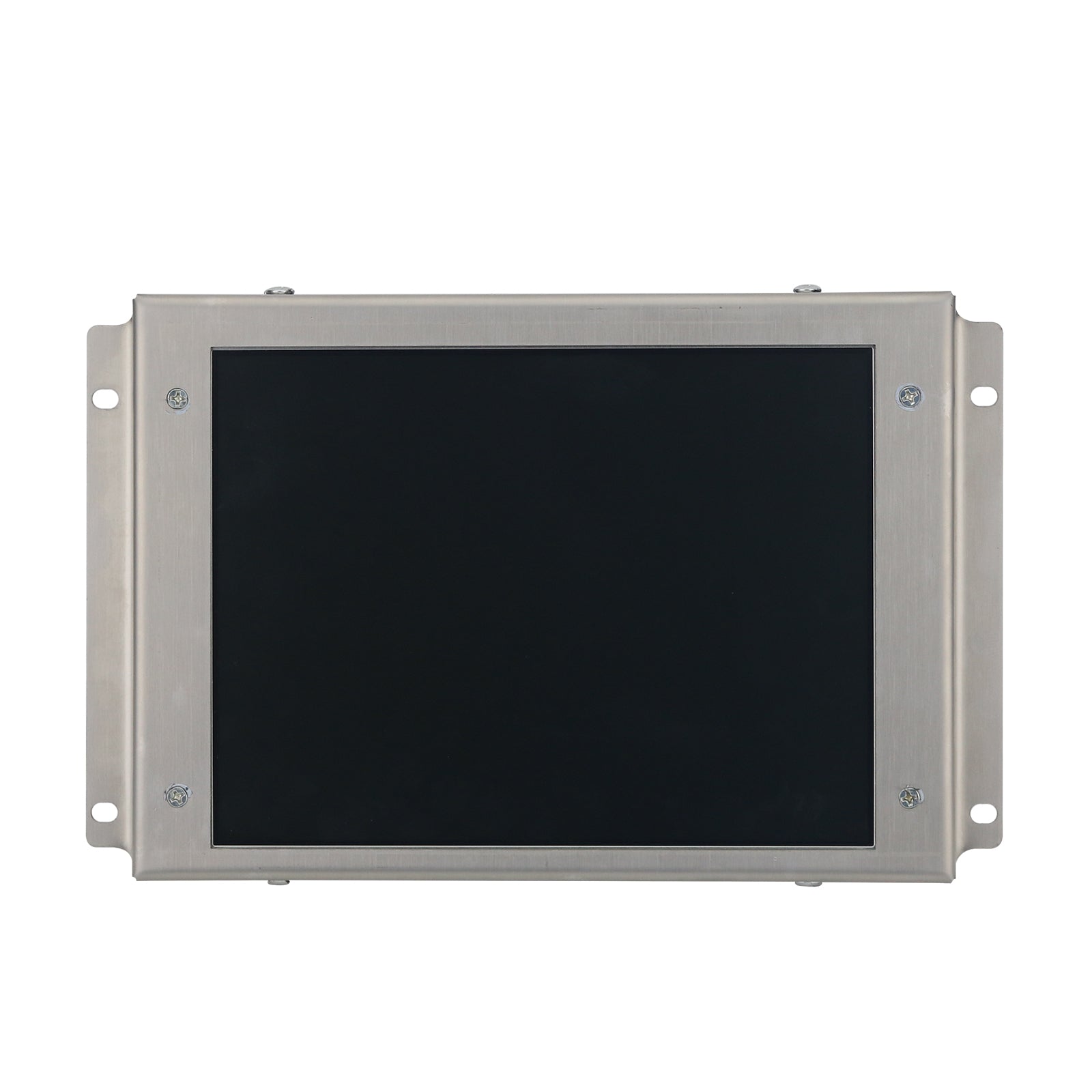

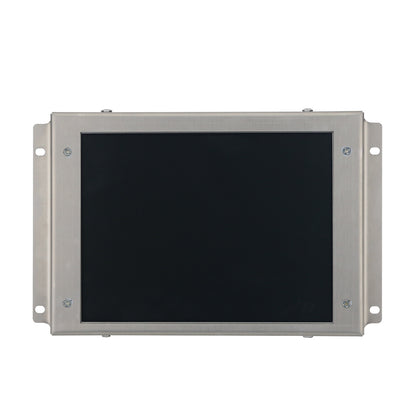

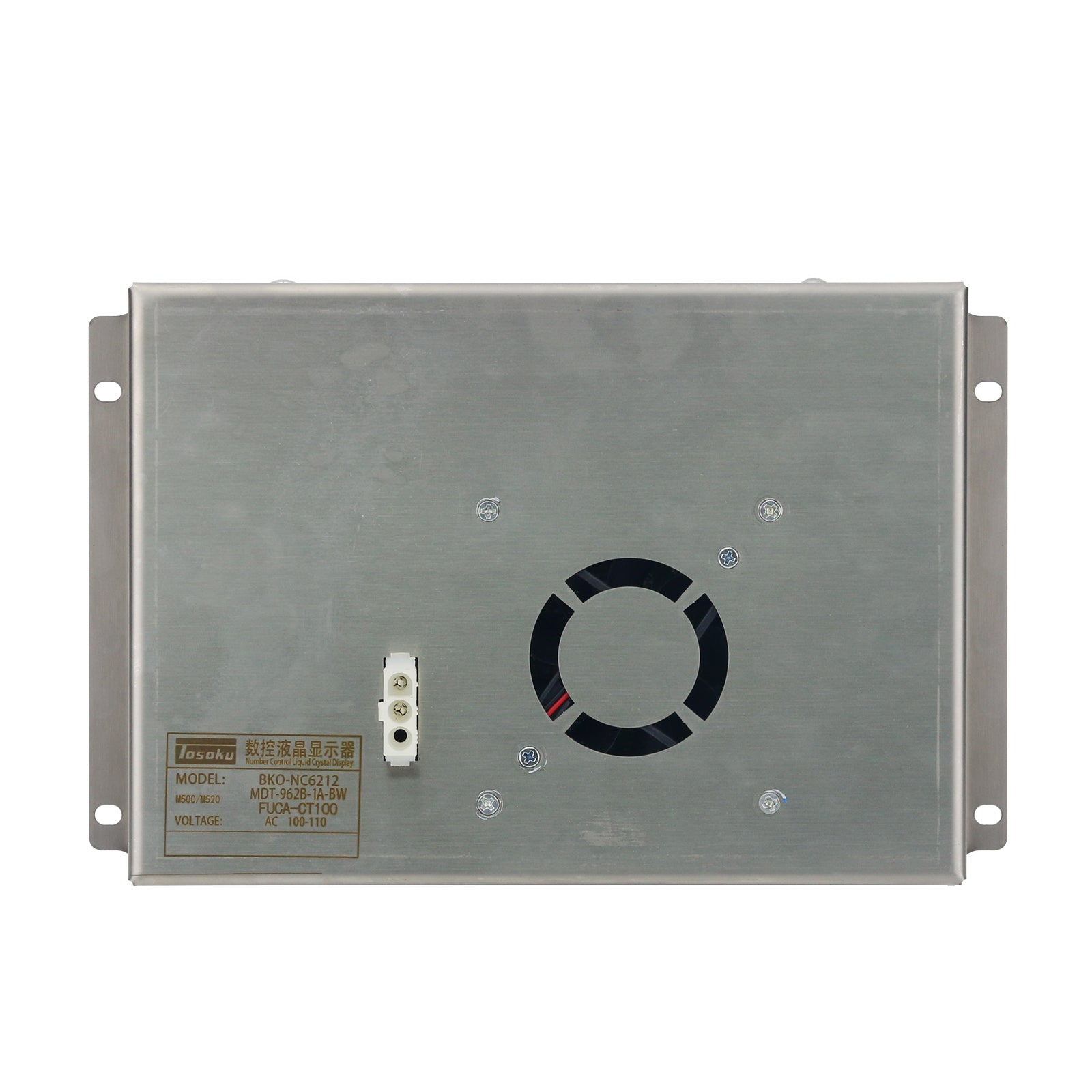

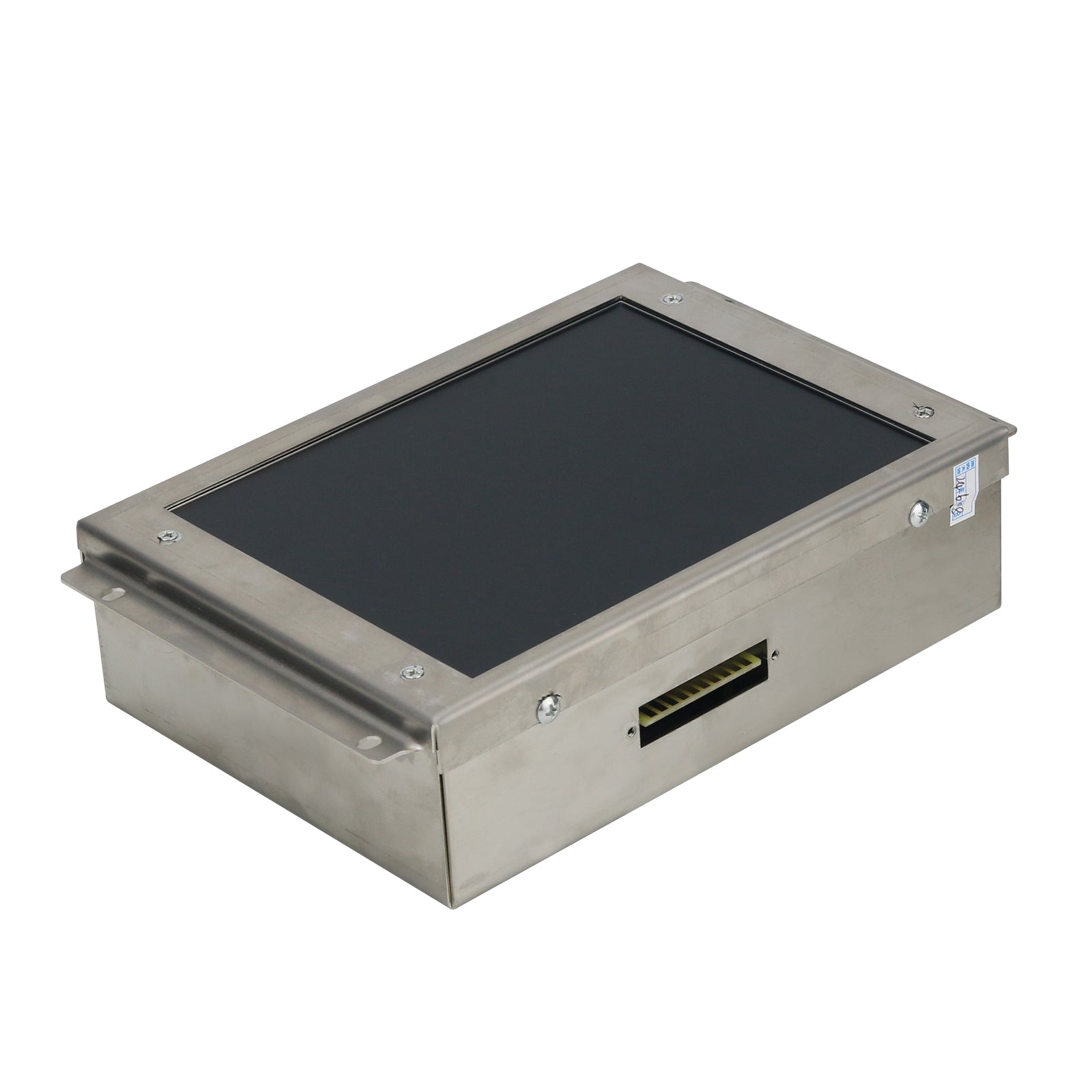

FCUA-CT100 CT120 LCD Display 9 Inch CRT Monitor Operating Panel for M50 M64 M64S E60 E68 CNC System

$179.27
$179.27
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.
Availability: 2000 en stock
SKU: 67850
Tags:
$179.27
$179.27

FCUA-CT100 CT120 LCD Display 9 Inch CRT Monitor Operating Panel for M50 M64 M64S E60 E68 CNC System

Features:
1. The CRT (picture tube) size is 9 inches, the viewing angle is 90 degrees, and the neck diameter is 20mm. Explosion-proof standard is T-band standard.
2. Signal input, video analog signal (positive) 0-2.3V. Horizontal synchronization, TTL digital signal (positive polarity); step mode vertical synchronization, TTL digital signal (positive polarity).
3. Scanning frequency, line frequency H=24Khz, field frequency V=50.5Hz.
4. Video display size: horizontal is 160mm +/-3mm, vertical is 110m +/-3mm.

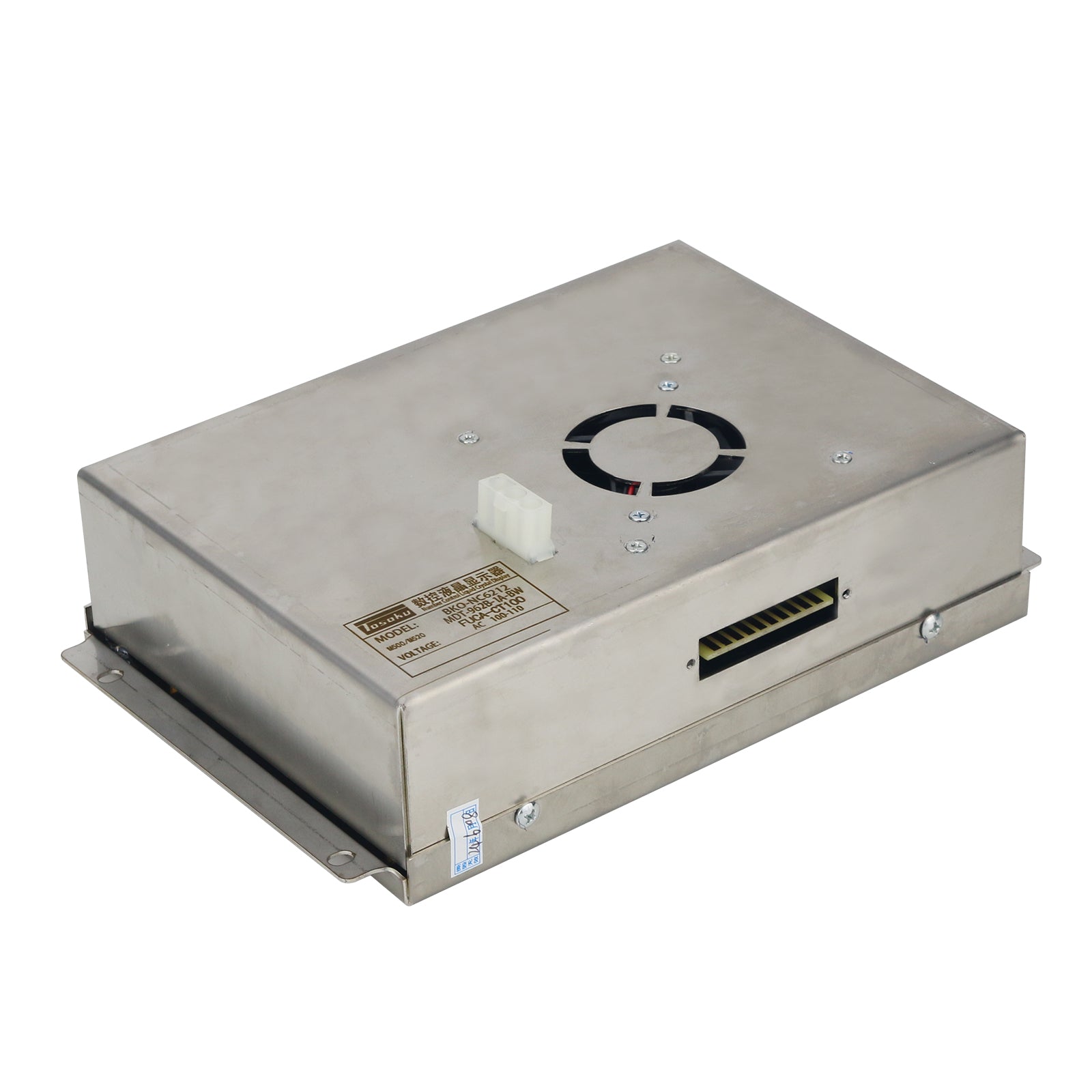

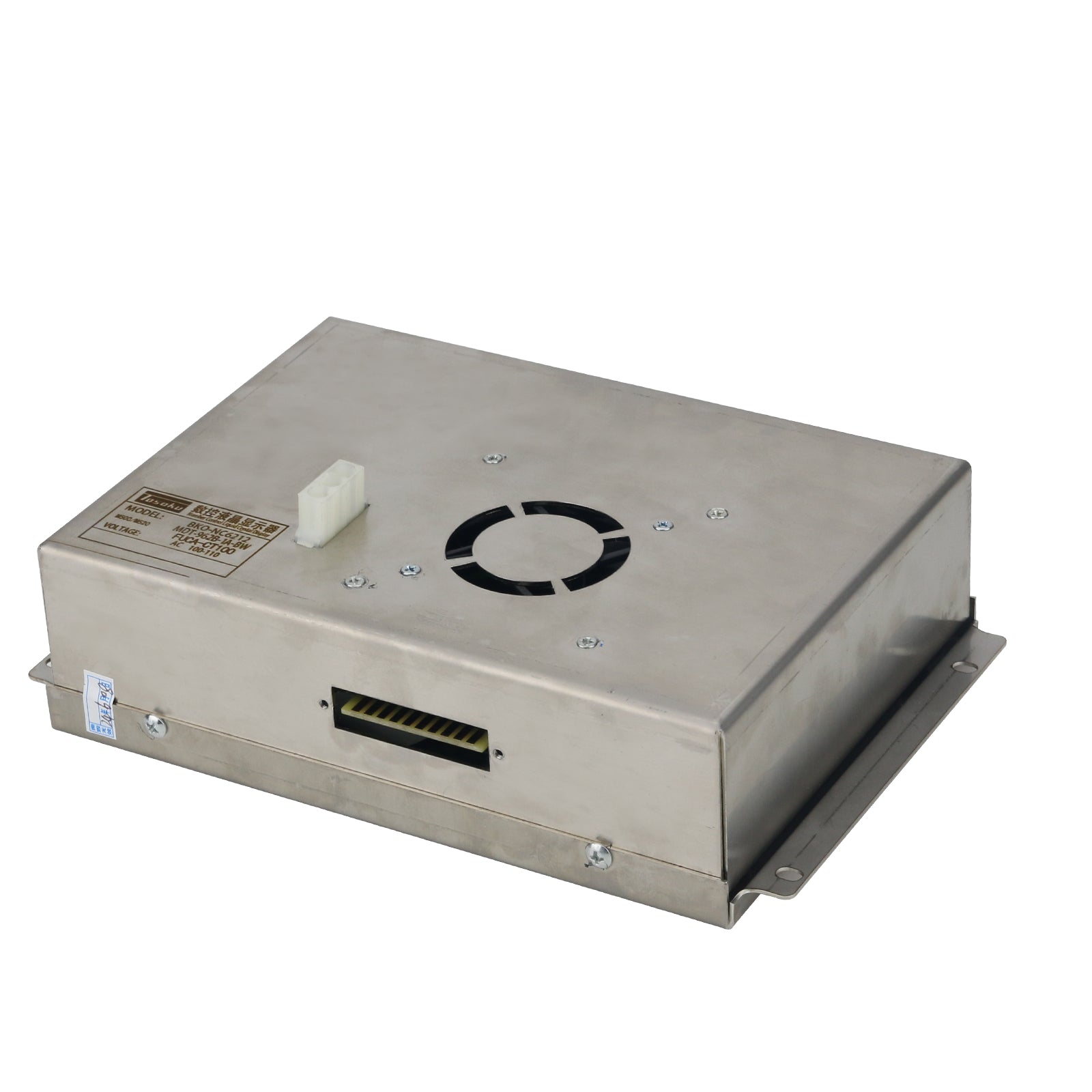

5. Signal input: VIA standard 10 PIN EDGE connector.
6. Suitable for Mitsubishi M50, M520, M64, M64S, E60, E68, etc. system.
7. It can replace MDT962B-1A, MDT962B-2A, MDT962B-4A, BM09DF, MDT947B-1A,  MDT947B-2A, etc. display.

Package List:
1 x FCUA-CT100 CT120 Display
