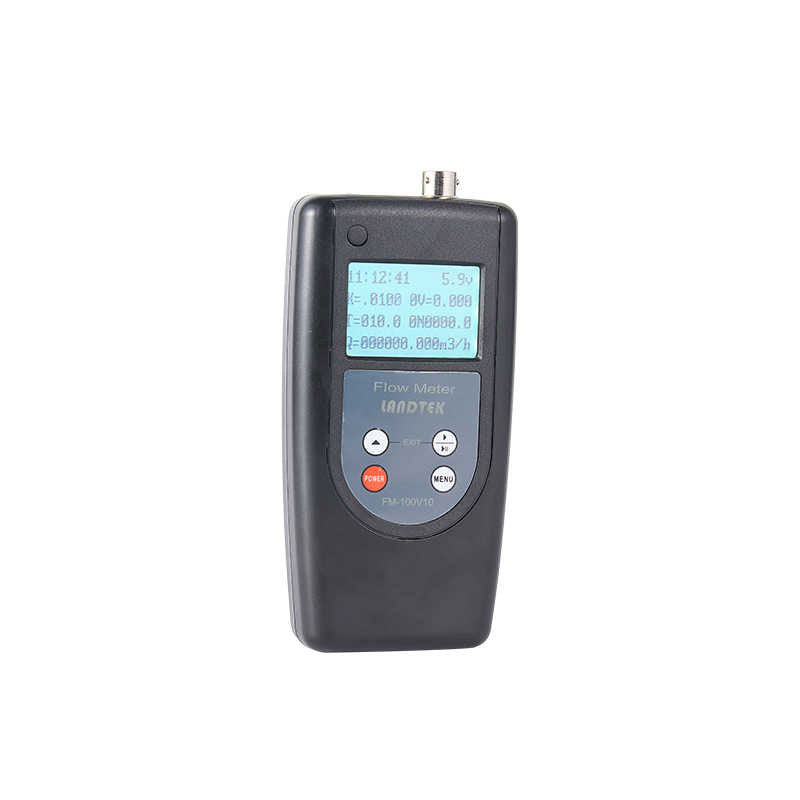

FM-100V10 0.01-10m/s Portable Flow Rate Meter for Hydrologic Station Open Channel Flow Velocity Measurement

FM-100V10 0.01-10m/s Portable Flow Rate Meter for Hydrologic Station Open Channel Flow Velocity Measurement

Application:
- FM - 100V10 portable flow rate meter (herein after referred to as portable flow meter) is designed for hydro-logical stations, factories and mines, environmental protection monitoring station, farmland irrigation and drainage, hydro-geology survey and other departments in the field of velocity of flow in open channel flow.

Features:
- Can be tested in sewage environment.
- Simple structure, light and convenient.
- Power consumption, complete functions.
- High degree of automation, stable and reliable.
- In line with the national high temperature rotary slurry is a new type of portable velocity measurement instrument.

Specification:
- Formula: V=KN/T + C (m/s) (automatic computer)
- Instrument number:
  K: 0.0500
  C: 0.0100
- Speed range: FM-100V10 (0.01-10.00 m/s)
- Measurement error: ≤1. 5%
- Display: LCD display
- Measurement method: measuring rod positioning measurement
- Temperature range: -10℃ ~ 50℃
- Power: 4 x AAA batteries (not included)
- Backlight: LED backlight
- External power supply: 5V

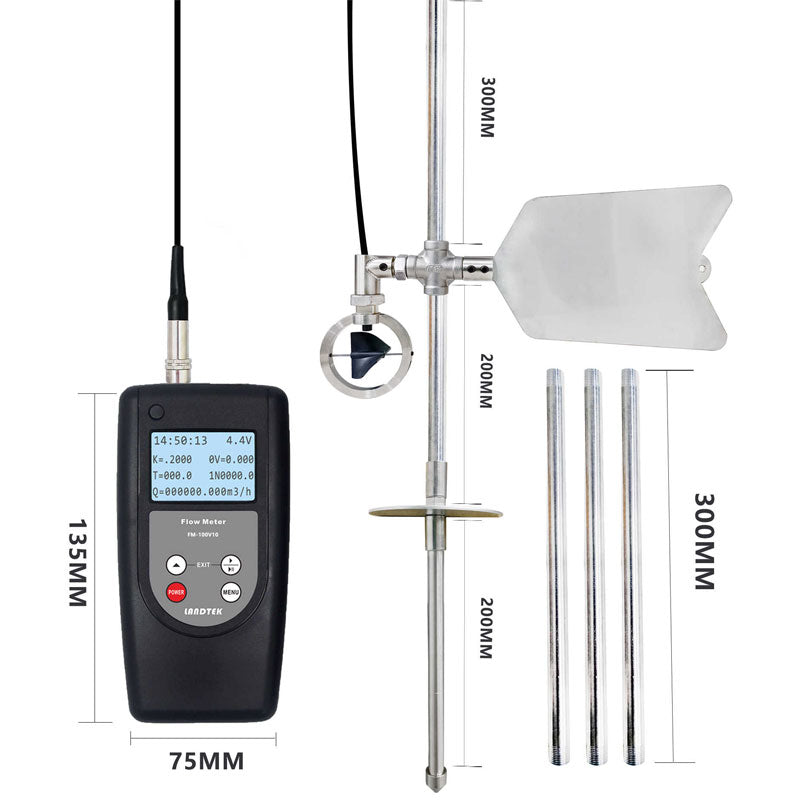

- Host size: 75mm x 135mm x 25mm

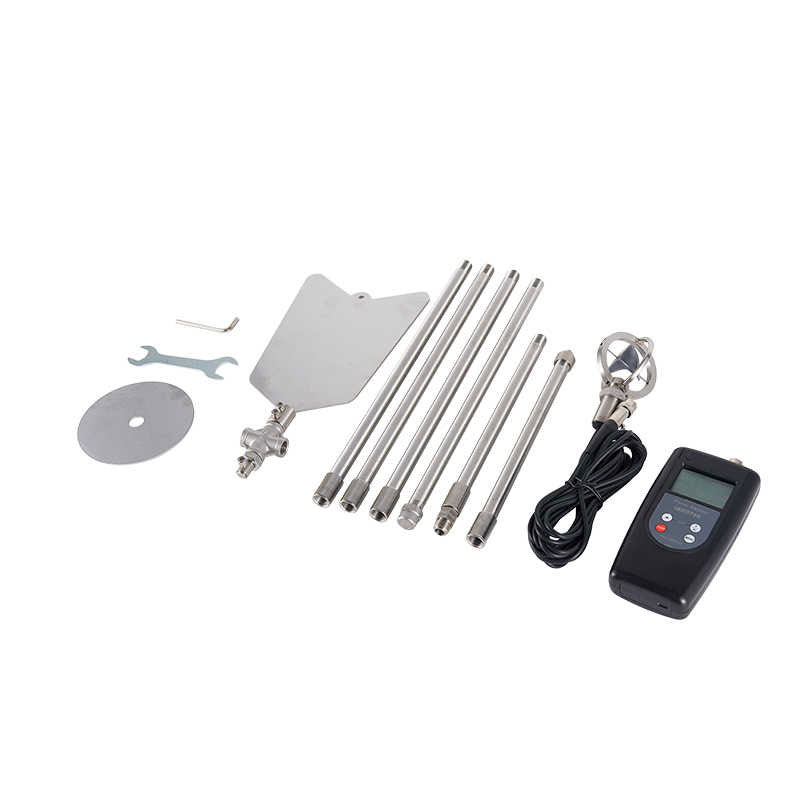

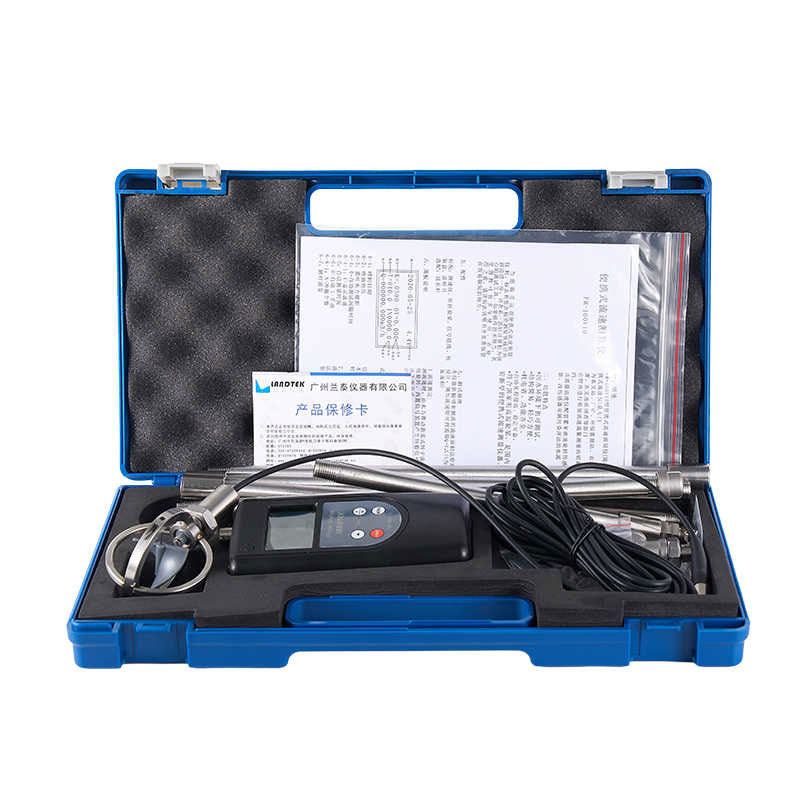

Package Included:
- 1 x Flow Meter
- 1 x Probe Rod Propeller
- 1 x Signal Cable
- 6 x Extension Rod
- 1 x User Manual

Note:
- Battery is not included.
