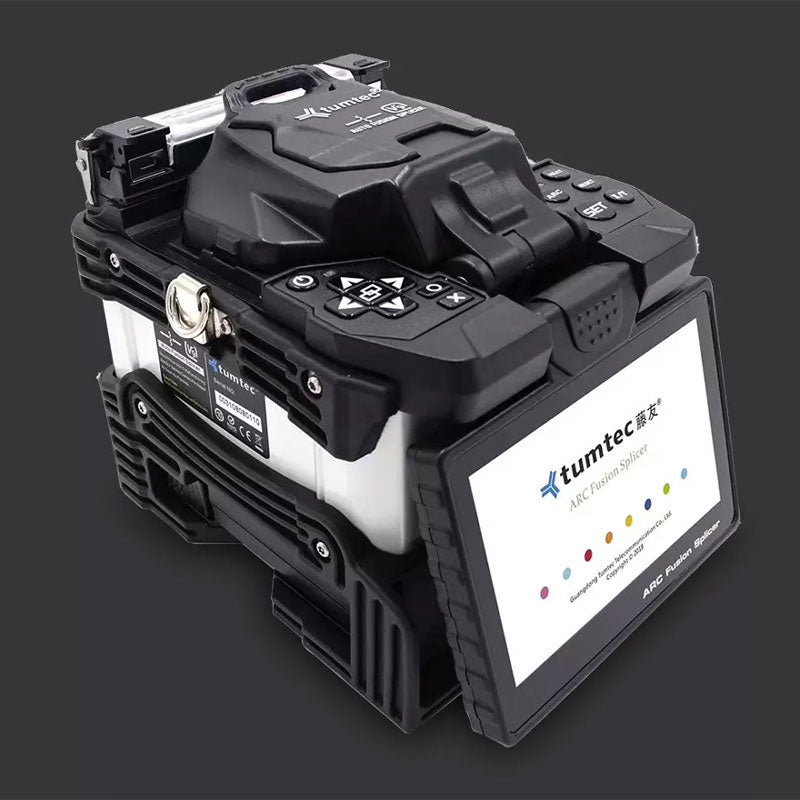

TUMTEC FST-V9 Six-Motor-Driven Core Alignment Fusion Splicer 6800mAH for Long Distance Mainline Construction and Maintenance

Introduction:
- V9 is mainly suitable for long-distance mainline construction and maintenance, with a distance of up to 50KM. It adopts fine alignment and fiber core alignment methods, as well as micrometer level parallel clamping, high-precision spindle alignment algorithm, and advanced contour visualization technology to ensure the accuracy of welding loss estimation.
- The windproof cover is made of metal material, with super strong sealing performance; The soft plastic buttons at a glance make operation more comfortable and convenient, and are equipped with a handle for easy carrying with a dedicated handle strap.

- The port adopts Mini-USB2.0 and has a large capacity battery of 6800mAh, with super strong endurance. The fusion heating frequency reaches 340 times, and the average single fusion heating energy consumption is less than 20mAh/time.

- The display screen has an adjustable angle of ≥180° and adopts a 5-inch 800x480 high-resolution capacitive touch screen. Double clicking can focus and enlarge by more than 500 times. Users can achieve fiber optic amplification function by double clicking the screen, and then observe the fusion mark on the LCD screen to determine whether the fusion state is good.

- Fast running speed, 3-second startup, 6-second fusion, 15 second heating, single core fiber alignment, six motors and fully automatic fusion program, bringing great convenience to user operation.

- Equipped with 3 high-power LED lights with sufficient light; Equipped with V-shaped grooves, the alignment of the fiber core is more accurate. Equipped with 90° dual cameras, it can record welding images in all directions, making work more convenient.

Specifications:
- Material: metal shell and body
- Model: FST-V9
- Applicable optical fiber type: SM (ITU-TG.652), MM (ITU-TG. 651). DS (ITU-TG.653), NZ/NZDS (ITU-TG.655), BI (ITU-TG.657)
- Applicable optical fiber diameter: 0.25-3.0mm/indoor cable
- Fiber placement length: coating layer 0.125-1mm; cutting length: 8-16mm
- Splicing modes: 41 preset splicing modes, capable of storing 100 modes
- Average splicing loss:
  SM: 0.02dB
  MM: 0.01dB
  DS: 0.04dB
  NZ/NZDS: 0.04dB
  Bl: 0.02dB (Measured by shear method according to | TU-T standard)
- Return loss: ≥60dB
- Lighting: 3 high-power LED white lights
- Splicing time: SMFAST mode: 6 seconds
- Splicing loss estimation: Yes
- Splicing length: 20-60mm
- Heating tank: preset 5 types of heat shrink tubing 20/30/40/50/60mm
- Heating time: 10-900s; optional typical heating time: ≥20 seconds
- Splicing machine result storage: 2000 latest storage records
- Tensile test: 1.5-2.0N
- Display: 90° dual cameras, 5-inch color high-resolution capacitive touch screen
- Fiber optic amplification and display: X, Y, X/Y double-click 500
- Power input: AC100-240V, DC12-15V
- Battery capacity: 6800mAH
- Heating frequency: typical fusion heating times are greater than 340 times
- Operation method: button and touch screen
- Adaptive discharge: automatically adjusted according to air pressure and external temperature
- Electrode lifespan: discharge 3000 times
- Interface: Mini USB2.0
- Fiber alignment: core alignment, fine alignment
- Net weight: 2180g (including battery)
- Product size: 140 x 170 x 176mm
- Operating conditions: altitude of 0-5000 meters, relative humidity of 0-95%, -10~50°C, maximum wind speed of 15m/s
- Storage conditions: relative humidity of 0-95%, -40~80°C, battery storage: -20~30°C long-term storage

Package Included:
- 1 x Fusion Splicer
- 1 x Power Adapter
- 1 x Fiber Cleaver
- 1 x Fiber Cleaver Tray
- 1 x Pair of Electrode Rods
- 1 x Alcohol Bottle
- 1 x Cooling Rack
- 1 x Brush
- 1 x Phillips Screwdriver
- 1 x Carrying Strap
- 1 x Carrying Box
