LichTech 100/1000 Base-T1 Media Converter 1000Mbps Automotive Ethernet Converter w/ Indicator Lights

LichTech 100/1000 Base-T1 Media Converter 1000Mbps Automotive Ethernet Converter w/ Indicator Lights

Description:
T1 media converter is used for physical layer bidirectional conversion between Tx standard RJ45 Ethernet and T1 standard two-wire automotive Ethernet. Based on 100/1000BASE-T1 protocol, it can interconnect with two-wire automotive Ethernet for NXP, TI, Broadcom, Marvell and Realtek. It features no packet loss, stable connection and low latency.

Features:
* Using a PHY solution for NXP TJA1101A (for the 100Mbps version) or for Marvell 88Q2112 (for the 1000Mbps version), it has excellent performance and good anti-interference
* Two power supply modes: 5.5DC (5-16V for 100Mbps version; 5-36V for 1000Mbps version) and USB type-c

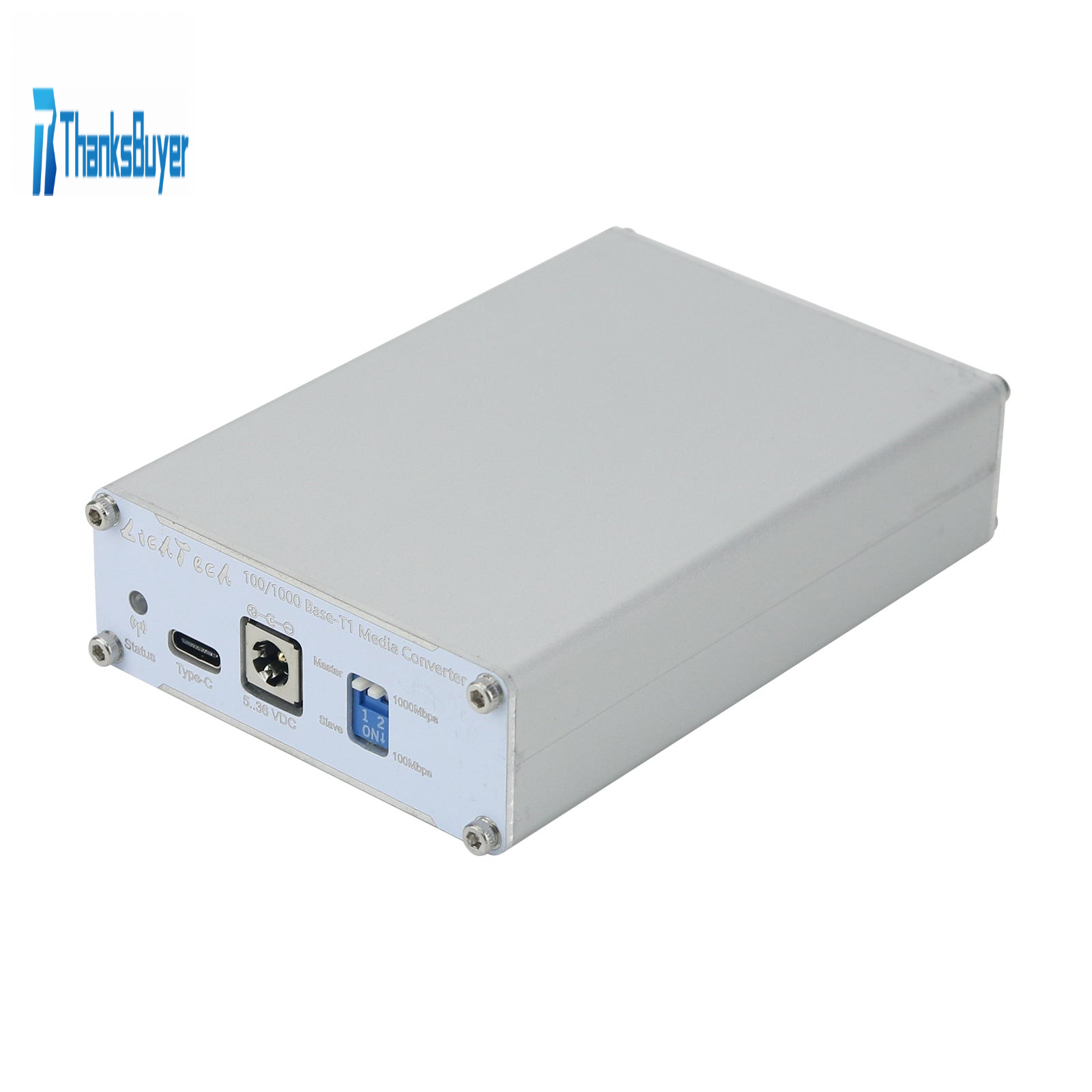

* Compact design: its body measures 103mm x 71mm x 26mm/4.1" x 2.8" x 1" (LxWxH). Aluminum alloy body with sandblasted finish
* Provides connection status and communication rate indication, and automatic reset when switching master-slave mode
* It can be developed and upgraded later thanks to an MCU

Technical Advantages:
* Chip solution: It is stable and reliable, with excellent performance thanks to a chip solution for 100Mbps NXP TJA1101A + MICROCHIP KSZ8041NLI, or a mature chip solution for 1000Mbps Marvell 88Q2112 + REALTEK RTL8211FI. Theoretically, the media converter can run at full speed of 100Mbps/1000Mbps in both directions. Equipped with an MCU, it can support secondary development.

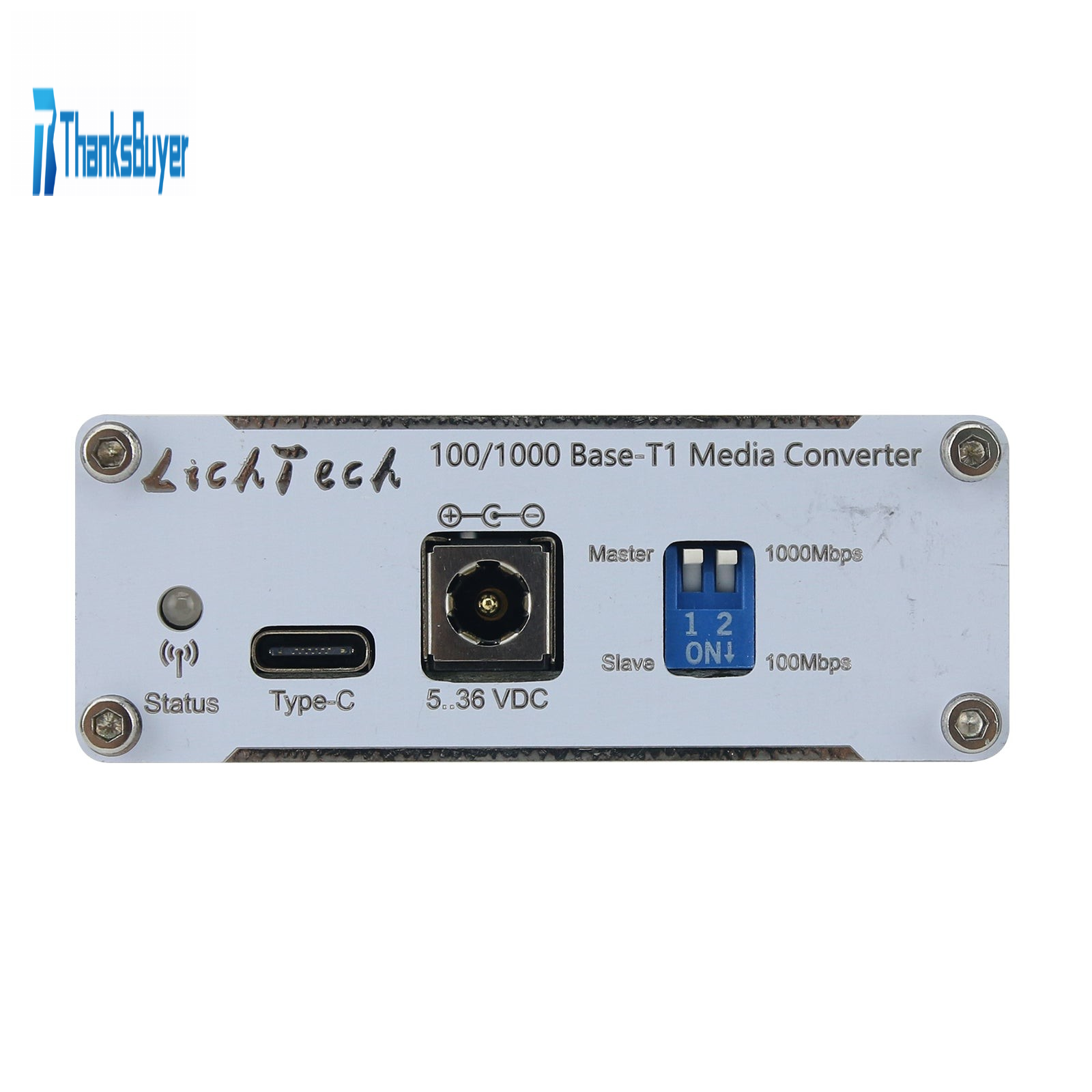

* Power supply scheme: DC5.5*2.1 and USB type-C are supported. The power supply chip features wide input voltage, stable output and small ripple. It supports type-C power supply, making it convenient to use in vehicles.

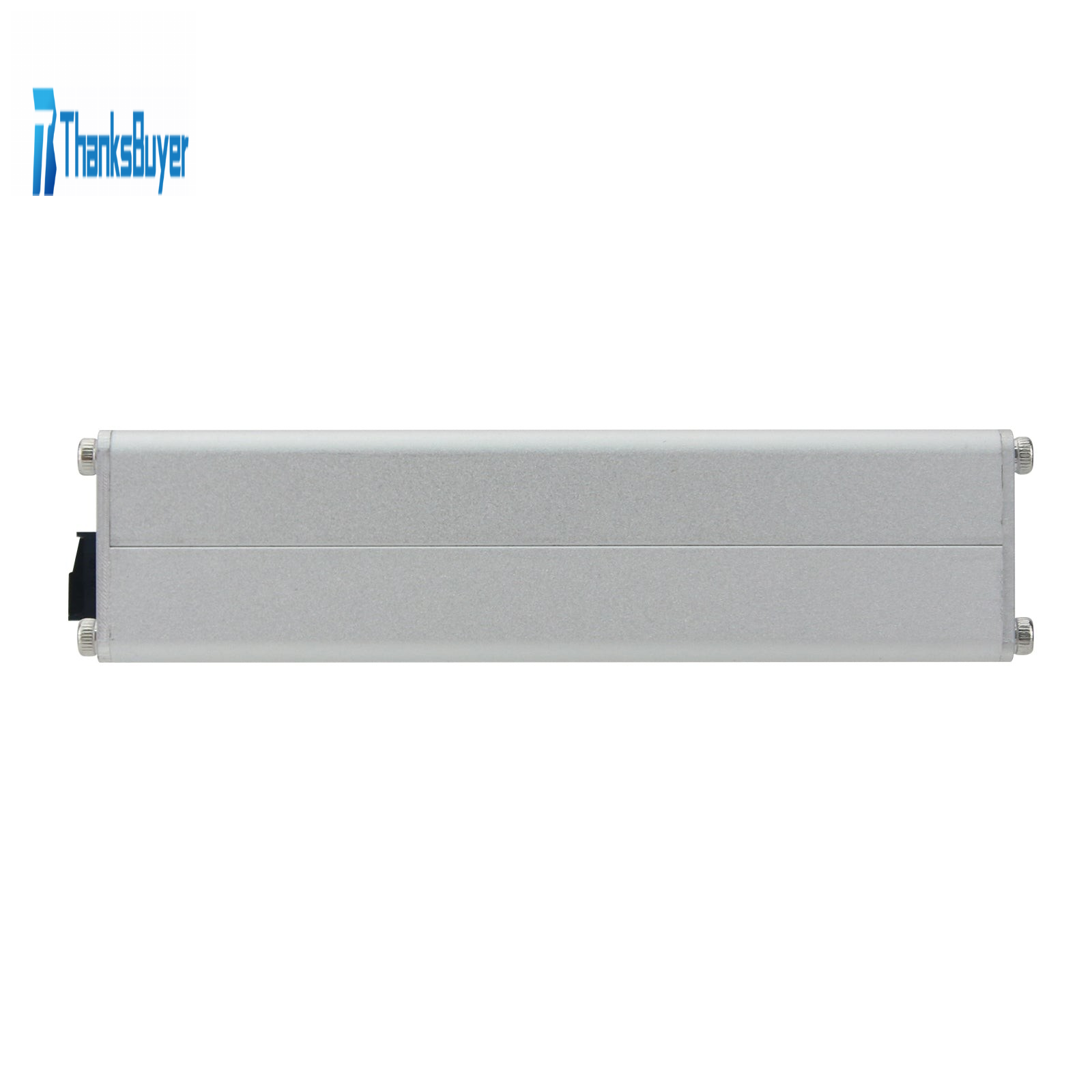

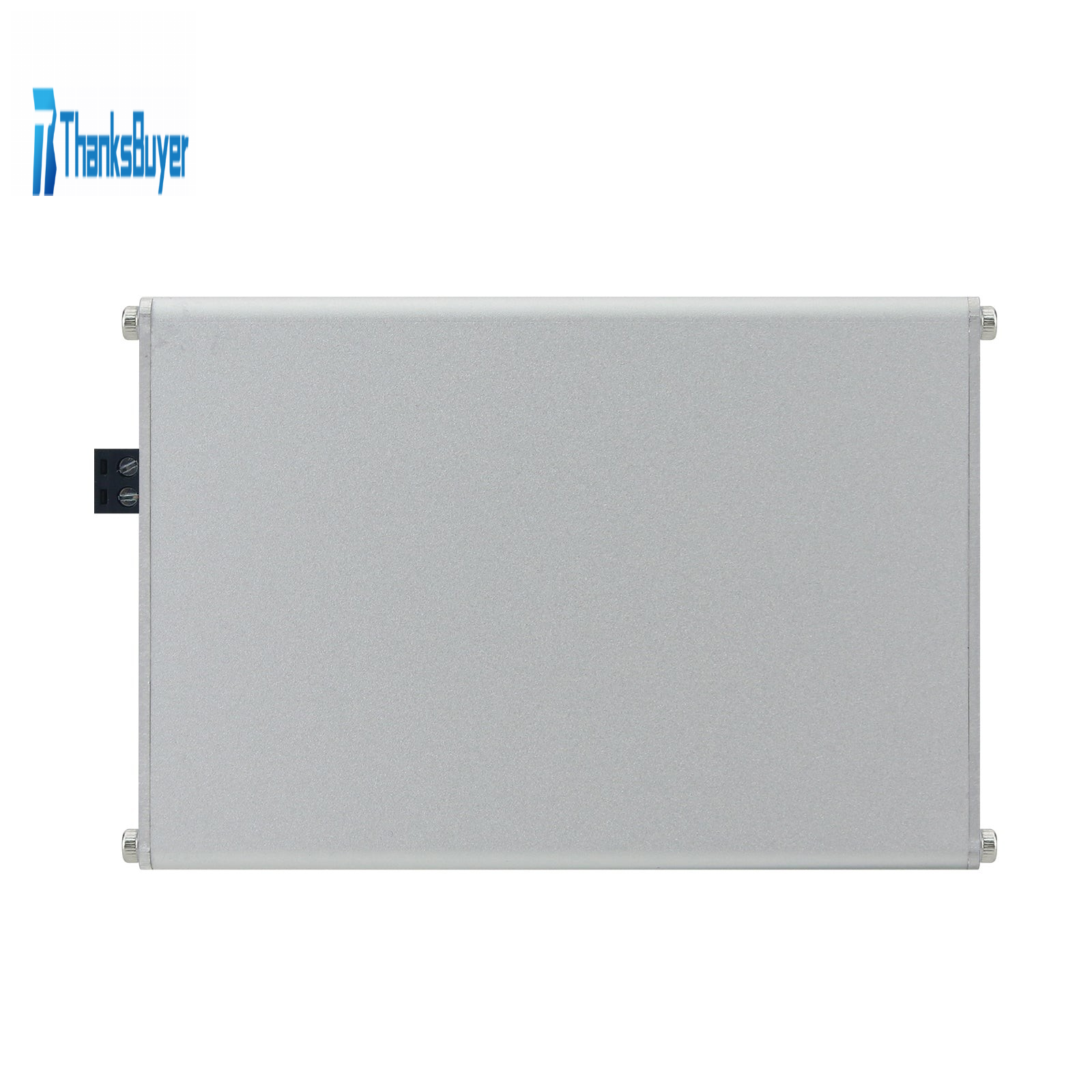

* Compact size: The body measures 103mm x 71mm x 26mm/4.1" x 2.8" x 1" (LxWxH). The body is made of aluminum alloy and sandblasted.

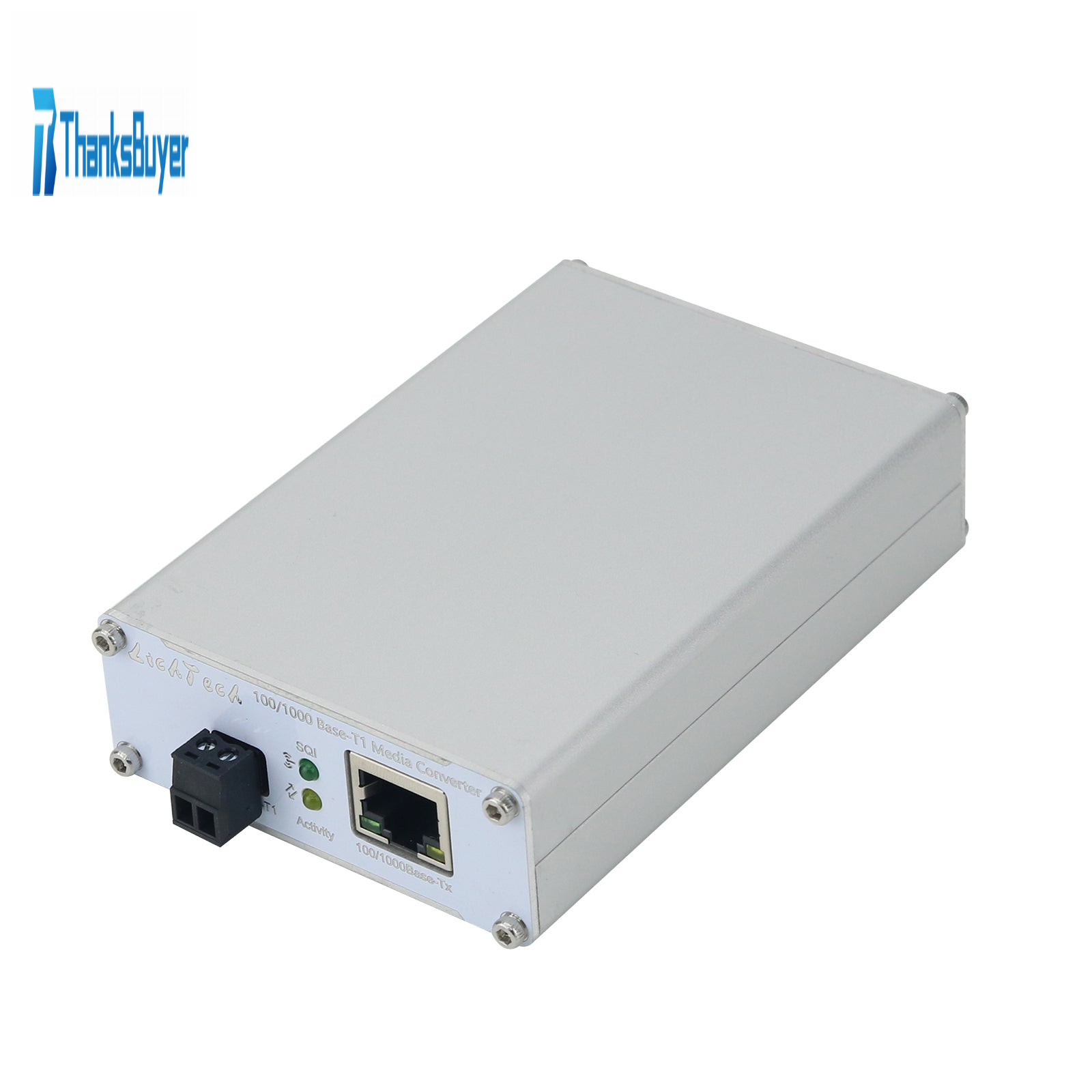

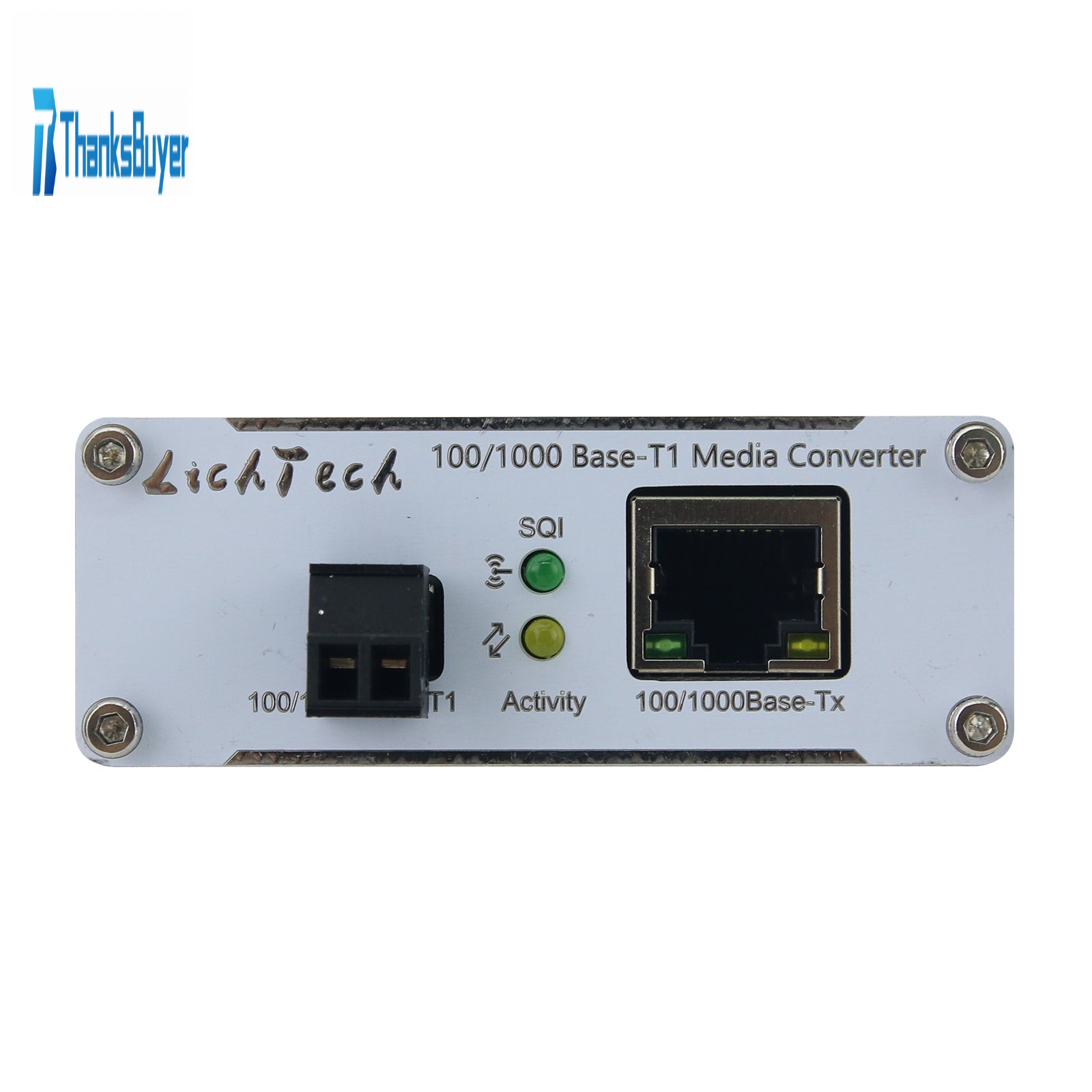

* Human-machine communication: There is a pair of connection indicators (only the 1000Mbps version with SQI display) and a rate indicator on T1 and Tx sides. An additional connection status indicator is attached on the T1 side to indicate whether the current master-slave mode/connection status information is correct.

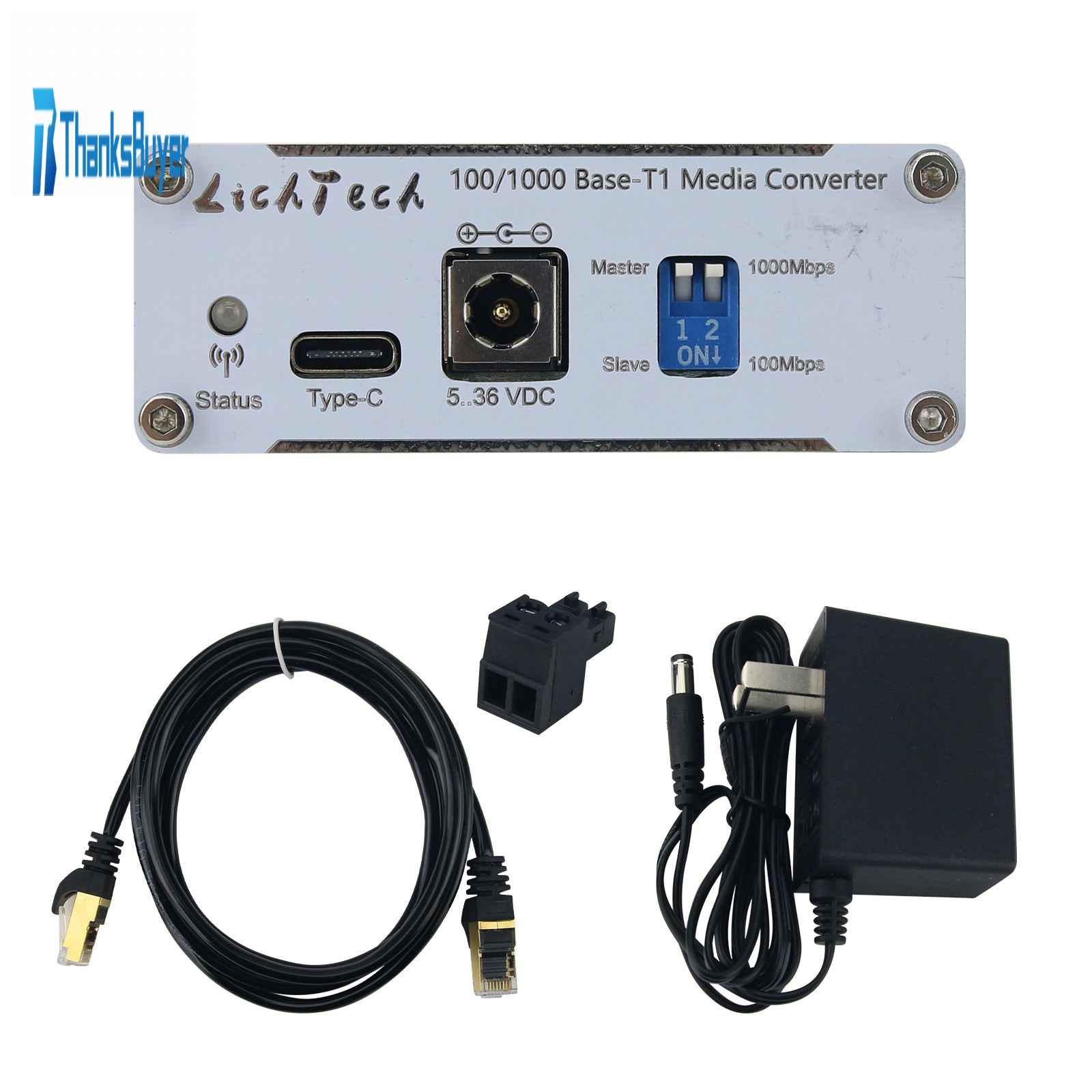

Package Included:
* 1 x Automotive Ethernet converter
* 1 x 12V 1A power adapter
* 1 x 1.5m/4.9ft RJ45 network cable
* 1 x 15EDG 3.81mm terminal block

Packaging Details:
* Weight: 0.45kg
