LNA-9037 0.1MHz–6GHz 20dB High-Linearity Ultra Low Noise Amplifier + 3.7V 300mAh Lithium Battery

LNA-9037 0.1MHz–6GHz 20dB High-Linearity Ultra Low Noise Amplifier + 3.7V 300mAh Lithium Battery

Description:
This low-noise amplifier uses a high-linearity, ultra-low-noise 9037 chip. It is designed as an LNA (Low Noise Amplifier) for SDR applications covering medium wave, shortwave, FM radio, and other frequency bands.

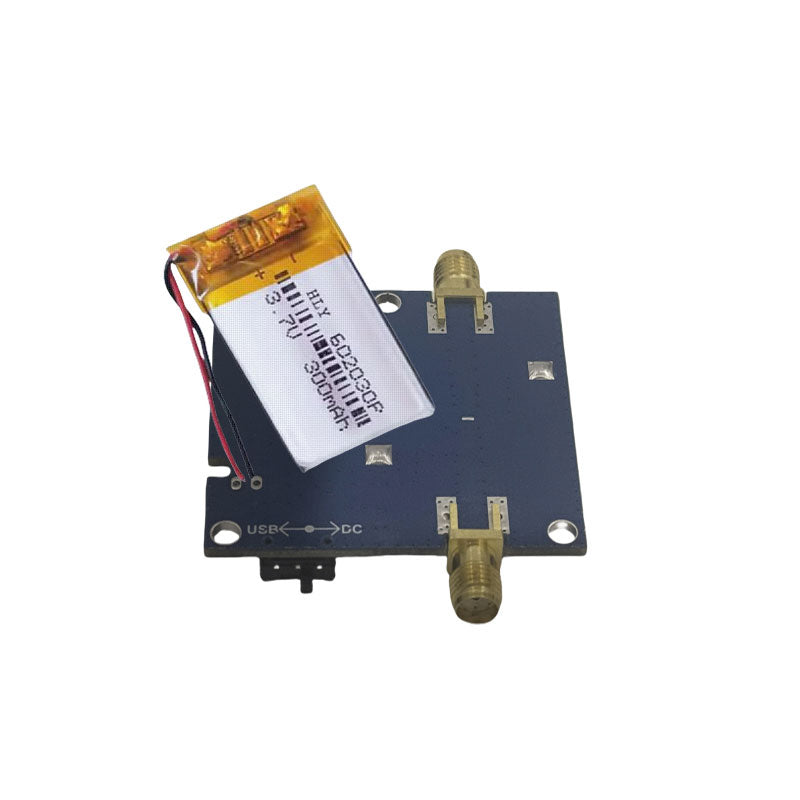

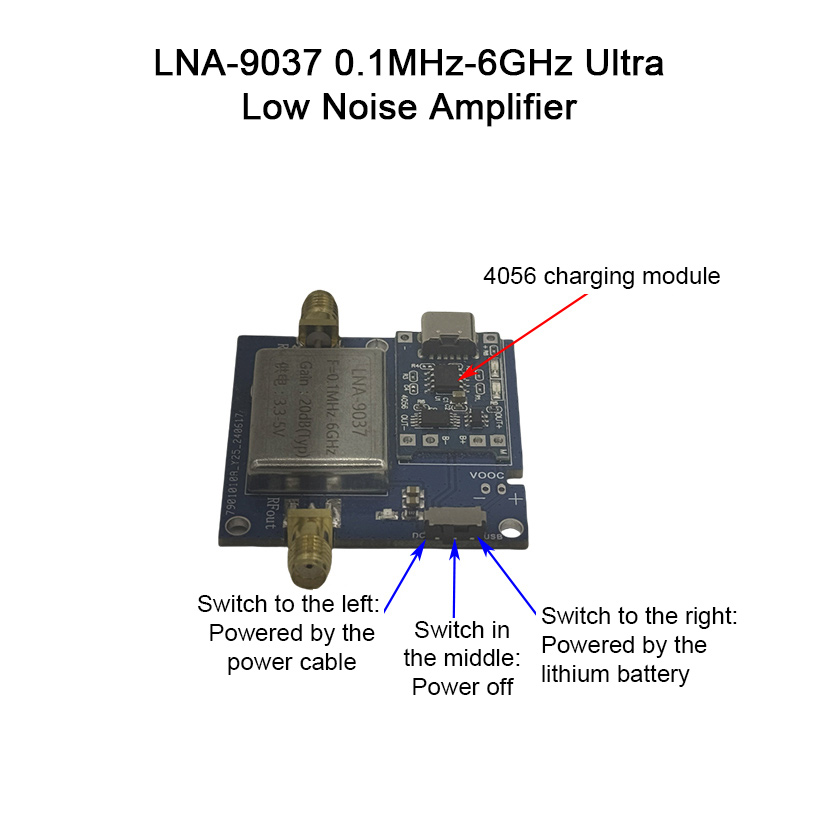

The amplifier is equipped with a 4056 charging module for a lithium battery and features a power switch. It comes with a 3.7V lithium battery.

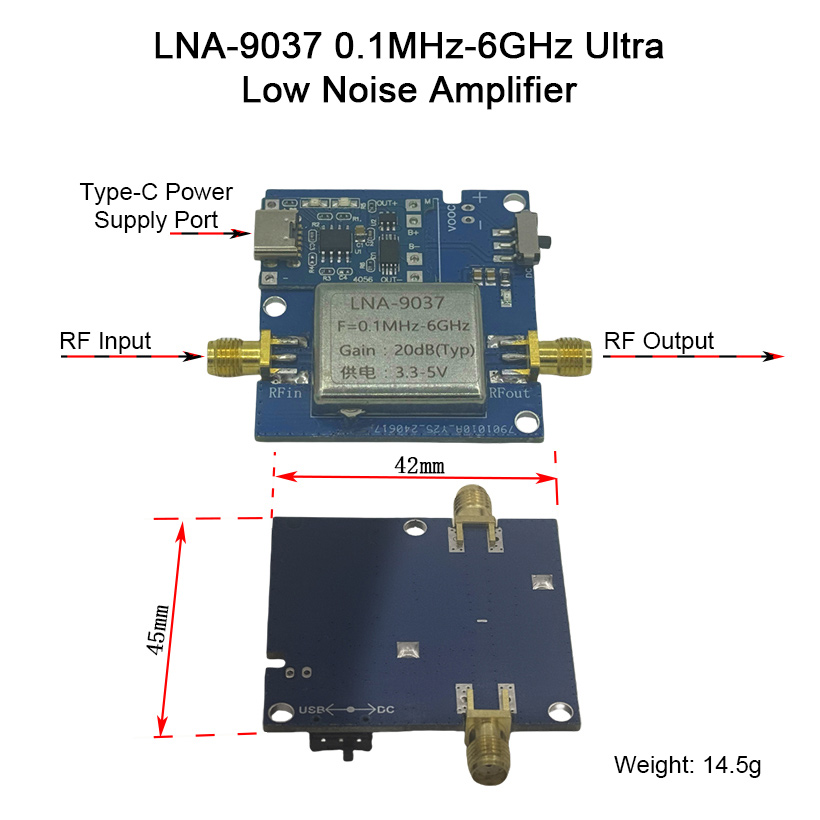

The module comes without a shielding case. And users should prepare a suitable enclosure according to the PCB dimensions.

Specifications:
* Bandwidth: 0.1MHz–6GHz
* Amplification Gain: 20dB (typical)
* Power Supply: 3.3-5V
* Noise Figure: <0.7dB (typical)
* Input/Output Impedance: 50Ω
* Maximum Output Power: 20mW
* Connector: SMA Female

Attention:
* Ensure the input (RFin) and output (RFout) ports are connected first, and only then connect the DC power supply.
* When supplying DC power to the module, make sure the positive and negative terminals are connected correctly. Do not reverse the polarity, as this can damage the module!

Packing List:
* 1 x Ultra Low Noise Amplifier
* 1 x Lithium Battery

Packaging Details:
* G.W.: 0.22kg
