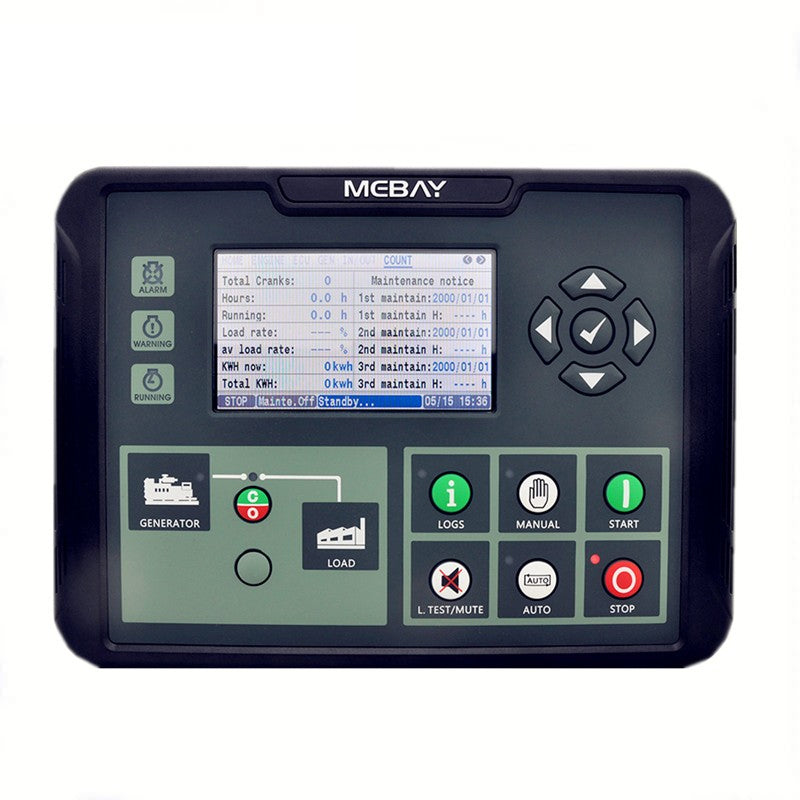

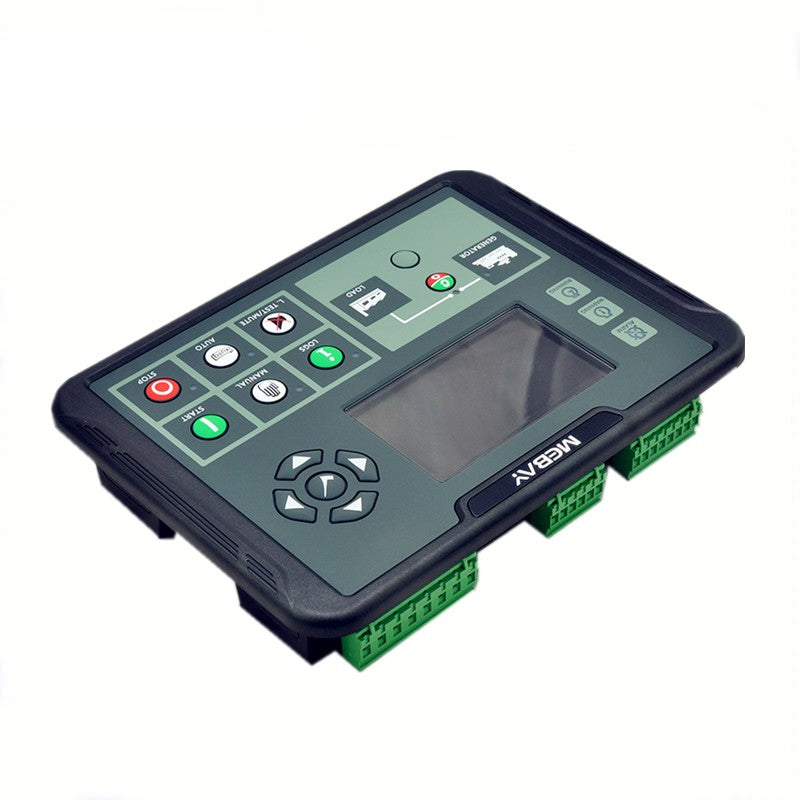

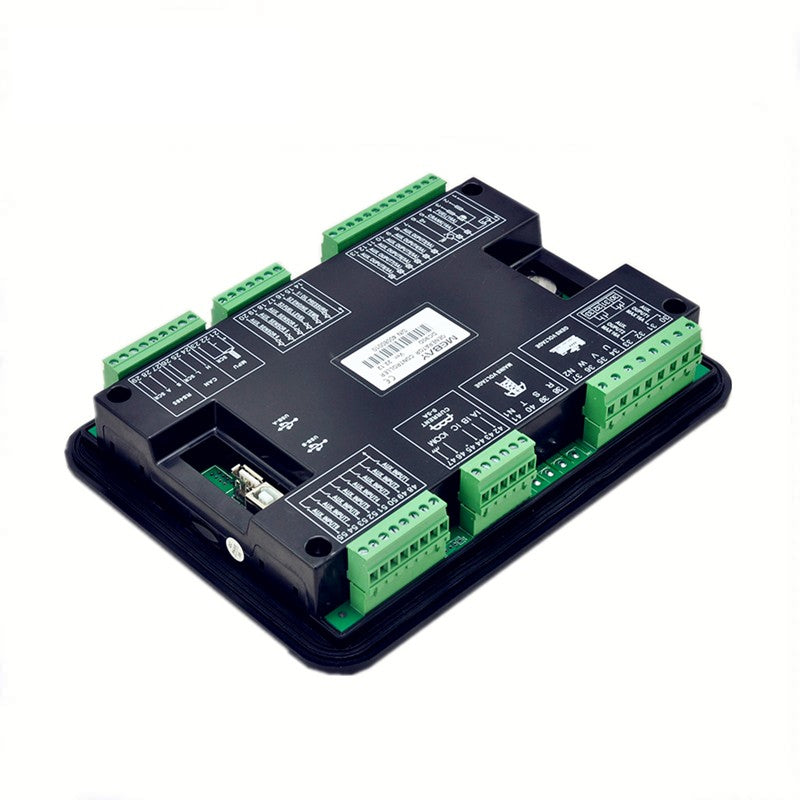

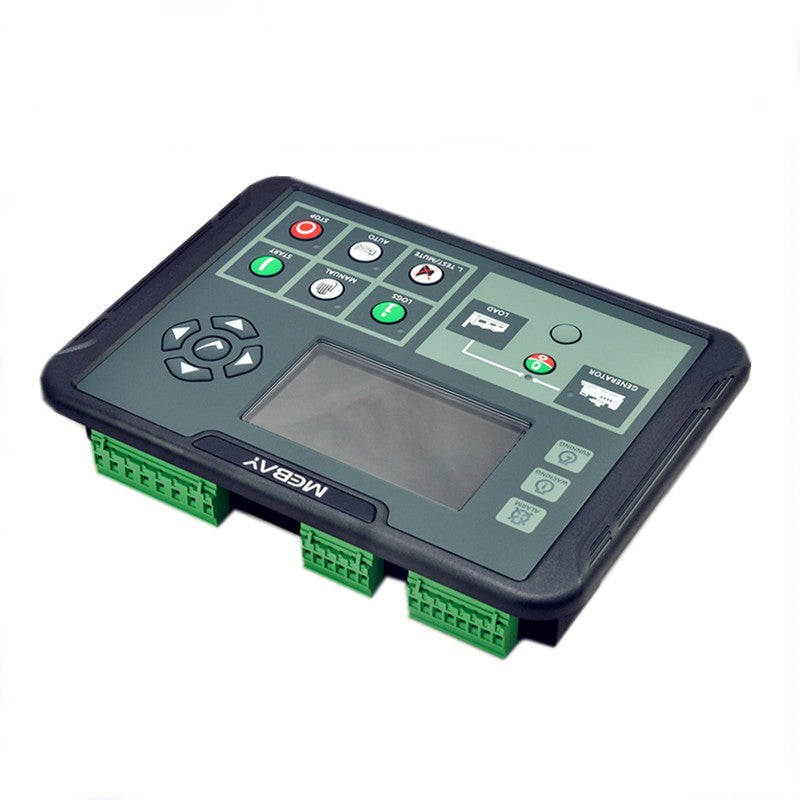

Mebay DC90D Diesel Gasoline Gas Genset Start Generator Controller with CAN Port 10 Relay Output 6 Sensor Input Can Replace Of DSE7310

Mebay DC90D Diesel Gasoline Gas Genset Start Generator Controller with CAN Port 10 Relay Output 6 Sensor Input Can Replace Of DSE7310

DC9X Series Difference:
- DC92DR MK2: Based on DC92D MK2, it adds RS485 port.
- DC90DR MK2: Based on DC90D MK2, it adds RS485 port.
- DC92D MK2: Based on DC90D MK2, it adds Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable for the automation system composed by mains and genset.
- DC90D MK2: used for single machine automation. Start/Stop through remote start signal.
- There are four Models under DC9xD MK2 series.

Specification:

AC Voltage Input	1P2W 30VAC-276VAC (ph-N)
	2P3W 30VAC-276VAC (ph-N)
	3P4W 30VAC-276VAC (ph-N)
Rotate speed sensor Frequency	200-10000Hz
MAX Accumulating Time	99999.9Hours（Min Store time:6min）
Protection Level	IP54：when waterproof rubber gasket is added between controller and its panel
Insulation strength	Apply AC1.5kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min.
