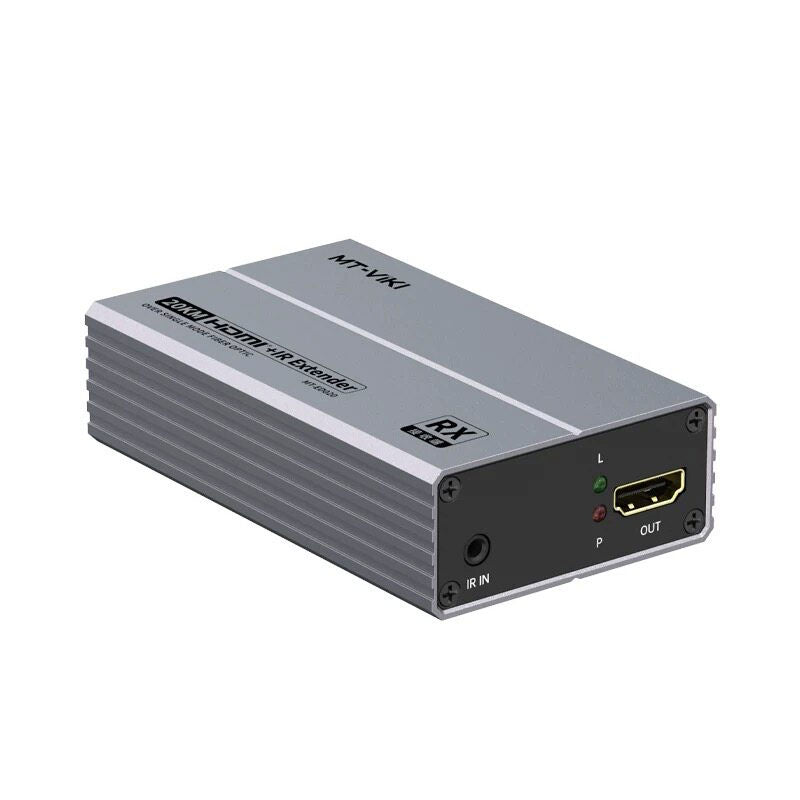

MT-ViKI HDMI-Compatible IR Fiber Extender Receiver Only MT-ED020-R for 20KM 1080P 60Hz System

TX + RX:
1. Features:
HDMI-Compatible Fiber Optic HD Extender
* 20KM Long-distance Transmission
* 1200P High-definition Visual Quality
* Local HDMI-Compatible Loop-out
* Unidirectional IR Infrared Backward Transmission
* Synchronized Audio and Video Transmission
* Driver-free, Plug-and-play

20KM Long-distance Transmission
* Break through HDMI-compatible transmission limits, easy wiring, simple to use

1200P High-definition Visual Quality
* Resolution up to 1200P, delivering excellent color gamut, delicate picture quality, and clear visible details.

Local High-definition Loop-out Display
* The transmitter supports HDMI-compatible local loop-out for synchronous display, facilitating easy viewing and control of signal source content, making engineering deployment more convenient.

Audio and Video Synchronous Transmission
* Automatically synchronizes audio and video without manual adjustment. Supports independent audio transmission and connection to external analog audio devices to meet usage needs in different scenarios.

Plug-and-Play, Driver-free
* With driver-free design, the device works immediately upon connection without any debugging.

Unidirectional IR Infrared Backward Transmission
* Equipped with an infrared extension cable, it supports reverse IR signal return from the receiver for remote control of the signal source.

Multiple Connection Modes
* Point-to-point connection
* Point-to-multipoint connection

Application Scenarios
* Home Theater
* Video Conference
* Television Broadcasting
* Security Monitoring
* Outdoor LED Screen

2. Specifications:
* Brand: MT-ViKI
* Name: HDMI-Compatible + IR Fiber Optic Extender
* Model: MT-ED020
* Transmission Distance: 20KM
* Resolution: 1920*1200P at 60Hz
* Fiber Specification: SC-SC Single-mode Fiber
* ESD Protection: ±8KV
* Power Supply: DC 5V/2A
* Housing Material: Aluminum Alloy
* Dimensions: 99mm x 59mm x 26mm (LxWxH)
* Note: The dimensions are manually measured and may have minor errors.

Packing List (Depending on Selected Configuration):
TX + RX:
* 1 x Transmitter
* 1 x Receiver
* 1 x User Manual
* 2 x Power Adapters
* 1 x IR Receiver Cable
* 1 x IR Transmitter Cable
* 1 x Audio Cable

RX:
* 1 x Receiver
* 1 x Power Adapter
* 1 x Audio Cable

Packaging Details (Depending on Selected Configuration):
TX + RX:
* Package weight: 0.7kg

RX:
* Package weight: 0.4kg
