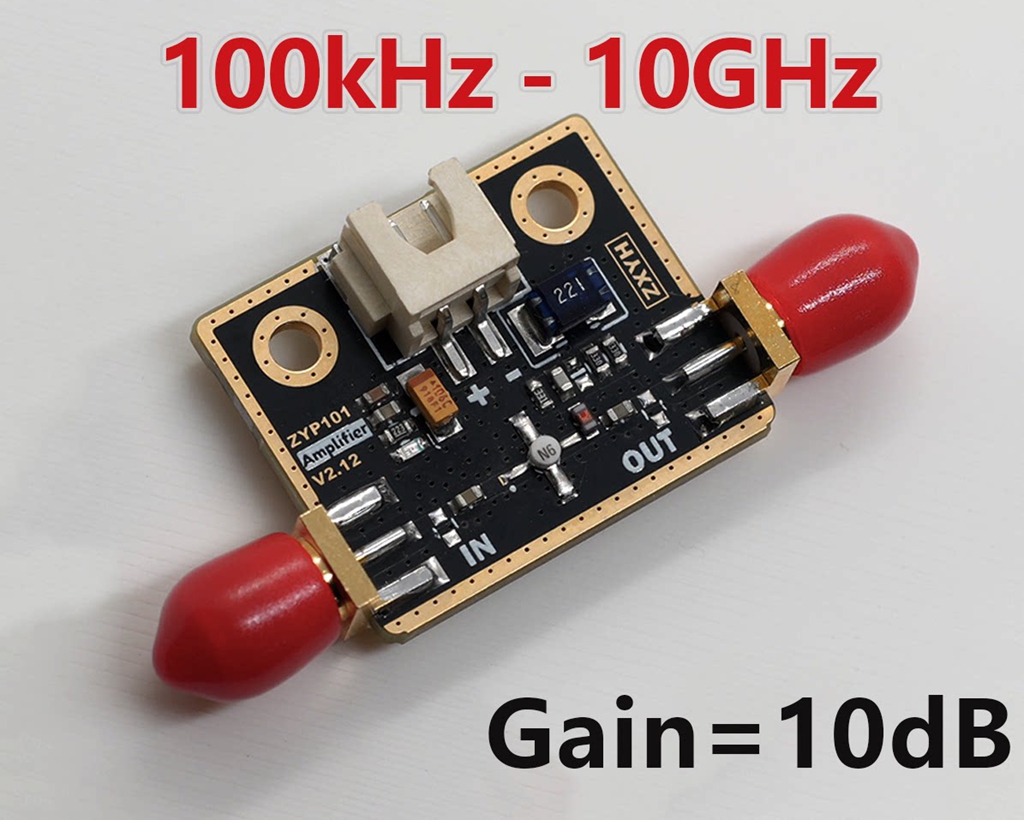

NBB-310 Ultra-wideband RF Amplifier 100kHz-10GHz 10dB LNA Low Noise Amplifier with SMA Female Connector

Introduction:
- Ultra wideband RF amplifier, with a working bandwidth covering 100kHz-10GHz, powered by a single 5V power supply, 10dB gain, and good flatness. It is commonly used to improve the signal-to-noise ratio of signals, enhance system sensitivity, pre select amplification, broadband amplification, and other scenarios; The ultra small size is only the size of a coin, with excellent performance indicators.

Specifications:
- Frequency range: 100kHz - 10GHz
- Gain: 10dB at 8GHz
- Compressed point (P1dB): 13dBm at 2GHz
- IP3 power: 24dBm at 2GHz
- Noise factor: 4.9dB
- Interface impedance: 50ohms
- Power supply: +5V at 50mA (XH2.54 interface)

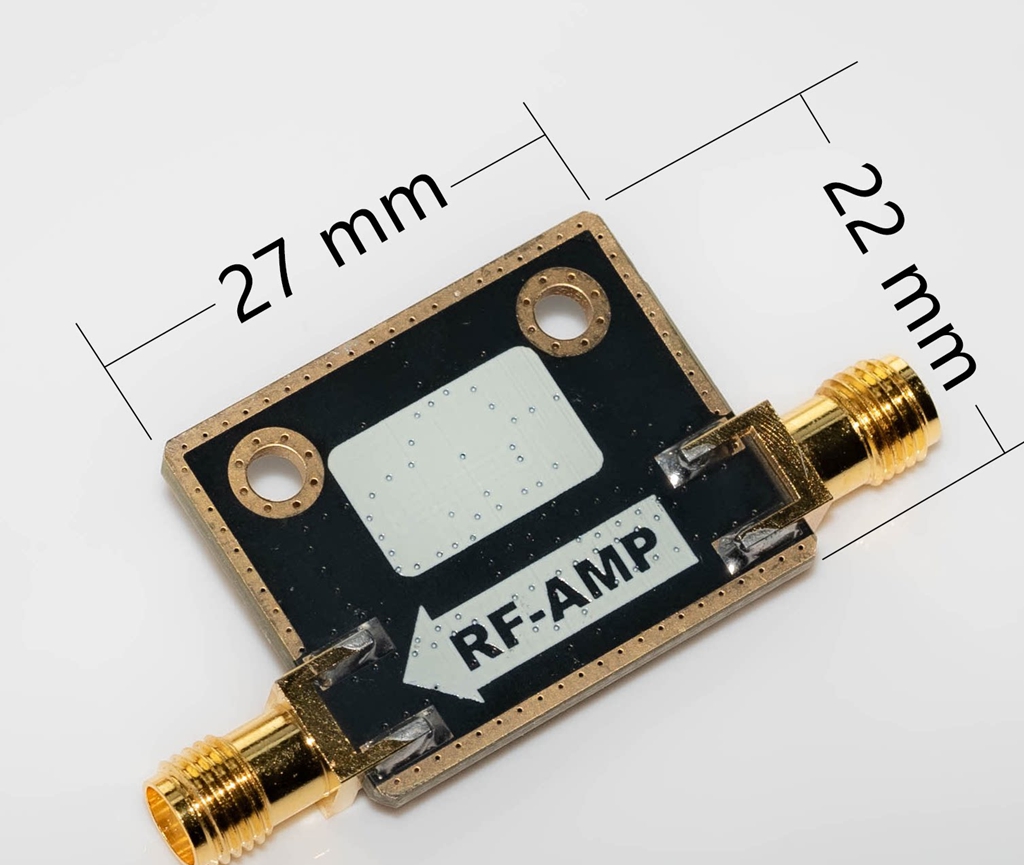

- Product size: 27 x 22mm (excluding the connector length)
- Interface: SMA female connector
- Chip: NBB-310+

Package Included:
- 1 x RF Amplifier
- 1 x Connection Cable (20cm)
