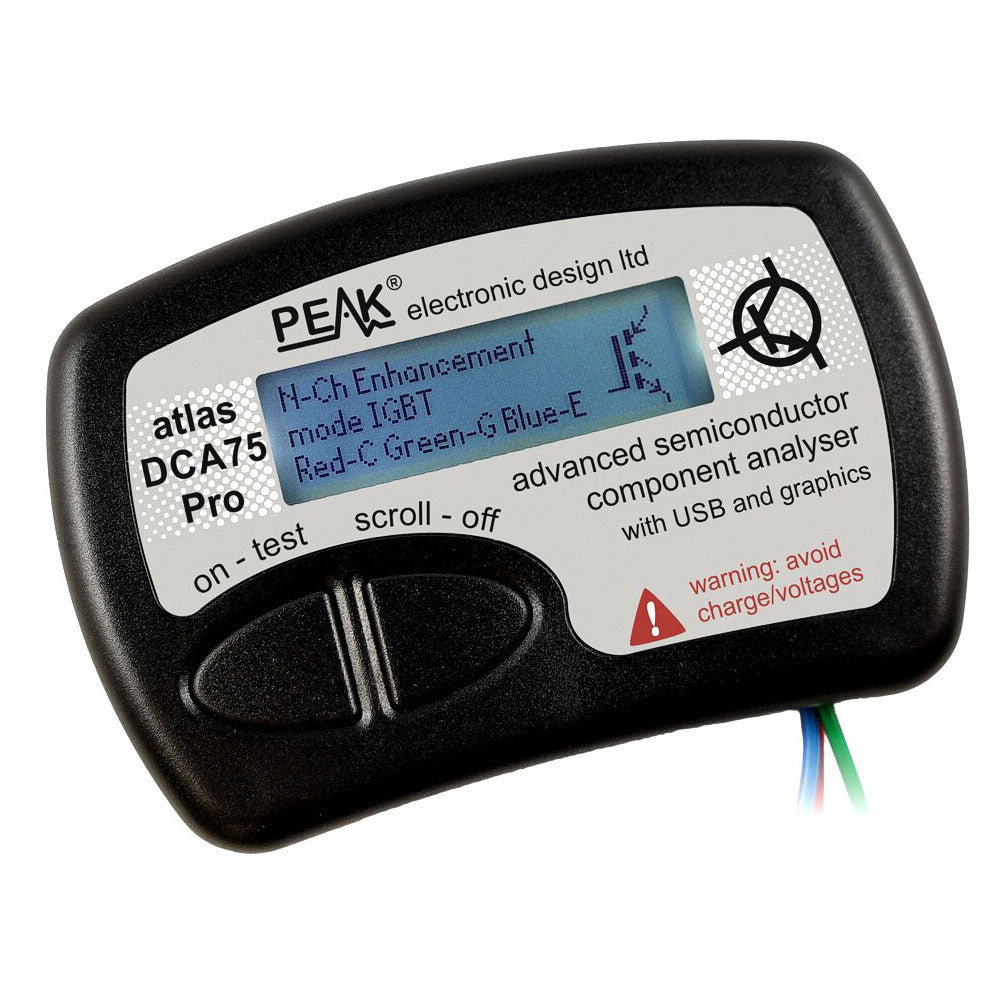

Original Atlas DCA75 Pro Advanced Semiconductor Component Analyser with USB and Graphics for PEAK Electronic Design
Prix habituel
$264.76
Prix habituel
Prix soldé
$264.76
Prix unitaire
par
Taxes incluses.
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
Availability:
2000 en stock
SKU:
102318
Prix habituel
$264.76
Prix habituel
Prix soldé
$264.76
Description:
The DCA75 Pro is a great instrument that combines ease-of-use with amazing features. It can automatically identify a huge range of semiconductors, automatically identify pinouts and measure detailed parameters.
Features:
* Built-in graphics display (now backlit) to show detailed schematic of the component you're testing as well as pinout and measurement data
* USB connectivity to allow curve tracing, data storage/retrieval and device matching on your Windows PC (Windows 7 and higher)
* Single internal AAA alkaline cell for standalone operation
Component Support:
* Bipolar transistors (NPN/PNP inc Silicon/Germanium)
* Darlington transistors (NPN/PNP)
* Enhancement mode MOSFETs (N-Ch and P-Ch)
* Depletion mode MOSFETs (N-Ch and P-Ch)
* Junction FETs (N-Ch and P-Ch). Both symmetrical and asymmetrical types
* Enhancement IGBTs (N-Ch and P-Ch)
* Diodes and diode networks (2 and 3 lead types)
* Zener diodes (up to about 9 V)
* Voltage regulators (up to about 8 V)
* LEDs and bi-colour LEDs (2 lead and 3 lead types)
* Low power sensitive Triacs and Thyristors (<10 mA trigger and hold)
Measurements:
* BJT current gain (hFE)
* BJT base emitter voltage (Vbe)
* BJT collector leakage current
* MOSFET on and off gate threshold voltages
* MOSFET transconductance
* JFET pinch-off voltage
* JFET transconductance
* JFET IDSS (drain current for Vgs=0)
* IGBT on and off gate threshold voltages
* IGBT transconductance
* Voltage regulator output voltage
* Voltage regulator quiescent current consumption
* Voltage regulator drop-out voltage
* Zener voltage
* Diode forward voltage drop
Specifications:
* Analyzer Type: Semiconductor components
* Component Detection: Automatic
* Pinout Detection: Automatic connect any way round
* Display Type: Graphic LCD with backlight
* Interface Type: USB for optional PC connection
* PC Functions: Curve tracing Windows 7 and higher
* Software: Included on USB drive for Windows 7 and higher
* Battery: Single AAA cell supplied
Packing List:
* 1 x DCA75 Pro
* 1 x PC software on a USB Flash Drive for Windows 11, 10, 8, 7, XP
* 1 x Micro USB cable

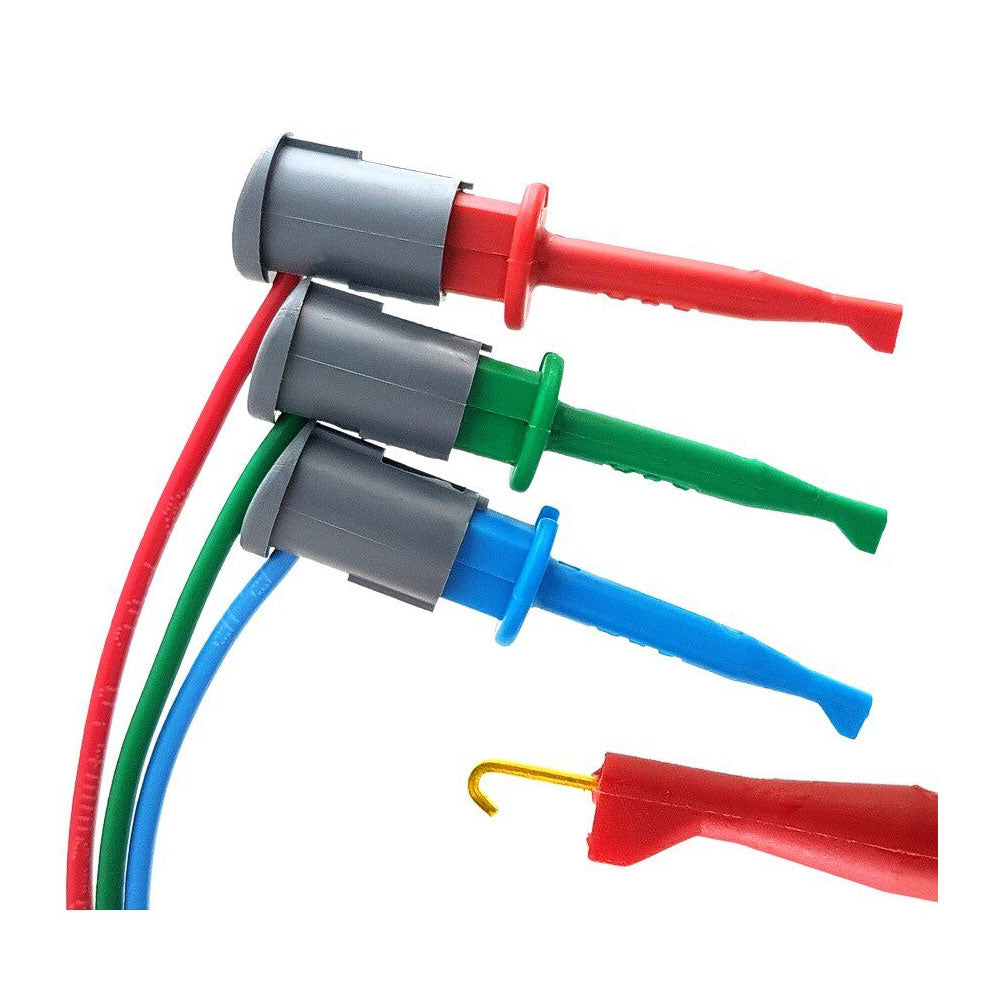

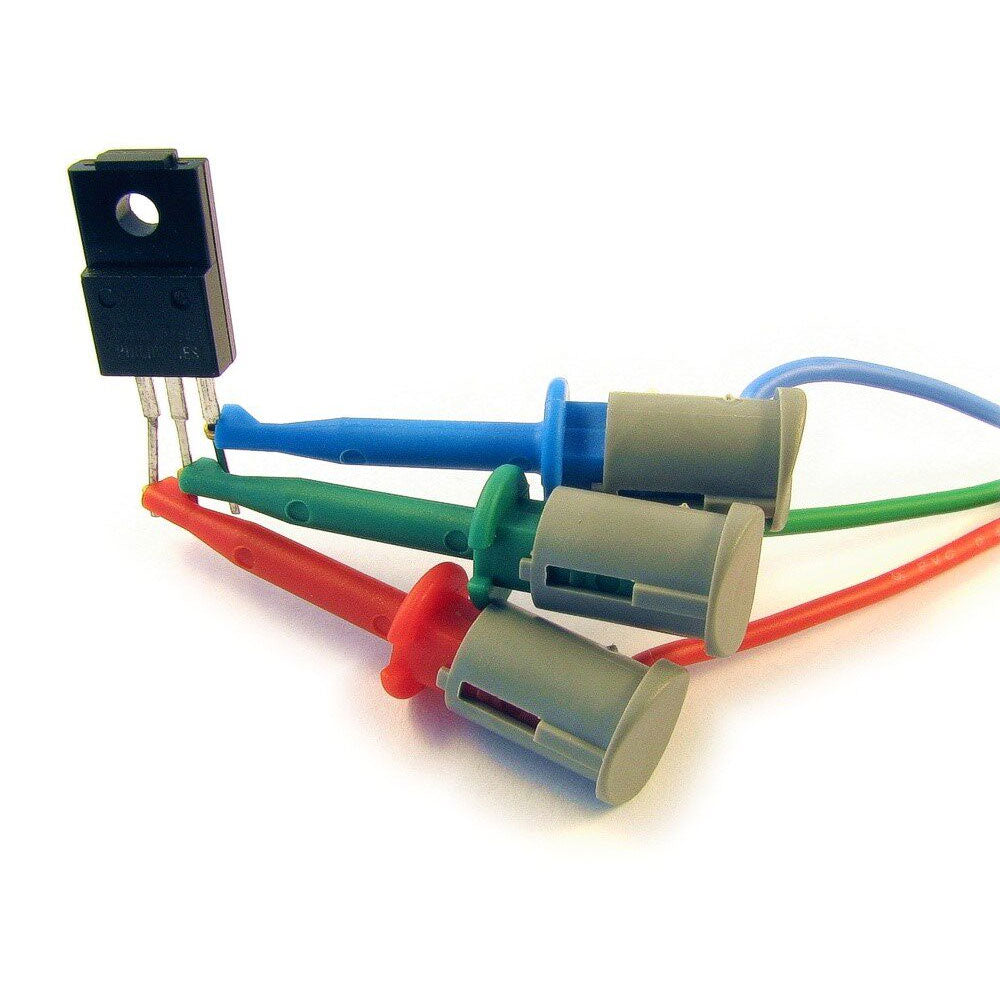

* 1 x Set of Fitted universal premium hook probes
* 1 x AAA Alkaline battery
Packaging Details:
* Package weight: 0.35kg
