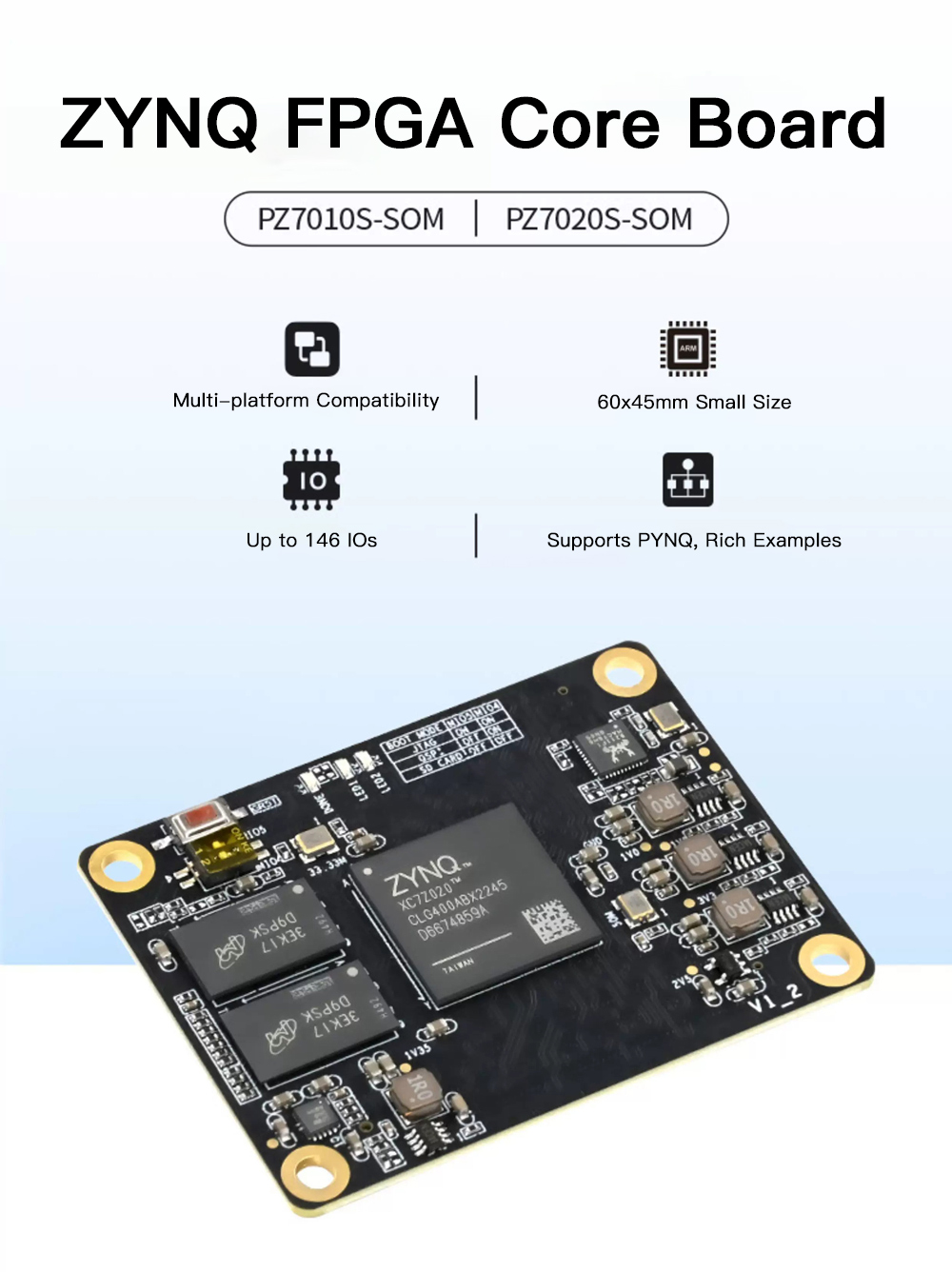

PZ7020S-SOM ZYNQ FPGA Core Board ZYNQ7000 ZYNQ7020 XC7Z020 SoC Module with Optional Accessories

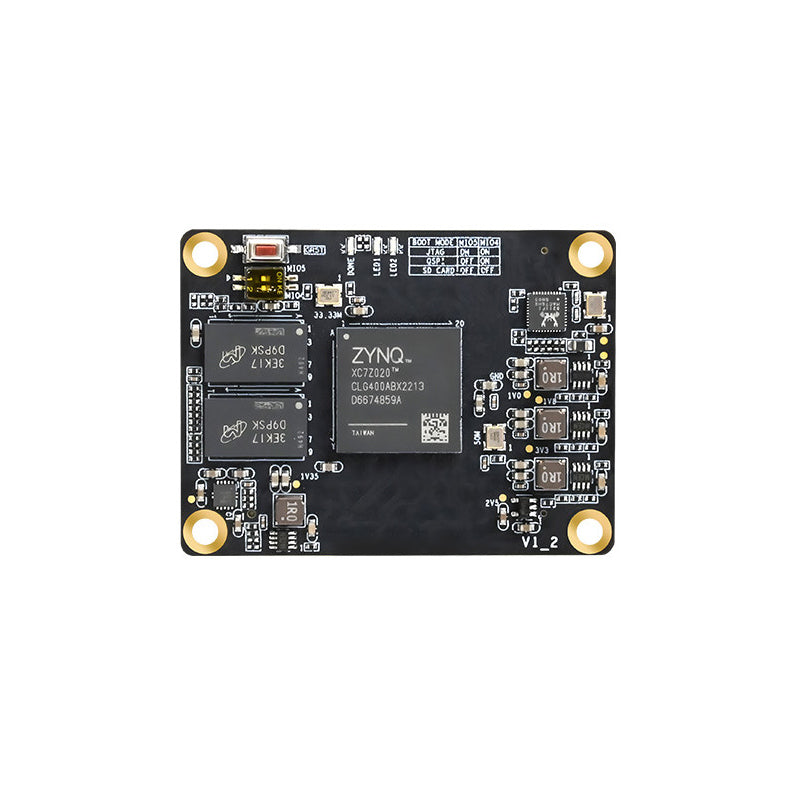

* Core Board Only

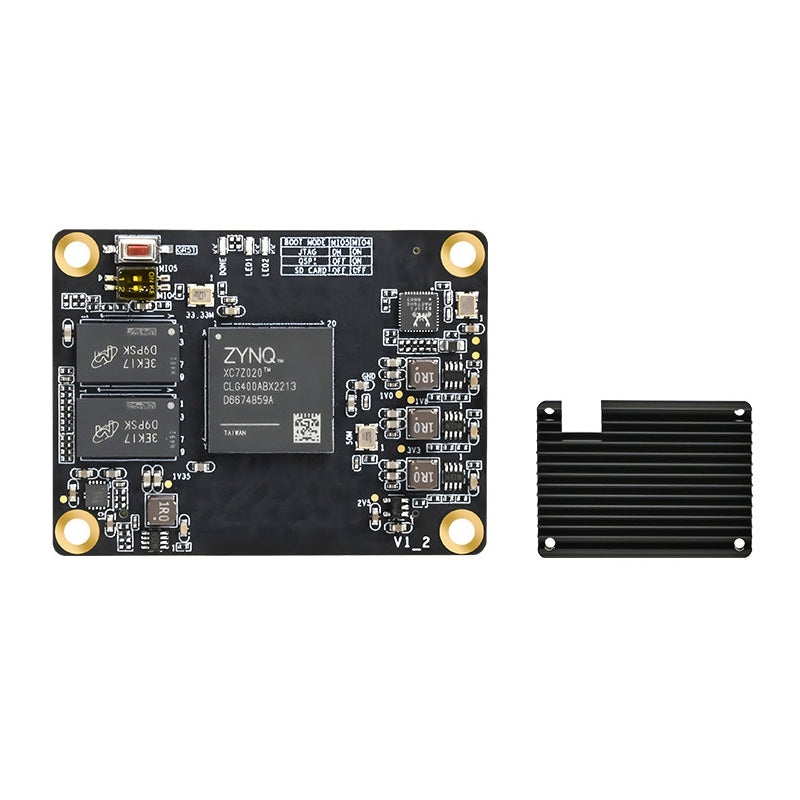

* Core Board + Heatsink

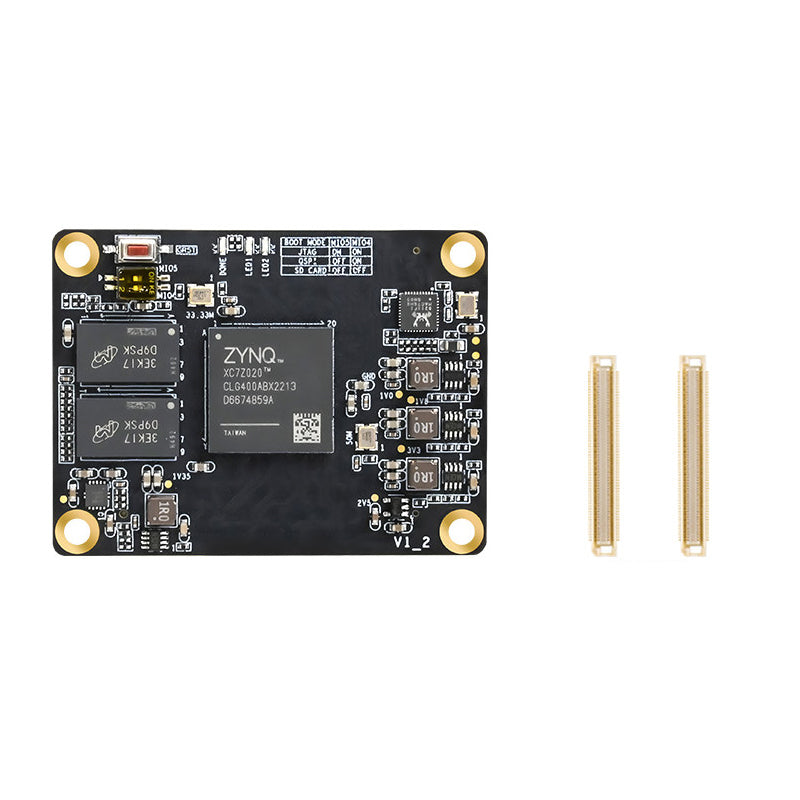

* Core Board + Bottom Board Connector

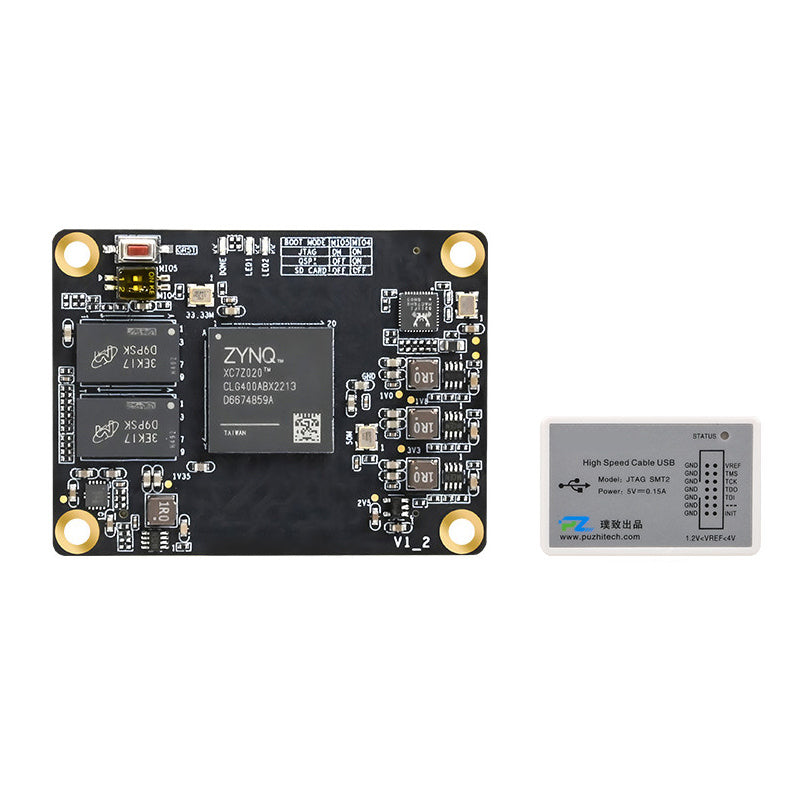

* Core Board + Downloader

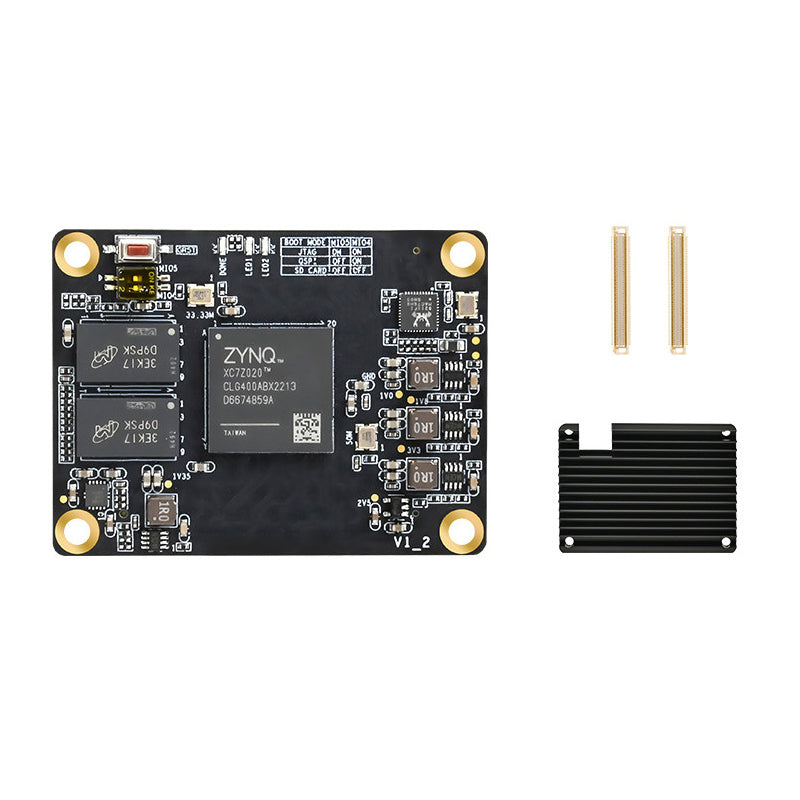

* Core Board + Heatsink + Bottom Board Connector

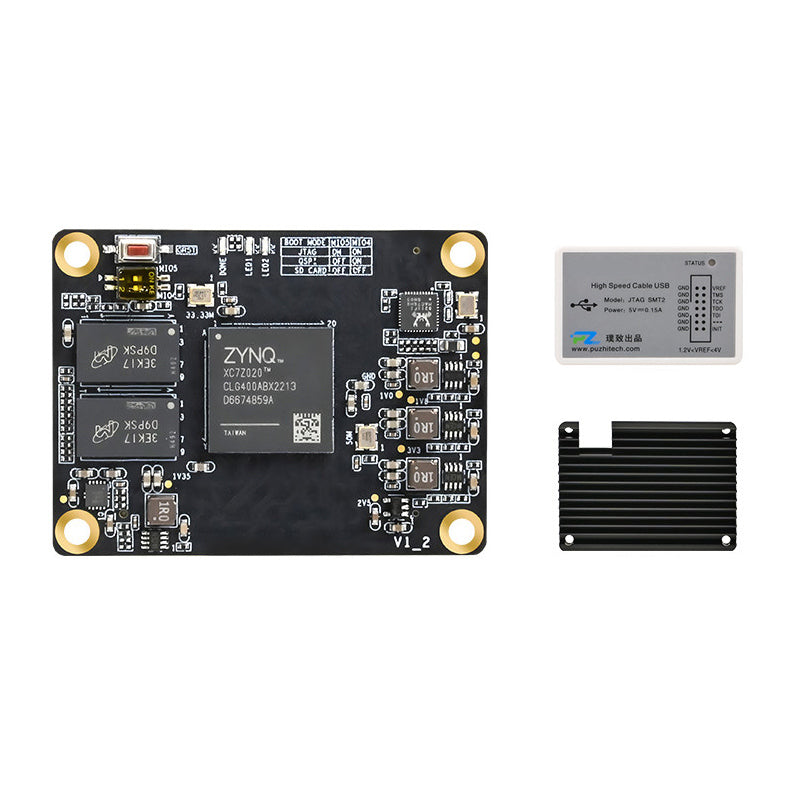

* Core Board + Heatsink + Downloader

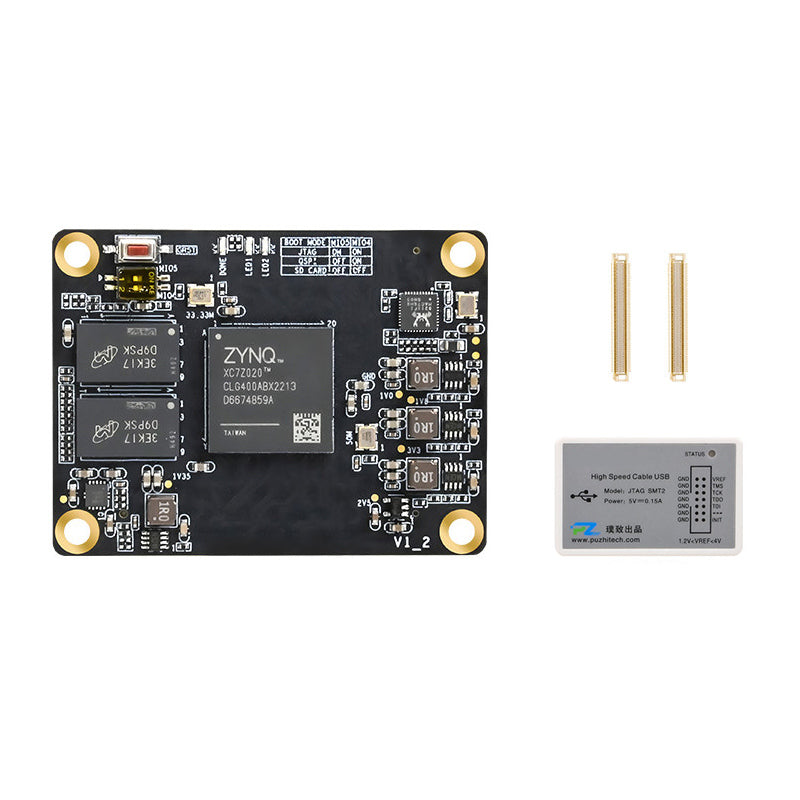

* Core Board + Bottom Board Connector + Downloader

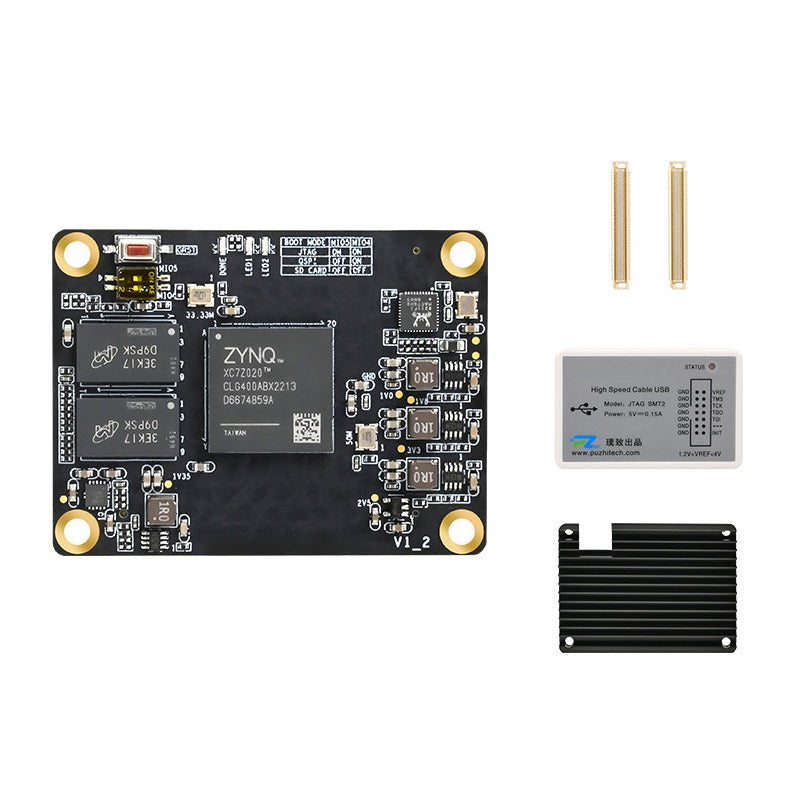

* Core Board + Heatsink + Bottom Board Connector + Downloader

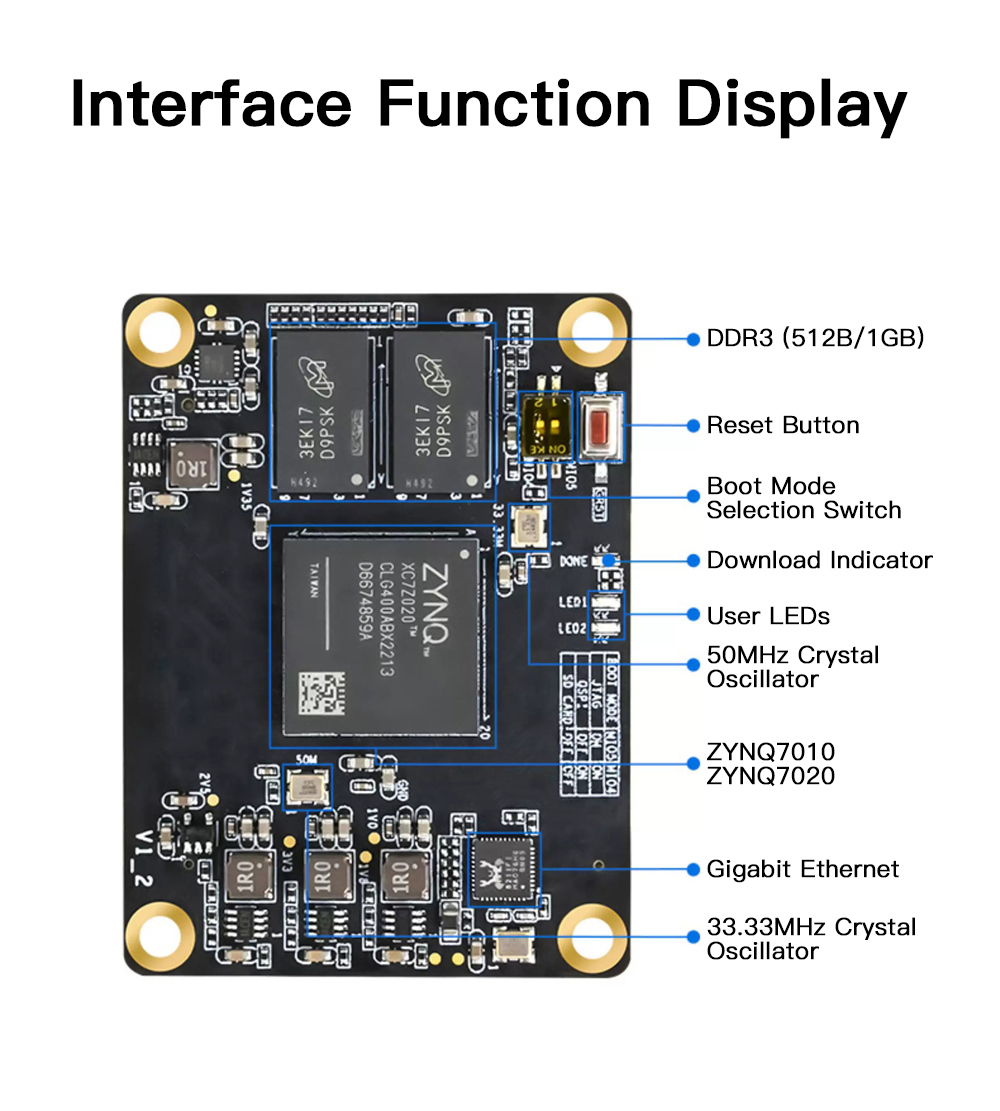

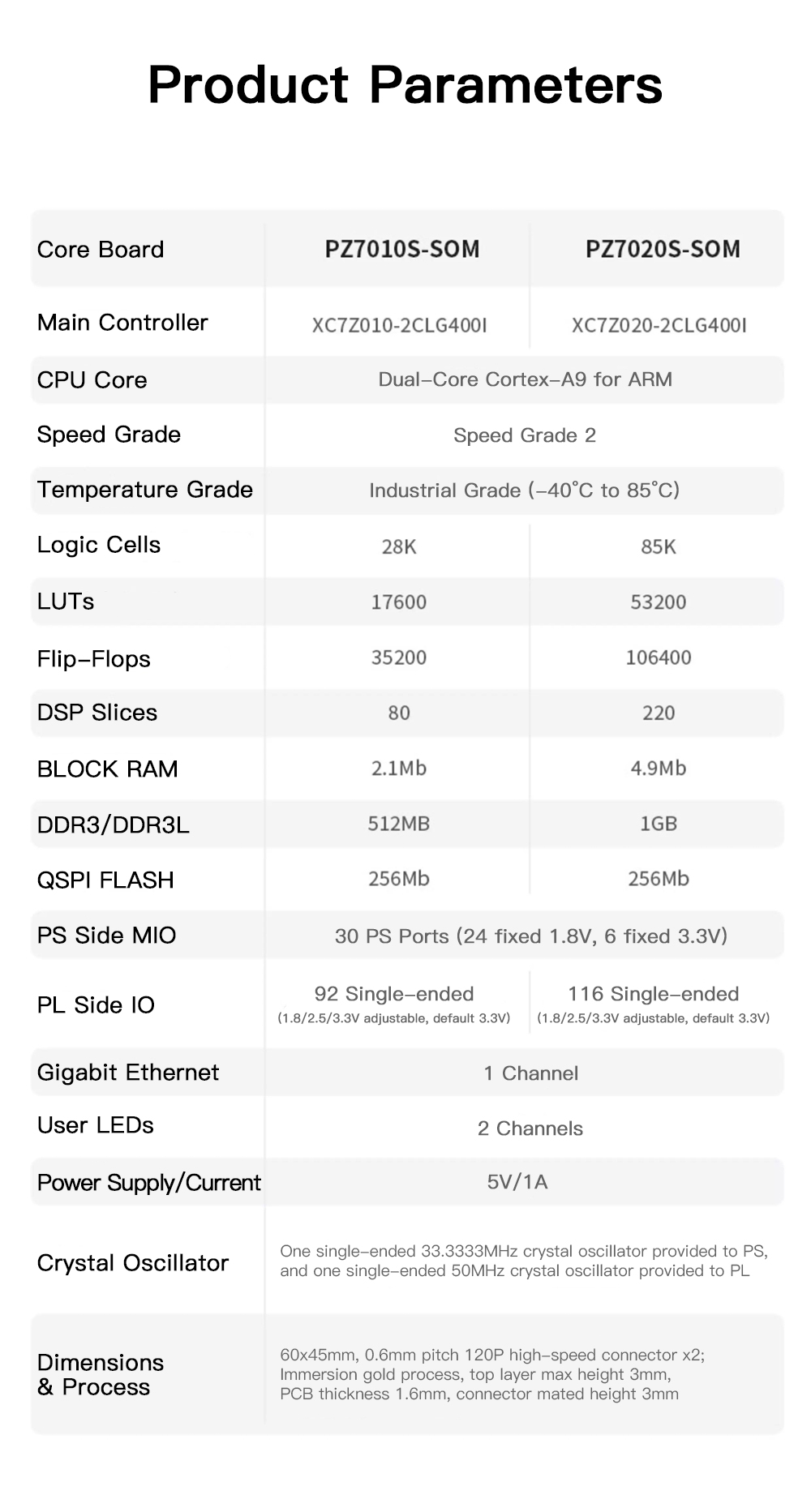

* Powerful ZYNQ7020 SoC Platform – Integrated dual-core Cortex-A9 processor (for ARM) with up to 766MHz operating frequency for high-performance embedded applications.

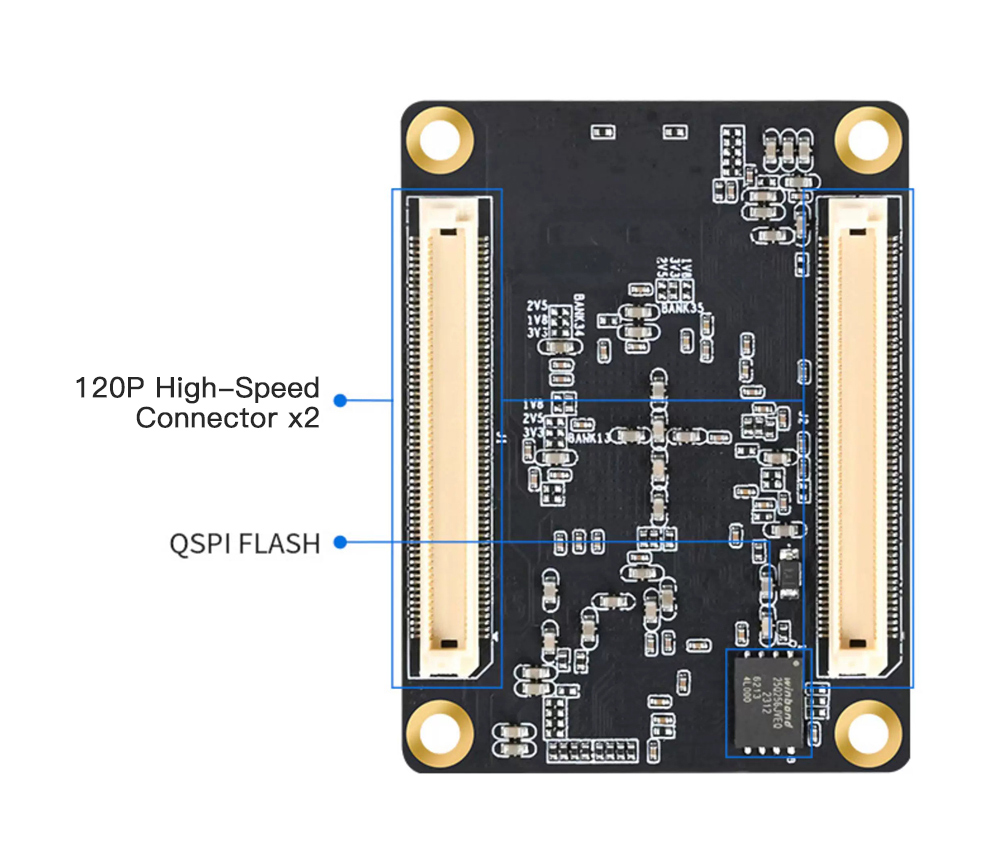

* High-Speed Memory Configuration – Equipped with 1GB DDR3 RAM and 256Mb QSPI Flash for efficient data processing and storage.

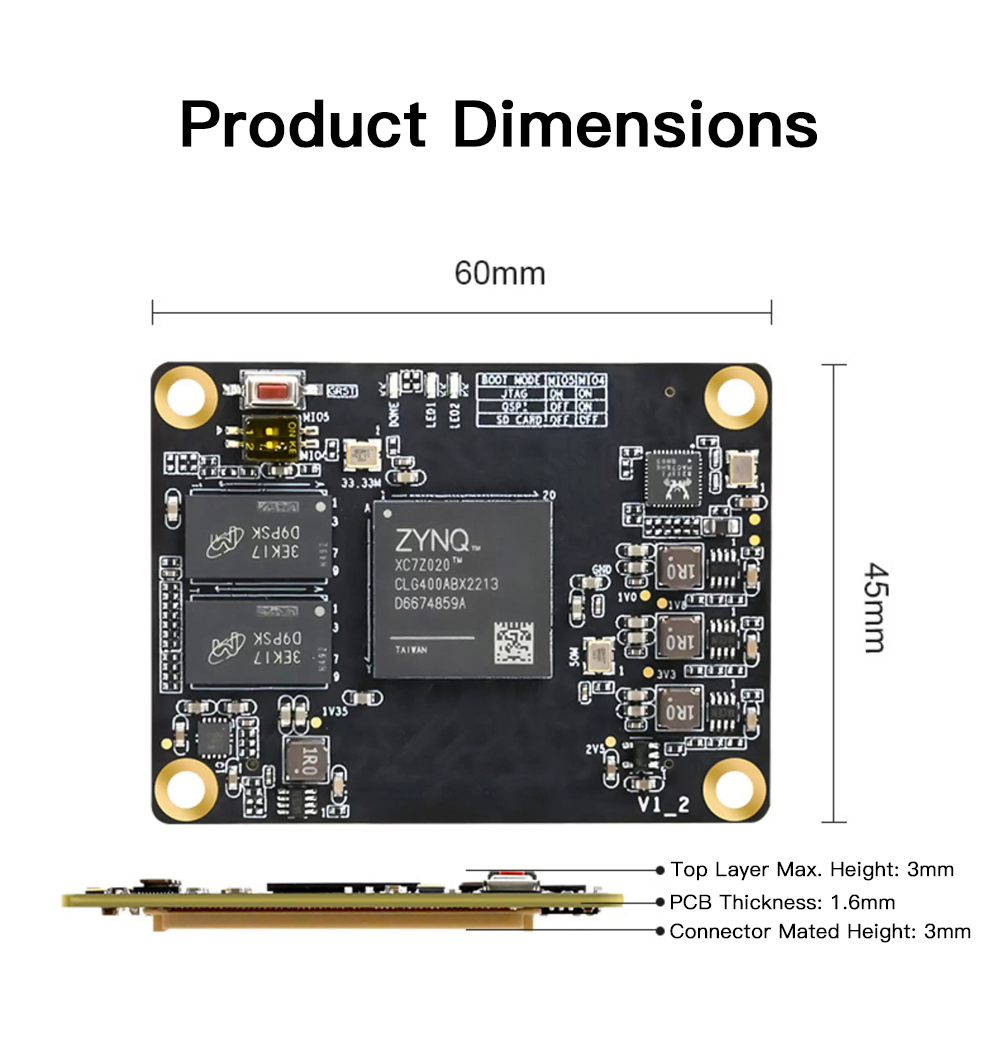

* Compact Design with Rich I/O Resources – Miniature 60 x 45mm form factor while providing up to 146 available user I/O pins for flexible hardware expansion.

* Industrial-Grade Reliability – Built with high-quality components and strict manufacturing standards, supporting a wide operating temperature range of -40°C to +85°C.

* PYNQ Compatible & Development Ready – Supports PYNQ framework, with hardware reference designs and abundant example routines to accelerate project development.

* Certified Quality & Long-Term Reliability – Passed ISO9001 Quality Management System Certification and RoHS Certification. The product has undergone 72-hour rigorous high and low temperature testing and is designed for a 10+ year life-cycle, ensuring stable and dependable performance for long-term industrial applications.

* 1 x PZ7020S-SOM ZYNQ7020 FPGA Core Board

* Optional Accessories: Heatsink/Bottom Board Connector/JTAG Downloader (Depends on Selected Configuration)

* Package weight: 0.15kg
