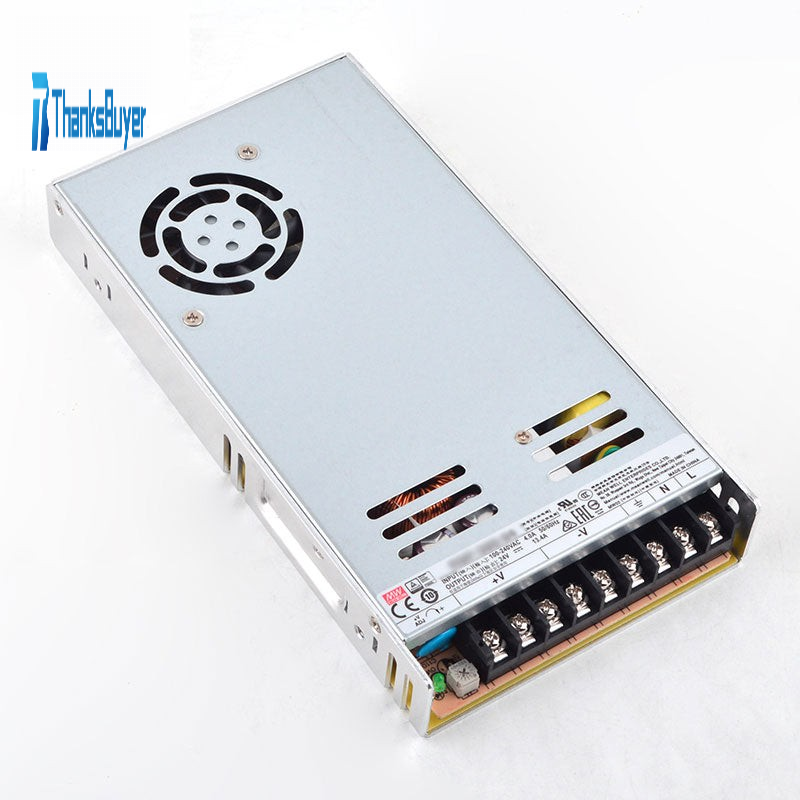

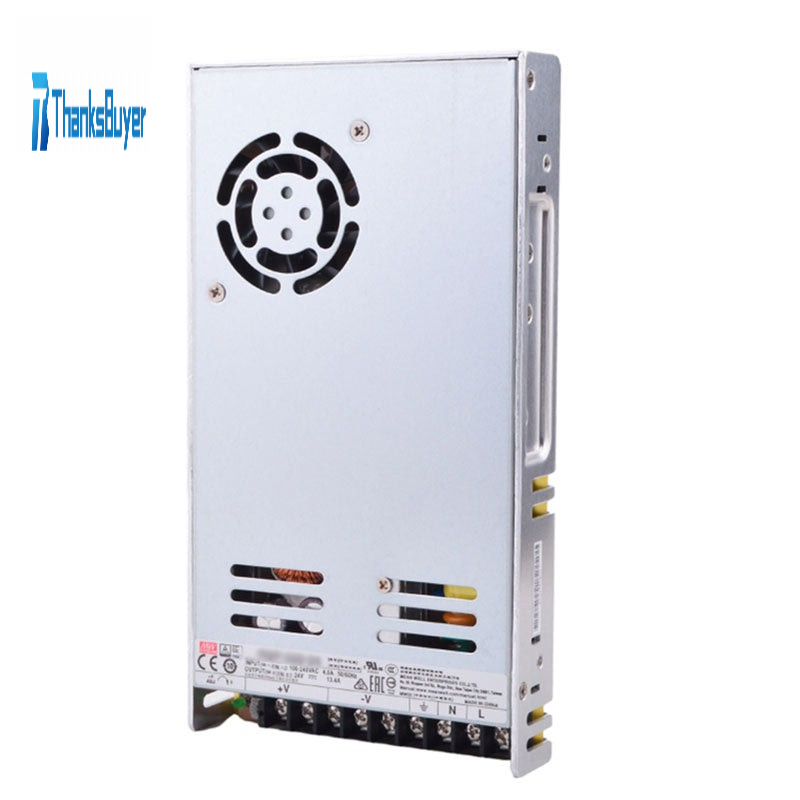

RSP-320-36 36V/8.9A High Quality Switch Power 320W Single Output with PFC Function for MEAN WELL

RSP-320-36 36V/8.9A High Quality Switch Power 320W Single Output with PFC Function for MEAN WELL

Specification:
Output:
- DC voltage: 36V
- Rated current: 8.9A
- Current range: 0 ~ 8.9A
- Rated power: 320W
- Ripple & noise (max): 220mVp-p
- Voltage ADJ. range: 32.4 ~ 39.6V
- Voltage tolerance: ±1.0%
- Line regulation: ±0.2%
- Load regulation: ±0.5%
- Setup, rise time: 1500ms, 50ms/230VAC; 3000ms, 50ms/115VAC at full load
- Hold up time (Typ.): 8ms at full load, 230VAC/115VAC

Input:
- Voltage range: 88 ~ 264VAC, 124 ~ 370VDC
- Frequency range: 47 ~ 63Hz
- Power factor (Typ.): PF > 0.95/230VAC; PF > 0.98/115VAC at full load
- Efficiency (Typ.): 89.5%
- AC current (Typ.): 4A/115VAC; 2A/230VAC
- Inrush current (Typ.): 20A/115VAC; 40A/230VAC
- Leakage current: <1mA/240VAC

Protection:
- Overload:
  105 ~ 135% rated output power
  Protection type: Hiccup mode, recovers automatically after fault condition is removed
- Over voltage:
  41.4 ~ 48.6V
  Protection type: Shut down o/p voltage, re-power on to recover
- Over temperature: Shut down o/p voltage, recovers automatically after temperature goes down

Environment:
- Working temperature: -30 ~ +70℃ (refer to “Derating Curve”)
- Working humidity: 20 ~ 90%RH non-condensing
- Storage temperature/humidity: -40 ~ +85℃, 10 ~ 95%RH
- Temperature coefficient: ±0.03%/℃ (0 ~ 50℃)
- Vibration: 10 ~ 500Hz, 2G 10min./1 cycle, 60min. Each along X, Y, Z axes

Package Included:
- 1 x Switch Power
