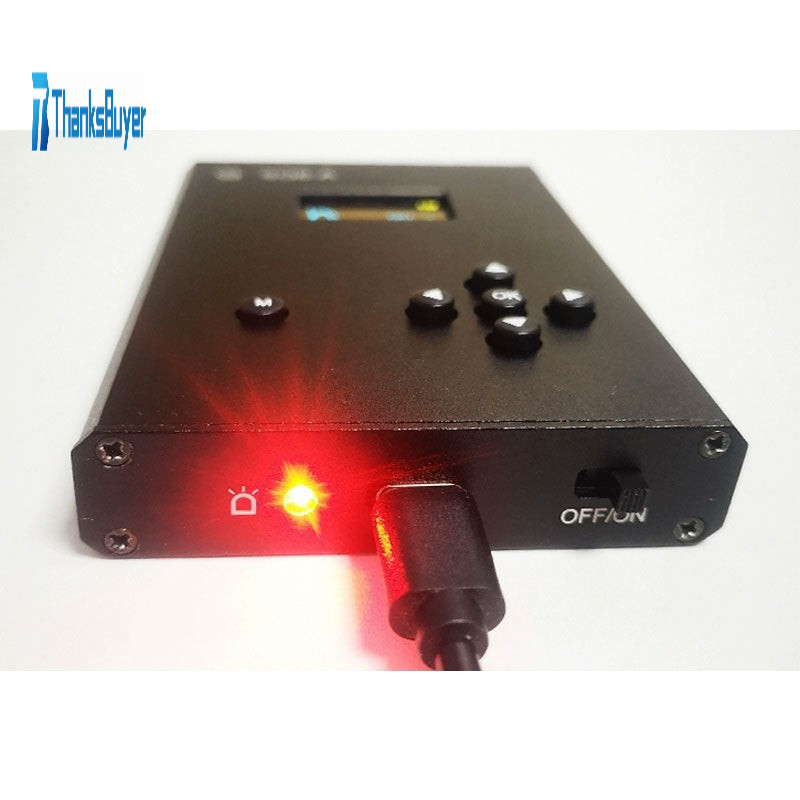

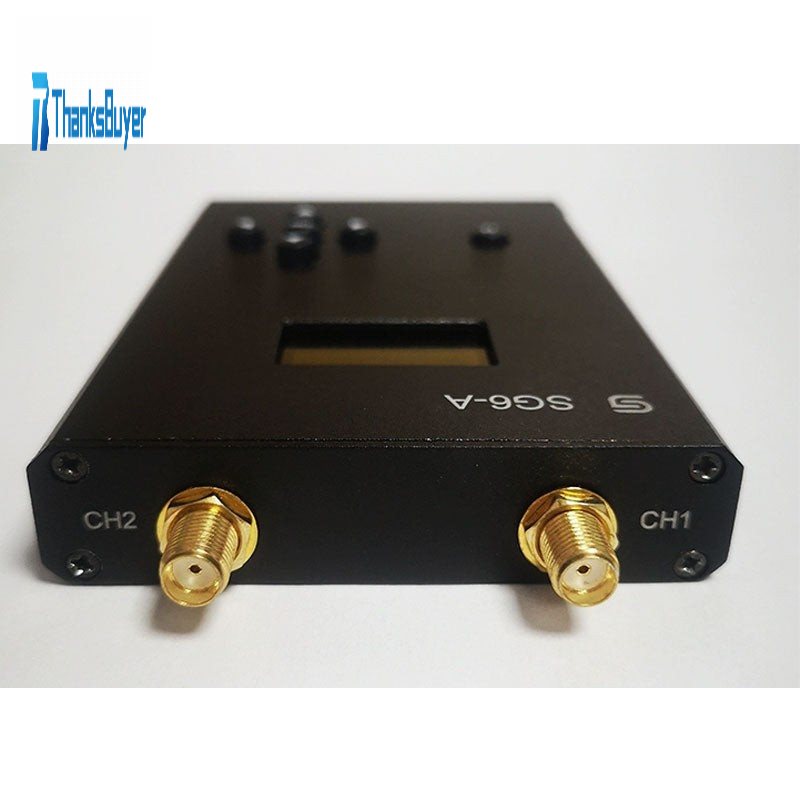

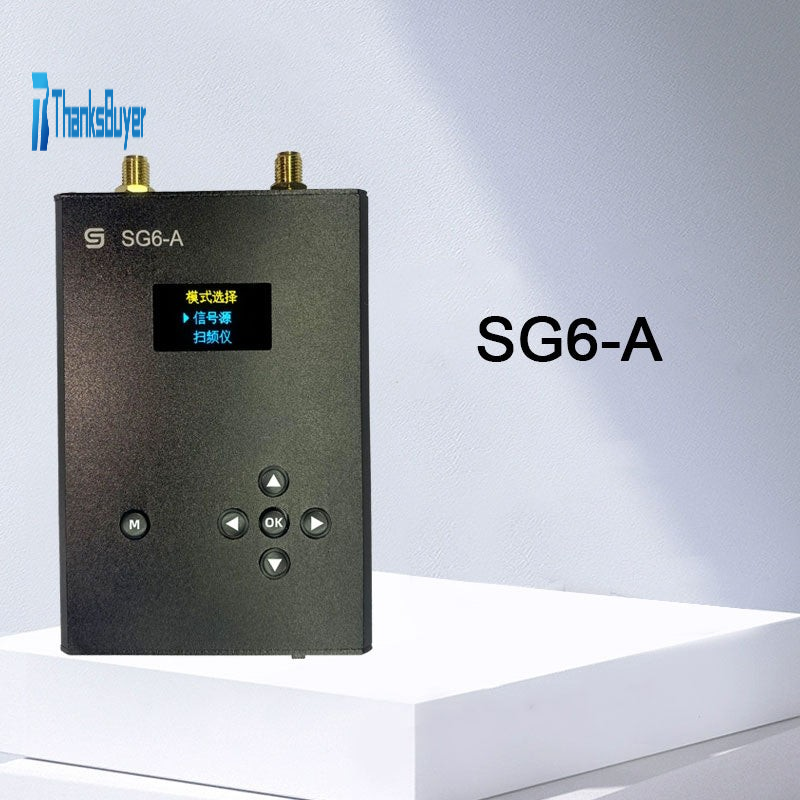

SG6-A English Version Handheld Signal Generator Frequency Sweeper RF Sinusoidal Signal Source

SG6-A English Version Handheld Signal Generator Frequency Sweeper RF Sinusoidal Signal Source

Features:
- Handheld signal generator can generate sine wave high-frequency and low-frequency analog waveforms
- Used as a signal source and a frequency sweeper. It supports any frequency and power
- LCD can display mode selection, channels, power, frequency and step
- Can be widely used in information and communication, corporate research, military research, student laboratories, etc.

Specifications:
- Frequency range: CH1: 0.01Hz~40MHz; CH2: 23.5MHz~6GHz
- Power range: -35dBm to +5dBm
- Power step: 0.5dBm
- Frequency step: 0.01Hz
- Frequency accuracy: 0.01Hz
- Sweep width: Adjustable at any frequency
- Sweep step: Adjustable at any frequency
- Sweep time: Adjustable at any time
- Error: <0.01%
- Output signal: Sine wave
- Output interface: SMA (inner hole)
- Built-in battery: High capacity battery
- External supply voltage: DC3.3V~6.5V
- Battery life: > 5 hours
- Charging time: < 3 hours
- Power supply interface: TYPE-C
- Operating temperature: -40°C to +85°C
- Product dimensions: 96 x 68 x 16mm/3.8 x 2.7 x 0.6"
- Product weight: 200g/0.4lb

Package Included:
- 1 x Signal Generator
